Scaffolding Adjustable Base Jack for Scaffolding Construction Project

Scaffolding Adjustable Base Jack for Scaffolding Construction Project

A scaffolding adjustable base jack is a device used in the construction industry to provide support and stability to scaffolding structures. Adjustable base jacks are typically made of galvanized steel to protect them from the elements. They are available in a variety of sizes to accommodate different scaffold frames. The base plate is designed to distribute the weight of the scaffolding evenly over a larger surface area, while the swivel head allows the scaffolding base jack to be adjusted to level the scaffolding on uneven ground. The threaded rod can be extended or retracted to adjust the height of the scaffolding as needed.Scaffolding adjustable base jacks are typically used in conjunction with other scaffolding components, such as standards, ledgers, and transoms, to create a stable and safe working platform for workers in construction and other industries. They are an essential component of scaffolding systems and are designed to meet stringent safety standards to protect workers and ensure the stability of the structure.

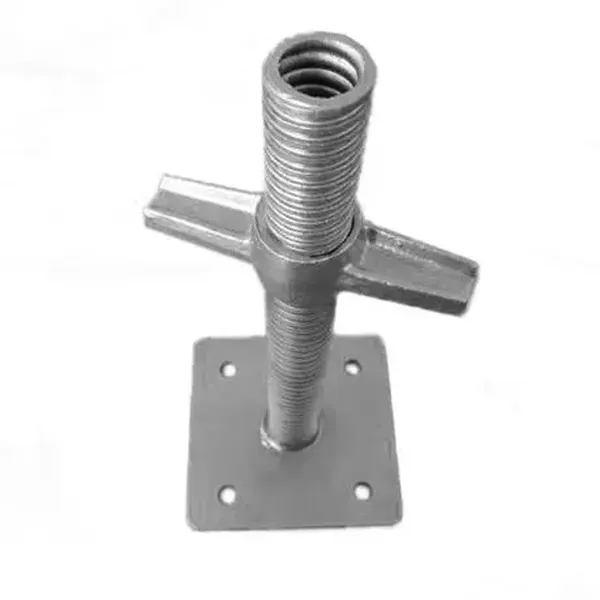

▍Parts of Scaffolding Base Jack

Scaffolding base jacks are made up of the following parts:

• Base plate: The base plate is the bottom part of the scaffolding base jack, and it is what makes contact with the ground. It is usually made of steel, and it has a threaded hole in the center.
• Threaded rod: The threaded rod is the long, cylindrical part of the scaffolding base jack that goes through the base plate. It is also made of steel, and it has a nut at one end.
• Nut: The nut is the threaded part that screws onto the threaded rod. It is used to adjust the height of the scaffolding base jack.
• Locking pin: The locking pin is a small metal pin that goes through the nut and the base plate. It is used to prevent the scaffolding base jack from moving when it is in use.

Scaffolding base jacks are used to level scaffolding. They are also used to make temporary adjustments to the height of scaffolding. They are an essential part of any scaffolding system.

▍Scaffolding Base Jack Specifications

Material	Q235
Variety	Scaffolding Base Jack, Scaffolding Adjustable Base Jack
Surface Treatment	Painted, Powder Painted, Electro-galvanized, HDG
Certificate	ISO, SGS, BV, TUV
Advantage	Strong loading capacity, Safety, and Stability
Main Components	Threaded solid/hollow bar, cast nut, and base plate
Delivery Time	About 20-30 days after confirmation

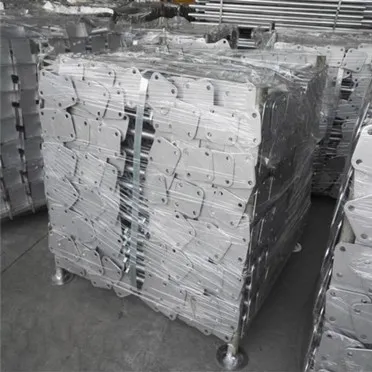

Packing	In bulk or steel pallet or as your request
Service	OEM service
Size	M30/32/34/38*400/600/660/760mm or as your request
Usage	Our scaffolding base jack fits in tube&coupler systems, ringlock systems, frame systems, cuplock systems, etc. These are widely used in bridges, tunnels, petrifaction, shipbuilding, railway, airport, dock industry, and civil buildings.

▍Scaffolding Base Jack Size Chart

Item	Size	Base Plate
Solid Scaffolding Base Jack	30*600mm	120*120*4/5mm
Solid Scaffolding Base Jack	32*600mm	120*120*4/5mm
Solid Scaffolding Base Jack	34*600mm	120*120*5mm
Solid Scaffolding Base Jack	30*400mm	120*120*4/5mm
Solid Scaffolding Base Jack	32*400mm	120*120*4/5mm
Solid Scaffolding Base Jack	34*400mm	120*120*5mm
Hollow Scaffolding Base Jack	34*4*400mm	450*450*5/6mm
Hollow Scaffolding Base Jack	34*4*600mm	450*450*5/6mm
Hollow Scaffolding Base Jack	38*4*400mm	450*450*5/6mm
Hollow Scaffolding Base Jack	38*4*600/660mm	450*450*5/6mm
Hollow Scaffolding Base Jack	38*4*760mm	450*450*5/6mm
Hollow Scaffolding Base Jack	48*4/5*600mm	150*150*8mm
Hollow Scaffolding Base Jack	48*4/5*820mm	150*150*8mm

▍Features of Scaffolding Base Jack

Scaffolding base jacks are essential tools for providing stability and support to heavy loads and structures on construction sites. They come in a variety of shapes and sizes, but they all share some common features.1. Simple structures: Scaffolding base jacks are typically made with a simple design that makes them easy to use and maintain. They typically consist of a base plate, a threaded rod, and a nut.2. High efficiency: Scaffolding base jacks are very efficient at supporting heavy loads. They can support loads up to several tons, depending on the size and type of jack.3. Durable construction: Scaffolding base jacks are made with durable materials that can withstand the harsh conditions of a construction site. They are typically made of steel or aluminum, and they are often galvanized to protect them from corrosion.4. Adjustable height: Scaffolding base jacks are adjustable, which allows them to be used on uneven surfaces. They can be raised or lowered to level the scaffolding, which helps to ensure safety and stability.Scaffolding base jacks are an important safety feature on any construction site. They help to prevent accidents and injuries by providing a stable foundation for scaffolding. When used properly, scaffolding base jacks can help to keep workers safe and productive.

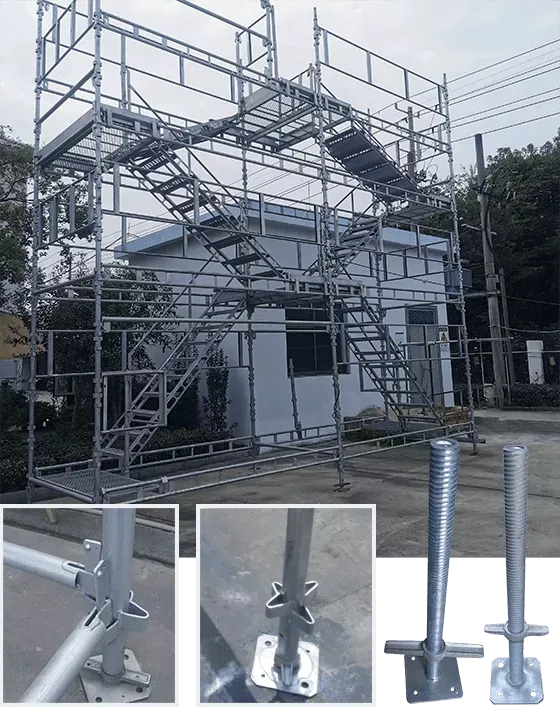

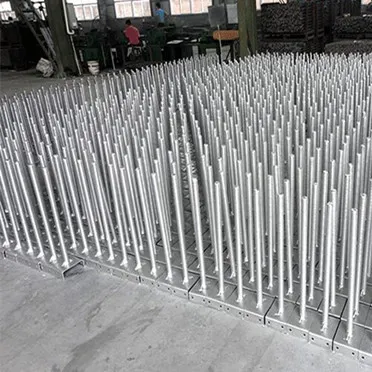

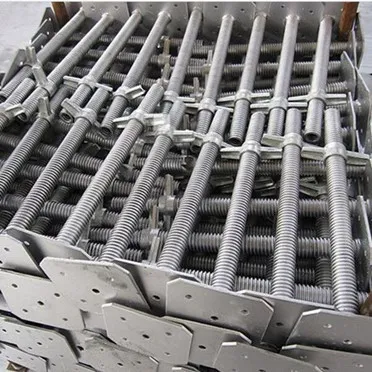

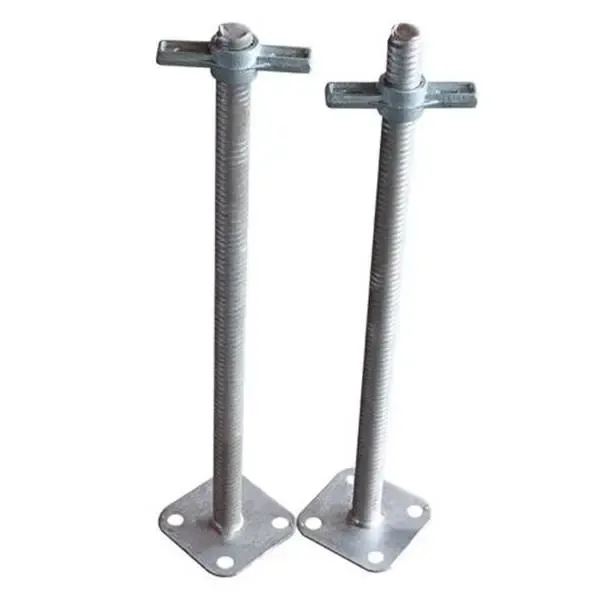

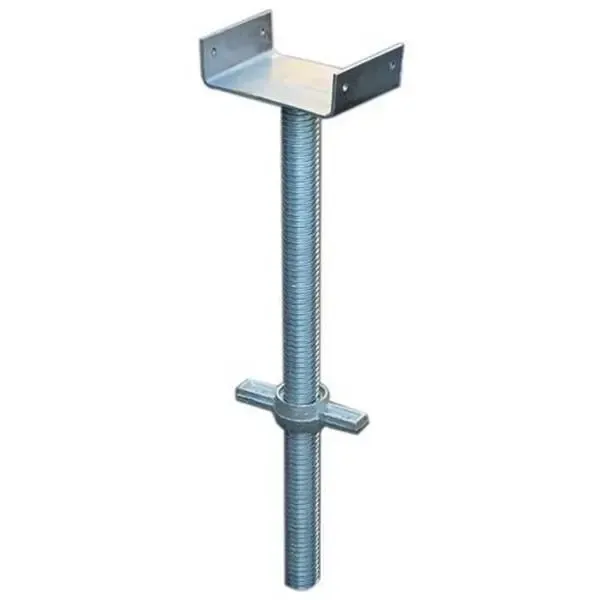

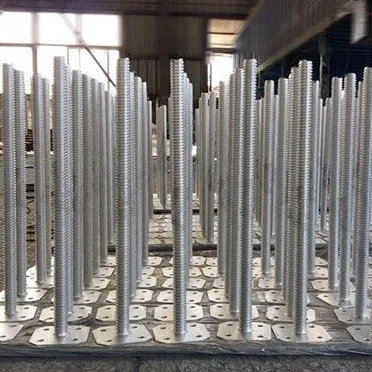

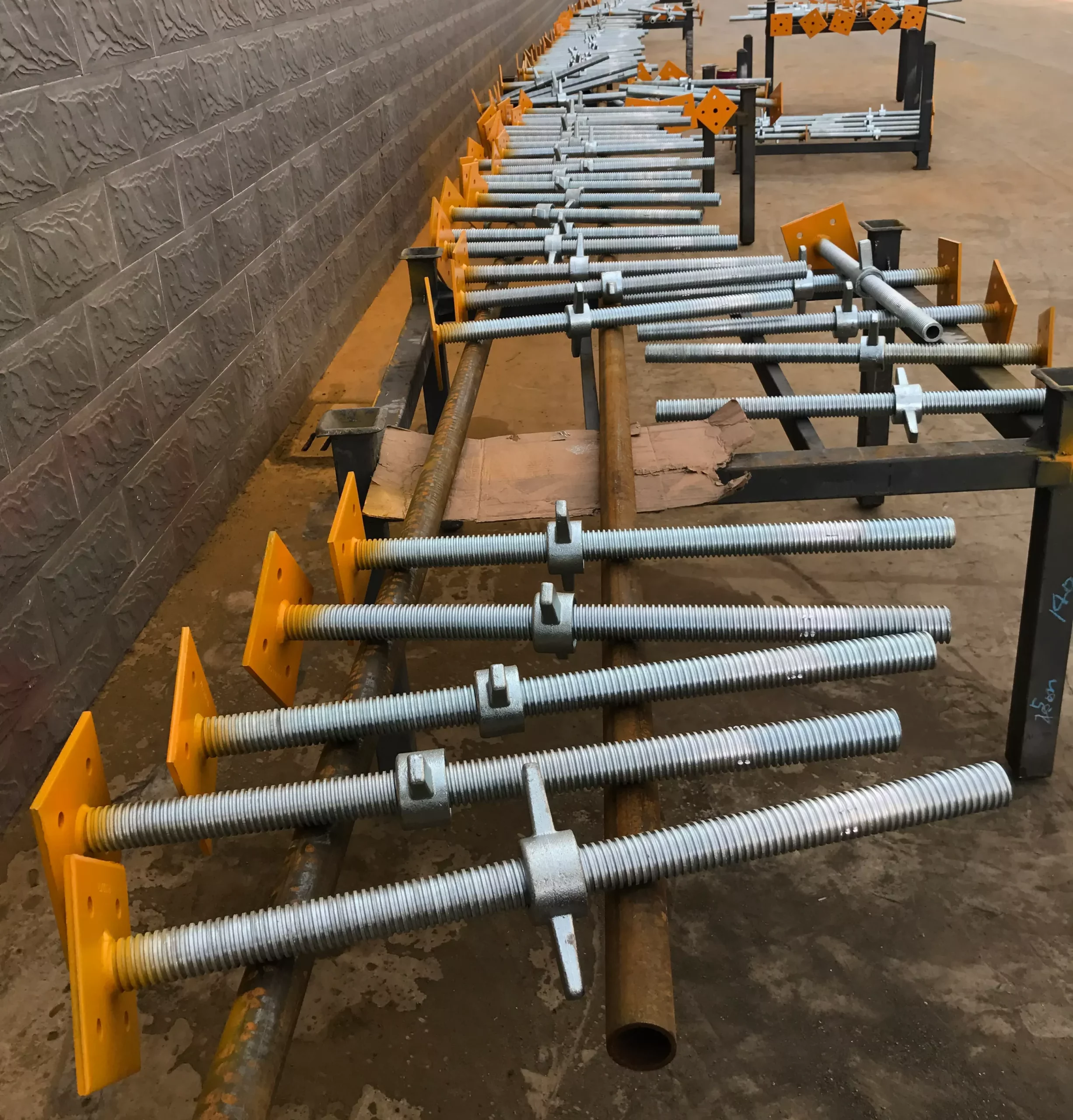

▍Scaffolding Adjustable Base Jack Product Show

▍How to Install Scaffolding Base Jack to Level the Floor?

If the building is built on expansive soil, therefore, with regular movement, a scaffolding base jack can replace concrete piers between solid wood columns and girders that support the floor joists.A scaffolding base jack is a metal support column that can be adjusted to make the floor level. It consists of two heavy steel tubes, one inside the other. The inner tube is threaded and adjusted up and down by turning a large wing nut. Scaffolding base jacks are fixed with nails to the underside of the rafter and to wooden blocks on top of the concrete pier.

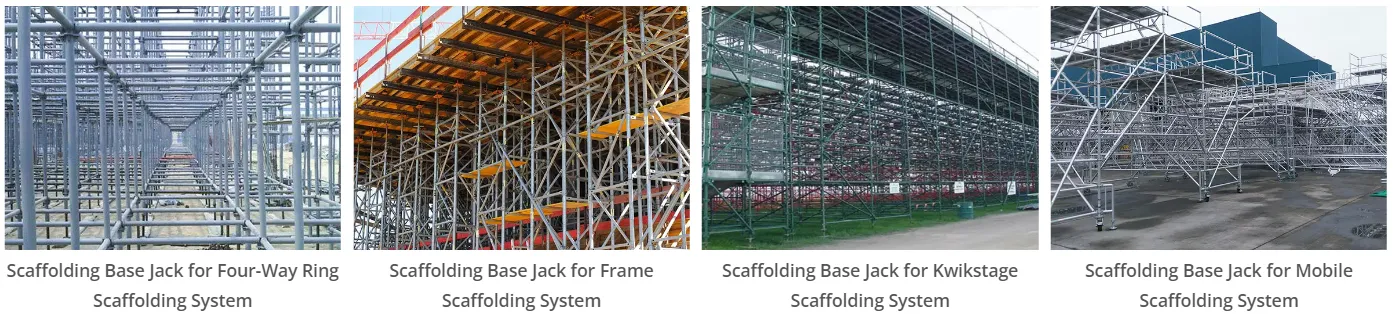

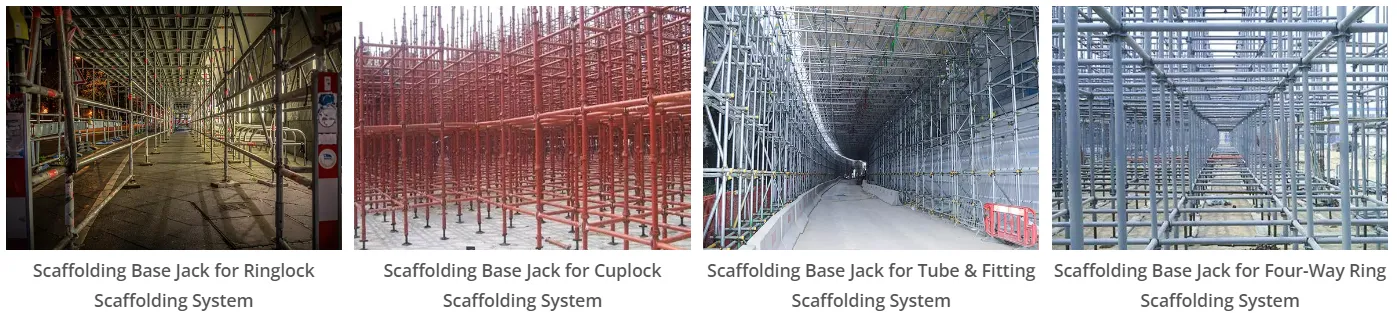

▍Application of Scaffolding Base Jack

The scaffold base jack is widely used in combination with scaffolding systems for buildings, halls, bridges, and high-rise buildings inside and outside the row of scaffolding, used for electromechanical installation, hull construction, decoration engineering activity platform, building a simple roof, temporary site dormitory, warehouse, temporary observation platform, etc.Scaffolding base jacks are used in construction to provide a stable base for scaffolding structures. Here are some common applications of scaffolding base jacks:(1) Leveling the scaffolding structure: Scaffolding base jacks are used to level the scaffolding structure on uneven terrain. The base jack can be adjusted to ensure that the scaffolding is stable and level.(2) Supporting heavy loads: Scaffolding base jacks are designed to support heavy loads such as workers, equipment, and materials. The base jack distributes the weight evenly and provides a stable base for the scaffolding structure.(3) Adjusting the height of the scaffolding: Scaffolding base jacks can be adjusted to change the height of the scaffolding structure. This is useful when working on different levels of a building or when the ground level changes.(4) Providing stability to the scaffolding: Scaffolding base jacks are used to provide stability to the scaffolding structure. The base jack is designed to prevent the scaffolding from toppling over, even in high winds or when there is a lot of movement on the scaffolding.(5) Supporting different types of scaffolding: Scaffolding base jacks can be used with different types of scaffolding systems, including frame scaffolding, system scaffolding, and tube and clamp scaffolding.

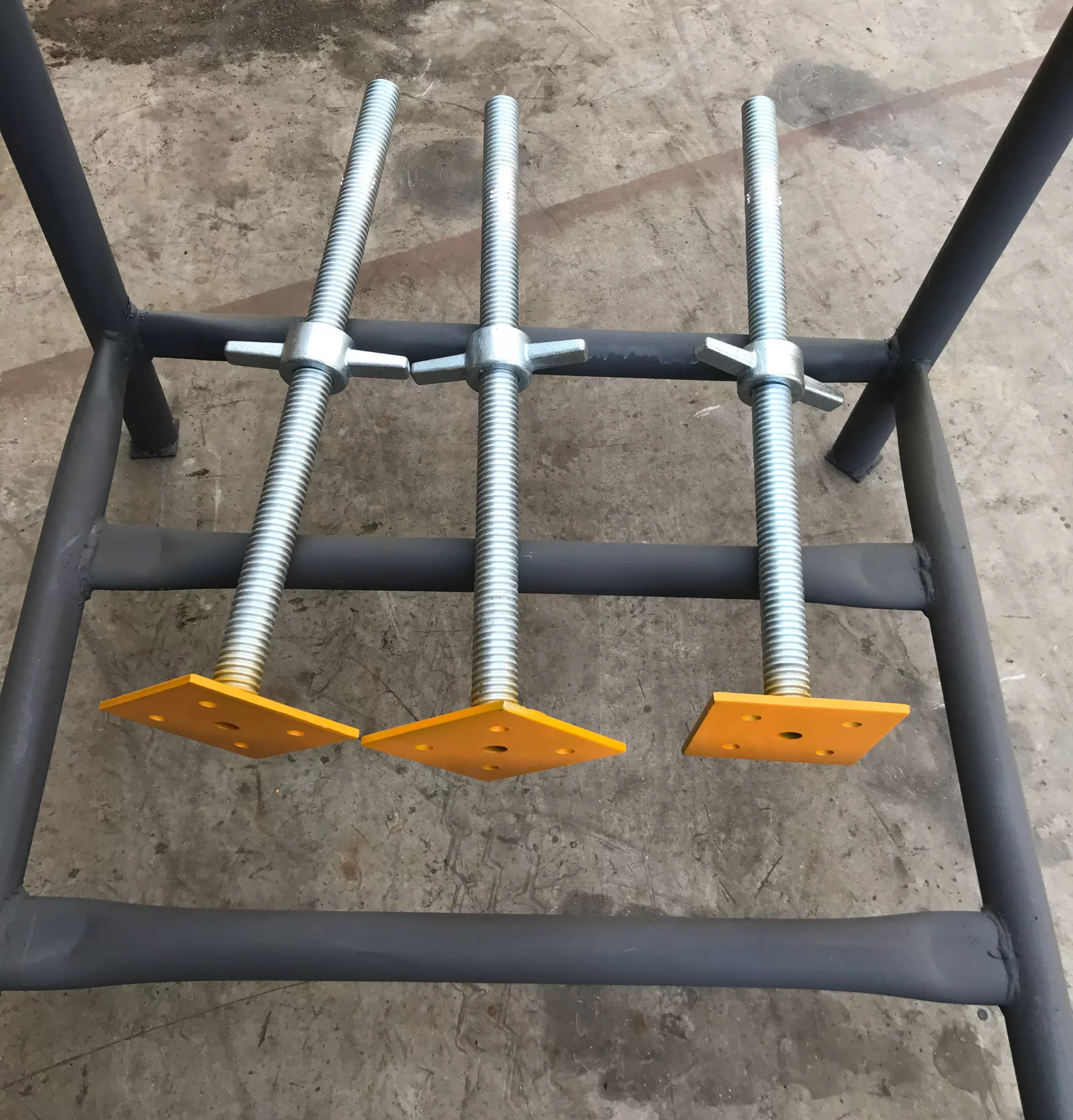

▍Scaffolding Base Jack Manufacturers & Suppliers

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tubes, galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, scaffolding frame systems, scaffolding steel props, scaffolding tubes, scaffolding adjustable base jack, scaffolding plank, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil, and petrochemical projects.The factory has ten production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" For this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]

▍FAQ

Q1: What is a scaffolding base jack?A: A scaffolding base jack is a type of adjustable support used in scaffolding systems. It is typically made of steel and consists of a threaded rod attached to a flat base plate.Q2: What is the purpose of a scaffolding base jack?A: The purpose of a scaffolding base jack is to provide a stable and level foundation for scaffolding systems. By adjusting the height of the scaffolding base jack, workers can ensure that the scaffolding is level and secure, even on uneven terrain.Q3: How do you use a scaffolding base jack?A: To use a scaffolding base jack, first place the base plate on a solid surface. Then, insert the threaded rod into the scaffolding frame and use a wrench to adjust the height of the scaffolding base jack until it is level.Q4: How much weight can a scaffolding base jack support?A: The weight capacity of a scaffolding base jack depends on the specific model and manufacturer. Typically, scaffolding base jacks can support several hundred pounds of weight, but it's important to check the manufacturer's specifications to ensure that the scaffolding base jack is rated for the intended load.Q5: Can you use a scaffolding base jack on uneven ground?A: Yes, scaffolding base jacks are designed to be used on uneven ground. By adjusting the height of the scaffolding base jack, workers can compensate for uneven terrain and ensure that the scaffolding is level and stable.Q6: Are there different types of scaffolding base jacks?A: Yes, there are several different types of scaffolding base jacks, including scaffolding screw base jacks, scaffolding U-head base jacks, and scaffolding swivel base jacks. Each type has its own unique features and benefits, and the choice of scaffolding base jack will depend on the specific requirements of the scaffolding project.Q7: Are scaffolding base jacks reusable?A: Yes, scaffolding base jacks are designed to be reusable. With proper care and maintenance, they can be used for multiple scaffolding projects over a period of years. However, it's important to inspect the scaffolding base jacks regularly for signs of wear or damage and replace them as needed to ensure safety.
