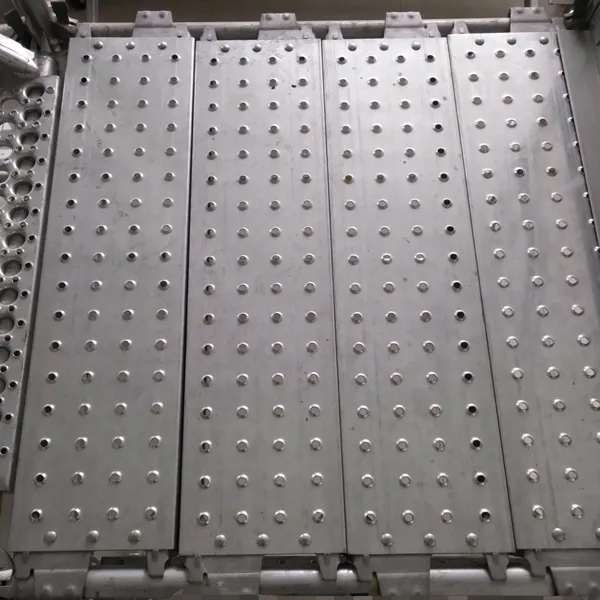

Scaffolding Steel Plank With Hook for Construction Building

Steel plank with hooks is the central part of the ringlock scaffolding system. It is very convenient for the worker when their working on the scaffolding. The structure is simple and safe. There are stamping holes on the steel plank with a hook. And these protect the worker from resisting skidding. The surface of the steel plank with the hook is galvanized. And this is to ensure the safety of the steel plank with a theme strong on a rainy day and a moist environment.

Product Size of Steel Plank with Hooks:

Steel Plank with Hock
Type	Description	Size/mm	Weight (kg/pcs)	More possibility
Steel Plank	Steel plank	210x45x1.2x2000	7.14kg	Plate Rib or Square RibThickness:1.0-3.0mmLength:320X45/50X1.5mm, and other sizes can be customizedHook:43mm or 50mm
	Steel plank	225X38X1.8X2000	10.81kg
	Steel plank	230X63.5X1.8X2420	14.92kg
	Steel plank	240x45x1.2x2000	7.85kg
	Steel plank	250x50x1.2x2000	8.36kg
	Steel plank	300X50X1.2X2000	9.99kg
	Double steel plank	400x45x1.2x2000	12.95kg
	Double steel plank	420x45x1.2x2000	13.67kg
	Double steel plank	480x45x1.2x2000	14.79kg
	Double steel plank	500x50x1.2x2000	15.50kg
Catwalk	Catwalk	210x45x1.2x1829	5.9kg
	Catwalk	250x50x1.2x1829	7.4kg
	Catwalk	250x50x1.2x1829	7.8kg
	Double catwalk with hock	400x45x1.2x1829	12.35kg
	Double catwalk with hock	450x45x1.2x1829	12.7kg
	Double catwalk with hock	480x45x1.2x1829	13.4kg
	Double catwalk with hock	500x50x1.2x1829	14kg

Scaffolding Steel Plank with Hook Features

The Scaffolding Steel Plank with hook is an important part of the scaffolding. It is used as a walkway steel plank in the scaffolding system for construction safety.The use of a Scaffolding Steel Plank with a hook avoids the disadvantage of heavy water absorption and extreme slippery caused by rain on wooden scaffold planks.The Scaffolding Steel Plank with hook is connected with CO2 arc welding against cracking and deformation, which provides corrosion and rust resistance.It is lightweight, high-strength, easy to erect, and highly reusable. Both galvanized and ungalvanized, you can choose depending on your needs.The Scaffolding Steel Plank with hook is made up of Q195~Q235 steel as raw material and is widely used in all kinds of scaffolding.

Product Advantages of Steel Plank With Hooks:

1. Durable and Firm2. High load capacity3. Save cost and quality assurance4. Long lifetime5. Lightweight, Anti-fire, Slip prevention

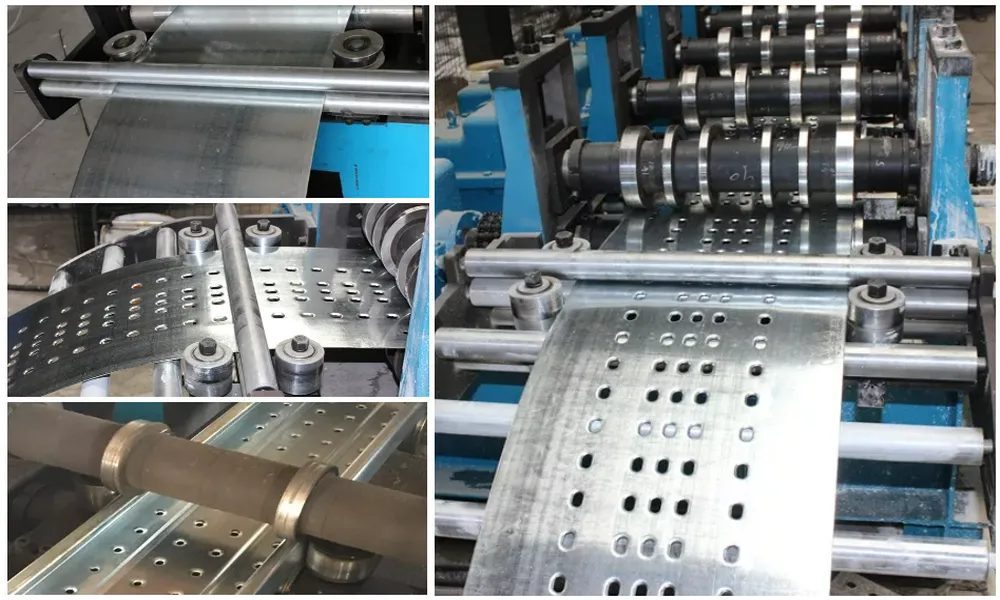

Manufacturing Technique

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
