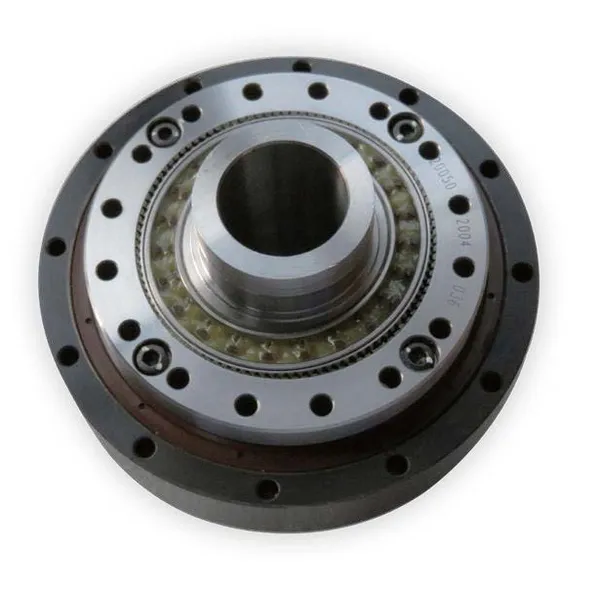

SF/SG-S2 Series Harmonic Drive (Strain Wave Gear Reducer)

SF/SG-S2 Series Harmonic Drive Reducer

The SF/SG-S2 series harmonic drive reducer is a type of precision gear mechanism widely used in various industrial applications. The key component of the SF/SG-S2 series is the strain wave gear mechanism, which consists of three main elements: a circular spline, a flex spline, and a wave generator. These components work together to achieve high gear reduction ratios with zero backlash, making the SF/SG-S2 series ideal for applications where precise motion control is essential.The SF/SG-S2 series harmonic drive reducers are known for their compact size and lightweight design, making them suitable for use in robotics, automation systems, aerospace equipment, and various other industries. They offer excellent torque density, meaning they can transmit high levels of torque relative to their size.One of the key advantages of the SF/SG-S2 series harmonic drive is its high positional accuracy and repeatability, which is crucial in applications that require precise positioning and control. The absence of backlash ensures that any motion input is immediately translated to the output, allowing for highly accurate movements.Additionally, the SF/SG-S2 series harmonic drive provides high torsional rigidity, which minimizes deflection and ensures stable operation even under heavy loads. This feature is particularly important in applications that involve heavy machinery or robotic systems.

SF/SG-S2 Series Harmonic Drive Reducer Features:

1. solid input shaft for easy installation2. compact design3. High torque capacity4. high rigidity5. no backlash6. Input and output coaxial

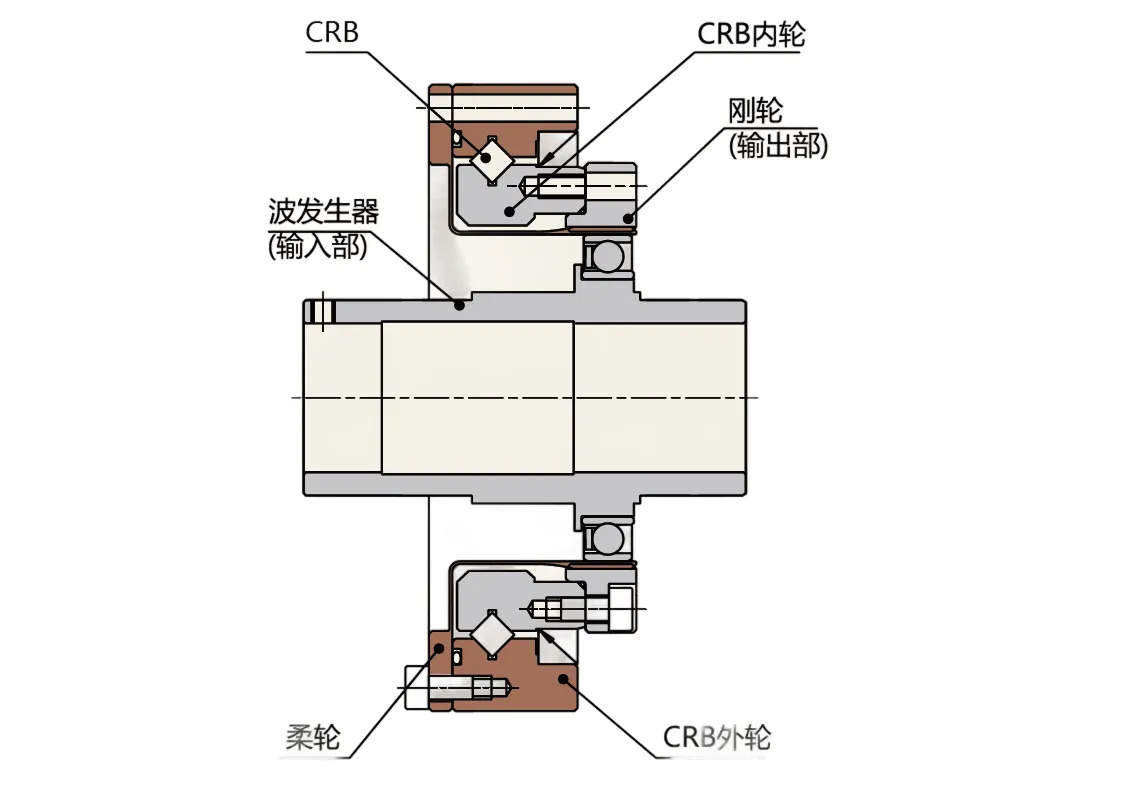

SF/SG-S2 Series Harmonic Drive Reducer Structure:

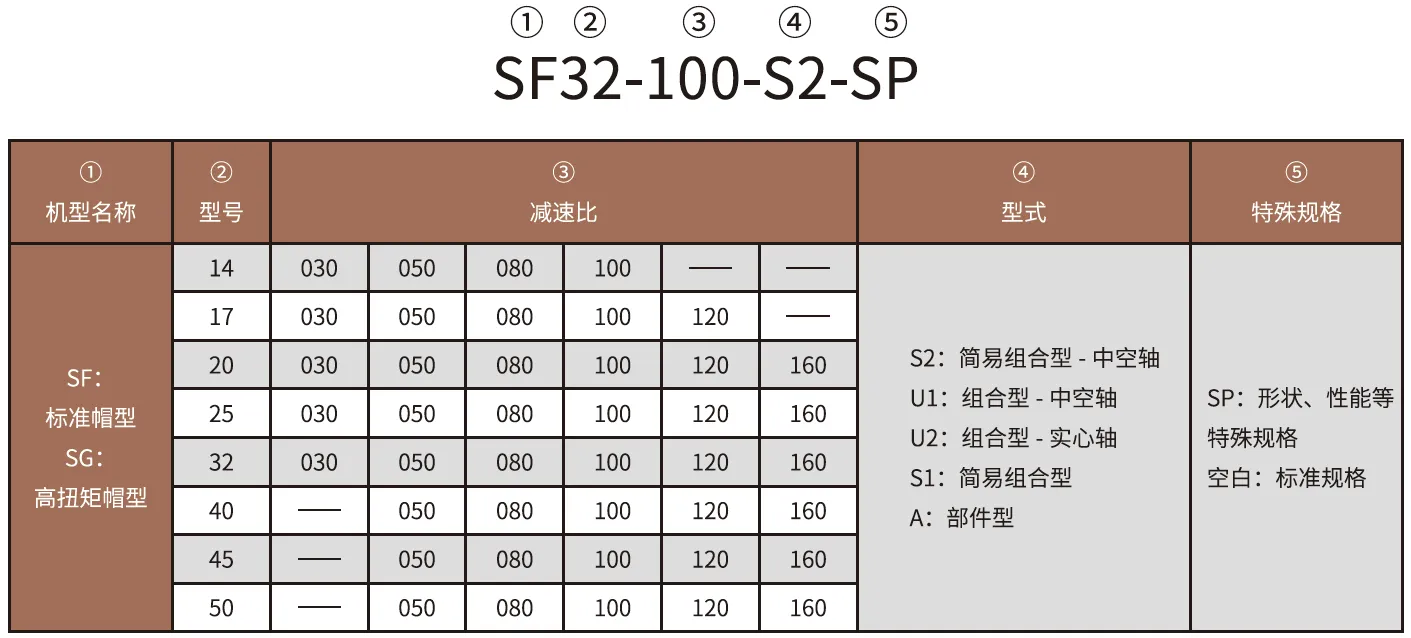

SF/SG-S2 Series Harmonic Drive Reducer Naming Rules:

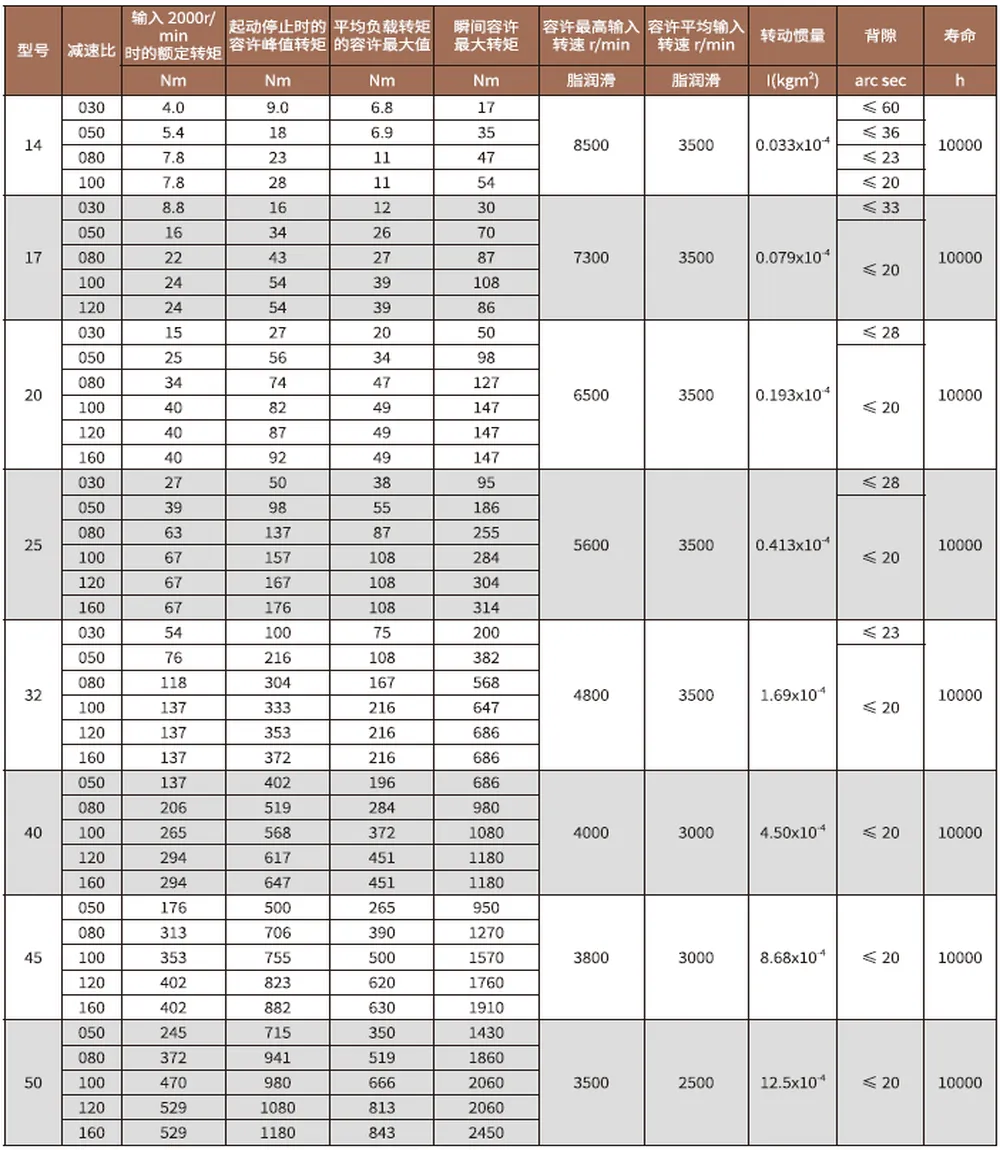

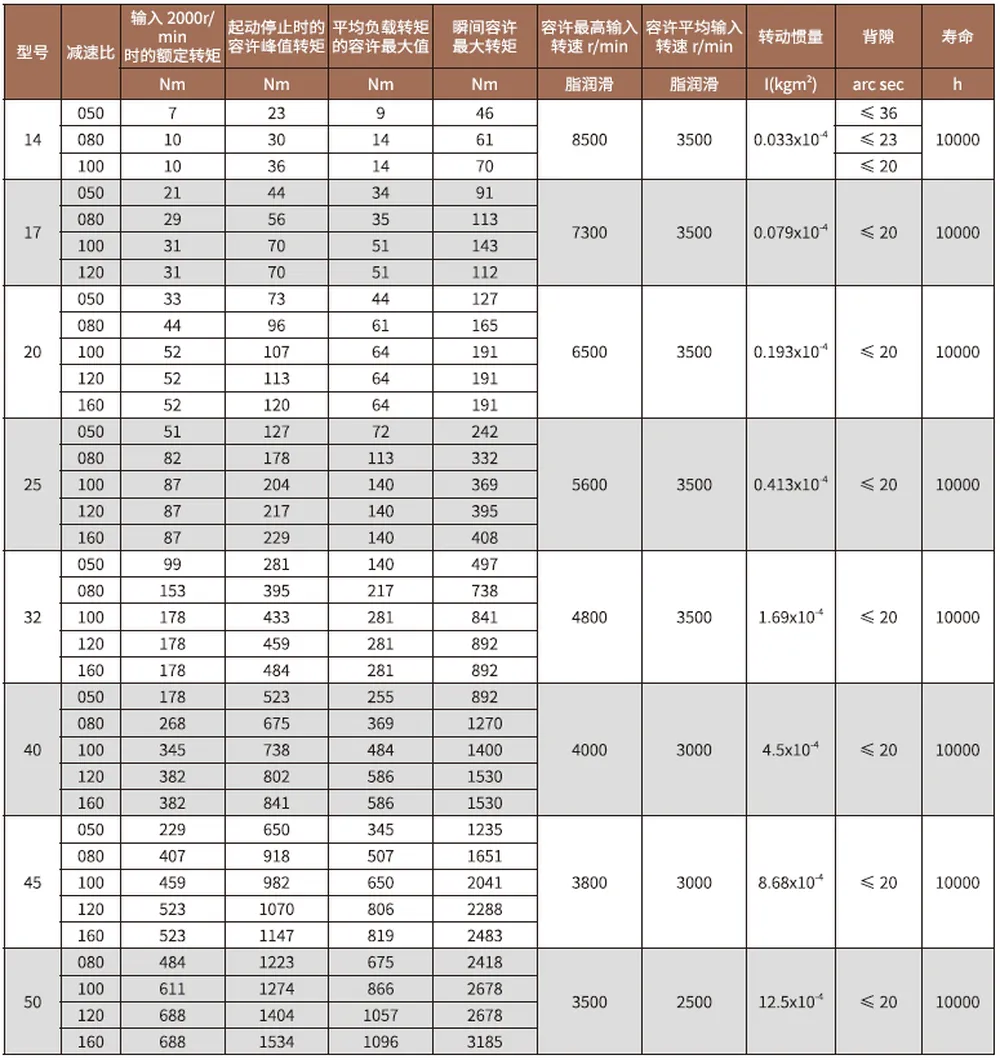

SF/SG-S2 Series Harmonic Drive Reducer Specifications:

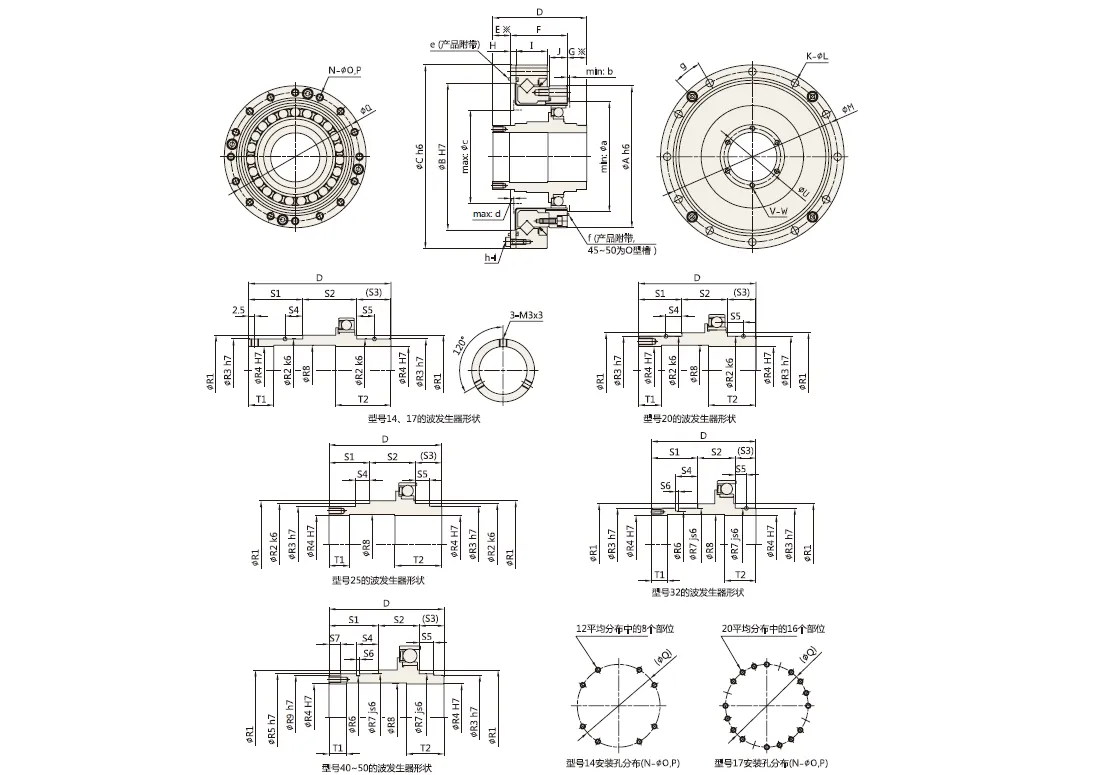

SF/SG-S2 Series Harmonic Drive Reducer Dimensions:

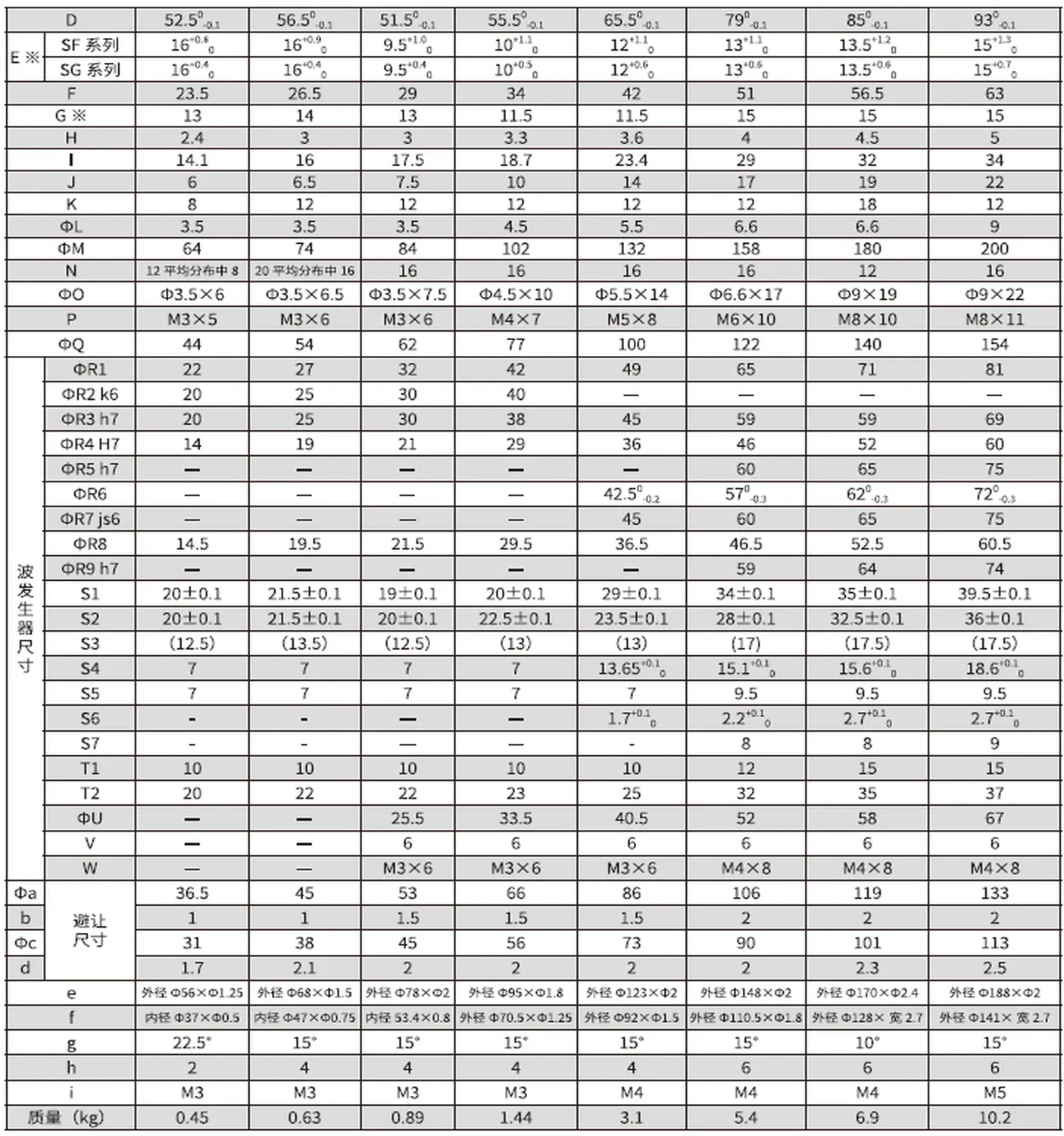

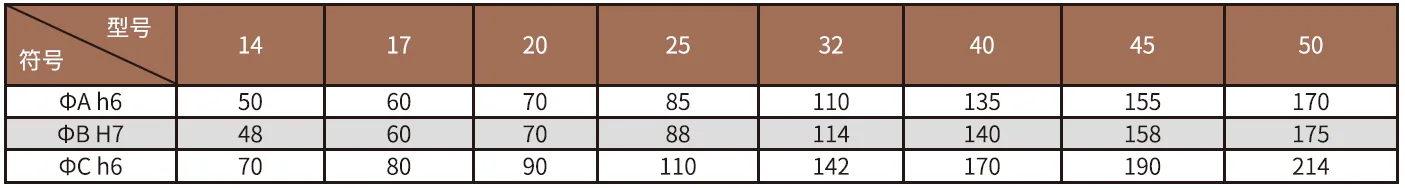

SF/SG-S2 Series Harmonic Drive Reducer Size Chart:

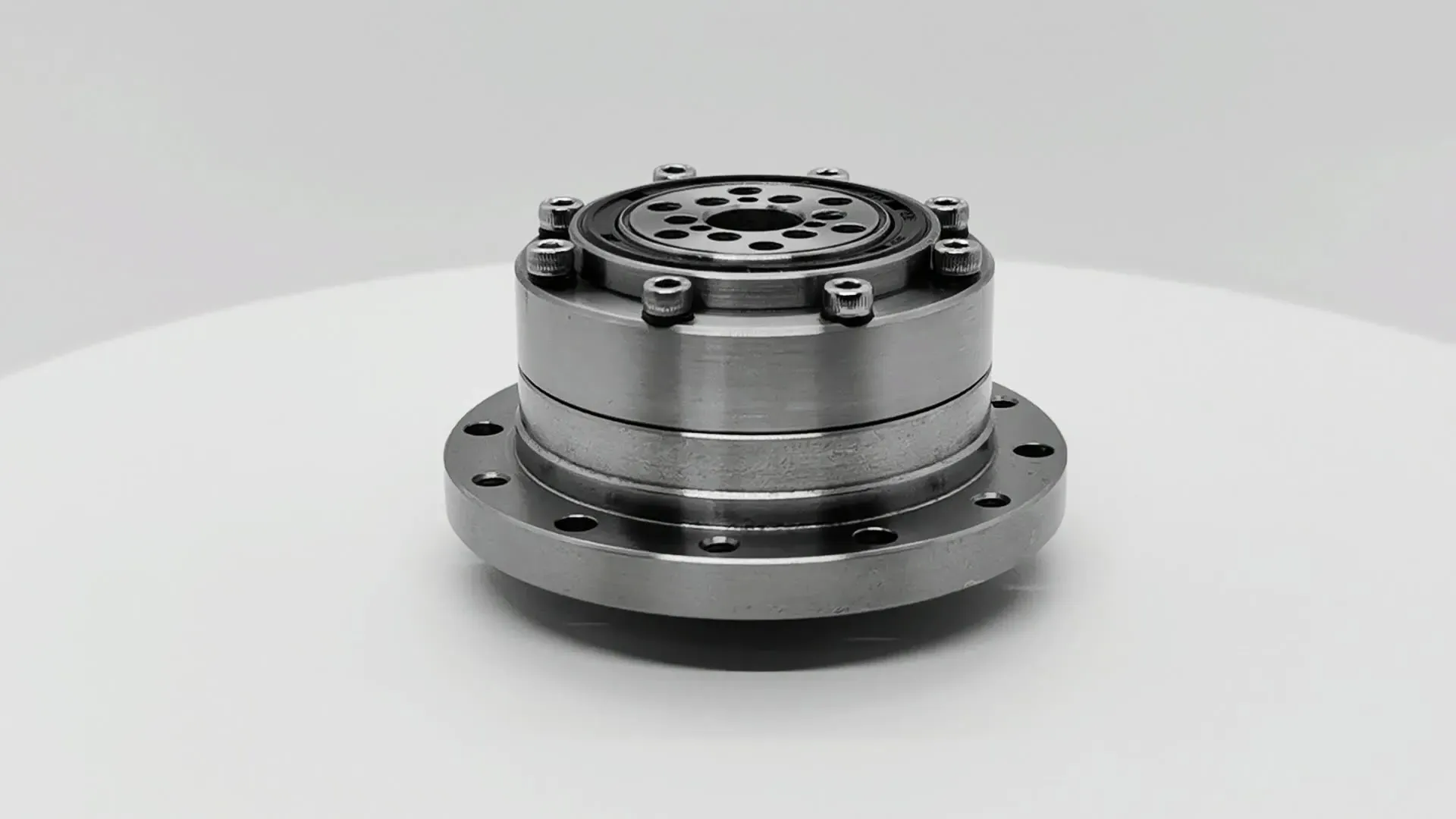

Advantages of SF/SG-S2 Series Harmonic Drive Reducer:

The SF/SG-S2 series harmonic drive reducer offers several advantages that make it a preferred choice for various industrial applications. Here are some of its key advantages:1. High Precision: The SF/SG-S2 series is known for its exceptional positional accuracy and repeatability. It provides precise motion control with minimal backlash, ensuring that any input motion is immediately translated to the output. This level of precision is crucial in applications that require accurate positioning and control.2. Compact Size and Lightweight Design: The SF/SG-S2 series is designed to be compact and lightweight, making it suitable for applications where space is limited or weight restrictions are a concern. Its compact form factor allows for easy integration into systems with tight spatial constraints.3. High Torque Transmission: Despite its compact size, the SF/SG-S2 series offers high torque transmission capabilities. It can transmit substantial amounts of torque relative to its size, making it suitable for applications that require high torque output in a compact package.4. Zero Backlash: Backlash refers to the play or clearance between gear teeth, which can reduce precision and introduce errors in motion control. The SF/SG-S2 series is designed to have zero backlash, ensuring immediate responsiveness and accurate motion transmission. This feature is particularly advantageous in applications that demand precise and repeatable movements.5. High Torsional Rigidity: The SF/SG-S2 series exhibits high torsional rigidity, meaning it resists deflection when subjected to heavy loads. This characteristic ensures stable operation and minimizes any unwanted flexing or bending, making it suitable for applications that involve high loads or demanding operating conditions.6. Wide Range of Models and Configurations: The SF/SG-S2 series offers a wide range of models and configurations to suit different application requirements. From different sizes to varying reduction ratios, users can find the right harmonic drive reducer to meet their specific needs.

Maintainance of SF/SG-S2 Series Harmonic Drive Reducer:

The SF/SG-S2 series harmonic drive reducer is designed to be low-maintenance, but regular inspection and care can help ensure its optimal performance and prolong its lifespan. Here are some maintenance guidelines for the SF/SG-S2 series:(1) Regular Inspection: Periodically inspect the harmonic drive reducer for any signs of wear, damage, or abnormal noise during operation. Check for any loose fasteners or abnormal vibrations. If any issues are identified, address them promptly to prevent further damage.(2) Lubrication: The SF/SG-S2 series typically does not require lubrication, as it utilizes a special high-performance grease during the manufacturing process. However, it is recommended to consult the manufacturer's guidelines regarding lubrication requirements for your specific model. If lubrication is required, use the recommended lubricant and follow the manufacturer's instructions.(3) Cleaning: Keep the harmonic drive reducer clean from dust, debris, and contaminants. Regularly clean the external surfaces using a soft cloth or brush. Avoid using solvents or abrasive materials that may damage the components.(4) Proper Mounting and Alignment: Ensure proper mounting and alignment of the harmonic drive reducer to prevent excessive loads or misalignment that could lead to premature wear or damage. Follow the manufacturer's guidelines for installation procedures and torque specifications.(5) Prevent Overloading: Avoid subjecting the harmonic drive reducer to loads beyond its rated capacity. Overloading can lead to accelerated wear and potential failure. Ensure that the operating conditions and loads are within the specified limits for the specific model.
