Shear Bolt Torque Limiter for PTO Shaft

Shear Bolt Torque Limiter for PTO Shaft

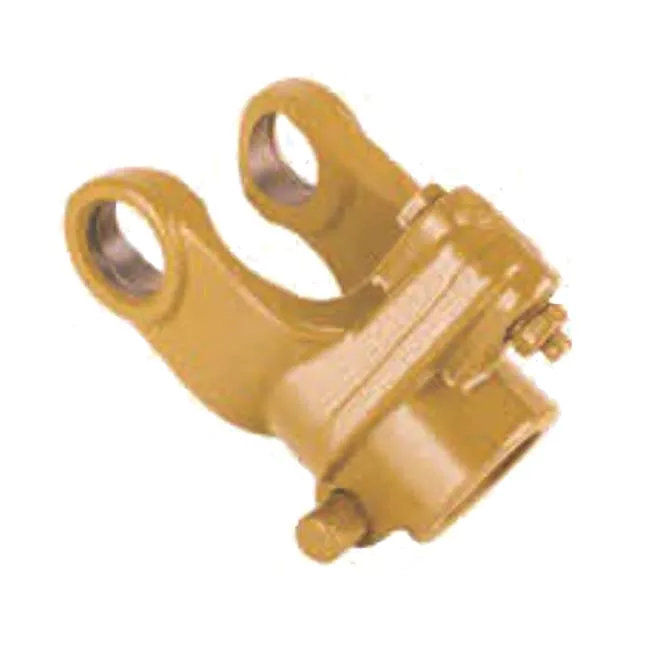

Shear bolt torque limiters type SB is devices able to interrupt power transmission when the torque transmitted exceeds the setting. This interruption in power is caused by the shearing of a bolt. This bolt must be replaced before power can be restored. The use of shear bolt torque limiters is recommended to avoid damage to drivelines mounted on implements subject to accidental overloads or torque peaks.Note: For the safety of the operator and the reliable function of the driveline, replace the bolt only with one equal in length, diameter, and grade to the original.The torque setting for shear bolt torque limiters is usually two or three times the median torque M and must never exceed the maximum torque of the driveline (Max). Standard settings for each size of SFT driveline are in the table to the right. SB torque limiters size S1 to S4 have a pushpin attachment to the splined shaft. Larger sizes use a taper-pin attachment.Shear Bolt Torque Limiter Specification

Model Number	Shear Bolt Torque Limiter
Function	Power transmission Yoke
Use	PTO shafts
Place of Origin	Zhejiang, China (Mainland)
Brand Name	PRECISE
Yoke Type	push pin/quick release/ball attachment/collar/double push pin/bolt pins/split pins
Processing Of Yoke	Forging
Spline Type	1 3/8" Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 8*42*48*8; 8*32*38*6

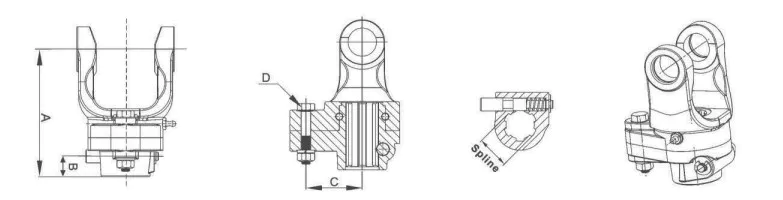

Shear Bolt Torque Limiter Parameter

Series	Torque	Spline	A(mm)	B(mm)	C(mm)	D(mm)
1SB	570	1 3/8" Z6	95	20	35	M6*40
1SBT1	740				45
2SB	740		98		45	M6*40
2SBT1	790				48
3SB	1110		102	21	38	M8*45
3SBT1	1200				40
4SB	1400		107		48	M8*50
4SBT1	1600				55	M8*50
5SB	1600		114	21	46	M8*45
5SBT1	2100				60	M10*50
6SB	1750		137		55	M8*55
6SBT1	2500				55	M10*55
32SB	1600		114	24	46	M8*45
32SBT1	2100				46	M10*50
7SB	2050		152		45	M10*60
7SBT1	3200				49	M12*65

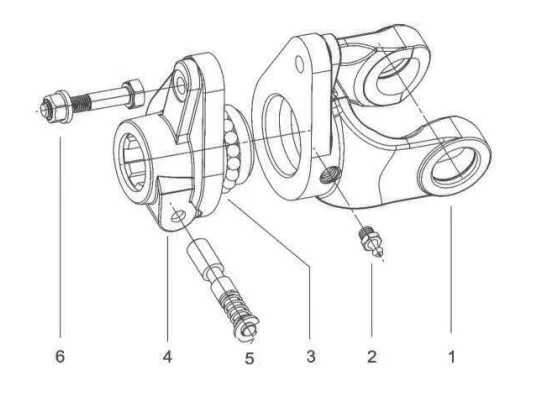

Shear Bolt Torque Limiter Parts

1. Yoke
2. Grease nipple
3. Steel ball
4. Hub
5. Pushpin
6. Shear bolt&Nut

How Do Shear Pin Torque Limiters Work?

Shear pin torque limiters are a simple, cost-effective design for protecting equipment from torque overloads. When torque is being transmitted from the driving to the driven load, the pin experiences a shear force. If the transmitted torque causes a force that exceeds the pin’s shear strength, the pin breaks and the driving and driven loads are immediately de-coupled. This immediate de-coupling of the load makes the shear pin design a type of “disconnect” torque limiter.It limits the torque thanks to the shearing of a bolt, which must be replaced to reset the transmission of power. The intervention torque depends on the distance of the bolt from the axis of transmission, its diameter and class of resistance.When the torque exceeds that supported by the bolt, the latter shears and the power transmitted is annulled. To restore the transmission, the sheared bolt must be replaced with one having the same characteristics (diameter, class of resistance, threaded portion and length) as the original bolt. Special design on request. Works in both directions of rotation.

PTO Slip Clutch VS PTO Shear Bolt

Replacing sheared bolts requires stopping work, getting off the tractor, and swapping bolts out. You need to keep a good supply of shear bolts to hand when using your machinery. Whereas the PTO slip clutch allows for the drive to be stopped when needed and resume the torque when free of any obstructions.
