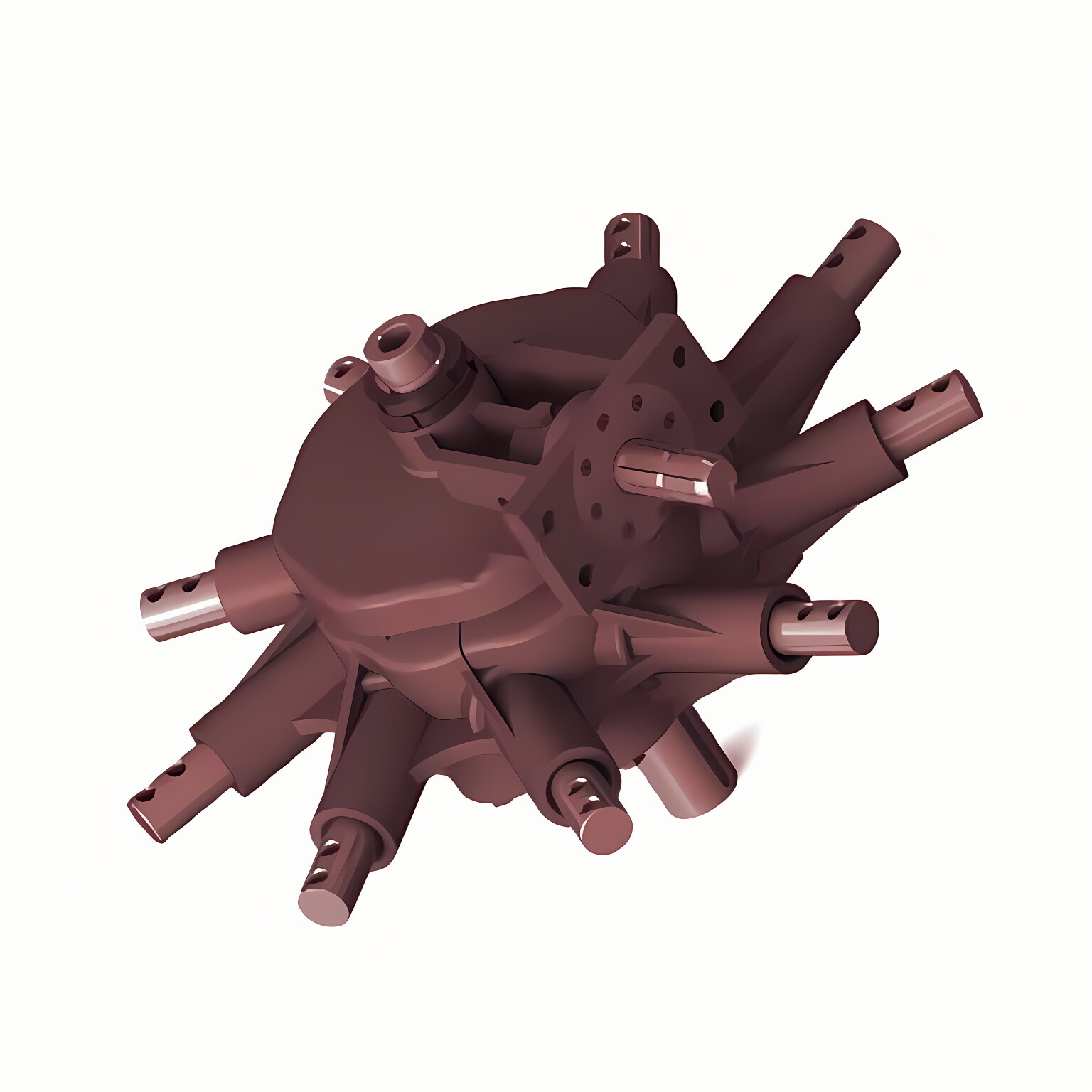

Side-Delivery Rake Gearbox S12

Gearbox For Rotary Rakes

S90, with 2 gearbox of 9 Arms, suitable for machine with 6-7 metersof work area

S11, with 2 gearbox  of 11 arms, suitablefor machine with 8-9 meters of work area

Side-Delivery Rake Gearbox

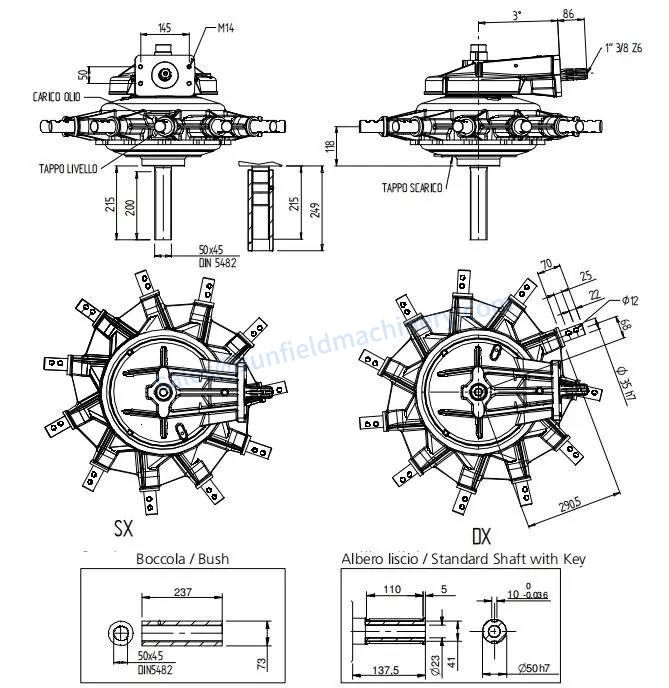

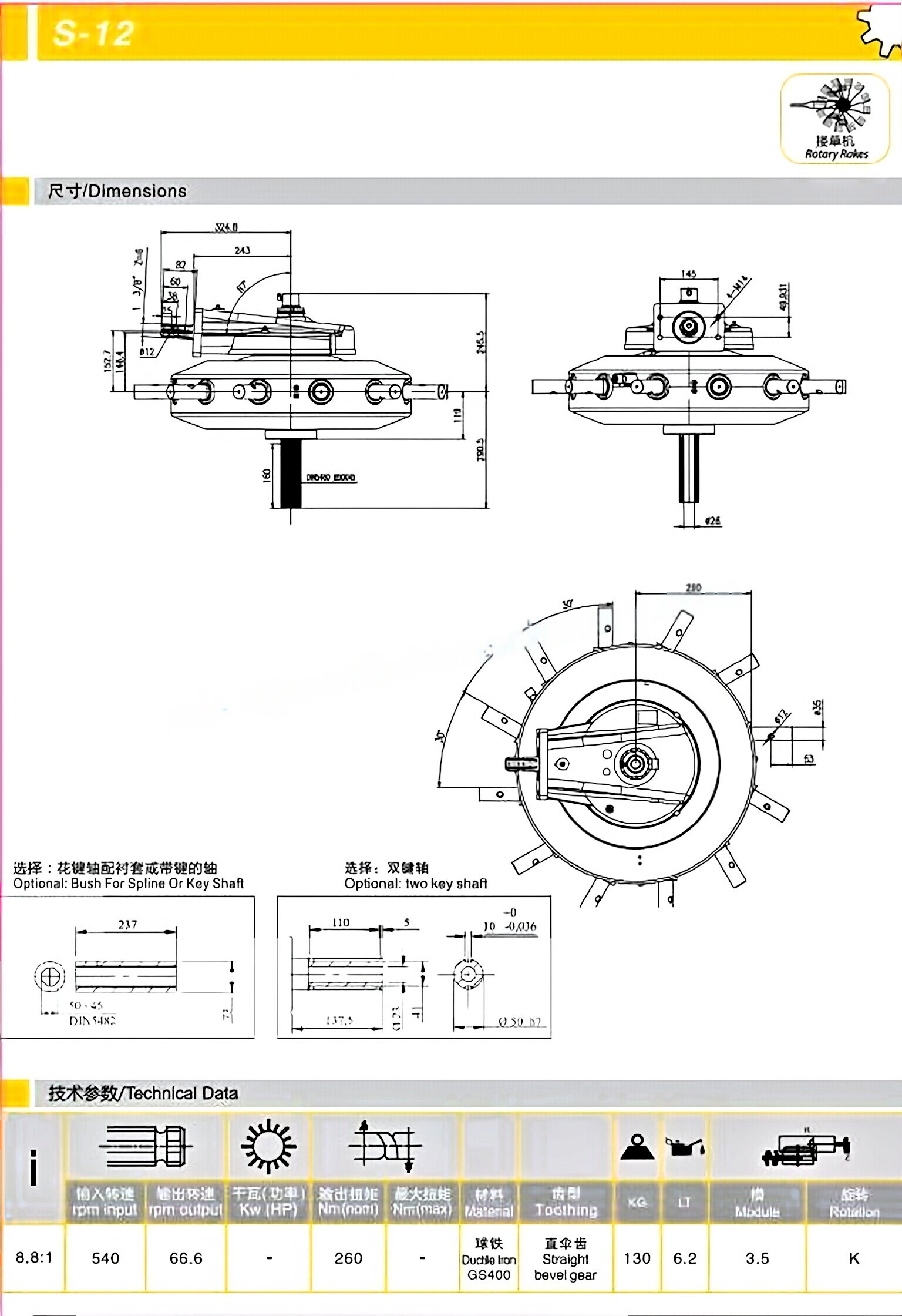

Application: Single Rotary Hay Rakes, Double Rotary Hay RakesS12: 12-arms assembly, helical gears, transmission ratio 8.1:1, input speed (540 rpm), output maximal torque 312 Nm, cast iron housing GS400. Specific versions for double machines with rotation to the right and leftGeneral technical features: GS400 cast iron housings, operating torque up to 240 Nm, transmission ratio 9.7:1, max. input speed (540rpm), maximum tooth module M5. Exclusively designed for rotary rakes.
