When it comes to aerial work platforms, bucket rotation drives are essential for the proper functioning of the machine. And when it comes to bucket rotation drives, Slewing Drive Planetary Gearboxes are the go-to solution for many equipment manufacturers. In this article, we will explore the various aspects of Slewing Drive Planetary Gearbox and its application in aerial work platforms.

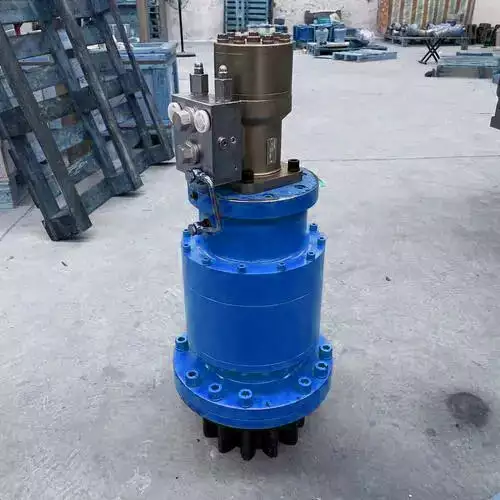

A Slewing Drive Planetary Gearbox is a compact and versatile transmission system that consists of a planetary gear set, a slewing ring, and a housing. It is used to transmit torque and rotation between two perpendicular axes. The unique design of the Slewing Drive Planetary Gearbox allows it to handle high loads and provide precise positioning control.
The working principle of the Slewing Drive Planetary Gearbox is quite simple. The input shaft rotates the planetary gear set, which in turn rotates the outer ring gear. The output shaft is connected to the slewing ring, which rotates the aerial work platform's bucket. The planetary gear set allows for high torque transmission, while the slewing ring provides a smooth and precise rotation of the bucket.
The Slewing Drive Planetary Gearbox is usually installed between the aerial work platform's chassis and the boom. It is well-suited for aerial work platforms with limited space and high load requirements. The Slewing Drive Planetary Gearbox can be used in a variety of applications, including:
The Slewing Drive Planetary Gearbox is essential for the proper functioning of aerial work platforms. It provides high torque transmission, precise positioning control, and smooth rotation of the bucket. The compact design of the Slewing Drive Planetary Gearbox allows for easy installation and maintenance. Other benefits of using a Slewing Drive Planetary Gearbox include:
| Parameter | Consideration |
|---|---|
| Ratio | Determine the ratio based on the application's torque and speed requirements. A higher ratio will provide more torque but lower speed, while a lower ratio will provide more speed but lower torque. |
| Input and Output Shaft Diameter | Determine the shaft diameter based on the torque and speed requirements of the application. |
| Load Capacity | Determine the load capacity based on the application's weight and force requirements. A higher load capacity will provide more stability and safety. |
| Mounting Style | Determine the mounting style based on the application's space and weight requirements. A compact mounting style will save space and reduce weight. |
We are a leading manufacturer dedicated to the research, design, and manufacturing of planetary gearboxes/reducers. Our products are widely used in various industries, including aerial work platforms, construction equipment, industrial machinery, and renewable energy. With our advanced technology and high-quality products, we are committed to providing our customers with the best solutions for their transmission needs.
Author: Miya
