Slewing Drive Planetary Gearbox for Truck-mounted Crane

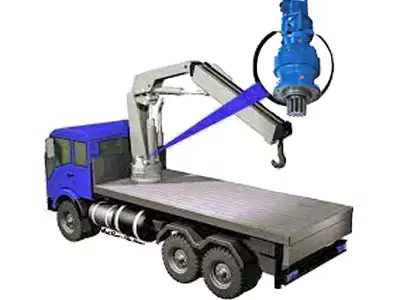

Where is Slewing Drive at Truck-mounted Crane?

The Slewing Drive is installed on the rotating part between the upper structure and the lower traveling mechanism of a Truck-mounted Crane, usually on the slewing platform of the crane. This device is a key component of the truck-mounted crane. It is directly responsible for realizing the rotation of the crane's upper structure relative to the lower body.

The main functions of Slewing Drive include:

• Achieve precise rotation: It enables the crane's boom and load to rotate accurately and smoothly within 360 degrees, which is especially important for operations in limited spaces or where multiple angles are required. This flexible rotation capability greatly improves the crane's operational flexibility and work efficiency.
• Carrying heavy loads: The Slewing Drive is designed to withstand the huge loads and overturning moments during crane operations, ensuring safe and stable operation even at full load during rotation.
• Transmission and torque conversion: It consists of a series of gears, bearings and possibly hydraulic or electric drive elements that convert power from a drive source (such as an electric motor or hydraulic motor) into the rotational motion of the turntable, amplifying the torque in the process to overcome the rotation resistance and load weight.
• Safety locking mechanism: Many Slewing Drives are also equipped with a locking device that can fix the crane's upper structure in non-operational conditions to prevent accidental rotation caused by wind or other external forces, ensuring operational safety.

Truck Mounted Crane Components

1.Chassis  2.Throttle joystick3.Slewing movement：Includes slewing support, slewing reducer, rotary motor. To turn the column around.4.Rotary column  5.Operating mechanism  6. Hoisting mechanism  7.Operation seat  8.Luffing cylinder  9.Boom10. Load indicator  11.Hook assembly  12.Hydraulic system  13. Base  14.Horn switch  15.Pressure Gauge  16.Outrigger assembly  17.PTO handle

Working Principles of Slewing Drive Planetary Gearbox

The operation of the slewing drive planetary gearbox in truck-mounted cranes is based on a complex and efficient set of principles, allowing the crane's superstructure to rotate smoothly and accurately while carrying large loads. Its working principle is summarized as follows:

1. Core components

Sun Gear: Located in the center, this gear is the smallest in the system and is usually driven directly by an electric or hydraulic motor.Planetary Gears: These gears rotate around the sun gear and transfer torque between the sun gear and the ring gear. Multiple planetary gears for load distribution and efficiency.Ring Gear: The largest gear in the system, fixed to the housing around which the planetary gears rotate.Bracket: supports the planetary gears and rotates around the sun gear, transmitting motion to the output shaft connected to the crane's slewing mechanism.

2. Torque transmission and amplification

When the motor turns the sun gear, the planet gears revolve around the sun gear and rotate on their own axes. This dual movement allows for a compact design while efficiently transferring and multiplying torque from input (motor) to output (crane rotation).The ratio of gear sizes determines the torque multiplication. Compared to the sun gear, a larger ring gear can produce higher torque output at the same input speed, which is critical for heavy lifting and precise control.

3. Load distribution and stability

The planetary arrangement ensures even load distribution among the multiple planetary gears, reducing stress on individual components and improving overall stability and durability.This balanced load also contributes to smoother operation, as any irregularities in the load are distributed and damped through the gear mesh, minimizing vibrations.

4. Axial and radial load capacity

Planetary gearboxes are designed to withstand axial (thrust) and radial loads, which is crucial in crane applications where the slewing mechanism must not only withstand the weight of the lifting load, but also the dynamics during operation force.

5. Integration with braking and safety systems

Many slew drives are equipped with mechanical or hydraulic braking systems to lock rotation when necessary, ensuring safety during installation, transportation or emergencies.

6. Sealing and lubrication

To maintain performance in harsh environments, the slew drive is tightly sealed and equipped with a dedicated lubrication system to protect the gears from dust, moisture and other contaminants, extending the life of the gearbox.

Features of Slewing Drive for Truck-mounted Crane

Each gearbox is based on in-depth engineering analysis and strict testing processes to ensure perfect integration with cranes of various brands and models. We focus on the following core features to adapt and improve the operating performance of Truck-mounted Crane:

• High torque density: Precision planetary gear design ensures efficient and stable torque output even under extreme load conditions.
• Precise positioning and controllability: Built-in precision rotary encoder improves the accuracy and smoothness of rotation operations.
• Reinforced structural design: The use of high-strength materials and advanced manufacturing processes ensures that the gearbox remains reliable and durable under long-term heavy loads and complex working conditions.
• Integrated braking system: Integrated high-efficiency braking device ensures safe operation and supports rapid positioning and locking functions.
• Maintenance-friendly: Modular design facilitates daily inspection and maintenance, extending service life and reducing maintenance costs.
• Environmental adaptability: high sealing level, effective dustproof and waterproof, suitable for various harsh operating environments.

Choosing our Slewing Drive Planetary Gearboxes equips your Truck-mounted Crane with a powerful heart. Whether it is at a construction site, industrial site or emergency rescue situation, it can perform at its best and improve work efficiency and safety.

Our Gearbox’s Extensive Adaptability:

Our high-performance Slewing Drive Planetary Gearboxes are specially designed to meet the stringent requirements of most Truck-mounted Crane (truck-mounted cranes) on the market, ensuring seamless docking with the world's leading and mainstream brand models, providing excellent rotary drive solutions. The following lists some common Truck-mounted Crane brands and models in the market, demonstrating the wide adaptability of our gearbox:

• Liebherr LTM 1055-3.2 / LTM 1100-5.2
• Grove GMK5250L / TMS9000E
• Terex AC 40/2L / CHAMPION 1040
• Manitowoc Grove GMK6300L / Potain MDT 219 J12
• XCMG QY50K / QY70K-I
• Zoomlion QY25V / QY50V
• SANY STC500 / STC250
• Kato CR-250Rv / NK-1200E

Why Choose Us?

We are a leading enterprise dedicated to the research, design, and manufacturing of planetary gearboxes. Our company has a team of experts in the field of mechanical engineering and has been in the industry for a long time. We offer quality products with excellent craftsmanship, and our prices are competitive. We assure our customers of our commitment to excellence, and we strive to provide the best quality products and services.

Planetary Gearbox/Reducer Procurement Guide

Factors to Consider	Parameters to Determine
Load Type	Output Torque, Output Speed, Gear Ratio
Operating Environment	Temperature Range, Lubrication Type, Sealing Type
Mounting Position	Orientation, Alignment, Bolt Pattern
Service Life	Load Duration, Maintenance Frequency, Lubrication Schedule

By considering these factors and determining the necessary parameters, customers can purchase the most suitable planetary gearbox/reducer for their specific needs.Author: Miya
