Small Excavator Boom Cylinder

Small Excavator Boom Cylinder

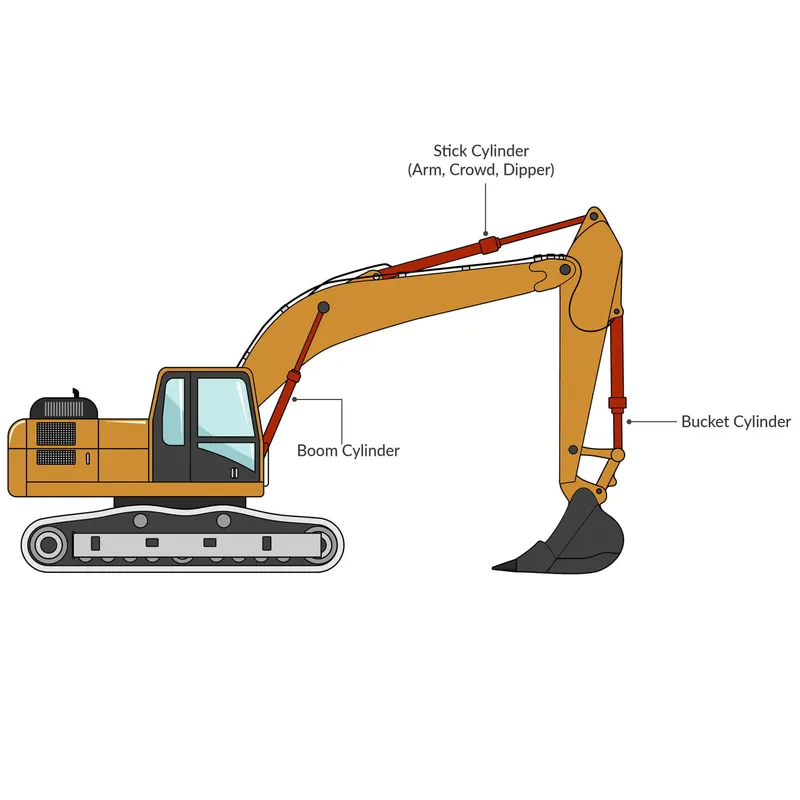

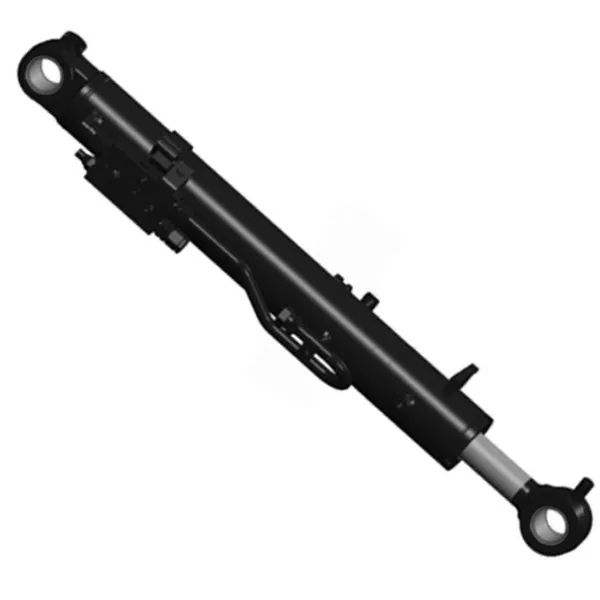

A small excavator boom cylinder is a vital component of a compact or mini excavator. It plays a crucial role in the operation of the excavator's boom, which is the arm-like structure responsible for lifting, moving, and positioning heavy loads, such as soil, rocks, or construction materials.The small excavator boom cylinder is a hydraulic device that converts hydraulic pressure into linear force, allowing the boom to extend and retract. It consists of a cylinder barrel, piston rod, piston, seals, and hydraulic connections. The cylinder barrel houses the piston and the hydraulic fluid, while the piston rod connects the piston to the boom structure.When hydraulic fluid is pumped into one side of the cylinder, it pushes the piston, which extends the boom. Conversely, when fluid is pumped into the other side of the cylinder, it retracts the piston, bringing the boom back in. This hydraulic action enables the operator to control the movement of the boom with precision and power.Small excavator boom cylinders are designed to withstand the demanding conditions of excavation work. They are typically constructed from high-strength materials, such as steel or alloy, to ensure durability and resistance to heavy loads, vibrations, and environmental factors.These small excavator boom cylinders are engineered to provide smooth and reliable operation, allowing operators to efficiently perform tasks such as digging trenches, excavating foundations, or moving materials on job sites with limited space. They are often equipped with seals and wipers to prevent hydraulic fluid leakage and external contaminants from entering the cylinder, ensuring its longevity and optimal performance.

Small Excavator Boom Cylinder Specifications:

Product Name	Small Excavator Boom Cylinder
Features:	Control the lifting motion of the big arm
Bore diameter:	50mm～125mm
Rod diameter:	25mm～75mmStroke≤1000mm
Thrust force:	Maximum 361KN
Bore diameter:	125mm/pressure29.4MPa

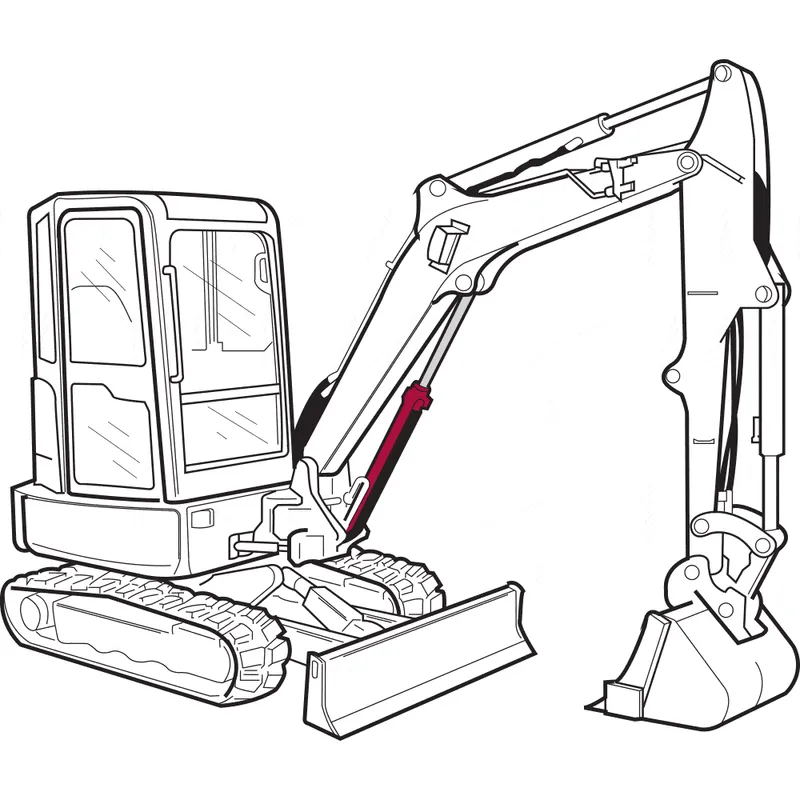

Benefits of Using the Small Excavator Boom Cylinder:

Using a small excavator boom cylinder offers several benefits, which contribute to the overall efficiency and effectiveness of compact excavators. Here are some key advantages:1. Versatility: The small excavator boom cylinder enables the boom to extend and retract, providing versatile reach and positioning capabilities. This versatility allows operators to access confined spaces, maneuver around obstacles, and perform precise digging or lifting operations with ease.2. Increased Productivity: The hydraulic power provided by the small excavator boom cylinder allows for quick and efficient operation, resulting in increased productivity on job sites. Operators can complete excavation tasks faster, as the cylinder's hydraulic force provides the necessary strength to lift and move heavy materials effectively.3. Precise Control: The small excavator boom cylinder enables precise control over the movement of the excavator's boom. Operators can accurately position the boom, making it easier to perform tasks such as digging trenches, excavating foundations, or loading materials onto trucks. The ability to control the boom's movement with precision reduces the risk of damage or errors during operation.4. Durability and Reliability: Small excavator boom cylinders are built to withstand demanding working conditions. They are designed using high-strength materials and equipped with seals and wipers to prevent leakage and contamination. This robust construction ensures their durability and longevity, reducing maintenance and replacement costs over time.5. Enhanced Safety: The precise control and smooth operation provided by the small excavator boom cylinder contribute to improved safety on the job site. Operators can maneuver the excavator with accuracy, reducing the chances of accidents, damage to property, or injury to personnel. The reliable performance of the cylinder also minimizes the risk of unexpected failures during operation.6. Compact Design: Small excavator boom cylinders are specifically designed for compact excavators, which have limited space and maneuverability. These cylinders are compact in size and optimized for the size and weight of the machine. Their design ensures compatibility and seamless integration with the excavator's overall structure, maximizing efficiency in tight spaces.

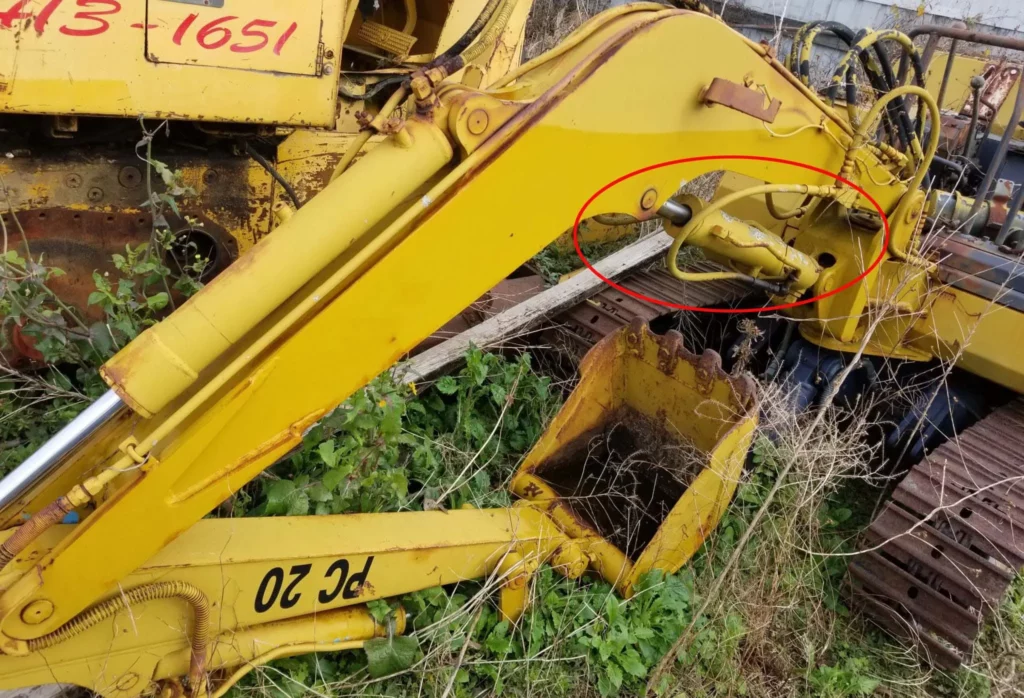

Small Excavator Boom Cylinder Applications:

The boom cylinder on a small excavator is responsible for raising and lowering the boom. It is a critical component of the excavator's operation, and its applications are many.

Here are some of the most common applications of small excavator boom cylinders:

(1) Digging holes and trenches: The boom cylinder is used to extend the boom and lower the bucket into the ground. This allows the excavator to dig holes and trenches for a variety of purposes, such as foundation work, landscaping, and utility installation.(2) Loading and unloading materials: The boom cylinder can also be used to load and unload materials from trucks, trailers, and other vehicles. This is a common application in construction and manufacturing.(3) Demolition: The boom cylinder can be used to demolish structures by lifting and dropping the bucket. This is a dangerous application, so it is important to use the boom cylinder with caution.(4) Tree removal: The boom cylinder can be used to remove trees by lifting and pulling them out of the ground. This is a delicate operation, as it is important to avoid damaging the tree or the excavator.(5) Clearing debris: The boom cylinder can be used to clear debris from an area by lifting and moving it. This is a common application in disaster relief and construction cleanup.

These are just a few of the many applications of small excavator boom cylinders. They are a versatile and essential component of these machines, and they play a vital role in a variety of construction and industrial applications.

China Small Excavator Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
