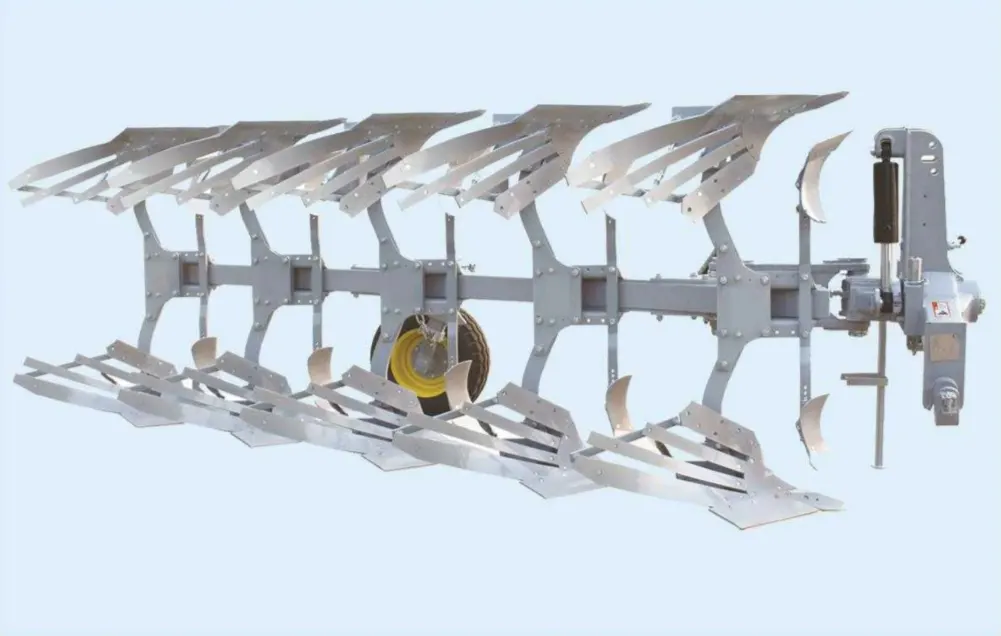

Special Oil Cylinder For Turnover Plow

Special Oil Cylinder For Turnover Plow



The special oil cylinder for turnover plows is crucial in modern agriculture, significantly enhancing the efficiency of plowing operations. This hydraulic component allows turnover plows to operate effectively, improving their soil tilling capabilities. By converting hydraulic energy into mechanical force, these cylinders enable smooth lifting, lowering, and turning of the plow, making them indispensable for serious farming efforts.Understanding the importance of the special oil cylinder for turnover plows is key to boosting agricultural efficiency. By familiarizing themselves with its features, proper usage, and maintenance, farmers can greatly enhance their plowing operations. Investing in a high-quality oil cylinder and following best practices will ensure that your turnover plow operates at peak performance, ultimately leading to healthier crops and increased yields.

Basic Parameters Of Special Oil Cylinder For Turnover Plow:

Note: 1. Speed ratio Φ refers to the ratio of the effective area of the piston and the effective area of the piston rod cavity.2. Speed ratio 1.46-rod diameter is the preferred series.3. The maximum travel specified in the S> table required by the user shall be settled through negotiation between the two parties.4. The minimum travel of the hinge shaft and the middle flange connection is selected according to Tables 5, 6, 7, and 8.5.1Mpa is equal to 10kgfcm².

Special Oil Cylinder For Turnover Plow Characteristic:

• High Durability: Tractor oil cylinders are constructed from robust materials specifically chosen for their strength and resilience. This durability enables them to withstand extreme conditions such as harsh weather, heavy loads, and intense vibrations commonly encountered in agricultural operations. By ensuring long-lasting performance, these cylinders reduce downtime and maintenance costs.
• Precision Engineering: Each tractor oil cylinder's precision engineering guarantees accurate performance. These cylinders are meticulously crafted to provide consistent and reliable operation, essential for tasks requiring exact movements. This level of precision enhances overall efficiency and effectiveness in various agricultural applications.

• Corrosion Resistance: With advanced coatings applied to their surfaces, tractor oil cylinders resist rust and environmental damage. This protective layer is crucial in maintaining the cylinder's integrity, even in the face of moisture, dirt, and corrosive substances. As a result, the lifespan of the cylinder is significantly extended, ensuring that it remains functional over time without frequent replacements.
• Variety of Sizes: Tractor oil cylinders come in a wide range of sizes, making them adaptable to different tractor models and applications. Whether you need a compact cylinder for smaller machinery or a larger one for heavy-duty tasks, there’s an option available to meet your specific requirements. This versatility allows for seamless integration into various agricultural setups.
• Easy Installation: Designed with user-friendliness in mind, these cylinders facilitate straightforward installation. Clear instructions and intuitive designs enable quick replacements and repairs, minimizing downtime. This ease of installation allows farmers and operators to focus on their work without the hassle of complicated setups.

Special Oil Cylinder For Turnover Plow Application:

Model And Performance Parameters:

1.  Demonstration Of The Type

2. The Piston Rod End Is External Thread (See Table 6-1, 6-2) Rod Earrings

Piston Rod End With External Thread Rod Head For Earring Connection Mounting Connection Dimensions Table 6-1

Note: 1. The connection size with ▲ is only the speed ratio Φ=2.2. The speed ratio with * is 1.7, and △ it is ∅only 80 cylinder card key size.3. Speed ratio Φ=1.46 column piston rod diameter is preferred series.

Piston Rod For External Threaded Rod Head Earring Connection Mounting Connection Size Table (Hinge Shaft, End, Middle Flange) Table 6-2

 HSG TYpe Engineering Hydraulic Cylinder Instructions:

HSG*01 series double action single rod piston hydraulic cylinder is a reciprocating linear motion in the hydraulic system of the actuator, suitable for construction machinery, mining machinery, lifting and transportation machinery, metallurgical machinery, and engineering vehicles hydraulic transmission.Schematic Diagram Of Structure:

unbuffered

buffered

Selection Method:

1. User root 1. Enter the connection mode number (the last four digits in the Model Description) according to the Model Description. Then, consult Figure 1 to Figure 4 according to the connection mode of the piston rod end to determine the required structural form. Refer to Table 5 to Table 8 according to the structure form, cylinder diameter, and speed ratio stroke to determine the external installation and connection dimensions.2. Complete model, travel, and installation distance when ordering:

Note: If the installation distance required by the user is the same as L1+S to L4+S or L21 to L24 in Table 5 to Table 8, the installation distance can not be written down when ordering; If not, the installation distance must be written. However, the required installation distance can only be greater than or equal to L1+S to L4+S or L21 to L24. The dimensions L31 to L38 selected by the user shall be within the range specified in Tables 5 to 8.For example, a user needs a hydraulic cylinder: the installation is a hinge shaft, the piston rod end is an external threaded rod head earring joint bearing, the bottom end of the cylinder is cushioned, and the cylinder diameter isΦ150, rod diameter Φ85, stroke 1000, installation distance L33 is 800, the model and stroke used for ordering, installation distance is:3. Selection Check:After the user finishes the selection, please check the selected main parameters (cylinder diameter, piston rod diameter) and connection number in Table 1, Table 2, and Table 3 to avoid selection errors.

Hydraulic Cylinder Mounting Connection Dimension Drawing:

40 Bore Oil Cylinder

50 Bore Oil Cylinder

63 Bore Oil Cylinder

80 Bore Oil Cylinder

100 Bore Oil Cylinder

63 Bore Oil Cylinder

Lower Flange Size

This product has two styles to choose from, the size will be different, please carefully distinguish!In this picture, the sizes of model A and model B are at the end of the page.Please inform the customer service staff of the specified style and note that there is no specified style, the company will send randomly.Data will be in error; please order carefully!

5 Tons - Top And Bottom Flange Series Hydraulic cylinder

Electroplated piston rod, high hardness, wear resistance, corrosion resistance, prevent wear oil seal.FA-63X35 Product Parameters:Cylinder diameter 63MM, rod diameter 35MM, outer diameter 73MM, stroke 100-2000MM;Thread M18*1.5, rated pressure 16MPA, maximum 19MPA, thrust up to 5 tons;Some specifications support customization, so please consult the company's customer service staff.

Solid Rod - 12.5 Tons Hydraulic Cylinder

Electroplated piston rod, high hardness, wear resistance, corrosion resistance, prevent wear oil seal.FA-100X63 Product Parameters:Cylinder diameter 100MM, rod diameter 63MM, outer diameter 110MM, stroke 100-2000MM;Thread M20*1.5, rated pressure 16MPA, maximum 19MPA, thrust up to 12.5 tons;Some specifications support customization, so please consult the company's customer service staff.

Engineering Hydraulic Cylinder For Sale:

In addition to hydraulic cylinder replacement products, we offer a wide range of engineered hydraulic cylinders for different industrial scenarios. Our products are widely used in construction, mining, manufacturing, and other fields to meet the diverse needs of customers.We look forward to working with you to promote the progress and development of the hydraulic industry jointly!
