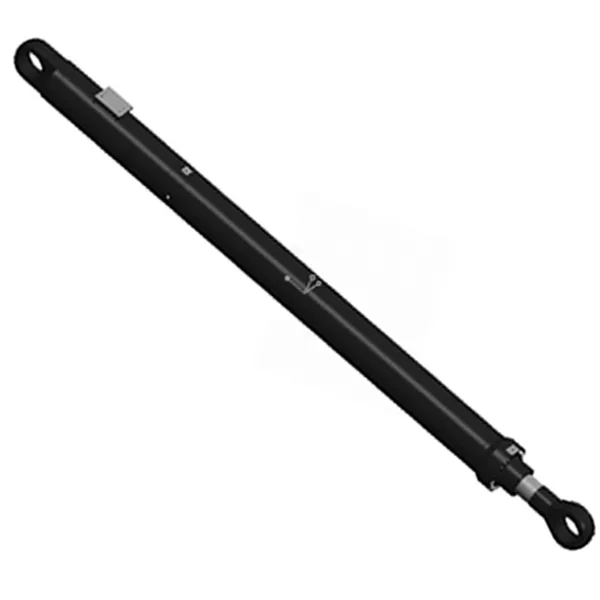

Stacker Reclaimer Chaser Pitch Cylinder

Stacker Reclaimer Chaser Pitch Cylinder

A stacker reclaimer chaser pitch cylinder is a type of hydraulic cylinder that is used to control the pitching motion of the tail belt mechanism on a stacker reclaimer. The tail belt mechanism is responsible for transporting material from the stacker to the reclaimer. The chaser pitch cylinder is used to adjust the angle of the tail belt so that the material is deposited in the correct location.

Chaser pitch cylinders are typically large and heavy-duty, as they must be able to support the weight of the tail belt and the material that it is transporting. They are also subject to a lot of wear and tear, as they are constantly being used to adjust the angle of the tail belt.

Chaser pitch cylinders are typically made of high-strength steel and are equipped with a variety of features to extend their service life, such as anti-corrosion coatings and wear-resistant seals. They are also typically designed to be easily serviced and maintained.

Chaser pitch cylinders are an essential component of stacker reclaimers and play a vital role in the efficient and safe operation of these machines.

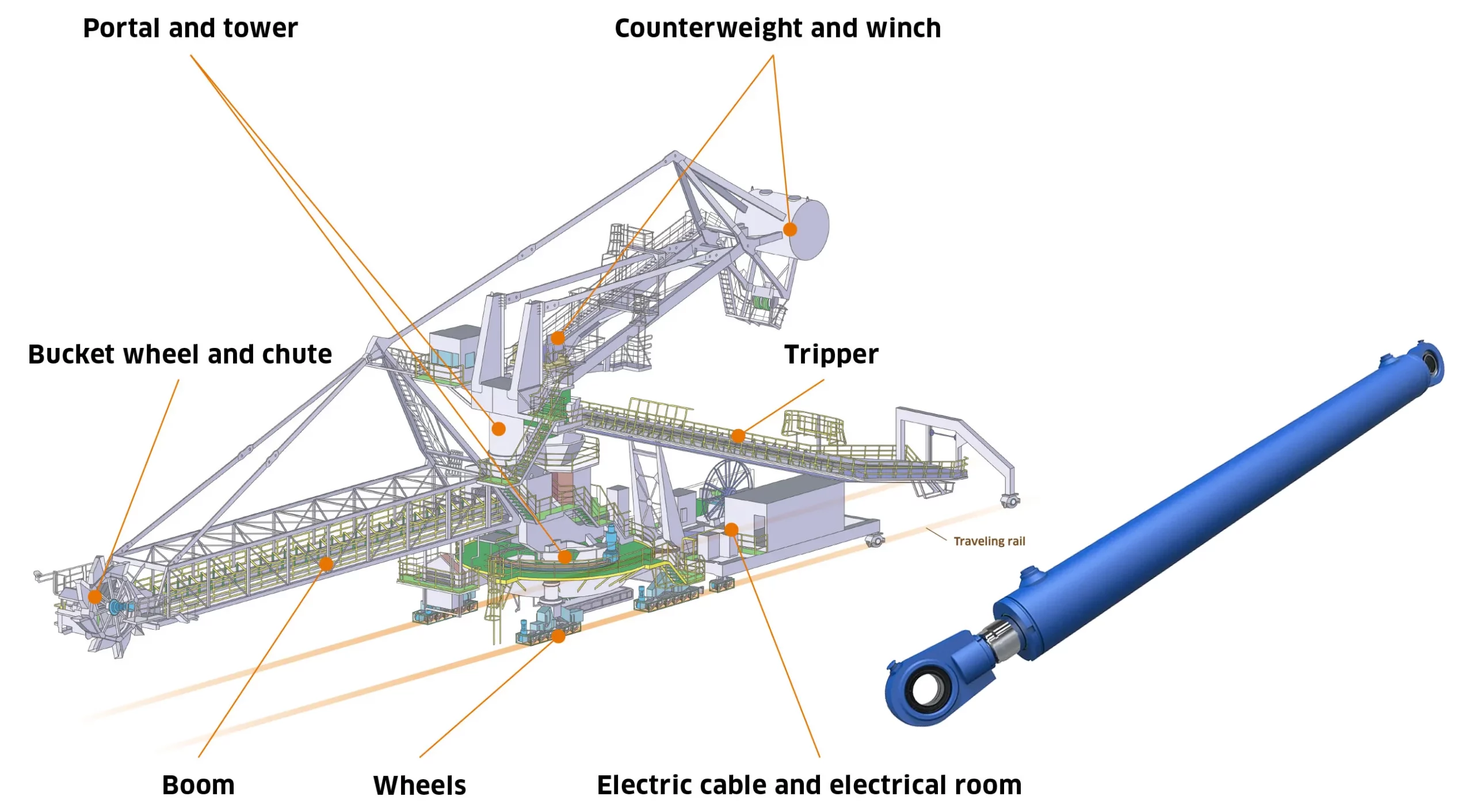

Key Features of Stacker Reclaimer Chaser Pitch Cylinders:

Here are some of the key features of stacker reclaimer chaser pitch cylinders:

1. Large and heavy duty: Chaser pitch cylinders must be able to support the weight of the tail belt and the material that it is transporting. They are typically made of high-strength steel and are equipped with a variety of features to extend their service life.2. Subject to a lot of wear and tear: Chaser pitch cylinders are constantly being used to adjust the angle of the tail belt. This means that they are subject to a lot of wear and tear.3. Equipped with a variety of features to extend service life: Chaser pitch cylinders are typically equipped with a variety of features to extend their service life, such as anti-corrosion coatings and wear-resistant seals.4. Easy to service and maintain: Chaser pitch cylinders are typically designed to be easily serviced and maintained. This is important because they are subject to a lot of wear and tear.

Chaser pitch cylinders are used in a variety of industries, including mining, power generation, and cement production. They are an essential component of stacker reclaimers, which are used to load and unload bulk materials such as coal, iron ore, and cement.

Stacker Reclaimer Chaser Pitch Cylinder Specifications:

Product Name	Stacker Reclaimer Chaser Pitch Cylinder
Features:	Realize the pitching action of the tail belt mechanism
Bore diameter:	300mm～400m
Rod diameter:	200mm～320mmStroke1000mm～4500mm
Pressure：	up to 35MPa
Applications:	Stacker Reclaimer

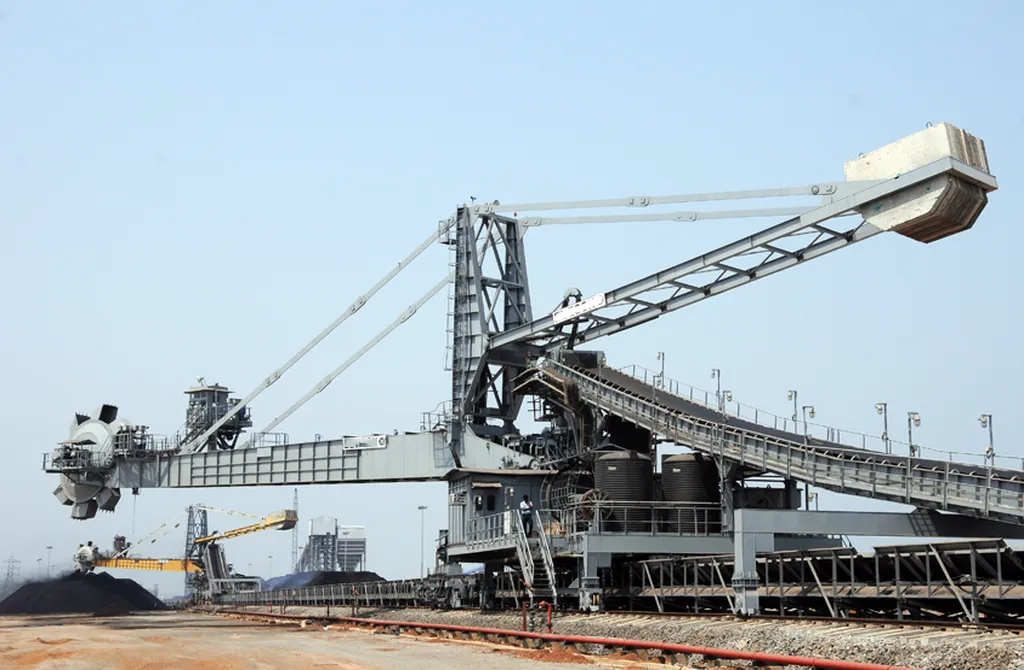

Advantages of Stacker Reclaimer Chaser Pitch Cylinder:

The advantages of a stacker reclaimer chaser pitch cylinder include:

(1) Improved material handling: Chaser pitch cylinders provide a more consistent and uniform material flow than other types of cylinders, such as double-acting cylinders. This is because the chaser pitch design creates a continuous wave of material that is less likely to clump or bind.(2) Reduced wear and tear: Chaser pitch cylinders are less prone to wear and tear than other types of cylinders because the material is evenly distributed across the cylinder surface. This can lead to longer cylinder life and lower maintenance costs.(3) Increased productivity: Chaser pitch cylinders can help to increase productivity by moving material more quickly and efficiently. This is because the continuous wave of material reduces the amount of time that the cylinder needs to be stopped and restarted.(4) Improved safety: Chaser pitch cylinders can help to improve safety by reducing the risk of material spills and accidents. This is because the continuous wave of material helps to prevent material from accumulating at the end of the cylinder.

In addition to these general advantages, chaser pitch cylinders can also offer specific benefits for certain applications. For example, in applications where the material is abrasive, chaser pitch cylinders can help to reduce wear and tear on the cylinder and other components.

Overall, chaser pitch cylinders offer a number of advantages over other types of cylinders for stacker reclaimers. These advantages can lead to improved material handling, reduced wear and tear, increased productivity, and improved safety.

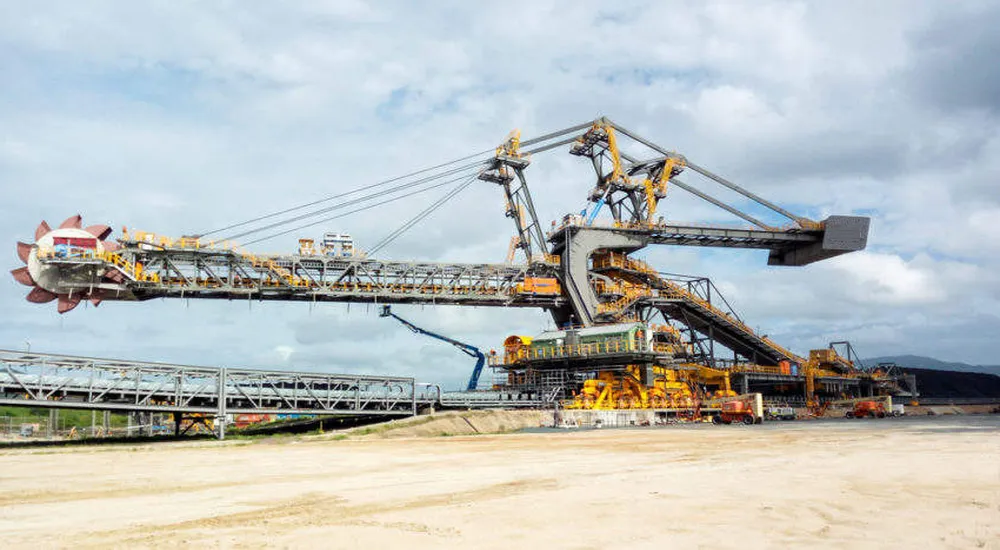

Choose Right Chaser Pitch Cylinder for Stacker Reclaimer:

Choosing the right chaser pitch cylinder for a stacker reclaimer involves a number of considerations. The chaser pitch cylinder is a key component of the stacker reclaimer, as it helps to control and move the arm of the machine. Therefore, it's crucial to choose a product that's reliable, durable, and well-suited to your specific needs.Here's a step-by-step guide to help you make the right decision:Understand Your Needs: Before selecting a chaser pitch cylinder, understand the requirements of your stacker reclaimer. This includes knowing the size, load capacity, working environment, and other specifics of your machine.Determine the Size: The size of the chaser pitch cylinder is determined by the size and weight of the load that it needs to manage. Make sure to choose a cylinder that's capable of handling the weight and size of your stacker reclaimer's arm.Consider the Material: The material of the chaser pitch cylinder is also an important factor to consider. It needs to be durable and able to withstand the working conditions of the machine. Consider factors like corrosion resistance, especially if the machine will be operating in harsh environments.Check the Pressure Rating: The pressure rating of the chaser pitch cylinder determines how much force it can apply or withstand. Make sure to choose a hydraulic cylinder with a pressure rating that matches the requirements of your stacker reclaimer.

China Stacker Reclaimer Cylinder Manufacturers

Generally, you can see stackers and reclaimers in ports, wharves, steel plants, and other places. It is a rookie in the loading and unloading industry. Raydafon can tailor a complete set of hydraulic solutions for stackers and reclaimers according to requirements. The stacker reclaimer pitch cylinder designed with a special structure is matched with the V90N-DT130/180 main pump, HVME270B main valve, and HM5X130 motor. The components are perfectly matched to meet the high-frequency working requirements of the stacker and reclaimer. Also, they achieved their maximum flash point-high efficiency, easy to deal with the harsh working environment of the port, winning everyone's praise and recognition successfully.Moreover, we go beyond stacker reclaimer cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
