Stainless Steel Metric Sprockets

Raydafon Group's Stainless Steel Metric Sprockets are precision-engineered for durable power transmission in industrial machinery. Crafted from high-quality stainless steel, they resist corrosion and wear, ensuring reliable performance in harsh environments. Ideal for engineers and manufacturers, these sprockets enhance efficiency, reduce maintenance, and solve common breakdown issues with their superior durability. Unique to Raydafon, they offer unmatched precision and longevity, giving users confidence and smoother operations. Experience the difference—upgrade your systems with Raydafon Group's trusted sprockets today!

Send Inquiry

Product Description

Stainless steel sprockets are utilized in wash-down, corrosive, and food processing applications. Using a high-quality 304-grade stainless steel, these precision machined sprockets are engineered to exceed in longevity and performance. Our metric stainless steel sprockets fully comply with ISO and DIN specifications to ensure optimal contact between the roller chain and sprocket teeth. Standardly, we keep 06B - 16B stainless steel sprockets sizes on the shelf. However, we can make any size stainless steel metric sprocket.

06B Stainless Steel Sprockets

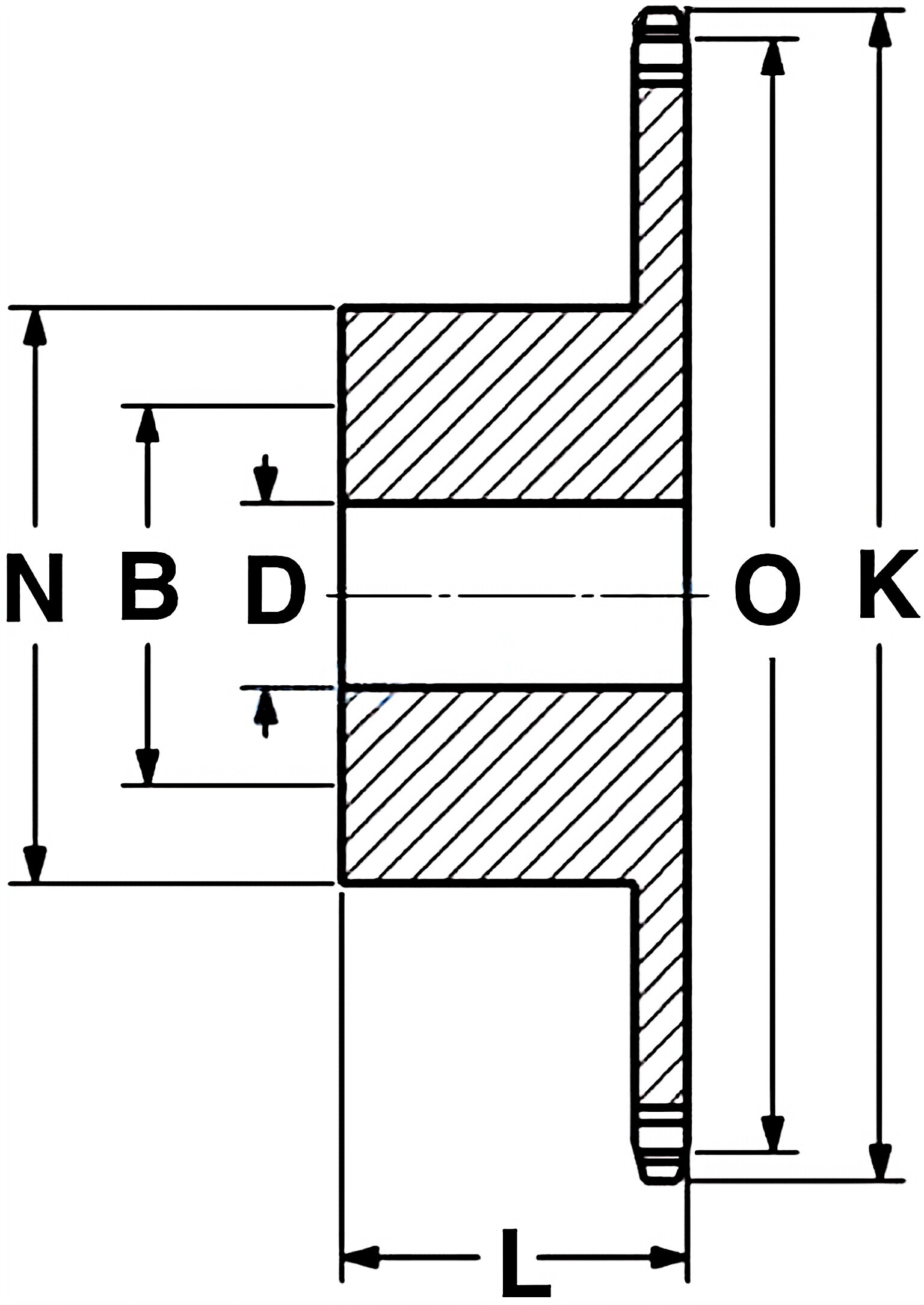

Sprocket Size	Tooth Count	(O)	(K)	(N)	(D)	(B)	(L)	Weight (kG)
06B13SS	13	39.80mm	43.0mm	28mm	10mm	18mm	25mm	0.13
06B14SS	14	42.80mm	46.3mm	31mm	10mm	20mm	25mm	0.15
06B15SS	15	45.81mm	49.3mm	34mm	10mm	22mm	25mm	0.18
06B16SS	16	48.82mm	52.3mm	37mm	10mm	22mm	28mm	0.24
06B17SS	17	51.83mm	55.3mm	40mm	10mm	25mm	28mm	0.28
06B18SS	18	54.85mm	58.3mm	43mm	10mm	27mm	28mm	0.30
06B19SS	19	57.87mm	61.3mm	45mm	10mm	28mm	28mm	0.35
06B20SS	20	60.89mm	64.3mm	46mm	10mm	29mm	28mm	0.40
06B21SS	21	63.91mm	68.0mm	48mm	12mm	30mm	28mm	0.44
06B22SS	22	66.93mm	71.0mm	50mm	12mm	30mm	28mm	0.47
06B23SS	23	69.95mm	73.5mm	52mm	12mm	32mm	28mm	0.50
06B24SS	24	72.97mm	77.0mm	54mm	12mm	34mm	28mm	0.60
06B25SS	25	76.00mm	80.0mm	57mm	12mm	36mm	28mm	0.60
06B30SS	30	91.12mm	94.7mm	60mm	12mm	38mm	30mm	0.90

08B Stainless Steel Sprockets

Sprocket Size	Tooth Count	(O)	(K)	(N)	(D)	(B)	(L)	Weight (kG)
*08B12SS*	12	49.07mm	53.0mm	33mm	10mm	21mm	28mm	0.20
08B13SS	13	53.06mm	57.4mm	37mm	10mm	23mm	28mm	0.25
08B14SS	14	57.07mm	61.8mm	41mm	10mm	26mm	28mm	0.32
08B15SS	15	61.09mm	65.5mm	45mm	10mm	28mm	28mm	0.40
08B16SS	16	65.10mm	69.5mm	50mm	12mm	31mm	28mm	0.45
*08B17SS*	17	69.11mm	73.6mm	52mm	12mm	31mm	28mm	0.50
*08B18SS*	18	73.14mm	77.8mm	56mm	12mm	35mm	28mm	0.59
08B19SS	19	77.16mm	81.7mm	60mm	12mm	38mm	28mm	0.65
*08B20SS*	20	81.19mm	85.8mm	64mm	12mm	40mm	28mm	0.75
*08B21SS*	21	85.22mm	89.7mm	68mm	12mm	42mm	28mm	0.85
*08B22SS*	22	89.24mm	93.8mm	70mm	12mm	44mm	28mm	0.93
*08B23SS*	23	93.27mm	98.2mm	70mm	14mm	44mm	28mm	0.95
08B24SS	24	97.29mm	101.8mm	70mm	14mm	44mm	28mm	0.97
08B25SS	25	101.33mm	105.8mm	70mm	14mm	44mm	28mm	1.00
*08B26SS*	26	105.36mm	110.0mm	70mm	16mm	44mm	30mm	1.10
08B30SS	30	121.50mm	126.1mm	80mm	16mm	50mm	30mm	1.45

10B Stainless Steel Sprockets

Sprocket Size	Tooth Count	(O)	(K)	(N)	(D)	(B)	(L)	Weight (kG)
10B12SS	12	61.34mm	68.0mm	42mm	12mm	26mm	30mm	0.35
10B13SS	13	66.32mm	73.0mm	47mm	12mm	29mm	30mm	0.47
10B14SS	14	71.34mm	78.0mm	52mm	12mm	32mm	30mm	0.55
10B15SS	15	76.36mm	83.0mm	57mm	12mm	35mm	30mm	0.65
10B16SS	16	81.37mm	88.0mm	60mm	12mm	38mm	30mm	0.77
10B17SS	17	86.39mm	93.0mm	60mm	12mm	38mm	30mm	0.80
10B18SS	18	91.42mm	98.3mm	70mm	14mm	44mm	30mm	1.03
10B19SS	19	96.45mm	103.3mm	70mm	14mm	44mm	30mm	1.17
10B20SS	20	101.49mm	108.4mm	75mm	14mm	47mm	30mm	1.22
10B21SS	21	106.52mm	113.4mm	75mm	16mm	47mm	30mm	1.30
10B22SS	22	111.55mm	118.0mm	80mm	16mm	50mm	30mm	1.41
10B23SS	23	116.58mm	123.4mm	80mm	16mm	50mm	30mm	1.47
10B24SS	24	121.62mm	128.3mm	80mm	16mm	50mm	30mm	1.53
10B25SS	25	126.66mm	134.0mm	80mm	16mm	50mm	30mm	1.60
10B30SS	30	151.87mm	158.8mm	90mm	20mm	60mm	35mm	2.43

12B Stainless Steel Sprockets

Sprocket Size	Tooth Count	(O)	(K)	(N)	(D)	(B)	(L)	Weight (kG)
12B12SS	12	73.60mm	81.5mm	52mm	14mm	32mm	35mm	0.67
12B13SS	13	79.59mm	87.5mm	58mm	14mm	36mm	35mm	0.83
12B14SS	14	85.61mm	93.6mm	64mm	14mm	41mm	35mm	1.00
12B15SS	15	91.63mm	99.8mm	70mm	14mm	44mm	35mm	1.17
12B16SS	16	97.65mm	105.5mm	75mm	16mm	47mm	35mm	1.36
12B17SS	17	103.67mm	111.5mm	80mm	16mm	50mm	35mm	1.54
12B18SS	18	109.71mm	118.0mm	80mm	16mm	50mm	35mm	1.65
12B19SS	19	115.75mm	124.2mm	80mm	16mm	50mm	35mm	1.71
12B20SS	20	121.78mm	129.7mm	80mm	16mm	50mm	35mm	1.82
12B21SS	21	127.82mm	136.0mm	90mm	20mm	56mm	40mm	2.37
12B22SS	22	133.86mm	141.8mm	90mm	20mm	56mm	40mm	2.45
12B23SS	23	139.90mm	149.0mm	90mm	20mm	56mm	40mm	2.60
12B24SS	24	145.94mm	153.9mm	90mm	20mm	56mm	40mm	2.73
12B25SS	25	152.00mm	160.0mm	90mm	20mm	56mm	40mm	2.80
12B30SS	30	182.25mm	190.5mm	95mm	20mm	60mm	40mm	3.65

16B Stainless Steel Sprockets

Sprocket Size	Tooth Count	(O)	(K)	(N)	(D)	(B)	(L)	Weight (kG)
16B12SS	12	98.14mm	109.0mm	69mm	16mm	43mm	40mm	1.50
16B13SS	13	106.12mm	117.0mm	78mm	16mm	49mm	40mm	1.81
16B14SS	14	114.15mm	125.0mm	84mm	16mm
