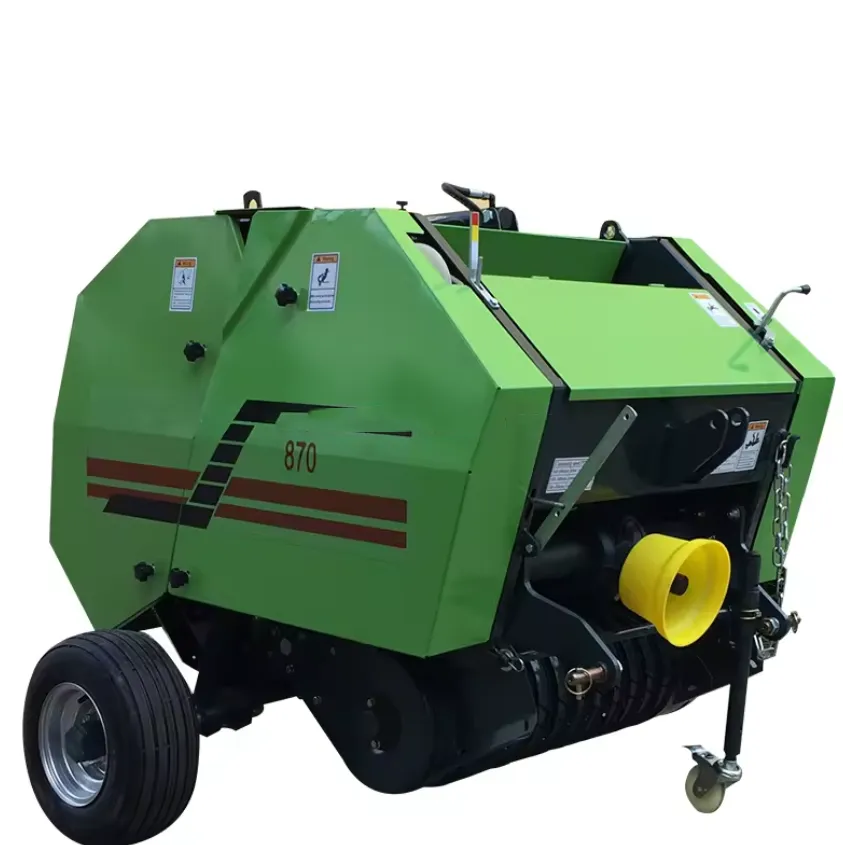

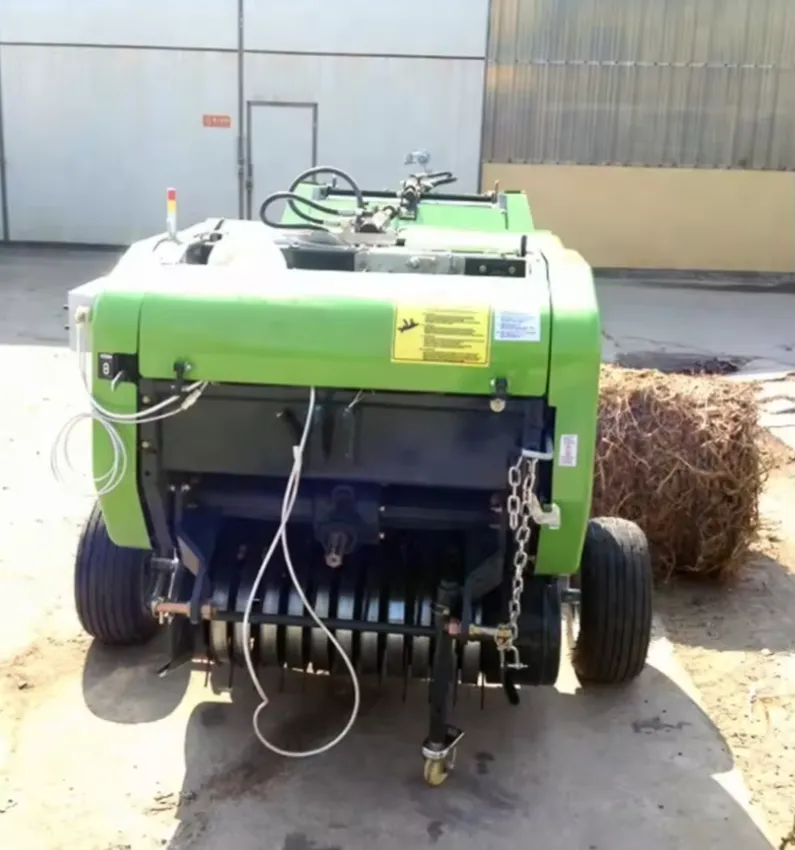

Stationary Hay Baler

Our Stationary Hay Baler is a top-of-the-range round baler, designed for high-performance and efficiency. Operating at speeds between 3-10km/h, this new model baler (RXYK0850 | RXYK0870) is designed for picking up and baling various types of crops, including grass, alfalfa, wheat, rice straw, and more. With dimensions of 1300x1300x1350mm and a weight of 425kg, it is compact and easy to operate. The machine also comes with a two-year warranty and is ISO and CE certified. It uses twine for baling and requires a matched power of 20-50HP. The pickup width is 80cm and the machine is available in green.

Advantages of the Stationary Hay Baler

Our Stationary Hay Baler offers numerous advantages that make it stand out in the market:

1. High operating speed: The machine operates at a speed of 3-10km/h, which allows for efficient and quick baling.
2. Wide application: It can be used for picking up and baling a variety of crops, making it versatile and suitable for different farming requirements.
3. Compact size: With dimensions of 1300x1300x1350mm, it is compact and easy to maneuver in the field.
4. Light weight: Weighing 425kg, the baler is relatively light, which reduces the load on the tractor and makes it easier to operate.
5. Quality assurance: The machine comes with a two-year warranty, providing assurance of its durability and reliability.
6. Certification: It is ISO and CE certified, which attests to its quality and compliance with international standards.

Applications of the Stationary Hay Baler

The Stationary Hay Baler has a wide range of applications:

1. Farm use: It is suitable for use in farms of various sizes for baling different types of crops.
2. Rice straw baling: The machine is ideal for picking up and baling rice straw, making it an essential tool in rice farming.
3. Alfalfa baling: It can also be used for baling alfalfa, making it useful in livestock farming.
4. Wheat straw baling: The baler is effective in picking up and baling wheat straw, which can be used as animal feed or bedding.
5. Grass baling: It is perfect for baling grass, especially in large fields or pastures.
6. Handling terrain: With its compact size and light weight, the machine is easy to maneuver in different terrains.

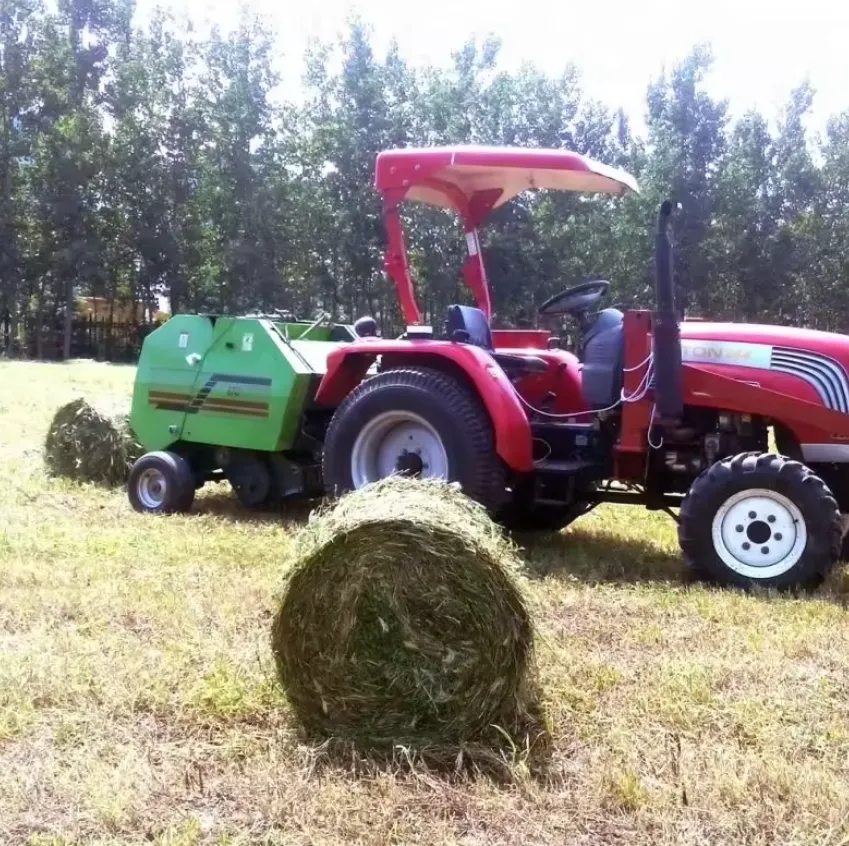

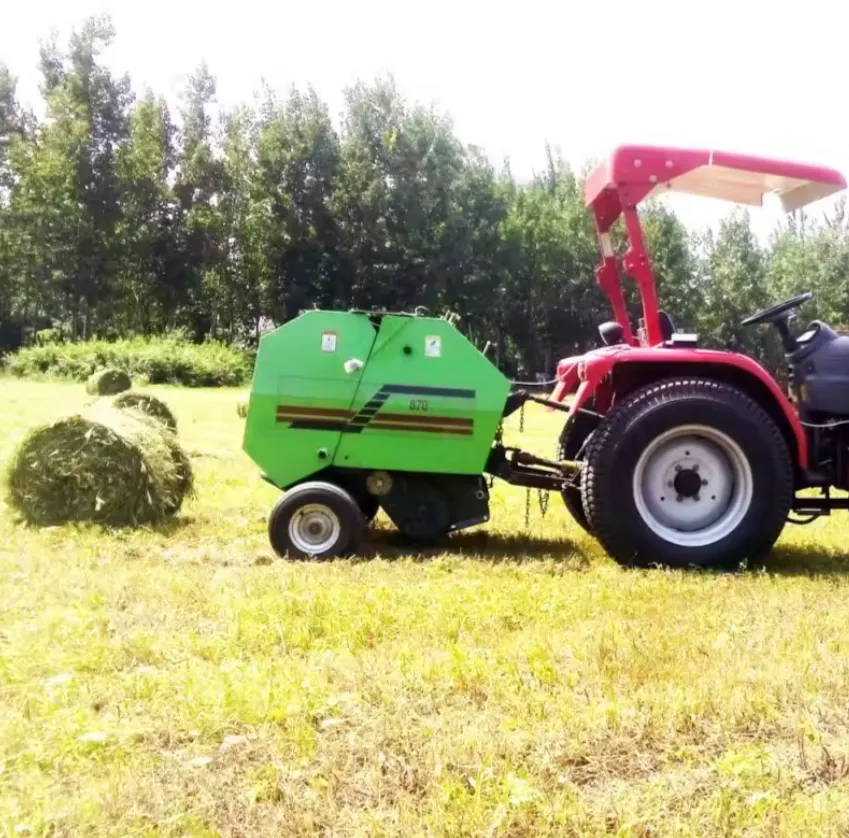

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler operates in several stages:

1. Preparing the tractor: The tractor is equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler.
2. Hitching the baler: The baler is attached to the tractor's three-point hitch or other compatible attachment mechanism. The baler is secured to the tractor to ensure a firm and stable connection.
3. Adjusting settings: The appropriate baling parameters are set based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: The pickup attachment of the baler is lowered onto the ground using the tractor's hydraulic controls. The pickup attachment collects the loose hay or straw from the ground and feeds it into the baling chamber.
5. Bale formation: The material is conveyed into the baling chamber where it is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale to ensure it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps:

1. Read the Manuals: The operator's manuals for both the tractor and the mini hay round baler provide specific instructions for attaching and operating the equipment, as well as any safety precautions.
2. Position the Tractor and Baler: The tractor is positioned close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler.
3. Attach the Baler to the Tractor: The baler is attached via a three-point hitch or a drawbar, depending on the baler's design.
4. Connect the PTO Shaft: The PTO shaft from the baler is slid onto the PTO stub on the tractor. The shaft locks into place, providing a secure connection.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, the hydraulic hoses from the baler are connected to the tractor's hydraulic outputs.
6. Test the connections: All the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, are checked to ensure they are secure and properly fitted.

Maintenance of the Stationary Hay Baler

Proper maintenance of a mini hay round baler is essential for optimal performance, longevity, and safety. Here are some key maintenance tasks:

1. Regular cleaning: The baler is cleaned thoroughly after each use to remove any accumulated debris, hay, or straw. This prevents clogs and reduces the risk of corrosion.
2. Lubrication: The baler's lubrication points are checked and lubricated according to the manufacturer's recommendations. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: The rollers are inspected for any signs of damage, misalignment, or excessive wear. They are adjusted or replaced as necessary.
4. Twine or net wrap system: The twine or net wrap system is inspected regularly. Components are replaced or adjusted as needed to ensure consistent and secure bale tying.
5. PTO maintenance: The PTO shaft is inspected regularly for any signs of wear, damage, or loose connections. It is lubricated properly and worn or damaged components are replaced.
6. Check hydraulic system: The hydraulic system is inspected for leaks, damage, or signs of wear. Any damaged hoses or fittings are replaced and hydraulic fluid leaks are addressed promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery, with a strong focus on research and development. We have been in the industry since 1989, and have since grown to become a global leader in the field. Here's why you should choose our Mini Hay Round Baler:

1. Professionalism: Our team of over 100 employees, including 20 technical staff and five senior R&D personnel, have the experience and expertise to deliver high-quality products.
2. International Certifications: Our products are ISO and CE certified, validating our commitment to quality and international standards.
3. Customized Services: We offer customized services to meet the specific needs of our customers. We understand that every farm is unique, and we strive to provide solutions that are tailored to your individual requirements.
4. Advanced Production Facilities: Our advanced production facilities, complete with two casting, forging, machining, heat treatment, and lacquering production lines, enable us to manufacture products of superior quality and performance.
5. After-sales Services: We provide comprehensive after-sales services to ensure customer satisfaction. Our team is always ready to assist with any queries or issues you may have after purchasing our products.

For more information about our Mini Hay Round Baler and other products, please contact us. We look forward to serving your agricultural machinery needs!
