Steel Sleeve Chain for Engineering S188

● Engineering steel sleeve chain is mainly designed and manufactured according to ASME B29.12M?steel sleeve (without roller) chain, accessories, and sprocket tooth profile, JB/T 5398?steel sleeve chain, accessories, and sprocket, JB/T 3926 "vertical bucket elevator?and other standards, and can also be customized and developed according to user requirements.● The steel sleeve chain for engineering evolved from the early casting chain. Based on the design of the chain service function and long service life, the product has a large hinge bearing area, which can be strengthened by heat treatment to ensure sufficient wear and impact resistance.● Products are mainly used in conveyors, bucket elevators, hauling equipment, and other engineering machinery applications. In some major projects, many heavy-duty bucket elevators use steel sleeve chains as bulk material conveying chains.

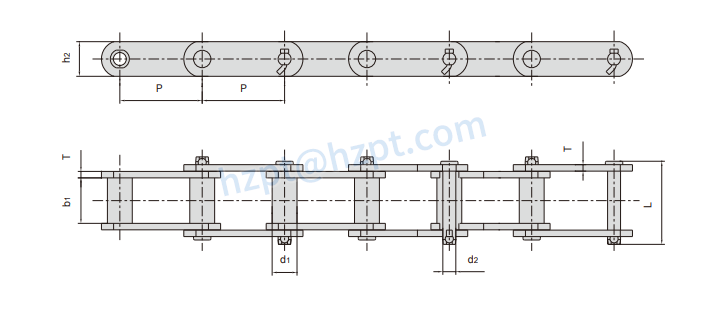

Dimension

Chain No.	PitchP	Bushdiameterd1max	Widthbetweeninner plates	Pindiameter	Pinlength	Platedepth	Platethickness	Tensilestrength	Averagetensilestrength	Weightpermeter
			b1min	d2max	Lmax	h2max	Tmax	Qmin	Qo	q
	mm	mm	mm	mm	mm	mm	mm	kN/lbf	KN	kg/m
S188	66.27	22.40	26.90	12.70	68.6	28.40	6.4	102.0/22946	112.2	5.60

Steel Sleeve Chain for Engineering S188 is a versatile and durable chain that is perfect for a range of industrial applications. Made from high-quality steel, this chain is designed to withstand extreme temperatures, high loads, and heavy-duty applications. Whether you are using it for mining, construction, or manufacturing, Steel Sleeve Chain for Engineering S188 is the perfect solution for your needs.At its core, Steel Sleeve Chain for Engineering S188 is designed to provide exceptional performance under even the toughest conditions. The chain is made from high-quality steel that has been carefully engineered to provide the perfect balance of strength, durability, and flexibility. This makes it the ideal choice for a wide range of industrial applications where reliability and performance are key considerations.One of the key benefits of Steel Sleeve Chain for Engineering S188 is its versatility. Whether you need a chain for heavy-duty applications or for use in extreme temperatures, this chain is up to the task. It is capable of withstanding temperatures ranging from -20??C to 150??C, making it suitable for use in a variety of different environments.In addition to its versatility, Steel Sleeve Chain for Engineering S188 is also incredibly durable. The chain is designed to withstand high loads and heavy-duty applications, which means it is perfect for use in mining, construction, and other industrial applications where strength and durability are key considerations.Another key benefit of Steel Sleeve Chain for Engineering S188 is its low maintenance requirements. The chain is designed to be self-lubricating, which means it requires minimal maintenance over its lifetime. This makes it an ideal choice for applications where maintenance is difficult or expensive.When it comes to choosing the right chain for your industrial application, Steel Sleeve Chain for Engineering S188 is the clear choice. With its exceptional durability, versatility, and low maintenance requirements, this chain is the perfect solution for a wide range of different applications. So why wait? Start experiencing the benefits of Steel Sleeve Chain for Engineering S188 today!

Heavy Machinery and Construction Equipment

In the construction and heavy machinery sectors, steel sleeve chains are utilized in a wide range of equipment, including cranes, excavators, and bulldozers. Their high strength and durability make them ideal for transmitting power in the drivetrains of these machines, as well as in lifting mechanisms where they can handle high loads and resist the abrasive effects of dirt and debris.

Conveyor Systems

Steel sleeve chains are commonly used in conveyor systems across different industries, from automotive assembly lines to food processing plants. Their robust construction allows them to support heavy loads and withstand the rigors of continuous operation, making them suitable for moving products, components, or raw materials through manufacturing and processing facilities.

Agricultural Equipment

Agricultural machinery, such as tractors, combines, and harvesters, relies on steel sleeve chains for various functions, including power transmission and the operation of mechanical components. These chains are designed to endure the challenging outdoor conditions of farming environments, including exposure to dust, soil, and moisture, while maintaining high performance.

Mining and Resource Extraction

In mining and resource extraction industries, steel sleeve chains are used in equipment for drilling, excavation, and material handling. Their ability to withstand heavy loads and abrasive conditions makes them indispensable in the harsh environments of mines and quarries, where they contribute to the efficient extraction and transport of resources.

Timber and Forestry

Forestry equipment, such as wood chippers, saws, and logging machinery, utilizes steel sleeve chains for power transmission and mechanical operations. The chains' durability and resistance to wear are crucial in the processing of timber, where they encounter significant stress and impact from handling logs and cutting wood.

Manufacturing and Assembly

Beyond the primary heavy-duty applications, steel sleeve chains also find use in general manufacturing and assembly environments. They are involved in the automation of production lines, material handling systems, and in the operation of machinery that requires precise movement and control.

Marine and Offshore Applications

Engineering steel sleeve chains are used in marine and offshore applications, including anchoring systems, winches, and hoisting equipment. Their corrosion-resistant properties are particularly valued in these settings, where exposure to saltwater and harsh weather conditions demands high resilience from mechanical components.
