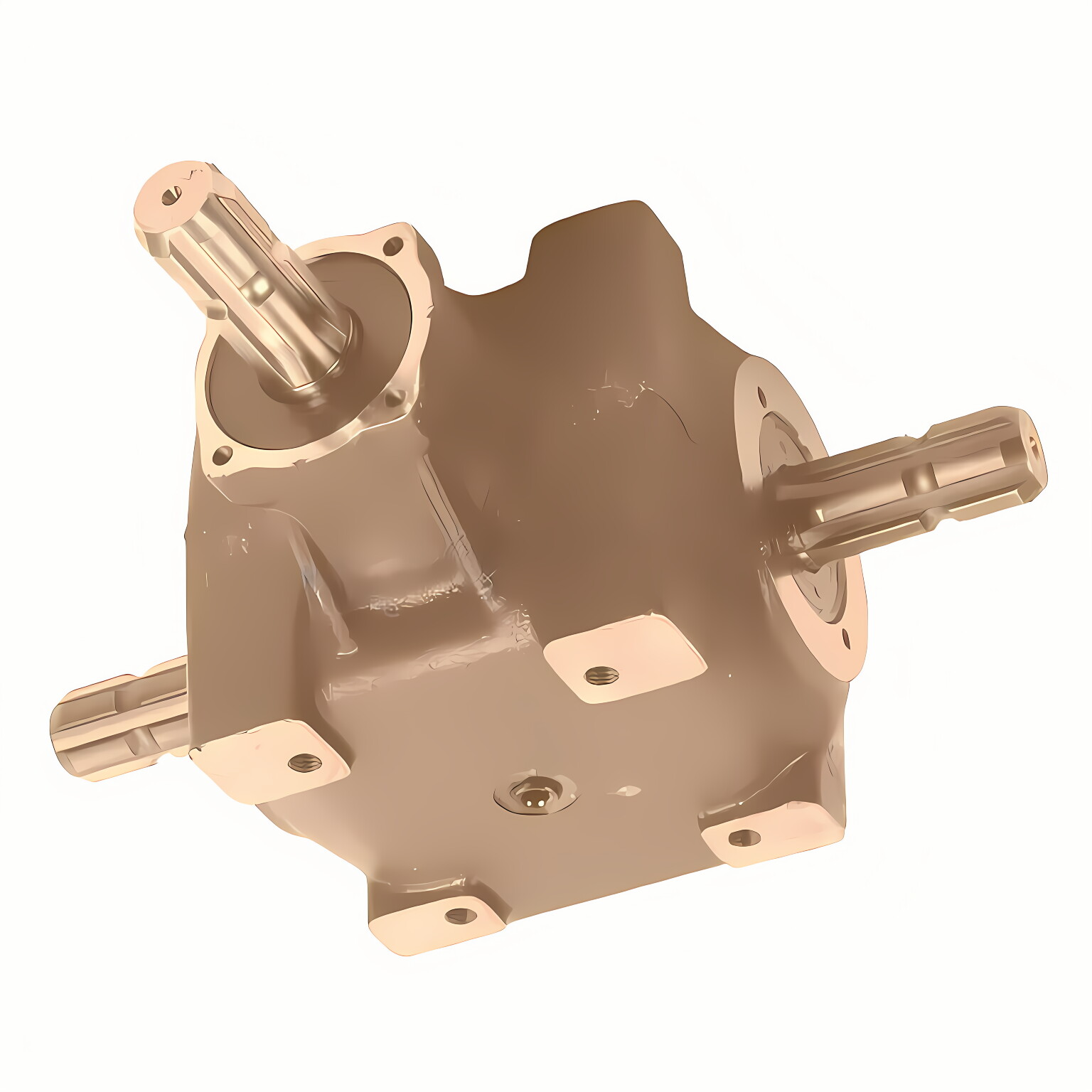

T-27A Rotary Tillers Gearbox

Raydafon Group's T-27A Rotary Tillers Gearbox delivers powerful, reliable performance for farmers and landscapers, enhancing efficiency in soil preparation. Built with durable materials and advanced engineering, it ensures smooth operation and reduced maintenance. This gearbox tackles tough terrain with ease, saving time and effort while providing peace of mind through superior quality and long-lasting durability—empowering users to achieve more with every turn.

Send Inquiry

Product Description

PTO Generators Gearboxes - Replacement of Comer Code T-27ACircular Saws and Belt Saws Gearboxes - Replacement of Comer Code T-27A

Description	Replacement of Comer gearboxes cpl. T-27A speed increasing
Application	Various (agricultural) applications Fertilizer spreaders Multi-row rotary tillers Band saws
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using for the first time, replace the oil after 50 operating hours
Max. input power	22.1 kW
Max. output torque	49.6 daNm
Contains oil	No
Max. oil capacity	1.2 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	21 kg
Gear arrangement Increasing	33 - 34
Gear arrangement Reducing	11 - 12 - 13 - 14
Gear ratio	1.92:1
Input power kW / HP Increasing	22.1 / 30 kW/HP
Input shaft Increasing	Z
Input shaft Reducing	X - Y
Input power KW / HP Reducing	15,1 / 20,5 kW/HP
Output Torque DaNm Increasing	19.7 daNm
Ratio Increasing	1 : 1,92
Ratio Reducing	1,92 : 1
Input section	Z
Shaft X	1 3/8" (6) (D)
Shaft Y	1 3/8" (6) (D)
Shaft Z	1 3/8" (6) (E)
