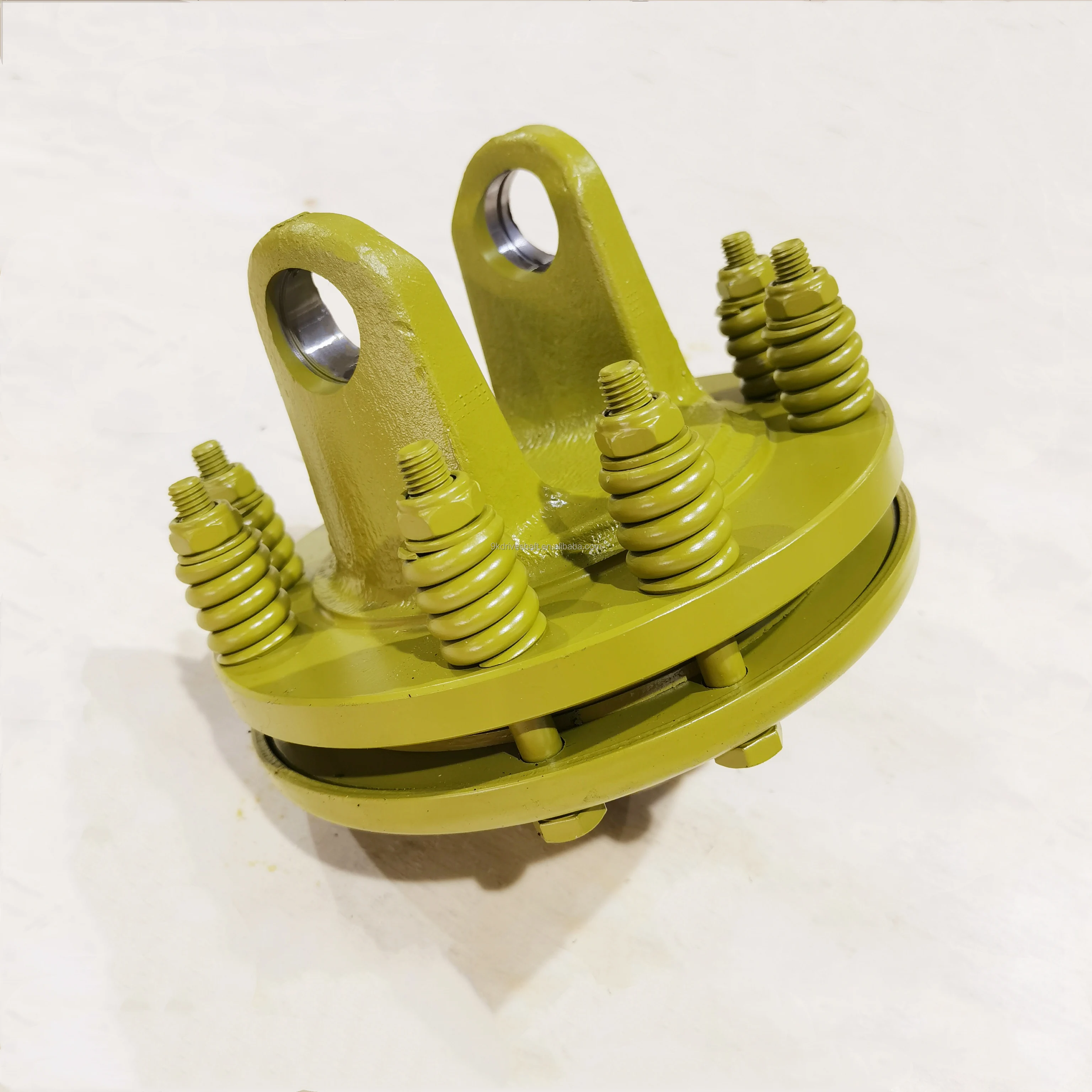

T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling
  • T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter CouplingT6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

Raydafon Guoup's T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling is a durable mechanical component designed for transmitting power in demanding agricultural and industrial applications. Its advanced friction torque limiter protects equipment from overload damage, while the 200mm universal joint ensures smooth, reliable operation. Ideal for farmers, machinery operators, and DIY enthusiasts, this product enhances efficiency and safety, preventing costly breakdowns and downtime. Unlike standard couplings, it offers superior shock absorption and a longer lifespan. Experience increased productivity and peace of mind with this trusted solution from Raydafon Guoup.

The T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling is a top-quality product designed to protect your machinery from torque overload. This product is brand new and comes with a one-year warranty. Built for a variety of industries, it is applicable for use in hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, homes, retail and food shops, printing shops, construction works, energy & mining, food & beverage shops, and more. Weighing just 3 KG, it is easy to handle and install.

Advantages of T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

A Friction Torque Limiter for a Power Take-Off (PTO) shaft in agricultural and industrial machinery offers several significant advantages:

  1. Equipment Protection: It prevents mechanical overload, which can cause severe damage to both the tractor and the implement.
  2. Improved Safety: By reducing the risk of sudden mechanical failures, friction torque limiters contribute to a safer operating environment.
  3. Ease of Maintenance: They are relatively easy to adjust to the desired torque settings and typically have straightforward maintenance procedures.
  4. Versatility: These friction torque limiters can be used with a variety of implements, especially in applications where variable loads can cause torque spikes.
  5. T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling
  6. Customizable Torque Settings: The friction torque limiter can be adjusted according to specific task requirements.
  7. Extended Equipment Lifespan: By mitigating excessive torque and preventing overload situations, these friction torque limiters extend the lifespan of both the PTO shaft and the attached equipment.

Applications of T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

Friction torque limiters are essential safety devices in agricultural machinery. They find applications in various types of farm equipment, safeguarding them against damage caused by torque overload. Here are some key applications:

  1. Rotary Cutters and Mowers: Protects the gearboxes and blades of rotary cutters and mowers when they encounter obstacles.
  2. Balers: Ensures that balers, particularly round balers, don't get overloaded when processing large amounts of material.
  3. Tillage Equipment: Used in plows, harrows, and cultivators to prevent damage from striking hard objects or overly compacted soil.
  4. Seeders and Planters: Protects seeders and planters from damage due to clogs or when encountering rough terrain.
  5. Harvesting Equipment: In combines and forage harvesters, it protects the driveline from damage due to overloading.
  6. Feed Mixers and Manure Spreaders: It helps prevent torque overload in the drivelines of feed mixers and manure spreaders.
T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

PTO Shaft Torque Limiter Types

Agricultural Power Take-Off (PTO) shaft torque limiters are crucial safety devices. There are several types of torque limiters used in agricultural settings:

  1. Friction Torque Limiters: Operate based on friction between contact surfaces. When the preset torque limit is exceeded, the device slips, preventing the transfer of excessive torque.
  2. Shear Bolt Torque Limiters: Use a shear bolt that breaks when the torque exceeds a specific threshold, disconnecting the drive between the tractor and the implement.
  3. Ratchet Torque Limiters: Utilize a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded.
  4. Overrunning Clutch Torque Limiters: Allow free rotation in one direction and lock in the opposite direction. They also limit torque by slipping or disengaging when overloaded.
T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

How Does a Friction Torque Limiter for Agricultural Work?

A friction torque limiter, particularly for agricultural applications, is a crucial safety and protection device. Here's an overview of how it works:

  1. Torque Transmission: Under normal operation, the torque from the tractor's PTO is transmitted through the friction plates of the limiter to the implement.
  2. Setting the Torque Limit: The amount of torque that can be transmitted is directly related to the amount of pressure that the springs apply to the friction plates.
  3. Activation During Overload: If the torque exceeds the set limit, the plates start to slip relative to each other.
  4. Slippage and Protection: This slippage action effectively limits the torque transmitted to the implement, protecting both the tractor's PTO system and the implement from damage.
  5. Automatic Resetting: Once the overload condition is resolved, the friction torque limiter automatically returns to its normal operation, transmitting the regular amount of torque without the need for manual resetting.
T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter CouplingT6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

How to Install a Friction Torque Limiter on Agricultural Equipment?

Installing a friction torque limiter on agricultural equipment is a crucial task. Here's a general guide on how to install a friction torque limiter:

    T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling
  1. Disconnect Power: Ensure the tractor or equipment is turned off and the PTO is disengaged.
  2. Remove the Existing Equipment: If replacing an existing torque limiter or coupling, first remove it.
  3. Prepare the Friction Torque Limiter: Unpack the new torque limiter and check for any shipping locks or braces that need to be removed.
  4. Install the Torque Limiter: Align the torque limiter with the PTO shaft. Connect the torque limiter to the PTO shaft, ensuring that any splines or keys align properly.
  5. Adjust the Torque Settings: Adjust the torque settings according to the manufacturer??s specifications.
  6. Test the Installation: Once installed, rotate the PTO shaft by hand to ensure that the limiter is moving freely and is properly aligned.

Maintenance and Care of the T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling

Maintaining and caring for a Friction Torque Limiter is essential to ensure its effective operation and longevity. Here??s a comprehensive guide to maintaining and caring for your friction torque limiter:

  1. Regular Inspection: Regularly inspect the friction surfaces for wear.
  2. Lubrication: Some friction torque limiters may require periodic lubrication.
  3. Adjustment and Calibration: Regularly check and adjust the torque settings according to the manufacturer's specifications.
  4. Cleaning: Keep the torque limiter clean from dirt, grime, and crop residue.
  5. Avoid Overloading: Do not intentionally overload the PTO shaft beyond the limiter??s capacity.

Why Choose Raydafon's PTO Shaft Friction Torque Limiter?

Raydafon Drive Shaft Co., Ltd. is a top professional OEM supplier for many agricultural implement factories in the domestic market. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. Our products gained a great reputation from customers worldwide. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

T6 PTO Shaft FF2 200MM Universal Joint Shaft Friction Torque Limiter Coupling
