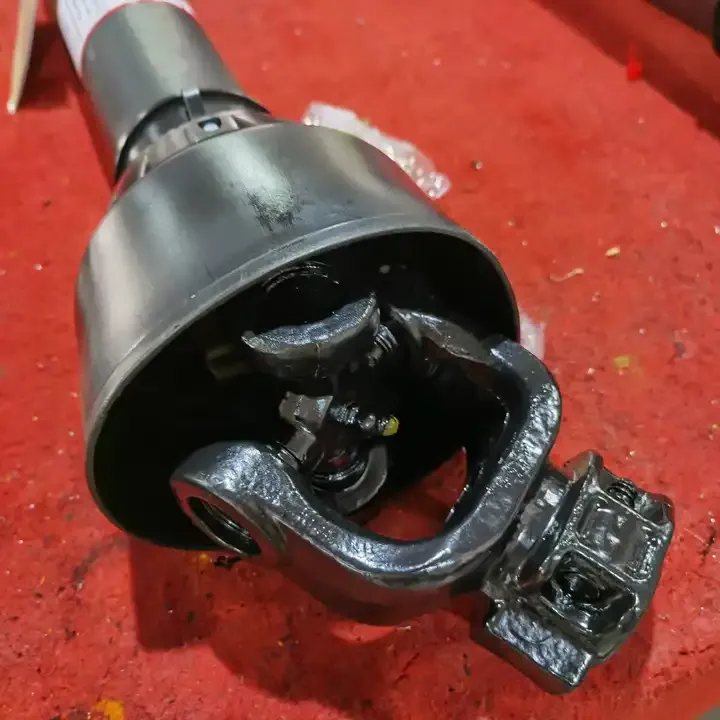

T7 Friction Torque Limiter FFV1-FFV2 Series U-Joint of PTO Shafts for Agricultural Tractors Clutch Overrun

Introducing the T7 Friction Torque Limiter FFV1-FFV2 Series PTO drive shaft specifically designed for agricultural tractors. This high-quality product is new, comes with a 1-year warranty and weighs 10 kg. It is a must-have for various industries such as hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, and other applicable industries.

Advantages of Using an Agricultural PTO Shaft with Torque Limiter

Using an agricultural PTO Shaft with Torque Limiter offers several significant advantages, crucial for both the safety and efficiency of farm machinery. Here are the key benefits:1. Protection Against Overload Damage: The torque limiter acts as a safeguard against damage by disconnecting the power transmission when the torque exceeds a safe threshold. This protects both the tractor and the implement from potential mechanical damage.2. Equipment Longevity: By limiting excessive torque, these systems reduce wear and tear on equipment, thereby extending the lifespan of both the tractor and the attached implements.3. Enhanced Safety: The torque limiter helps prevent accidents that could result from mechanical failures or sudden stops in machinery operation.4. Easy Maintenance and Replacement: Torque limiters are generally easy to maintain and replace, making them a user-friendly addition to PTO shafts.5. Versatility in Application: PTO shafts with torque limiters can be used with a wide range of implements, increasing the versatility of the tractor.6. Customizable Settings: Many torque limiters offer adjustable settings, allowing them to be customized to the specific torque requirements of different implements.

Applications of the Agricultural PTO Shaft with Torque Limiter

A PTO shaft with torque limiter is an essential component in modern agricultural machinery, providing enhanced protection and efficiency across various applications. Here are some of the key agricultural applications where a PTO shaft with a torque limiter is particularly beneficial:1. Rotary Tillers and Cultivators: Torque limiters are crucial for tillers and cultivators, protecting the equipment from damage if the tiller blades hit rocks or hard soil.2. Balers: In balers, torque limiters prevent damage to the machinery if a jam occurs during the baling process, which is common with varying conditions of material being baled.3. Mowers and Rotary Cutters: They protect mowers and cutters from overload when cutting through dense vegetation or encountering hidden obstacles.4. Harvesting Equipment: For combines and forage harvesters, torque limiters safeguard against damage caused by blockages or the harvesting of unevenly distributed crops.5. Seed Drills and Planters: These implements benefit from torque limiters by preventing damage when encountering underground obstacles or in situations of mechanical overfeeding.6. Manure Spreaders: Torque limiters are important in manure spreaders to handle situations where the spreading mechanism might become clogged or overloaded.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications. Here's an overview of the common types:1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement. Common in a variety of implements; ideal for situations where overload conditions are clear and easily detectable.2. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking. Used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.3. Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded. Suitable for implements like augers where unidirectional operation is required.4. Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload. Commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.

Agricultural PTO Shaft with Torque Limiter Troubleshooting

Troubleshooting issues with an agricultural PTO shaft equipped with torque limiter involves identifying and addressing common problems that can affect its performance. Here are some typical issues and their potential solutions:1. Torque Limiter Engaging Too Frequently, Cause: Over-sensitivity, improper adjustment, or the implement being too heavy for the tractor. Solution: Adjust the torque limiter settings according to the manufacturer's specifications. Ensure that the implement is appropriate for the tractor's power capacity.2. Torque Limiter Fails to Engage, Cause: Worn out components, incorrect settings, or mechanical failure. Solution: Check for worn parts and replace them. Ensure the torque settings are correct. Inspect for mechanical faults and repair as necessary.3. PTO Shaft Vibration or Noise, Cause: Misalignment, damaged U-joints, or imbalance in the shaft. Solution: Align the PTO shaft correctly. Inspect and replace any damaged U-joints. Balance the shaft if necessary.4. Difficulty in Attaching or Detaching the Shaft, Cause: Misalignment, damaged yokes, or seized parts. Solution: Ensure proper alignment. Replace any damaged components. Lubricate moving parts to ease attachment and detachment.5. Excessive Wear on the Torque Limiter, Cause: Continuous operation under high load or improper settings. Solution: Adjust the torque limiter to match the load requirements. Replace worn parts. Avoid operating the machinery consistently at maximum capacity.6. PTO Shaft Not Transmitting Power, Cause: Shear bolt (if present) may be broken, or the torque limiter is disengaged. Solution: Check and replace the shear bolt. Reset or engage the torque limiter.

Maintenance and Care of the Agricultural PTO Shaft with Torque Limiter

Maintaining and caring for an agricultural PTO shaft with torque limiter is essential for ensuring the longevity, safety, and efficiency of the equipment. Here??s a comprehensive guide on how to properly maintain this crucial component:1. Regular Inspection: Regularly inspect the PTO shaft and torque limiter for signs of wear, damage, or corrosion, especially on the moving parts and joints. Verify that the torque limiter settings are correctly adjusted according to the specifications and the requirements of the implement being used.2. Lubrication: Keep all universal joints, bearings, and other moving parts well-lubricated with the appropriate grease to ensure smooth operation and to prevent premature wear.3. Cleaning: Regularly clean the PTO shaft and torque limiter to prevent the buildup of dirt, debris, and rust, which can impair their functionality.4. Checking and Adjusting Torque Limiter: Periodically test the torque limiter to ensure it is functioning correctly. It should disengage when the torque exceeds the set limit. Adjust the torque settings if they are not in line with operational requirements or if the equipment has been modified or is being used for different tasks.5. Replacing Worn Parts: Inspect for and replace any worn or damaged components immediately, such as shear pins, springs, or friction discs in the torque limiter.6. Proper Storage: When not in use, store the PTO shaft in a dry, clean environment to prevent rust and corrosion.

Why Choose Raydafon's Agricultural PTO Shaft with Torque Limiter?

Raydafon specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year.Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive.We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.Author: Yjx
