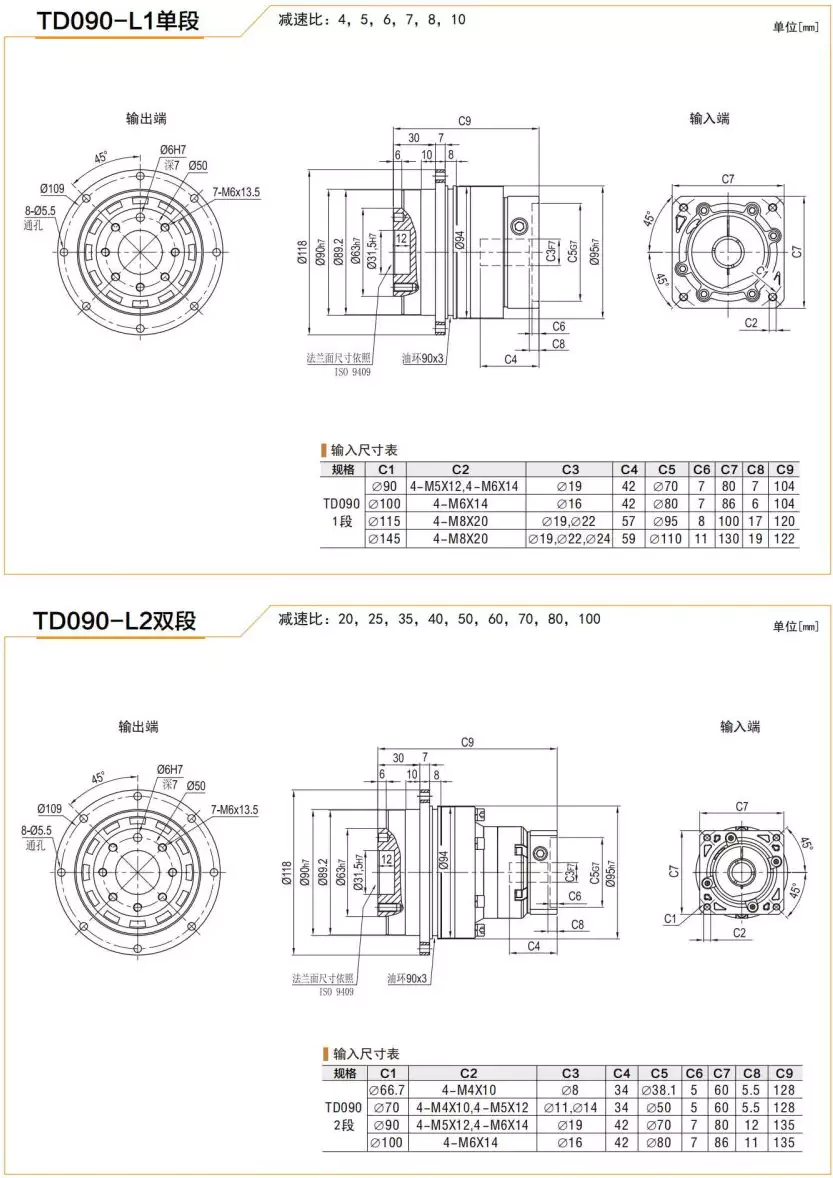

TD090 Series High Precision Planetary Gearbox Helical Gear Reducer

Meet the TD090 Series High Precision Planetary Gearbox Helical Gear Reducer from Raydafon Guoup, engineered for demanding applications requiring exceptional accuracy and durability. This advanced reducer delivers smooth, efficient power transmission with minimal backlash, making it ideal for robotics, automation, and precision machinery. Users experience reliable performance and extended lifespan, solving vibration and wear issues common in standard gearboxes. Its unique helical design ensures quieter operation and higher torque capacity, setting it apart from competitors. Elevate your projects with Raydafon Guoup's innovation today!

Send Inquiry

Product Description

Overview of TD090 Series High Precision Planetary Gearbox Helical Gear Reducer

TD090 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox used in various industrial applications. It is known by several other names, such as servo motor planetary gearbox and low backlash planetary gearbox. The gearbox has a high precision design that provides accurate and efficient transmission of power. The TD090 series gearbox is made up of a helical gearbox and planetary gearbox that work together to provide precision motion control.

Basic Construction of High Precision Planetary Gearbox

The high precision planetary gearbox consists of the following components:

Sun Gear
The sun gear is located at the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
Planet Gears
The planet gears rotate around the sun gear and are supported and held in place relative to each other by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear, and they share and distribute the load when power is input.
Planet Carrier
The planet carrier is a structure with multiple planet gear shaft holes. It supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
Ring Gear/Annulus
The ring gear is a large diameter ring-shaped gear fixed inside the housing with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear can also serve as the input or output end.
Bearings and Shaft System
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier to ensure stable rotation and smooth operation between the components.
Housing and Seals
The housing is the external frame of the entire gearbox that protects the internal components from external environmental effects and provides installation interfaces. Seals ensure that internal lubricants do not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of the high precision planetary gearbox is as follows:

Torque Transmission
When power is input to the sun gear, the planet gears around it rotate. Since the planet gears mesh with both the sun gear and the ring gear, they undergo self-rotation on their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified through the planet gears and evenly distributed to the planet carrier at the output end.
Speed Conversion and Torque Amplification
By adjusting the gear ratio of different components, speed conversion between input and output, as well as torque amplification can be achieved. Typically, increasing the number of planet gears or gear ratio results in a more significant increase in torque but also a decrease in output speed.
Low Backlash Design
In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
Load Distribution and Dynamic Response
An important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system, and optimizing dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

Consideration	Description
Load Characteristics	Understanding the load characteristics, such as the direction, magnitude, and frequency of the load, is essential for optimal gearbox selection and design.
Input Speed	Input speed affects the design and material selection of the gearbox components.
Operating Environment	The operating environment, such as temperature, humidity, and dust level, determines the material selection and protection requirements of the gearbox.
Accuracy Requirements	The required accuracy level affects the selection of transmission ratio and backlash, as well as the use of preloading technology.

Applications of High Precision Planetary Gearbox

The high precision planetary gearbox is used in various industries and applications, including:

Servo Motor System
The gearbox is used in conjunction with servo motors for precise speed control and position positioning in industrial automation equipment, such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.
Medical Equipment
The gearbox is used in high-end medical equipment, such as CT scanners, MRI machines, and surgical robots, to achieve precise motion control and torque amplification.
Aerospace
The gearbox is used in aircraft landing gear retracting systems, flight control system actuators, satellite attitude adjustment devices, and other applications that require high reliability and precision.
Precision Instruments
The gearbox is used in scientific experimental equipment, precision measuring instruments, and optical tracking systems that have extremely high requirements for transmission accuracy.
Automotive Manufacturing
The gearbox is used in the power steering system of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars.
Robotics
The gearbox is used in joint drive parts of industrial robots, service robots, and special operation robots.
Logistics Automation
The gearbox is used in lifting machines, conveyor drive systems, and AGVs in automatic warehousing systems.
