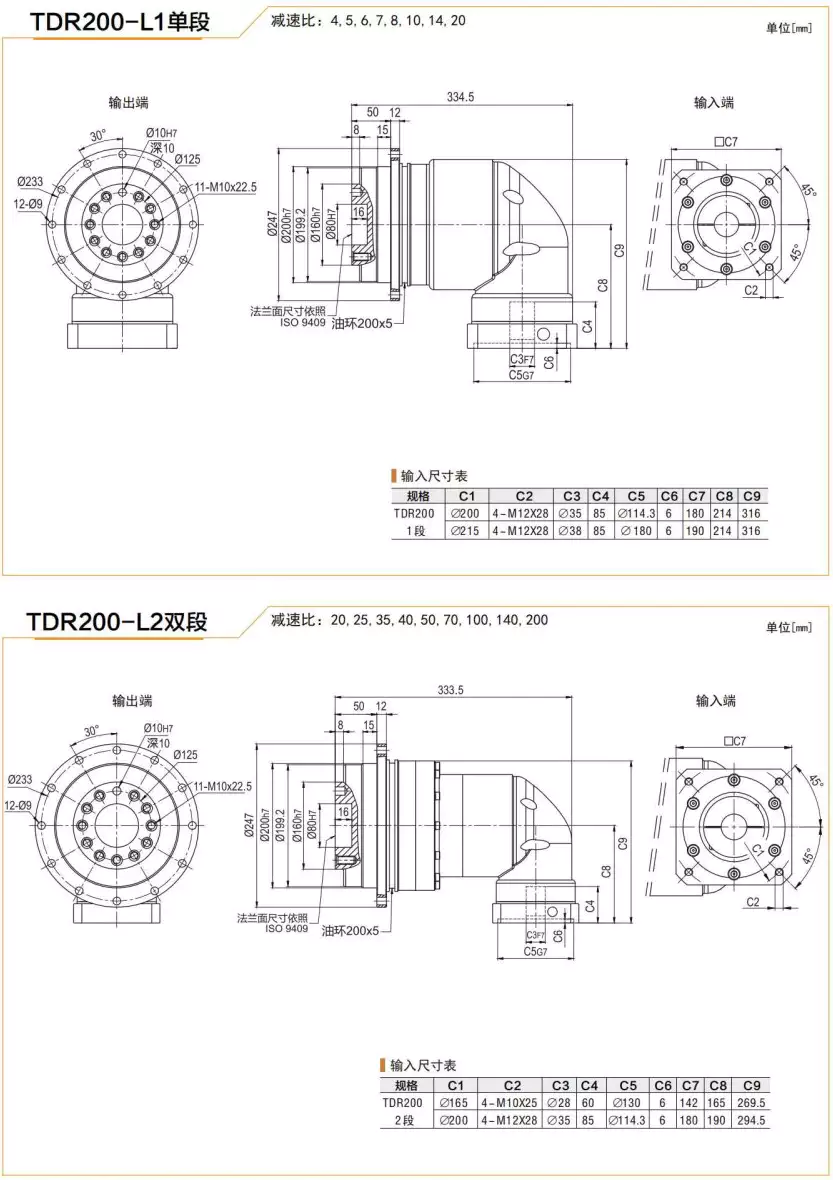

TDR200 Series High Precision Planetary Gearbox Helical Gear Reducer

TDR200 Series High Precision Planetary Gearbox Helical Gear Reducer Overview

The TDR200 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gear reducer used to transmit torque and adjust the speed of mechanical power. It is also known as the servo motor planetary gearbox and low backlash planetary gearbox. The TDR200 Series High Precision Planetary Gearbox Helical Gear Reducer is widely used in various industries due to its high precision, low noise, and high efficiency.

High Precision Planetary Gearbox Basic Structure

1. Sun Gear: The sun gear is located at the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears revolve around the sun gear and are supported and held in their relative positions by the planet carrier. Each planet gear meshes with the sun gear and the internal ring gear, and they share and distribute the load when power is inputted.
3. Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes. It supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The internal ring gear is a large diameter annular gear fixed inside the housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the internal ring gear can also be used as an input or output end.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of all components.
6. Housing and Seals: The housing is the external frame of the entire gearbox, which protects the internal components from external environmental factors and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and moisture from entering the gearbox.

High Precision Planetary Gearbox Working Principle

1. Torque Transmission: When power is inputted into the sun gear, the planet gears revolve around the sun gear. Since the planet gears mesh with both the sun gear and the internal ring gear, they rotate around their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque inputted into the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, the speed conversion between input and output and torque amplification can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease.
3. Low Backlash Design: In high-precision applications, to ensure precise position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
4. Load Distribution and Dynamic Response: An important advantage of the planetary gear mechanism is that it can distribute the load evenly among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system and optimizing the dynamic response performance.

High Precision Planetary Gearbox Design and Selection Considerations

High Precision Planetary Gearbox Applications

1. Servo Motor System: Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drive, feed mechanism of precision machine tools, and semiconductor manufacturing equipment.
2. Medical Equipment: Used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, and surgical robots.
3. Aerospace: Used in the landing gear retracting system of aircraft, the actuator of flight control system, the attitude adjustment device of satellites, and other applications that require high reliability and precision.
4. Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
5. Automotive Manufacturing: Used in the power steering system of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars.
6. Robotics: Used in the joint drive section of industrial robots, service robots, and special operation robots.
7. Logistics Automation: Used in the lifting platform, conveyor drive, AGV (automatic guided vehicle), and other automatic warehousing systems.

About Us

We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We strictly follow the international quality management system standard ISO90012015. Our products have passed the mandatory CCC certification in China and the CE certification of the European Union. The products are produced according to international IC standards and have reached the advanced level of similar products internationally.

Our advantages include:

• Advanced production equipment and testing instruments
• Strict quality control system to ensure product quality
• Professional technical team to provide technical support
• Reasonable price and timely delivery

Author: Miya
