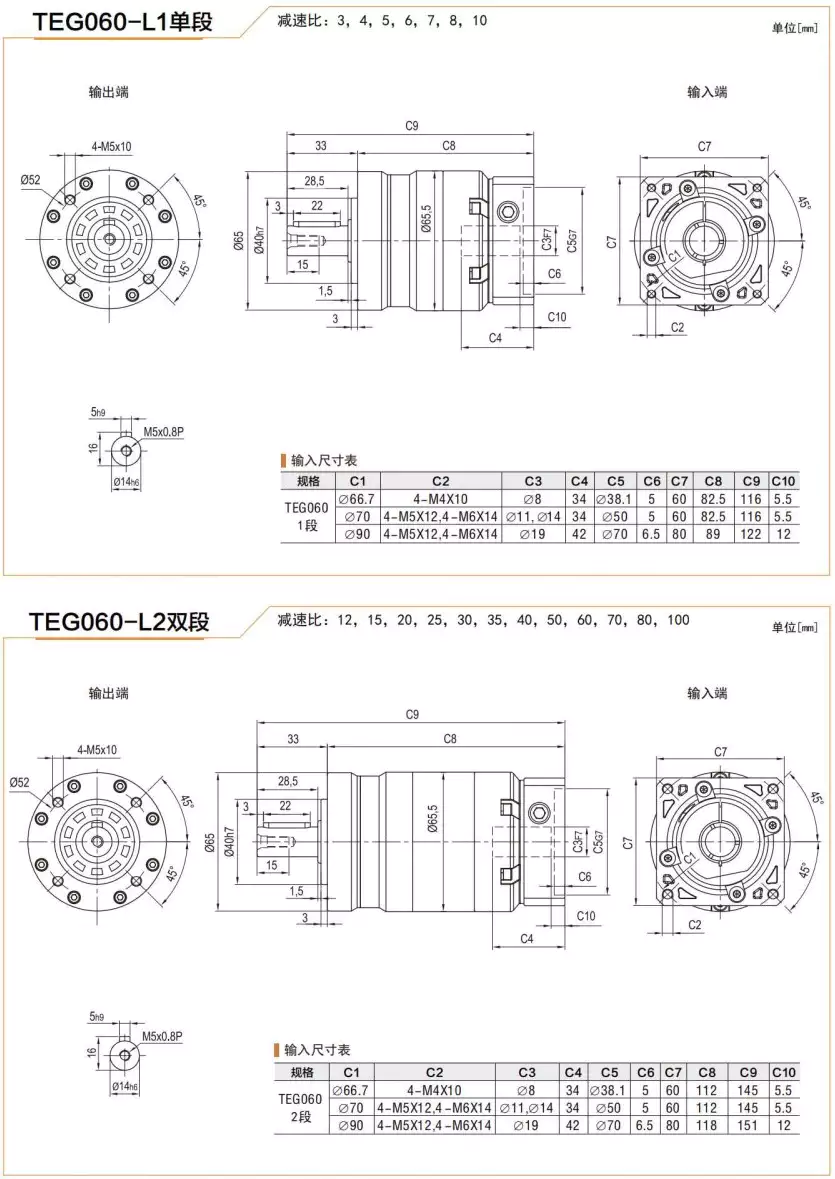

The TEG060 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox used in various industrial applications for precise speed control and positioning. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The gearbox is designed to provide high accuracy, low noise, and high efficiency torque transmission. It can withstand high shock loads and is ideal for use in applications that require high precision and high reduction ratios.
The high precision planetary gearbox consists of several components:
The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the internal gear ring, and when power is input, they jointly bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
The internal gear ring is a large diameter annular gear fixed inside the housing, with teeth on both the inner and outer surfaces that mesh with the planet gears. In some applications, the internal gear ring can also be used as an input or output end.
The bearings in the high precision planetary gearbox are used to support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between the components.
The housing is the external frame of the entire gearbox, which protects the internal components from external environmental influences and provides installation interfaces. Seals ensure that internal lubricants do not leak and prevent dust and moisture from entering the gearbox.
The high precision planetary gearbox works based on the following principles:
When power is input to the sun gear, the planet gears located around the sun gear begin to rotate. Since each planet gear meshes with both the sun gear and the internal gear ring, they rotate on their own axis while also revolving around the center of the sun gear with the planet carrier. This way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the output-side planet carrier.
By adjusting the gear ratio between different components, speed conversion and torque amplification between input and output can be achieved. Generally, the greater the number of planet gears or the larger the gear ratio, the more significant the torque amplification effect, but the output speed will also decrease.
In high-precision applications, in order to ensure precise position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, which is known as "zero/low backlash" design.
One important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system, and optimizing dynamic response performance.
The design and selection considerations of high precision planetary gearbox are as follows:
| Consideration Factors | Description |
|---|---|
| Load Capacity | The gearbox must be able to withstand the maximum possible load that may be encountered in the application. |
| Speed Ratio | The gearbox should be selected based on the required speed ratio between input and output shafts. |
| Backlash | The gearbox should have minimum backlash to ensure precise positioning and minimal mechanical clearance. |
| Efficiency | The gearbox should have high efficiency to minimize the energy loss during transmission. |
| Noise | The gearbox should produce minimal noise to avoid causing noise pollution in the working environment. |
| Lubrication | The gearbox should be adequately lubricated to ensure smooth operation and a long service life. |
The high precision planetary gearbox is used in various applications, including:
Used in industrial automation equipment for precise speed control and positioning, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
Used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc. for precise motion control and torque amplification.
Used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, etc. requiring high reliability and accuracy.
Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc. that require high transmission accuracy.
Used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
Used in joint drives of industrial robots, service robots, and special operation robots.
Used in automated warehousing systems such as lifts, conveyor drives, AGVs, etc.
We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We specialize in the research, production, and sales of various transmission products. Our products have passed the mandatory CCC certification in China and the CE certification in the European Union. Our products are produced according to international standards and are at the advanced level of similar products internationally.
Our advantages include:
