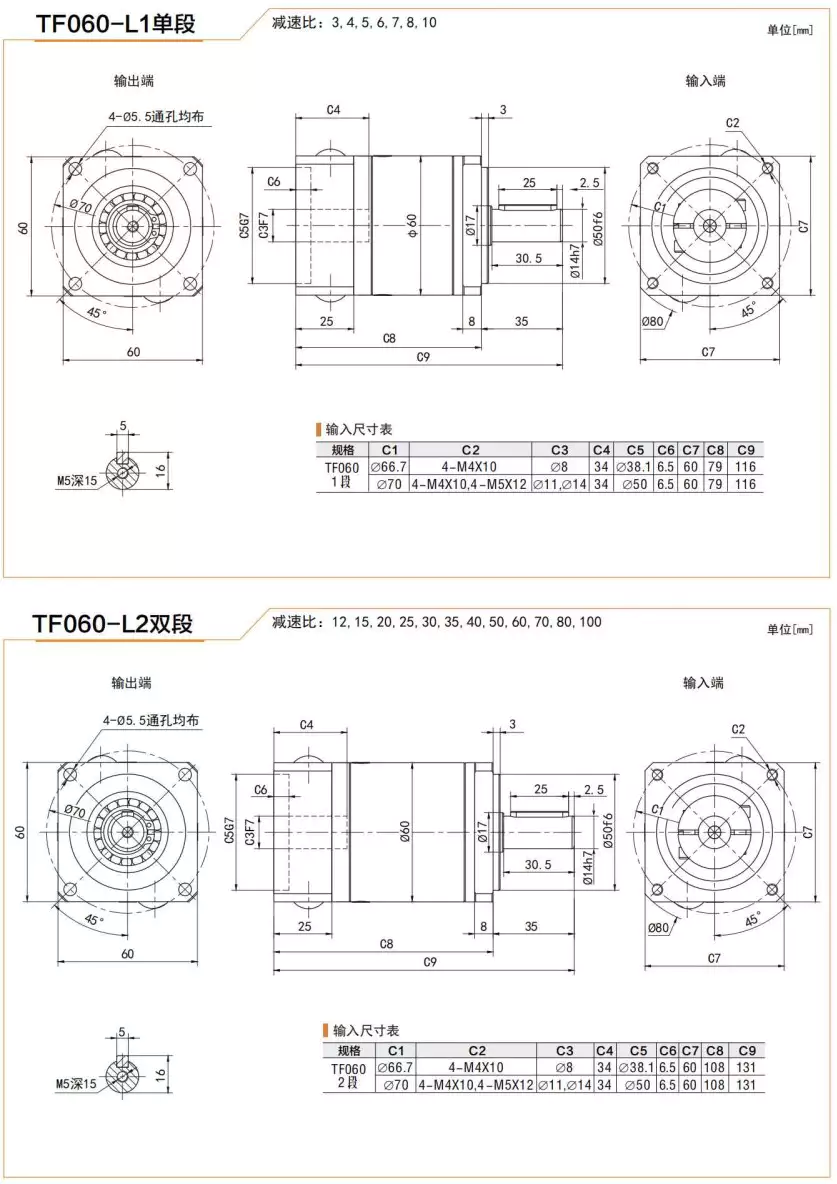

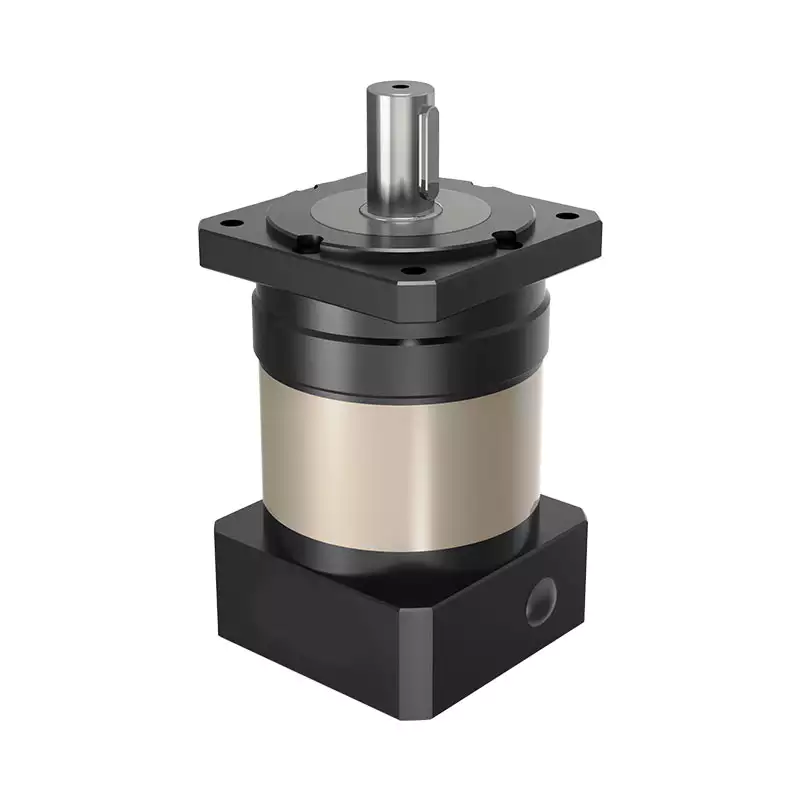

TF060 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview

TF060 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox that is commonly used in industrial automation equipment for precise speed control and position positioning.

Basic Structure of High Precision Planetary Gearbox

A high precision planetary gearbox consists of several main components, including:

• Sun Gear: located at the center of the planetary gearbox, usually connected to the input shaft or fixed to the housing as a stationary component.
• Planet Gears: rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear/annulus, and together they share and distribute the load when power is input.
• Planet Carrier: a structure with multiple planet gear shaft holes, which carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: a large-diameter ring gear fixed inside the gearbox housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear can also be used as an input or output end.
• Bearings and Shaft System: the bearings in a high-precision planetary gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components.
• Housing and Seals: the housing is the outer frame of the entire gearbox, which protects the internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of a high precision planetary gearbox involves several key aspects:

• Torque Transmission: when power is input to the sun gear, it drives the surrounding planet gears to rotate. As the planet gears mesh with both the sun gear and the ring gear/annulus, they rotate around their own axis while also revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified through the planet gears and evenly distributed to the planet carrier on the output end.
• Speed Conversion and Torque Amplification: by adjusting the tooth ratio of different components, speed conversion and torque amplification can be achieved between the input and output. Generally, as the number of planet gears or gear ratios increases, the effect of torque amplification becomes more significant, but the output speed also decreases.
• Low Backlash Design: in high-precision applications, a preloading technique is used to reduce or eliminate the clearance between gears, known as "zero/low backlash" design, in order to ensure precise position control and minimal mechanical clearance.
• Load Distribution and Dynamic Response: one of the important advantages of a planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system, and optimizing dynamic response performance.

Design and Selection Considerations for High Precision Planetary Gearbox

Applications of High Precision Planetary Gearbox

A high precision planetary gearbox has a wide range of applications, including:

• Servo Motor Systems: used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
• Medical Equipment: used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc., for precise motion control and torque amplification.
• Aerospace: used in aircraft landing gear systems, flight control system actuators, satellite attitude adjustment devices, etc., where high reliability and precision are required.
• Precision Instruments: used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc., where high transmission accuracy is required.
• Automotive Manufacturing: used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, etc.
• Robotics: used in joint drive parts of industrial robots, service robots, and special operation robots.
• Logistics Automation: used in automatic storage systems such as lifts, conveyor drive units, AGVs (automatic guided vehicles), etc.

About Our Company

We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO9001:2015, and our products have passed the mandatory CCC certification in China and CE certification in the European Union. Our products are produced according to international standards and have reached the advanced level of similar products internationally.

Our Advantages

• We have a strong research and development team that can provide customized solutions according to customer requirements.
• Our products are produced according to international standards and have passed rigorous quality testing.
• We have a comprehensive after-sales service system to provide customers with timely and efficient technical support.
• We have a wide range of products, including planetary gearbox, worm gearbox, helical gearbox, etc., to meet the diverse needs of customers.
