TFK090 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview of TFK090 Series High Precision Planetary Gearbox Helical Gear Reducer

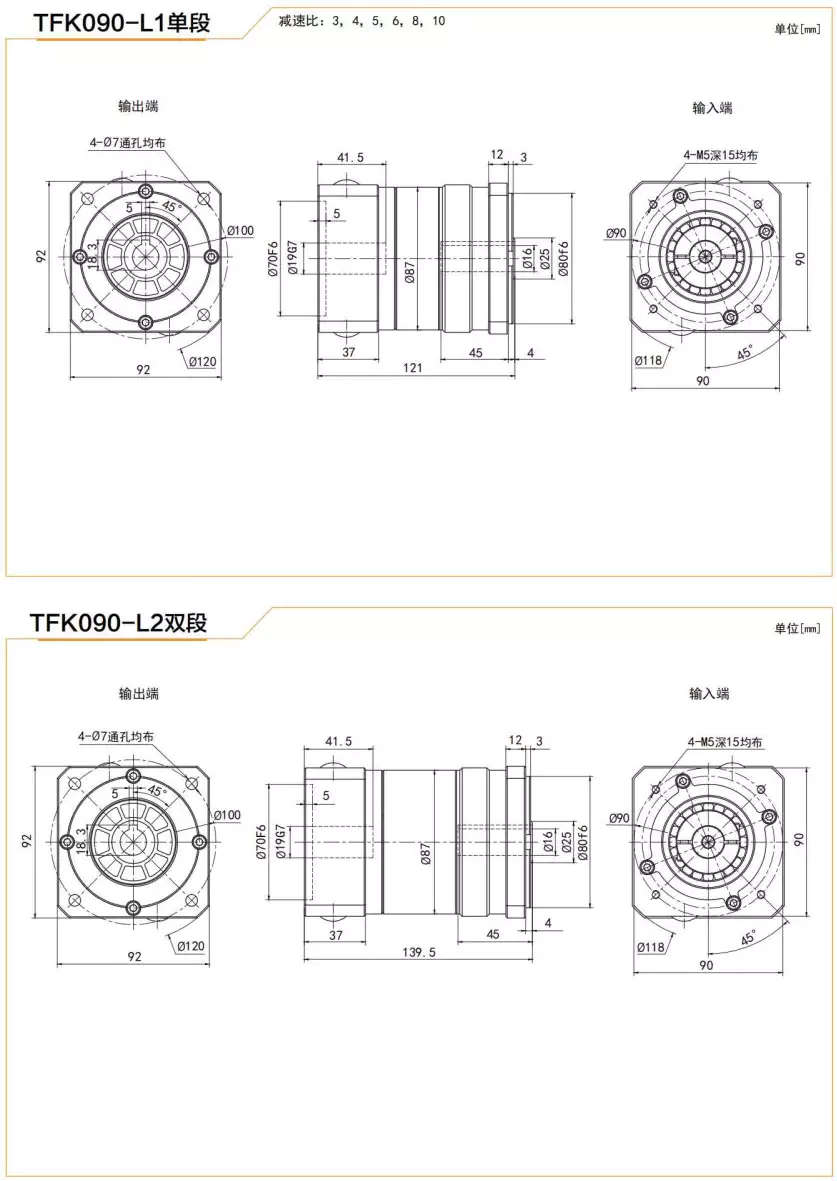

The TFK090 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that uses a planetary gear system with a helical design. It is commonly used in industrial automation applications for precise motion control and positioning. This gearbox is also known by several other names including servo motor planetary gearbox and low backlash planetary gearbox. Below is an image of the TFK090 Series High Precision Planetary Gearbox Helical Gear Reducer.

Basic Structure of High Precision Planetary Gearbox

High precision planetary gearbox contains several components that work together to achieve the desired output. The following is a breakdown of each component:

• Sun Gear: The sun gear is located in the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
• Planet Gears: The planet gears revolve around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with the sun gear and the ring gear.
• Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: The ring gear is a large-diameter, ring-shaped gear fixed inside the gearbox housing. It has teeth on both its inner and outer surfaces, and meshes with the planet gears.
• Bearings and Shaft System: Bearings inside the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components.
• Housing and Seals: The housing is the external frame of the entire gearbox, providing protection to the internal components and providing installation interfaces. Seals prevent the internal lubricant from leaking while preventing dust and moisture from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The high precision planetary gearbox works on the principle of torque transfer, speed conversion, torque amplification, low backlash, and load distribution. The following is a breakdown of each principle:

1. Torque Transfer: When power is input to the sun gear, the planet gears revolve around the sun gear and mesh with the ring gear. This causes the planet gears to rotate on their own axis while orbiting the sun gear's center. This distributes the torque input to the sun gear to the planet carrier at the output end.
2. Speed Conversion and Torque Amplification: Different gear ratios can achieve speed conversion and torque amplification. Generally, the larger the number of planet gears or gear ratio, the greater the torque amplification effect, but the output speed will decrease at the same time.
3. Low Backlash Design: In high precision applications, preloading technology is used to reduce or eliminate gear clearances, which is called "zero/low backlash" design. This design ensures accurate position control and minimal mechanical play.
4. Load Distribution and Dynamic Response: The planetary gear mechanism evenly distributes the load among multiple planet gears, improving the system's carrying capacity and stability, and optimizing dynamic response performance.

Factors to Consider When Designing and Selecting High Precision Planetary Gearboxes

Applications of High Precision Planetary Gearbox

The high precision planetary gearbox is ideal for a wide range of applications, including:

• Servo Motor Systems: Used for precise speed control and position positioning in industrial automation equipment, such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.
• Medical Equipment: Used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, and surgical robots.
• Aerospace: Used in aircraft landing gear systems, flight control system actuators, and satellite attitude adjustment devices that require high reliability and accuracy.
• Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other scenarios that require high transmission accuracy.
• Automotive Manufacturing: Used in power steering systems for new energy vehicles, drive units for electric vehicles, and transmission systems for high-performance racing cars.
• Robotics: Used in joint drive parts of industrial robots, service robots, and special operation robots.
• Logistics Automation: Used in lifting platforms, conveyor belt drives, and AGVs in automatic storage systems.

About Our Company

Our company is a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. We strictly follow the international quality management system standard ISO9001:2015. Our products have passed China's mandatory CCC certification and the European Union's CE certification. Our products are produced according to international IC standards and have reached the advanced level of similar products internationally.

Our advantages include:

• Strict quality control system to ensure product quality
• Advanced production equipment and technology
• Professional R&D team to provide customized solutions and technical support
• Excellent after-sales service to ensure customer satisfaction

Author: Miya
