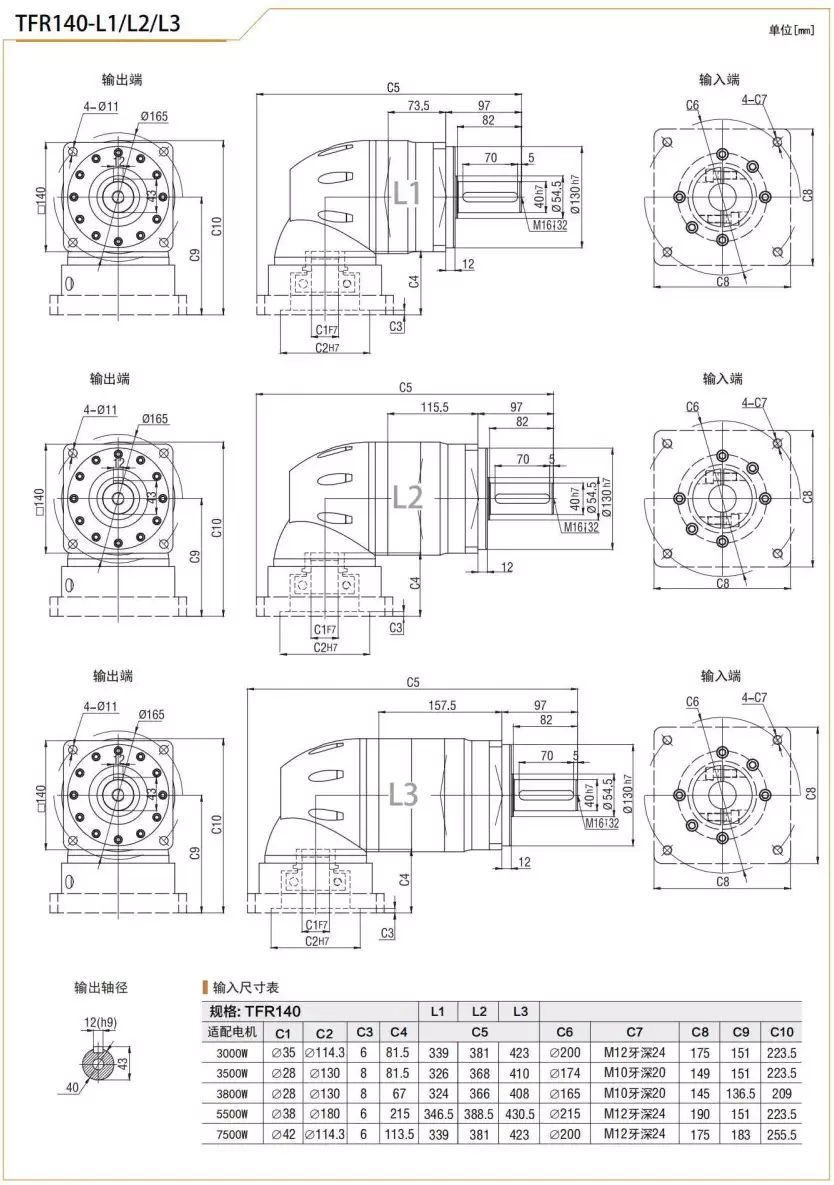

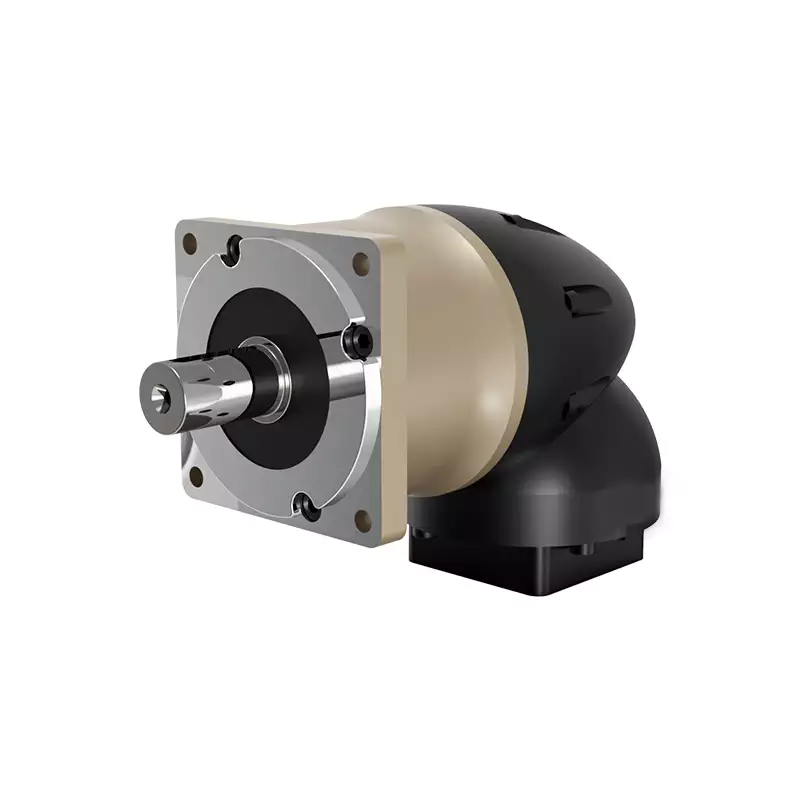

TFR140 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is widely used in industrial automation equipment. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. It is designed to provide accurate and smooth motion control by reducing the speed and increasing the torque of the input power source. The TFR140 Series High Precision Planetary Gearbox Helical Gear Reducer is an essential component in various industrial applications, such as robotics, CNC machines, and medical equipment.
The high precision planetary gearbox consists of the following components:
1. Sun Gear: The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears rotate around the sun gear and are supported and held in position relative to each other by the planet carrier. Each planet gear engages with both the sun gear and the ring gear. When power is input, they share and distribute the load.
3. Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear is a large-diameter circular gear fixed inside the gearbox housing. Its inner and outer surfaces have teeth that engage with the planet gears. In some applications, the ring gear can also serve as an input or output end.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between the components.
6. Housing and Seals: The housing is the external frame of the gearbox, which protects the internal components from external environmental influences and provides installation interfaces. Seals ensure that internal lubricants do not leak while preventing dust and water from entering the gearbox.
The high precision planetary gearbox works based on the following principles:
1. Torque Transmission: When power is input to the sun gear, the planet gears around it rotate. Since each planet gear engages with both the sun gear and the ring gear, they rotate around their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion between input and output as well as torque amplification can be achieved. Generally, the more planet gears or the larger gear ratio, the more significant the torque amplification effect, but the output speed will decrease accordingly.
3. Low Backlash Design: In high precision applications, to ensure accurate position control and minimal mechanical clearance, high precision planetary gearboxes use preloading technology to reduce or eliminate gear clearance, i.e., "zero/low backlash" design.
4. Load Distribution and Dynamic Response: One important advantage of a planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load capacity and stability of the entire system and optimizing dynamic response performance.
The design and selection considerations of high precision planetary gearbox include the following factors:
| Consideration Factors | Description |
|---|---|
| Ratio Range | The range of gear ratio that matches the specific application requirements. |
| Load Capacity | The maximum load that the gearbox can handle, which depends on the gear material, size, and accuracy. |
| Efficiency | The ratio of output power to input power, which affects the energy consumption and heat generation of the system. |
| Backlash | The clearance between the gear teeth, which affects the accuracy and smoothness of motion control. |
| Torsional Rigidity | The ability of the gearbox to resist torsional deformation under load, which affects the stability and precision of position control. |
| Operating Speed | The maximum input and output speed that the gearbox can handle, which depends on the gear design and lubrication system. |
| Installation Position | The orientation and mounting method of the gearbox, which affects the ease of installation and maintenance. |
The high precision planetary gearbox has a wide range of applications in various industries, including:
1. Servo Motor Systems: High precision planetary gearbox is used in industrial automation equipment for accurate speed control and position positioning, such as robot joint drive, precision machine tool feed mechanism, semiconductor manufacturing equipment, etc.
2. Medical Equipment: High precision planetary gearbox is used in high-end medical equipment, such as CT scanners, MRI machines, surgical robots, etc., to achieve accurate motion control and torque amplification.
3. Aerospace: High precision planetary gearbox is used in aircraft landing gear retraction system, flight control system actuator, satellite attitude adjustment device, etc., where high reliability and precision are required.
4. Precision Instruments: High precision planetary gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc., which require high transmission accuracy.
5. Automotive Manufacturing: High precision planetary gearbox is used in power steering systems of new energy vehicles, driving units of electric vehicles, and transmission systems of high-performance racing cars, etc.
6. Robotics: High precision planetary gearbox is used in joint transmission in industrial robots, service robots, and special operation robots.
7. Logistics Automation: High precision planetary gearbox is used in the lift, conveyor drive, AGV (automatic guided vehicle), etc. of the automatic storage system.
We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We specialize in research, production, and sales. Our products have passed the mandatory CCC certification in China and the CE certification of the European Union, and we strictly follow the international quality management system standard ISO9001:2015. Our products are produced according to international IC standards and have reached the advanced level of similar products worldwide.
