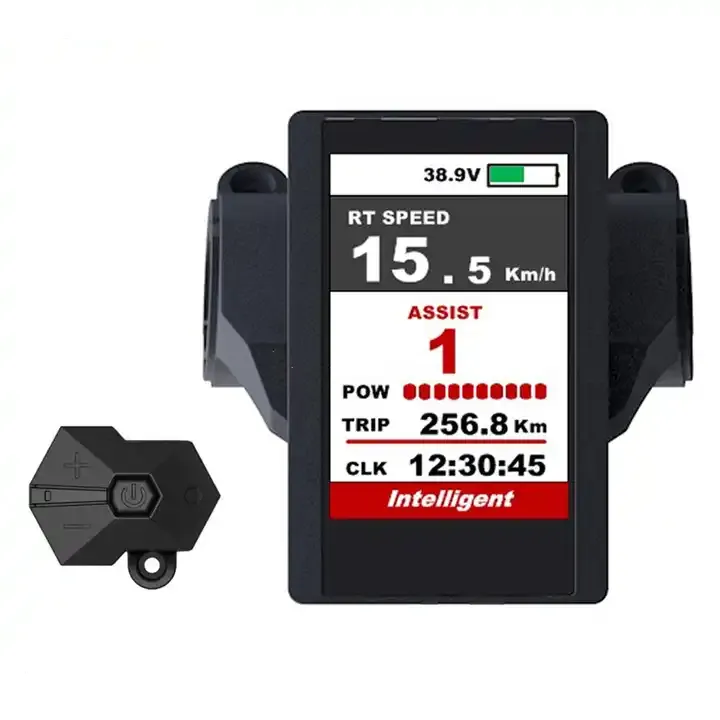

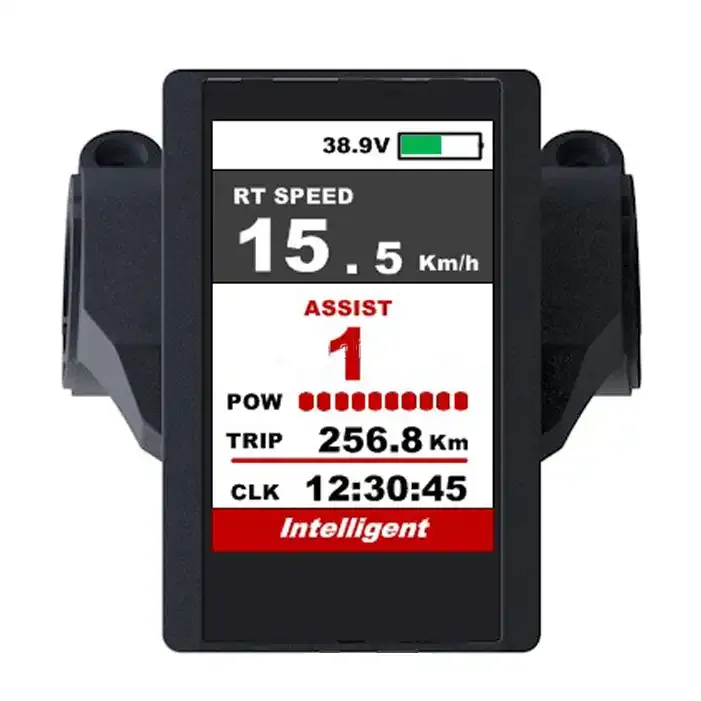

TFT320 Colorful Display Hot Sell Electric Bike Hub Motor Display

Model Number: TFT320, color: black, size: 3.2inch, Part: Display, packaged in a carton box with bubble wrap for protection and shipped from the ports of Shanghai, Ningbo, or Shenzhen. This high-contrast 3.2inch IPS colorful matrix screen is suitable for low temperatures, max -20??. The display features an ergonomic external button design, which makes it easy to operate.

Electric Bike TFT320 Display Specifications

Specification	TFT320
Display Size (L×W×H mm)	78mm×96mm×53mm
Screen Size (inch)	3.5inch
Display Type	TFT
Holder Diameter (mm)	Φ22.2mm / Φ25.4mm / Φ31.8mm
Voltage (V)	24V / 33V/ 36V
Support Level	0-5
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	147g

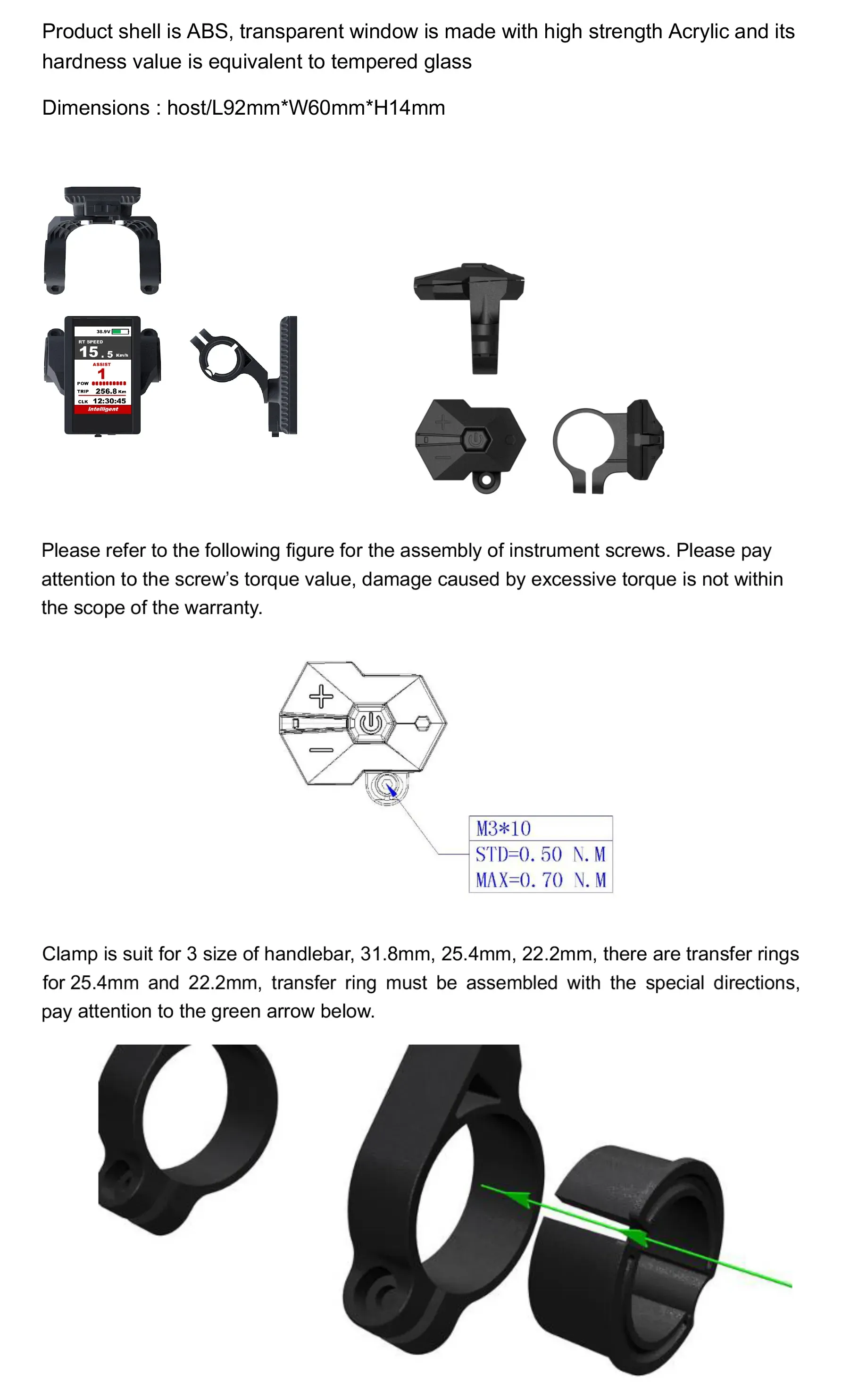

Electric Bike TFT320 Display Dimension

Advantages of the Electric Bike TFT320 Display

The TFT320 display brings numerous advantages to electric bike enthusiasts. It features a 3.5-inch TFT HD colorful screen that provides clear, vibrant visuals. The multi-angle install design allows for flexible installation, ensuring optimal viewing angles. Made with tempered glass, the display is designed to withstand the rigors of outdoor riding. Its non-screw assembling craft and full-screen design enhance both its aesthetic appeal and durability. Moreover, its simple style and slim design make it a stylish addition to any electric bike. We have the capability to produce this high-quality product, ensuring that it meets all your electric biking needs.

Functions of the Electric Bike TFT320 Display

The Electric Bike TFT320 Display provides various functions to enhance the user experience and provide essential information about the electric bike. Here is a breakdown of the functions you mentioned:1. Four buttons, easy to operate: The display features four buttons that allow the user to navigate through different menus and options easily.2. Boot password function: This function enables the user to set a password for accessing the display, adding a layer of security to prevent unauthorized access.3. Mileage display: The display shows two types of mileage:

• Subtotal mileage (TRIP): This is the mileage recorded for a specific trip or ride.
• Total mileage (ODO): This displays the cumulative mileage of the electric bike since its initial use or the last reset.
• Display: The display provides information related to speed:

4. Real-time speed (speed): It shows the current speed of the electric bike.

• Maximum speed (max): This displays the highest speed achieved during a trip or ride.
• Average speed (AVG): It calculates and shows the average speed based on the distance traveled and the time taken.
• Power-assisted gear control: The display allows the user to control the power-assisted gear selection of the electric bike. The gears are typically numbered from 0 to 5, and the default is usually 0-1-2-3-4-5.

5. Level 6 power indication: This function displays the power level of the electric bike. It typically consists of 0-5 segments or bars, indicating the remaining battery power. Additionally, it may display under-voltage warnings and power percentages to provide more accurate information about the battery status.6. Metric/Imperial switching selection: Users can choose between metric (e.g., kilometers) or imperial (e.g., miles) units of measurement for displaying distance and speed.7. TRIP TIME display: This function shows the elapsed time for a specific trip or ride, providing information about the duration of the journey.8. Backlit brightness level: Users can adjust the brightness level of the display's backlight according to their preference or environmental conditions for better visibility.9. Remaining mileage display: The display estimates and shows the remaining mileage the electric bike can travel based on the current battery level and power consumption.10. Real-time power display: This function provides a visual representation of the current power output or consumption of the electric bike. It can be displayed using segmented bars or numerical values.11. Clock display (power off hold time): The display includes a clock function that shows the current time. It may also have a power-off hold time feature, which allows the display to remain active for a certain period after the bike is turned off.12. Support communication interface: The display is equipped with a communication interface that enables system maintenance and parameter settings. This interface allows for easy communication with the electric bike's system for troubleshooting, updates, and customization.14. Fault information prompt: In case of any faults or errors within the electric bike's system, the display can provide prompts or notifications to alert the user. This helps in identifying and addressing issues promptly.

How the TFT320 Display Works

The TFT320 display is an electronic device that interfaces between the rider and the electric bike's electrical system. It works by receiving input from various sensors on the bike, processing this data, and displaying the relevant information to the rider. Riders can interact with the display through buttons or a touchscreen interface, selecting power assist modes, adjusting settings, and navigating menus. The display then sends control signals to the bike's electrical system based on the rider's input. Some displays also feature Bluetooth or wireless connectivity, allowing for data synchronization with external devices.

Choosing the Right TFT Display for an Electric Bicycle

When selecting a TFT display for an electric bicycle, several factors should be considered to ensure compatibility and meet specific requirements. These include checking the display's compatibility with your bike's electrical system, considering the size and visibility of the display, determining the information and features you require from the display, evaluating the user interface and controls, and assessing the display's build quality and durability.

Maintaining the TFT320 Display

Proper maintenance of the TFT320 display can ensure its longevity and optimal performance. Regular cleaning, protecting the display from moisture, handling it with care, avoiding extreme temperatures, checking connections, and updating the firmware are all essential parts of maintaining the display.

Why Choose Raydafon's TFT320 Display?

Raydafon Electric Technology Co Ltd. is a leader in the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products, including the TFT320 display, are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We are dedicated to providing products of reliable quality, exquisite craftsmanship, and stylish design.We offer a comprehensive range of products, including super-mini smart motors, wireless motors, Li-lon batteries, TFT/LCD displays, water bottle batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.Our complete quality management system, professional production and testing equipment, and advanced production lines ensure the exceptional quality of our products. All our products are CE-certified and protected by independent intellectual property rights. We look forward to providing you with top-quality electric bicycle components and contributing to the development of the electric bicycle industry.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.Author: Yjx
