TH085 Series Precision Hollow Rotating Platform

TH085 Series Precision Hollow Rotating Platform

The TH085 Series Precision Hollow Rotating Platform is an innovative solution designed to provide exceptional accuracy, versatility, and reliability in rotational motion applications. With its advanced features and robust construction, this rotating platform sets a new standard for precision engineering. Whether you require precise positioning, smooth rotation, or multi-axis motion control, the TH060 Series delivers outstanding performance and versatility for a wide range of industrial and research applications.

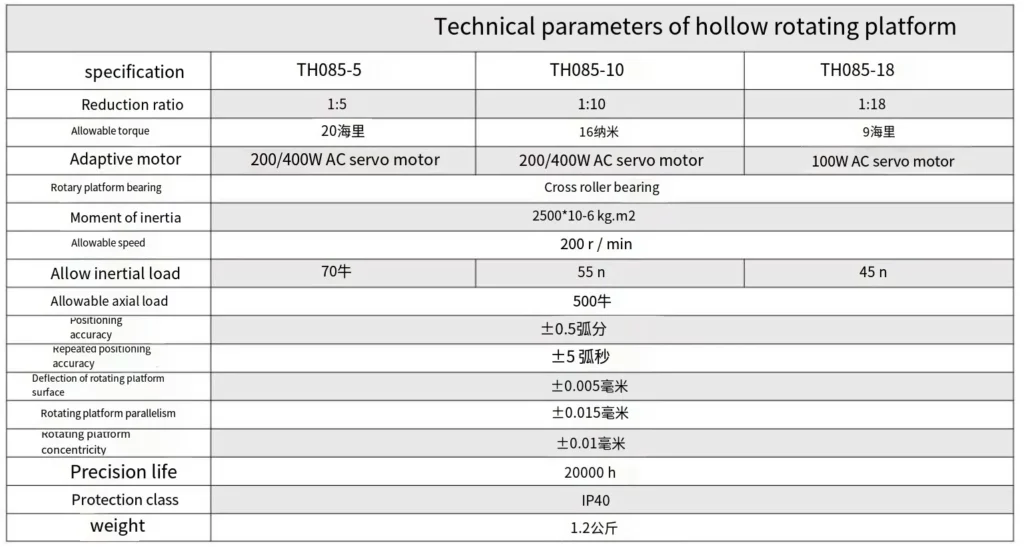

TH085 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of TH085 Series Precision Hollow Rotating Platform:

1. High-Precision Performance:
   • The TH085 Series Precision Hollow Rotating Platform offers outstanding precision, enabling accurate and repeatable rotational motion.
   • Its advanced design and components ensure minimal backlash and excellent positioning accuracy, meeting the most demanding requirements.
2. Hollow Structure:
   • The platform features a hollow structure that allows for the passage of cables, optics, or other elements through the center, enabling streamlined integration and reducing cable management challenges.
   • The hollow design provides additional flexibility and convenience for applications that require internal routing or space-saving solutions.
3. Modular Design and Versatility:
   • The TH085 Series employs a modular design, allowing for easy customization and configuration to suit specific application requirements.
   • It can be seamlessly integrated with other motion control systems, making it an ideal choice for multi-axis setups and complex motion control applications.
4. Robust Construction:
   • Built with high-quality materials and precision manufacturing, the TH085 Series ensures long-lasting durability and reliable performance.
   • Its robust construction allows it to withstand demanding industrial environments and deliver consistent results over an extended period.

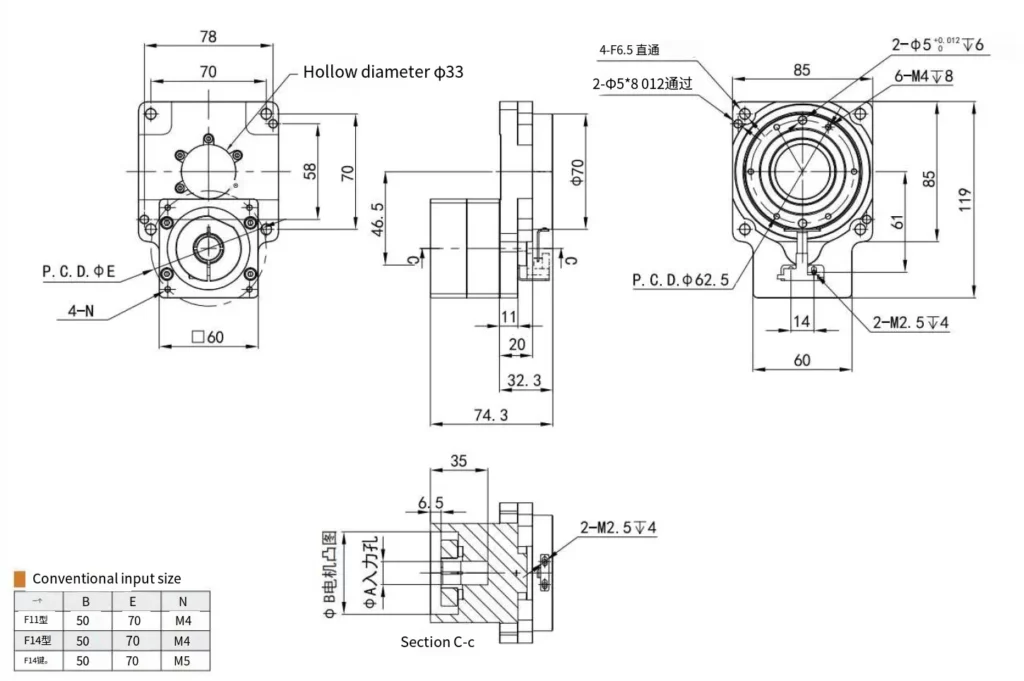

TH085-5 Series Precision Hollow Rotating Platform Diagram:

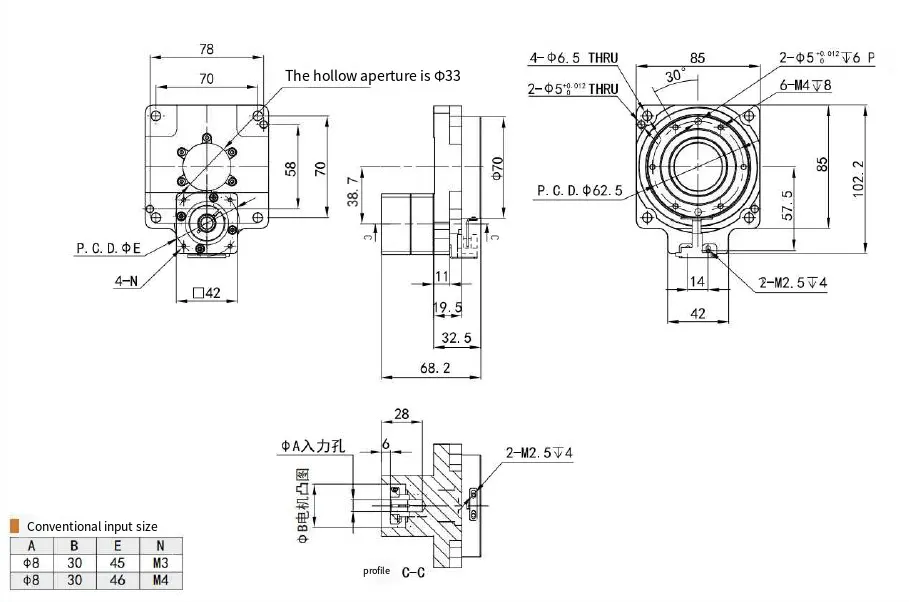

TH085-10 Series Precision Hollow Rotating Platform Diagram:

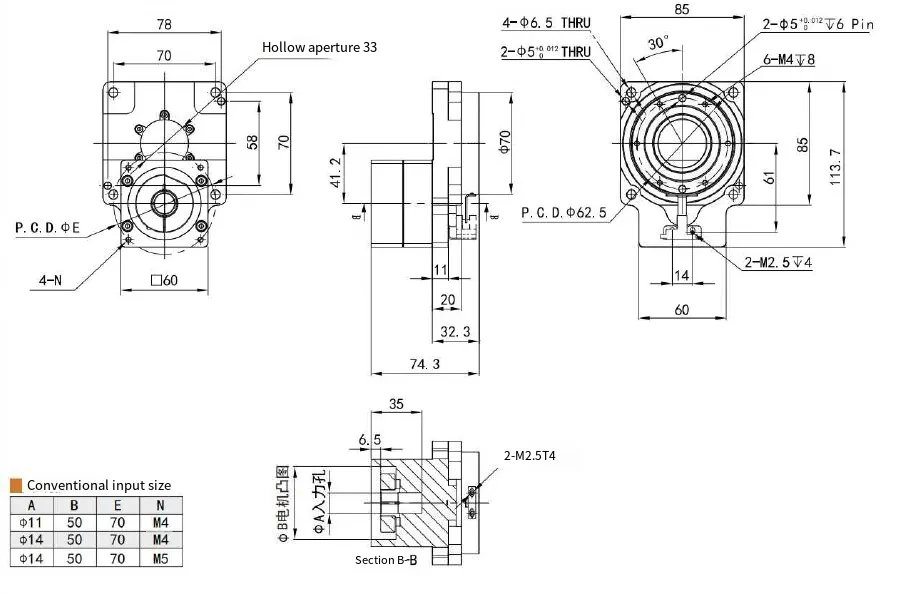

TH085-18 Series Precision Hollow Rotating Platform Diagram:

Usage Method of TH085 Series Precision Hollow Rotating Platform:

Using the TH085 Series Precision Hollow Rotating Platform is straightforward and user-friendly. Here's a step-by-step guide to help you get started:

1. Mounting:
   • Begin by securely mounting the rotating platform to a stable surface or structure, following the manufacturer's instructions and guidelines.
   • Ensure proper alignment and stability to achieve accurate and stable rotational motion.
2. Power and Control Connection:
   • Connect the rotating platform to a suitable power supply, following the manufacturer's instructions and local electrical codes.
   • Establish the necessary control connections, either through a dedicated controller or integration with a larger motion control system.
3. Configuration and Programming:
   • Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
   • Program the platform's motion control system to achieve the desired rotational behavior and control options.
4. Operation:
   • Once the platform is mounted, powered, and properly configured, you can initiate rotational motion according to your programmed parameters.
   • Enjoy the precise and versatile rotational capabilities provided by the TH085 Series Precision Hollow Rotating Platform.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series is a combination of hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a certain load and a certain temperature (normal temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with the use of belt, belt pulley and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment and cost saving equipment design time, which helps to shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.
