GVP Series Gauge Valves

GVP Series Gauge Valves

GVP Series gauge valves are a type of valve commonly used in industrial applications to control the flow of fluids or gases and to provide pressure measurement. These gauge valves are specifically designed for use with pressure gauges, allowing for easy installation and maintenance of pressure measurement devices.GVP Series gauge valves typically have a compact design and are made from durable materials such as stainless steel or brass, ensuring their reliability and longevity in harsh operating conditions. They are available in various sizes and pressure ratings to accommodate different system requirements.One of the primary functions of GVP Series gauge valves is to isolate the pressure gauge from the process media. This isolation protects the gauge from potential damage or contamination, allowing for accurate and consistent pressure readings. The valve can be closed to isolate the gauge during system maintenance or calibration, preventing any disruptions to the process.Another important feature of GVP Series gauge valves is their ability to regulate the flow of the process media. These valves typically have a threaded or needle-type stem that allows for precise adjustment of the flow rate. This feature is especially useful when fine-tuning the pressure in a system or when performing pressure relief operations.GVP Series gauge valves often include additional features such as a vent or a bleeder valve. These features allow for the release of excess pressure from the system, ensuring safe operation and preventing over-pressurization.

GVP Series Gauge Valve Features:

• Non-rotating lower stem ball tip and plug tip designs
• Variety of materials for seat and packing
• Safety back seating seals in fully open position
• Bonnet locking pin fitted as standard
• Low torque operating Tbar handle
• Option for different colored handles
• Leak-tight performance testing for every valve with nitrogen at the maximum working pressure
• Maximum working pressure: 6000 psig (414 bar）
• GV-B series Working temperature:PTFEpacking：-65F to 450 F（-54C to 232C）Graphite packing:-65 F to 1200 F（-54 C to 649 C）
• GV-P series working temperature:Acetalseat:-20F to 250F（-28C to 121C）PEEKseat:-20F to 400F（-28C to 204C）

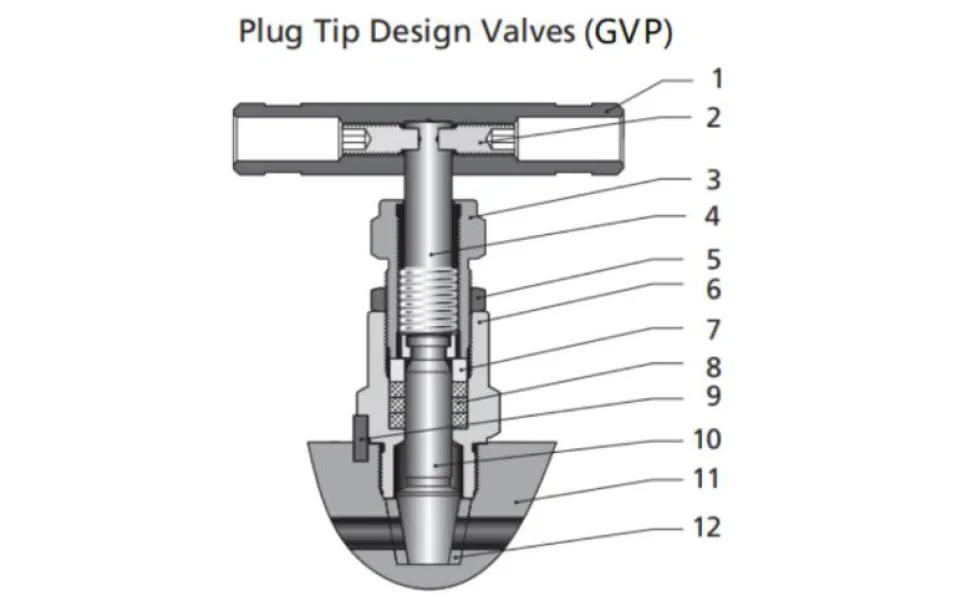

GVP Series Gauge Valve Standard Materials of Construction:

Item	Part	Valve Body Material
		SS 316	Alloy 400
1	Handle	Anodized aluminum
2	Set Screw	Stainless steel
3	Packing Bolt	SS 304
4	Upper Stem	SS 316
5	Lock Nut	17-4PH
6	Bonnet	SS 316	Alloy 400
7	Gland	SS316
8	Packing	PTFE or graphite
9	Lock Pin	Stainless steel
10	Lower Stem	SS 316	Alloy 400
11	Body	SS 316	Alloy 400
12	Seat	Acetal or PEEK or PFA

GVP Series Gauge Valve Dimensions:

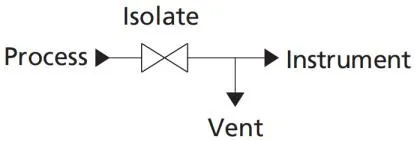

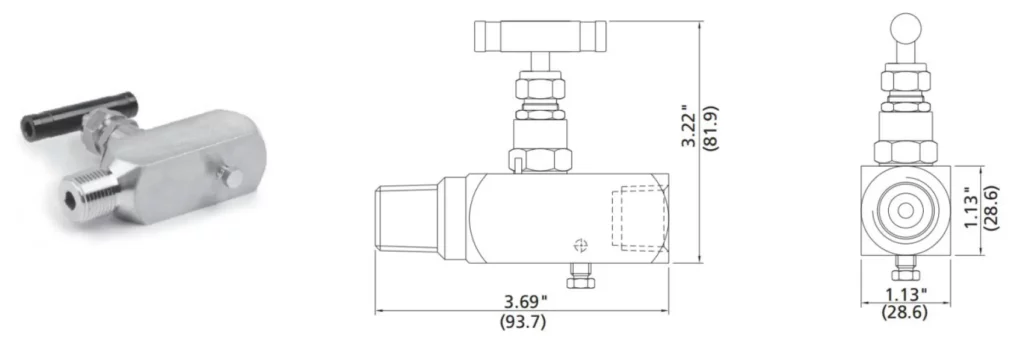

1. GVP Series Miniature Type Gauge Valves

Basic Ordering No.	Inlet/ Process	Outlet/ Instrument	Vent	Orifice in(mm)	Cv
-GVP-MN8-FN8-M	1/2 Male NPT	1/2 Female NPT	Vent Stem	0.25 (6.4)	1.8

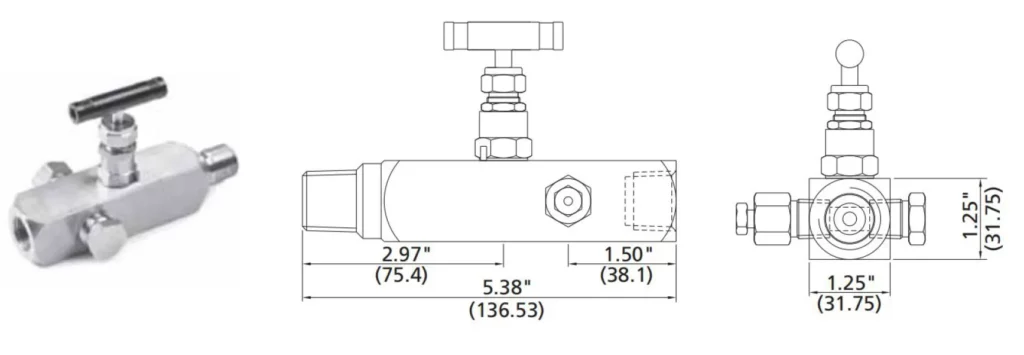

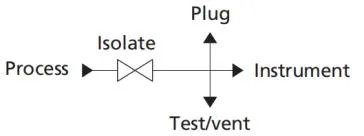

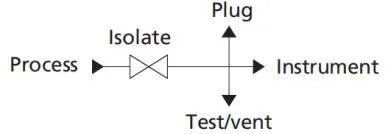

2. GVP Series Standard Type Gauge Valves

Basic Ordering No.	Inlet/ Process	Outlet/ Instrument	Test/Vent/Plug	Orifice in(mm)	Cv
-GVP-MN8-FN8	1/2 Male NPT	1/2 Female NPT	1/2 FemaleNPT	0.25 (6.4)	1.8
-GVP-MN12-FN12	3/4 Male NPT	3/4 Female NPT	1/2 FemaleNPT	0.25 (6.4)	1.8

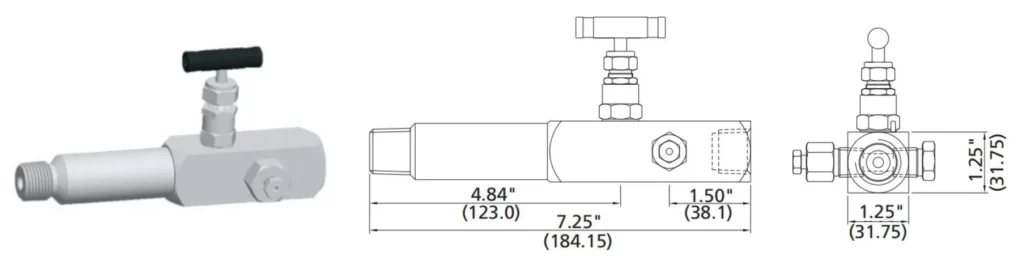

3. GVP Series Lagging Extension Body Type Gauge Valves

Basic Ordering No.	Inlet/Process	Outlet/Instrument	Vent	Orifice in(mm)	Cv
-GVP-MN8-FN8-L	1/2 Male NPT	1/2 Female NPT	Vent Stem	0.25 (6.4)	1.8

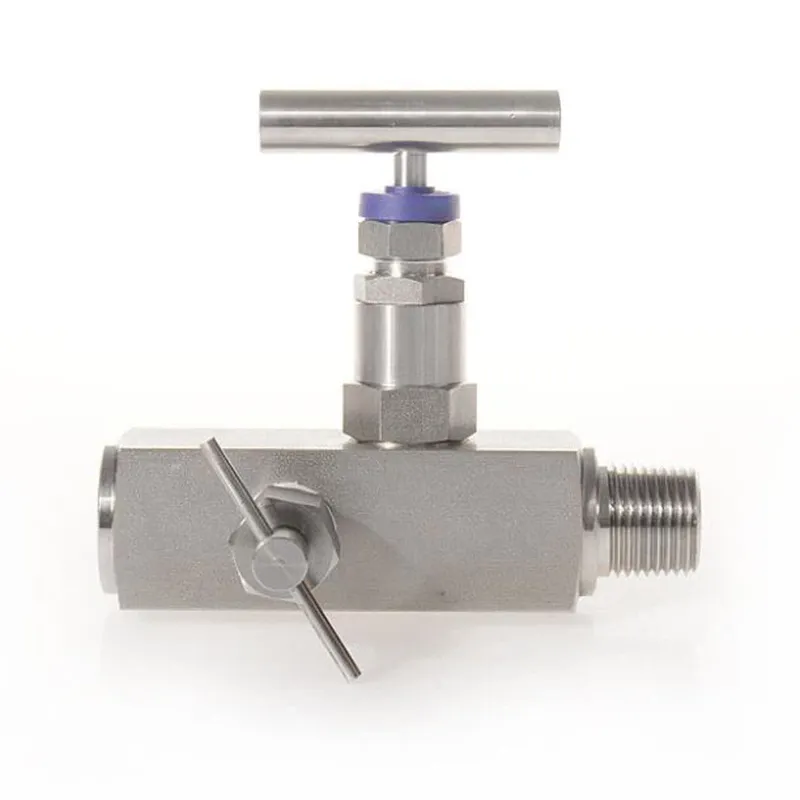

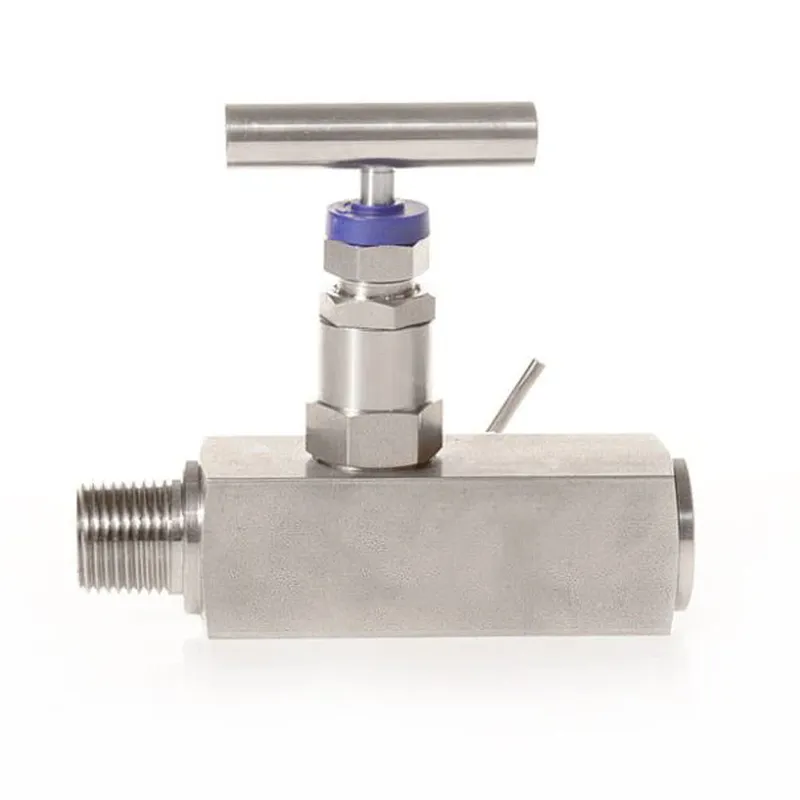

Advantages of GVP Series Gauge Valves:

GVP Series Gauge Valves offer several advantages that make them a preferred choice in industrial applications. Here are some key advantages of GVP Series Gauge Valves:1. Pressure isolation: One of the primary advantages of GVP Series Gauge Valves is their ability to isolate the pressure gauge from the process media. By closing the valve, the gauge can be easily removed or replaced without disrupting the system or causing any leakage. This isolation protects the gauge from potential damage, contamination, or corrosive substances present in the process, ensuring accurate and reliable pressure readings.2. Precise flow control: GVP Series Gauge Valves are designed to provide precise flow control of fluids or gases. With their threaded or needle-type stems, these valves allow for fine adjustments of the flow rate, enabling operators to achieve the desired pressure levels or control the flow within the system. This level of control is particularly important in applications where precise pressure regulation is critical for the safety and efficiency of the process.3. Durability and reliability: GVP Series Gauge Valves are constructed from high-quality materials such as stainless steel or brass, which offer excellent durability and resistance to corrosion. These valves are designed to withstand harsh operating conditions, including high pressures and temperatures, ensuring long-term performance and reliability. Their robust construction makes them suitable for use in demanding industrial environments.4. Pressure relief capability: Many GVP Series Gauge Valves feature a vent or bleeder valve that allows for the controlled release of excess pressure from the system. This pressure relief capability is essential for maintaining the safety of the system and preventing over-pressurization. By relieving excess pressure, these valves help protect equipment, pipelines, and personnel from potential damage or accidents.5. Easy installation and maintenance: GVP Series Gauge Valves are designed for easy installation and maintenance. They typically have standard threaded connections that allow for straightforward integration into existing piping systems. Additionally, their compact design and user-friendly features simplify maintenance tasks such as gauge replacement, cleaning, or calibration, reducing downtime and overall operational costs.6. Versatility: GVP Series Gauge Valves are available in various sizes and pressure ratings, making them suitable for a wide range of applications across different industries. Whether it's in oil and gas, chemical processing, power generation, or other industrial sectors, these valves can be adapted to meet specific system requirements.

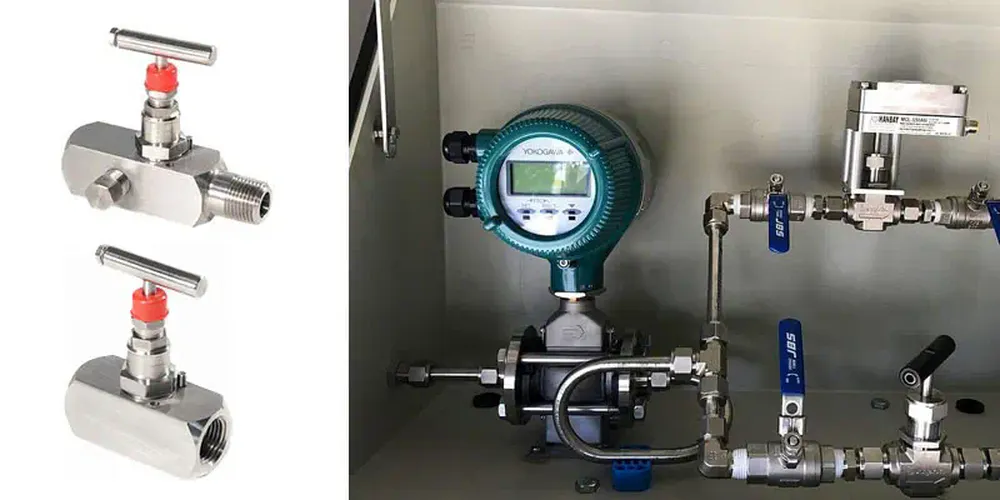

Why Choose Raydafon's GVP Series Gauge Valves?

When considering GVP Series Gauge Valves, Raydafon offers several reasons why they are worth choosing. Here are some key factors that make Raydafon's GVP Series Gauge Valves a preferred choice:(1) Quality and Reliability: Raydafon is known for its commitment to quality and reliability. The GVP Series Gauge Valves from Raydafon are manufactured using high-quality materials and undergo rigorous testing to ensure their durability and performance. This focus on quality ensures that the valves can withstand demanding industrial conditions and provide long-term reliability.(2) Wide Range of Options: Raydafon's GVP Series Gauge Valves are available in a wide range of options, including different sizes, pressure ratings, and materials. This allows customers to select the most suitable valve for their specific application requirements. The availability of various options ensures compatibility with different fluid types, pressure ranges, and operating conditions.(3) Precise Flow Control: Raydafon's GVP Series Gauge Valves are designed to provide precise flow control. With their threaded or needle-type stems, these valves allow for fine adjustments of the flow rate, enabling accurate pressure regulation and control within the system. This precise flow control capability is crucial for maintaining operational efficiency and safety.(4) Easy Installation and Maintenance: Raydafon's GVP Series Gauge Valves are designed for easy installation and maintenance. They typically have standard threaded connections, making them simple to integrate into existing piping systems. Additionally, Raydafon provides clear installation instructions and offers support for maintenance tasks such as gauge replacement or calibration, ensuring hassle-free operation.(5) Competitive Pricing: Raydafon strives to offer competitive pricing for its GVP Series Gauge Valves without compromising on quality. This makes them a cost-effective choice for customers looking for reliable and affordable gauge valves. Raydafon's pricing strategy ensures that customers receive value for their investment without compromising on performance or reliability.(6) Excellent Customer Support: Raydafon values customer satisfaction and provides excellent customer support. Their knowledgeable and responsive team can assist with product selection, technical inquiries, and troubleshooting. This support ensures that customers receive the necessary assistance throughout the purchasing process and beyond.
