THM060 Series Precision Hollow Rotating Platform

THM060 Series Precision Hollow Rotating Platform

The THM060 series precision hollow rotating platform is a cutting-edge solution to revolutionize rotational motion applications. This advanced platform combines precision engineering with versatility, providing exceptional performance and reliability. Whether you require accurate positioning, smooth rotation, or multi-axis motion control, the THM060 Series delivers outstanding results. Let's explore this remarkable product's key characteristics, usage methods, and maintenance.The THM060 series precision hollow rotating platform is a game-changer in rotational motion applications, offering outstanding precision, versatility, and reliability. Its high-precision performance, open structure with a large aperture, compact design, and modular configurations cater to diverse industrial needs. By following the recommended usage method and maintenance practices, you can ensure optimal performance and longevity of this rotating platform. Unlock the full potential of rotational motion applications with the THM060 series precision hollow rotating platform and experience unmatched precision and versatility.

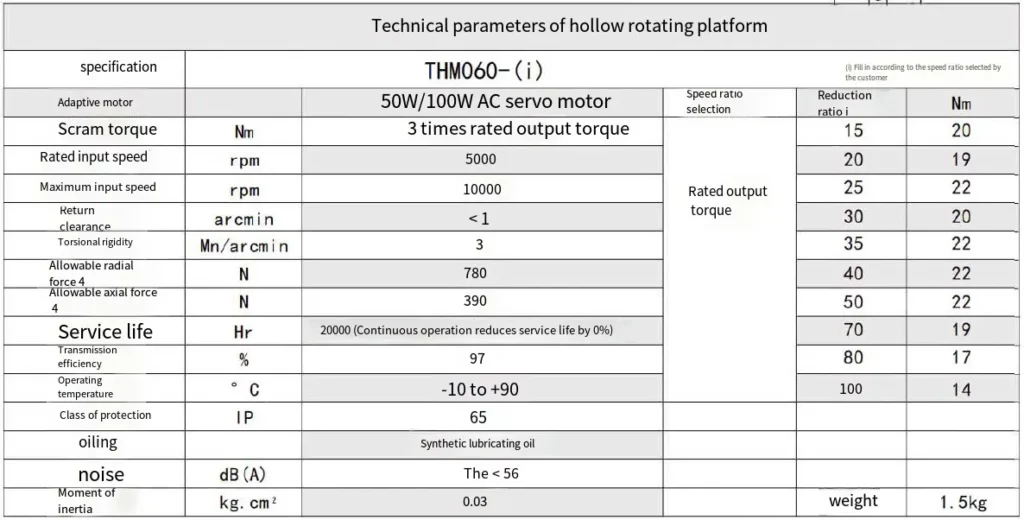

THM060 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THM060 Series Precision Hollow Rotating Platform:

1. High-Precision Performance

• The THM060 series precision hollow rotating platform offers unparalleled precision, ensuring accurate and repeatable rotational motion.
• Equipped with advanced motor control technology and high-resolution encoders, it enables precise positioning and seamless motion control.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure with a large aperture, the THM060 Series allows for the passage of cables, optics, or other elements through the center.
• The large aperture provides ample space for internal routing, cable management, and integration of additional components, enhancing overall flexibility and convenience.

3. Compact and Lightweight Design

• The THM060 Series is designed to be compact and lightweight, making it suitable for applications where space and weight restrictions are critical.
• Its streamlined design and reduced weight ensure easy integration into existing systems without compromising performance.

4. Modular Configurations for Enhanced Versatility

• The THM060 Series employs a modular design, allowing easy customization and configuration to meet specific application requirements.
• It seamlessly integrates with other motion control systems, making it an ideal choice for multi-axis setups and complex motion control applications.

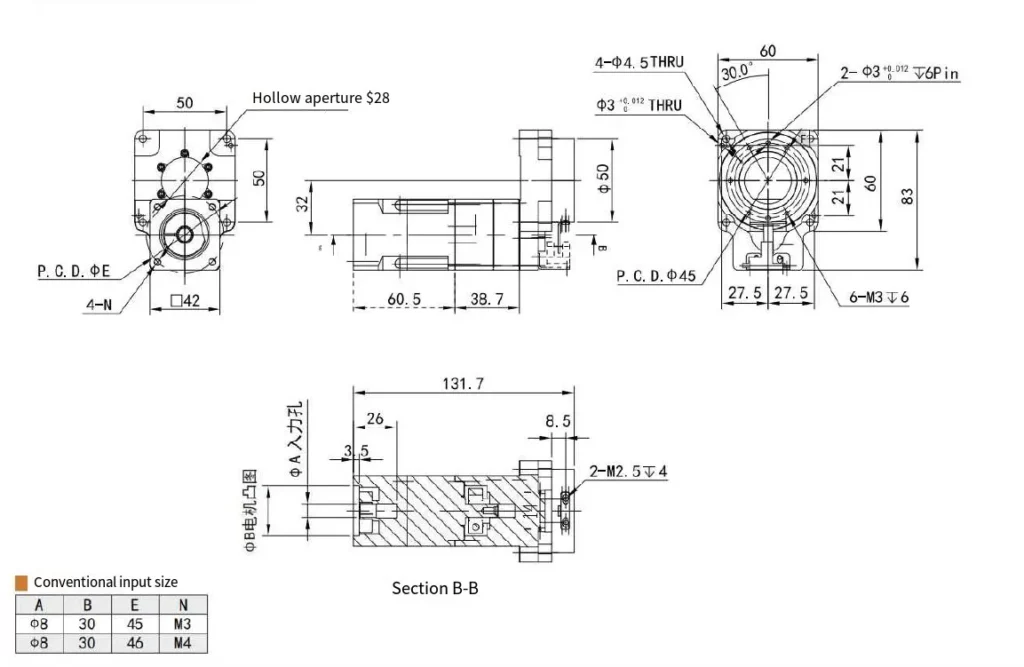

THG60-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THG60 Series Precision Hollow Rotating Platform:

Using the THM060 series precision hollow rotating platform is straightforward and user-friendly. Follow these steps to get started:

1. Mounting

• Securely mount the rotating platform to a stable surface or structure, following the manufacturer's instructions and guidelines.
• Ensure proper alignment and stability to achieve accurate and stable rotational motion.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, following the manufacturer's instructions and local electrical codes.
• Establish the necessary control connections, either through a dedicated controller or integration with a larger motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation

• Once the platform is mounted, powered, and properly configured, initiate rotational motion according to your programmed parameters.
• Experience the precision and versatility provided by the THM060 Series Precision Hollow Rotating Platform.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.
