THM130 Series Precision Hollow Rotating Platform

THM130 Series Precision Hollow Rotating Platform

The THM130 series precision hollow rotating platform is a state-of-the-art solution to revolutionize rotational motion applications. Engineered with precision and versatility in mind, this advanced platform delivers exceptional performance and reliability. Whether you require accurate positioning, smooth rotation, or multi-axis motion control, the THM130 Series is equipped to meet your needs.The THM130 series precision hollow rotating platform offers an unrivaled combination of precision, versatility, and performance in rotational motion applications. Its high precision performance, open structure with a large aperture, exceptional load capacity, and compact design cater to diverse industrial needs. By following the recommended usage method and maintenance practices, you can ensure optimal performance and longevity of this rotating platform. Unlock the full potential of rotational motion applications with the THM130 series precision hollow rotating platform and experience unmatched precision, versatility, and reliability.

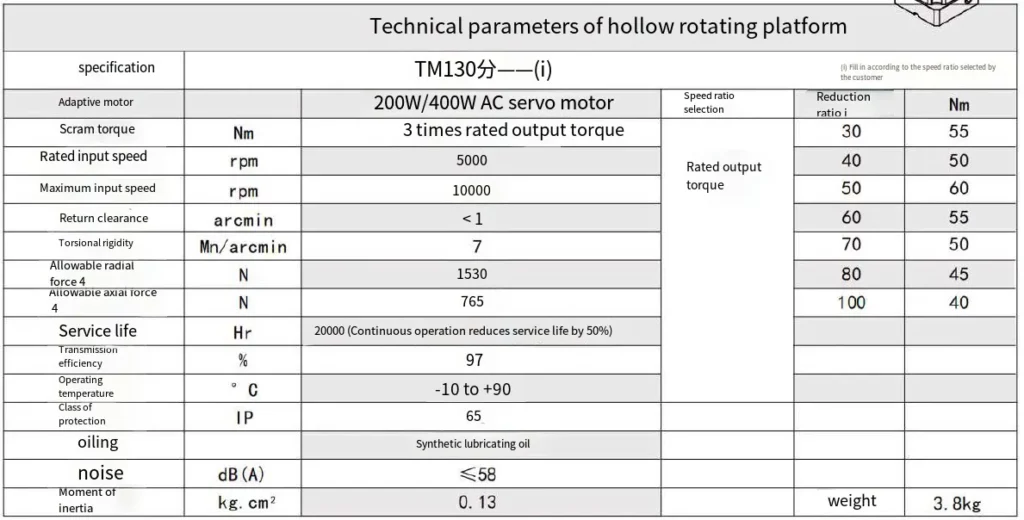

THM130 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THM130 Series Precision Hollow Rotating Platform:

1. High Precision Performance

• The THM130 series precision hollow rotating platform offers unparalleled precision, ensuring accurate and repeatable rotational motion.
• Powered by advanced motor control technology and high-resolution encoders, it enables precise positioning and seamless motion control.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure with a large aperture, the THM130 series allows for the passage of cables, optics, or other elements through the center.
• The large aperture provides ample space for internal routing, cable management, and integration of additional components, enhancing overall flexibility and convenience.

3. Exceptional Load Capacity

• The THM130 series is designed to handle high load capacities, making it suitable for various applications.
• Its robust construction and optimized bearing system ensure reliable performance even under heavy loads, allowing for efficient and precise operation.

4. Compact and Lightweight Design

• The THM130 series boasts a compact and lightweight design, making it suitable for applications where space and weight restrictions are critical.
• Its streamlined form allows easy integration into existing systems without compromising performance or requiring extensive modifications.

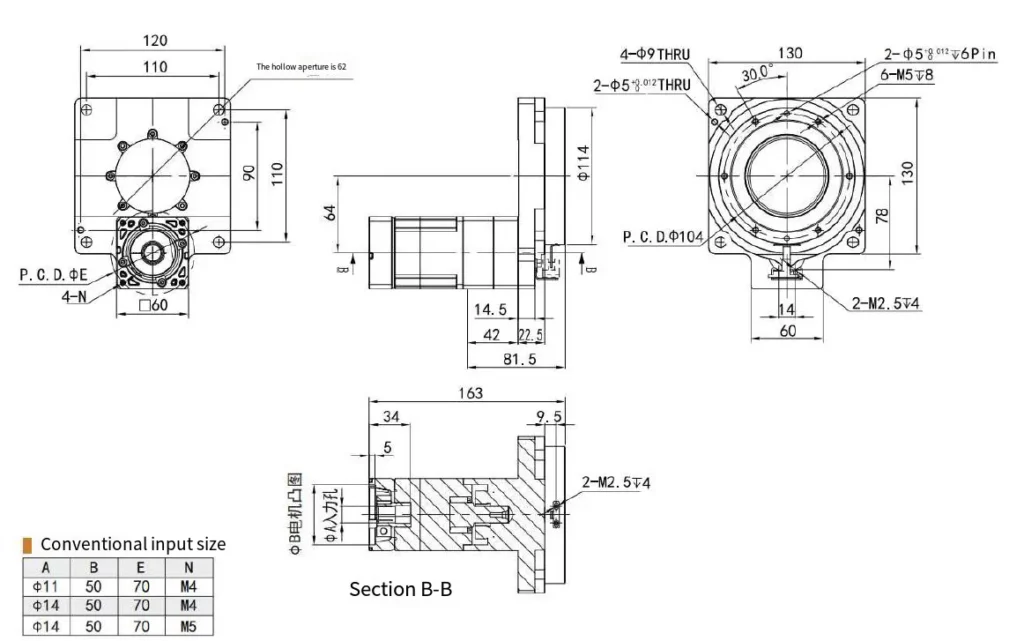

THG130-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THG130 Series Precision Hollow Rotating Platform:

Using the THM130 series precision hollow rotating platform is straightforward and user-friendly. Here are the steps to get started:

1. Mounting

• Securely mount the rotating platform to a stable surface or structure, ensuring proper alignment and stability for accurate and stable rotational motion.
• Follow the manufacturer's instructions and guidelines for mounting procedures.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, following the manufacturer's instructions and local electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with a more extensive motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.
