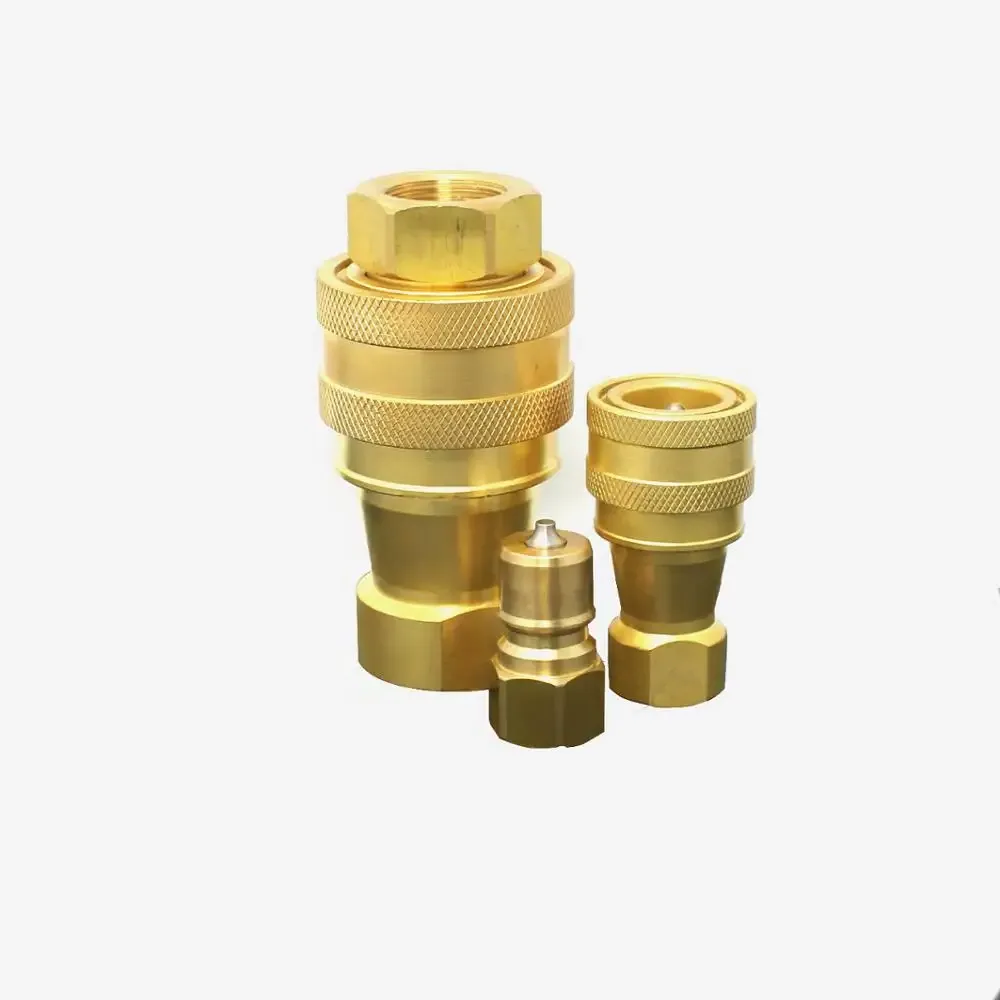

Thread Connected Series GT-L1 1/4 inch BSP/NPT Thread 10000PSI High Pressure Male Thread Hydraulic Hose Fitting

Designed for high-pressure applications, the Thread Connected series GT-L1 1/4 inch BSP/NPT thread hydraulic hose fitting is a high-quality, robust, and durable product. With a pressure rating of 10000PSI, it is ideal for heavy-duty hydraulic applications. The fitting comes with a model number GT-L1-02-SP and features a sturdy steel/stain steel construction. The connection type is female, and the shape is equal. The head code for the fitting is hexagon, and it is compatible with NPT, BSP, and BSPP threads. The fitting comes backed by a 1-year warranty, ensuring peace of mind for the users. The size of the fitting is 1/4, and it has a pressure rating of 69. The fitting is packaged in a box or carton, as per your demand. The shipping ports for the product are Ningbo or Shanghai.

Advantages of Thread Connected Series GT-L1 1/4 inch BSP/NPT Thread Hydraulic Hose Fitting

This hydraulic hose fitting boasts several key advantages that make it a top choice for a wide range of applications:

1. Durability: Made from high-quality steel or stainless steel, this fitting is designed to withstand high pressures and harsh conditions.
2. Versatility: With compatibility for NPT, BSP, and BSPP threads, this fitting can be used with various types of hydraulic hoses and systems.
3. High-Pressure Rating: With a high-pressure rating of 10000PSI, this fitting is ideal for heavy-duty hydraulic applications.
4. Reliability: Backed by a 1-year warranty, this fitting offers reliable performance and peace of mind.
5. Equal Shape: The equal shape of the fitting allows for a tight and secure connection, minimizing the chances of leaks.
6. Hexagon Head Code: The hexagon head code ensures easy installation and removal of the fitting.

As a leading manufacturer, we have the capability to produce this hydraulic hose fitting in large volumes, ensuring a steady supply for our customers.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings are extensively used across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:

1. Construction and Heavy Machinery: Hydraulic quick couplings are integral to construction equipment like excavators, loaders, and bulldozers. They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples, enhancing the versatility and efficiency of the machinery.

2. Agriculture: Agricultural machinery relies on hydraulic systems for tasks like plowing, seeding, and harvesting. Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools. They facilitate fast tool changes and adjustments, improving production efficiency.
4. Oil and Gas Industry: Hydraulic systems are common in the oil and gas sector for various applications, including wellhead control, drilling rigs, and offshore platforms. Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.
5. Aerospace: Hydraulic systems play a crucial role in aircraft operation, from landing gear to flight control surfaces. Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
6. Automotive Industry: Hydraulic systems are present in vehicles for functions like power steering and braking. Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components. They work based on a simple yet effective principle to ensure a secure and leak-free connection:

1. Male and Female Couplings: Hydraulic quick couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.
2. Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. This valve can be in the form of poppet valves, ball valves, or flat-face valves, depending on the coupling design.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.
4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. The external force applied during this process compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.
6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Here are the installation steps:

1. Select the Right Couplings: Choose hydraulic quick couplings that are suitable for your specific application, taking into account factors like size, pressure rating, and compatibility with your hydraulic lines.
2. Clean the Couplings: Ensure that both the male and female couplings are clean and free from dirt, debris, and contaminants. Use a lint-free cloth or compressed air to clean them thoroughly.

3. Position the Couplings: Position the male and female couplings so that they align correctly for connection. Ensure that the couplings are oriented in the same direction.
4. Secure the Connection: If your hydraulic quick couplings have a locking mechanism, engage it to secure the connection further.
5. Test the Connection: Perform a pressure test to ensure that the hydraulic quick couplings are securely connected and there are no leaks.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Here are some maintenance steps:

1. Regular Inspection: Perform routine visual inspections of the hydraulic quick couplings. Look for signs of wear, damage, or corrosion.
2. Cleanliness: Keep the couplings and surrounding areas clean. Dirt and debris can damage seals and prevent proper engagement.
3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling. Lubrication helps ensure a smooth connection and prolongs the life of seals.
4. Torque Checks: Periodically check the torque on the coupling nuts. Over time, they may loosen, leading to leaks or improper connection.
5. Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately.
6. Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs. This prevents contamination and damage to the couplings.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone, Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. Raydafon is focused on international market explorations and the South China market's development. Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment and machinery manufacturing industry. We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily. We pursue the excellent brand and comply to the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.

With a strong focus on professionalism, we have earned several international certifications. Our production facilities are equipped with advanced machinery and technology to ensure the highest quality of our products. We also offer customized services to meet the specific needs of our customers. Our dedicated after-sales service team is always ready to assist our customers with any issues or queries.
