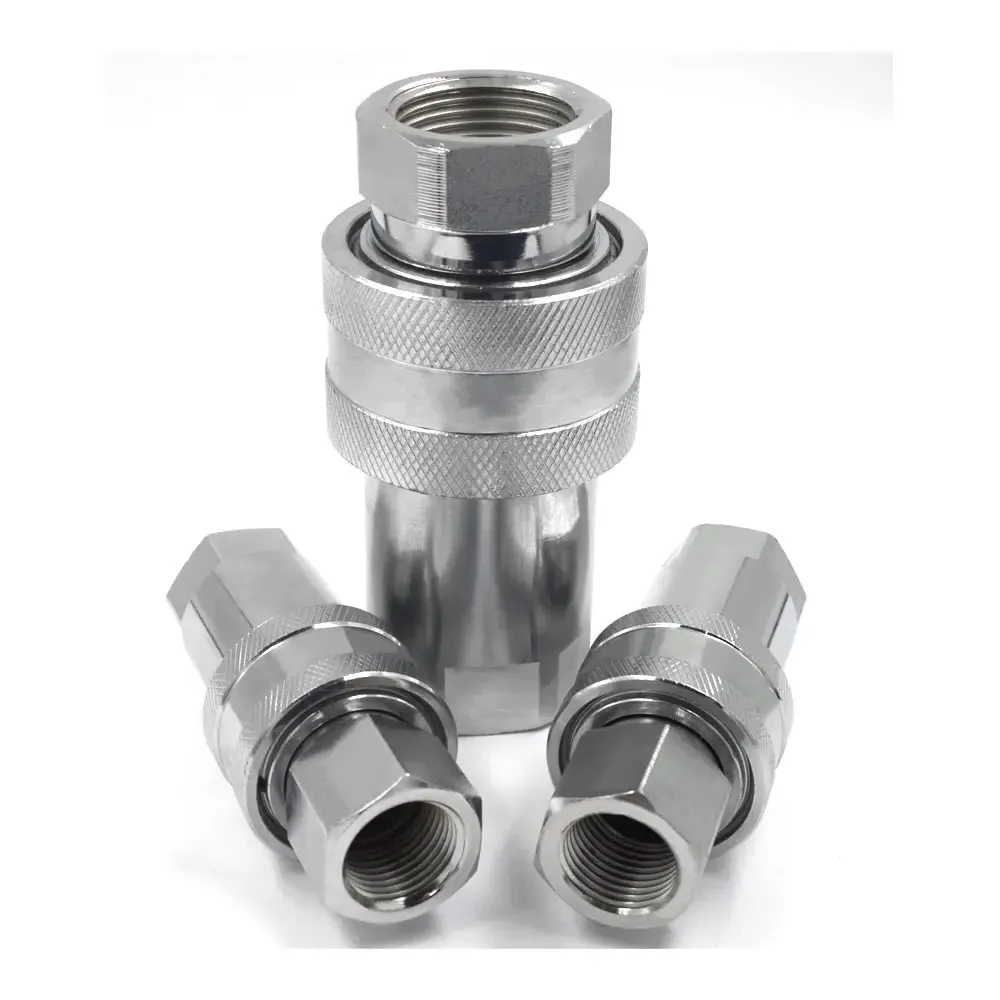

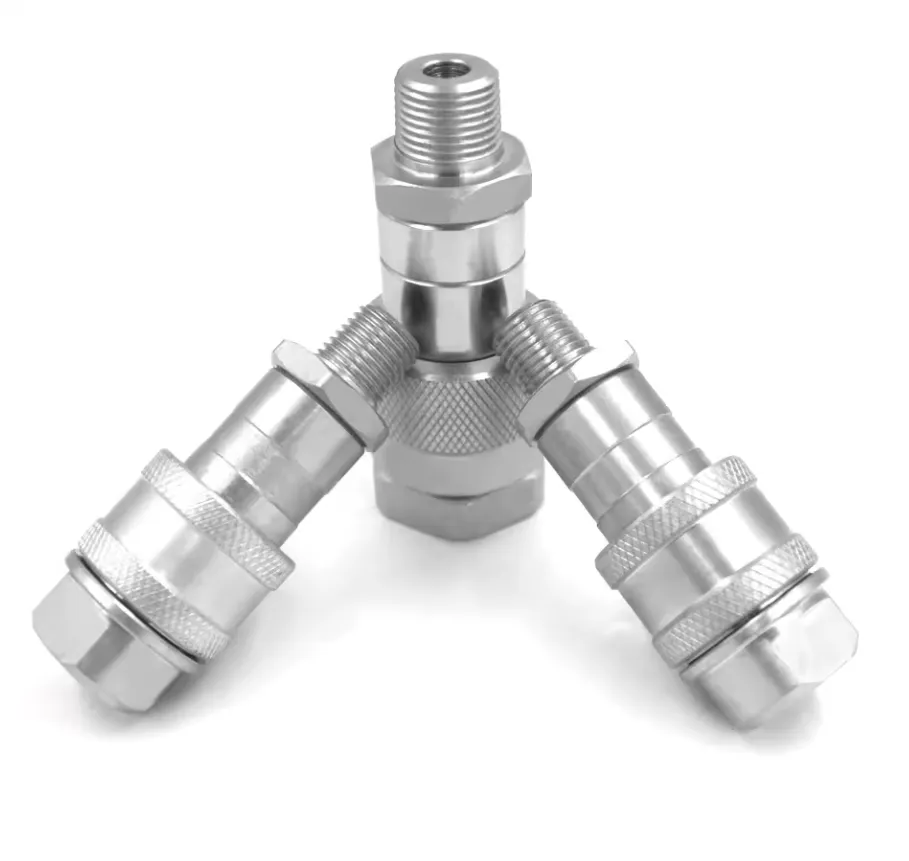

Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel
  • Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steelThread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel

Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel

Discover Raydafon Group's Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings in premium stainless steel. Engineered for industrial and hydraulic applications, these durable couplings offer unmatched reliability, quick installation, and leak-free performance, ensuring safety and efficiency in demanding high-pressure environments like construction or manufacturing, making them the go-to choice for professionals seeking robust and dependable solutions.
Introducing the Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings, crafted from stainless steel. The Model Number is GT-VVS. With casting as the primary technic and a hexagonal head code, these couplings are designed for an equal and robust connection. The materials used are Steel and Stain Steel. The thread types include NPT BSP BSPP. These couplings come with a 1-year warranty and are designed to withstand a pressure of 69. The packaging details are flexible, with options of box/carton or as per your demand. These couplings are shipped from either Ningbo or Shanghai ports.

Advantages of the Thread Connected series quick disconnect hose couplings

The unique features of these hose couplings make them a top choice for various industries. Here are some of the key benefits:
  • They are designed for high-pressure applications reaching up to 10000 PSI.
  • They offer quick disconnect capability for efficient operation.
  • The couplings are made from stainless steel, ensuring durability and corrosion resistance.
  • The hexagonal head code provides a firm grip and easy installation.
  • The product comes with a 1-year warranty, guaranteeing reliable performance.
  • Customized packaging and shipping options are available to meet diverse customer requirements.
With state-of-the-art manufacturing facilities, we have the capability to produce these high-quality hose couplings to meet your specific needs.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components.Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel
  • Construction and Heavy Machinery: These couplings are integral to construction equipment like excavators, loaders, and bulldozers, enhancing the versatility and efficiency of the machinery.
  • Agriculture: In agriculture, quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
  • Manufacturing and Automation: In manufacturing processes, these couplings are used to connect hydraulic actuators, presses, and tools, improving production efficiency.
  • Oil and Gas Industry: In the oil and gas sector, quick couplings are essential for connecting hydraulic lines and components in harsh environments.
  • Aerospace: In aircraft operation, quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
  • Automotive Industry: In vehicles, these systems enable easy assembly and servicing of hydraulic components.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, work based on a simple yet effective principle to ensure a secure and leak-free connection.Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel
  • Male and Female Couplings: These couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.
  • Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. Depending on the coupling design, this valve can be a poppet valve, ball valve, or flat-face valve.
  • Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.
  • Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. This action compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.
  • Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.
  • Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

Hydraulic Quick Coupling Installation Steps

Here are the installation steps for hydraulic quick couplings:Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel
  • Select the Right Couplings: Choose couplings suitable for your application, considering factors like size, pressure rating, and hydraulic lines compatibility.
  • Clean the Couplings: Ensure that both the male and female couplings are clean and free from dirt, debris, and contaminants. Apply a small amount of compatible hydraulic oil or grease to the O-rings or seals.
  • Position the Couplings: Position the male and female couplings to align correctly for connection. Push the male coupling into the female coupling until they snap or click into place.
  • Secure the Connection: If your couplings have a locking mechanism, engage it to secure the connection further.
  • Test the Connection: Perform a pressure test to ensure that the couplings are securely connected and there are no leaks.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure their reliability and longevity. Here are some maintenance steps:
    • Regular Inspection: Perform routine visual inspections of the couplings. Look for signs of wear, damage, or corrosion. Check for any hydraulic fluid leaks around the couplings.
    • Cleanliness: Keep the couplings and the surrounding areas clean. Dirt and debris can damage seals and prevent proper engagement.
    • Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling. Lubrication helps ensure a smooth connection and prolongs the life of seals.
Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steel
  • Torque Checks: Periodically check the torque on the coupling nuts. Over time, they may loosen, leading to leaks or improper connection.
  • Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately.
  • Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs. This prevents contamination and damage to the couplings.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. Since its launch in 1992, Raydafon has been a leader in the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. Our products are sold well in the domestic market and also in the USA, Europe, Southeast Asia, and the Middle East. We provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment, and machinery manufacturing industry.Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steelWe adhere to the principle of "Quality first, Customer first, Reputation first, and Service first". We strive to satisfy our customers' requirements and increase the market share. We pursue the excellent brand and comply with the best service, which enables us to keep up with the pace of the international enterprise.Our professionalism is reflected in our international certifications, customized services, production facilities, and after-sales services. We look forward to creating a bright future with you.Thread Connected series VVS 3/4 inch BSP/NPT Thread 10000PSI high pressure quick disconnect hose couplings stainless steelAuthor: Yjx
Hot Tags: High Pressure Quick Disconnect Couplings, 10000PSI Hose Couplings, Stainless Steel Threaded Couplings
