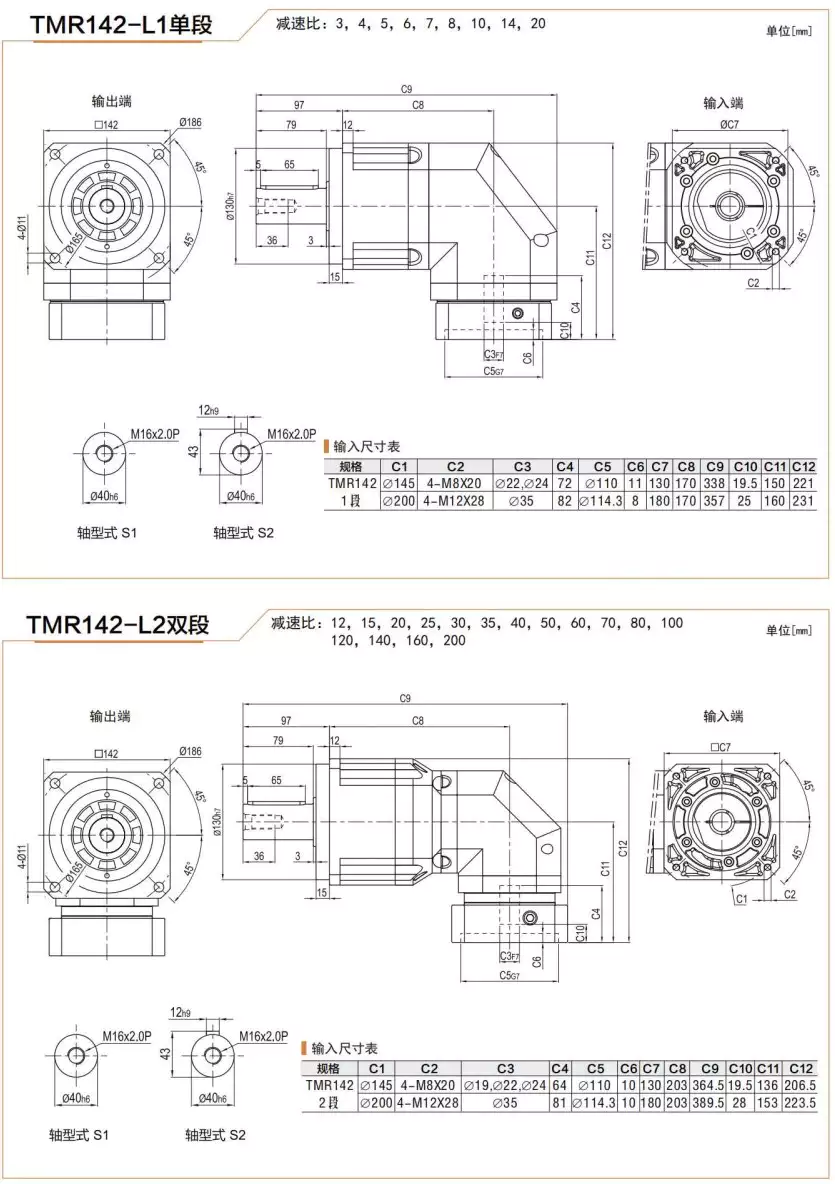

The TMR142 Series High Precision Planetary Gearbox Helical Gear Reducer is a high-precision gearbox that is commonly used in industrial automation equipment for precise speed control and position positioning. It is also known as a servo motor planetary gearbox and low backlash planetary gearbox. The gearbox is designed to provide high precision and low backlash with high torsional stiffness, and is ideal for various industrial applications that require high precision and reliability.
The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed on the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and kept in relative position by the planet carrier. Each planet gear engages with the sun gear and the ring gear. When power is input, they collectively bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output component or connected to another shaft to transmit or receive torque.
The ring gear is a large-diameter annular gear fixed inside the housing with teeth on both the inner and outer surfaces. It engages with the planet gears. In some applications, the ring gear can also serve as an input or output end.
The bearings in the high-precision planetary gearbox support the input shaft, output shaft, and planet carrier to ensure stable rotation and smooth operation of the components.
The housing is the external framework of the gearbox. It protects the internal components from external environmental influences and provides installation interfaces. The seals ensure that the internal lubricating grease does not leak and prevent dust and water from entering the gearbox.
When power is input to the sun gear, the planet gears rotate around the sun gear. Since the planet gears engage with both the sun gear and the ring gear, they rotate on their own axis while revolving around the center of the sun gear with the planet carrier. This way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end via the planet gears.
By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, the larger the number of planet gears or gear ratio, the more significant the torque amplification effect, but the output speed will also decrease.
In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
One important advantage of planetary gear mechanisms is that they can evenly distribute the load among multiple planet gears, thereby improving the load capacity and stability of the entire system and optimizing dynamic response performance.
| Factor | Explanation |
|---|---|
| Load capacity | The gearbox should be able to withstand the maximum load required by the application. |
| Speed ratio | The speed ratio of the gearbox should match the requirements of the application. |
| Backlash | The gearbox should have minimal or no backlash to ensure the required precision. |
| Efficiency | The gearbox should have high efficiency to reduce energy consumption and heat generation. |
| Torsional stiffness | The gearbox should have high torsional stiffness to ensure accurate positioning and dynamic response. |
| Service life | The gearbox should have sufficient service life to meet the application requirements. |
The planetary gearbox is used in conjunction with servo motors for precise speed control and position positioning in industrial automation equipment, such as robotic arm drives, feed mechanisms of precision machine tools, semiconductor manufacturing equipment, etc.
The planetary gearbox is used for accurate motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc.
The planetary gearbox is used in aircraft landing gear retracting systems, flight control systems, satellite attitude adjusting devices, etc. for high reliability and precision.
The planetary gearbox is used in science experiment equipment, precision measuring instruments, optical tracking systems, etc. for high transmission accuracy.
The planetary gearbox is used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
The planetary gearbox is used in joint drive components of industrial robots, service robots, and special operation robots.
The planetary gearbox is used in lifters, conveyor belt drivers, AGVs (automated guided vehicles), etc. in automatic warehousing systems.
