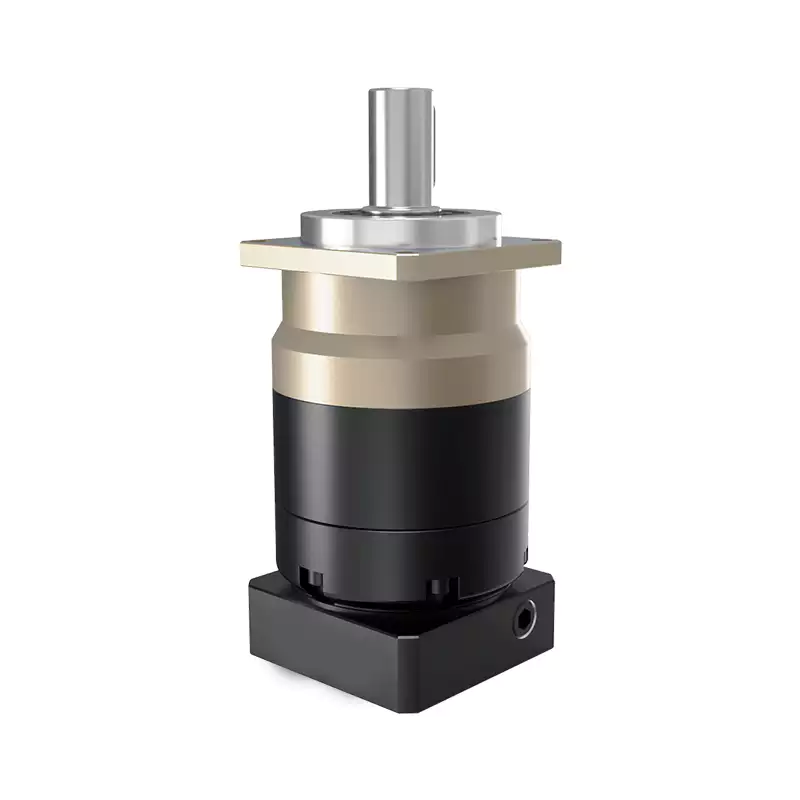

TNF142 Series High Precision Planetary Gearbox Helical Gear Reducer

Experience the power of precision with Raydafon Group's TNF142 Series High Precision Planetary Gearbox Helical Gear Reducer, engineered for superior efficiency and durability in demanding industrial applications. Featuring advanced helical gear design and robust construction, it minimizes backlash and maximizes torque transmission, making it ideal for robotics, automation, and machinery where reliability is key. Elevate your operations with smoother performance and reduced maintenance, solving complex motion control challenges effortlessly. Compared to standard gearboxes, its unique planetary configuration offers exceptional accuracy, ensuring your projects run flawlessly every time. Join the forefront of innovation and boost productivity—choose Raydafon Group for unparalleled quality and precision!

Send Inquiry

Product Description

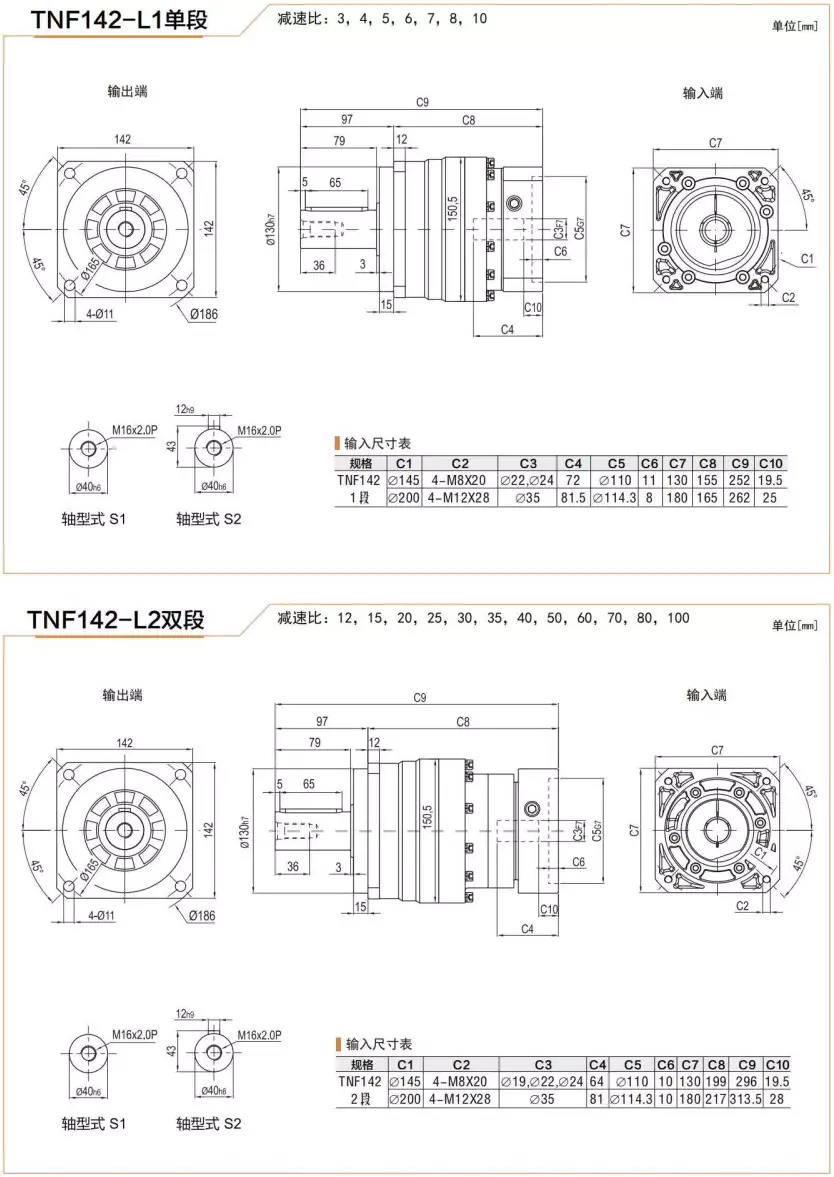

TNF142 Series High Precision Planetary Gearbox Helical Gear Reducer Overview

TNF142 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is widely used in various high-precision applications. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The TNF142 Series High Precision Planetary Gearbox Helical Gear Reducer is designed to provide a high level of accuracy, efficiency, and durability in applications that require precise control of speed and torque. The gearbox is commonly used in industries such as robotics, medical equipment, aerospace, and automotive manufacturing.

High Precision Planetary Gearbox Basic Structure

The basic structure of a High Precision Planetary Gearbox consists of several key components:

Sun Gear: The sun gear is located at the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
Planet Gears: The planet gears rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear and, when power is input, they collectively bear and distribute the load.
Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
Ring Gear/Annulus: The ring gear is a large-diameter ring gear fixed inside the housing with teeth on both the inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear can also serve as an input or output end.
Bearings and Shaft System: The bearings in the High Precision Planetary Gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between the components.
Housing and Seals: The housing is the external frame of the entire gearbox, which protects the internal components from external environmental influences and provides mounting interfaces. The seals ensure that the internal lubricating grease does not leak while preventing dust and moisture from entering the gearbox.

High Precision Planetary Gearbox Working Principle

The High Precision Planetary Gearbox operates on the following principles:

Torque transmission: When power is input to the sun gear, the planet gears around the sun gear rotate. Since the planet gears mesh with both the sun gear and the ring gear, they rotate on their own axis while also revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified through the planet gears and evenly distributed to the planet carrier at the output end.
Speed conversion and torque amplification: By adjusting the gear ratio of different components, speed conversion between input and output and torque amplification can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease at the same time.
Low backlash design: In high-precision applications, in order to ensure precise position control and minimal mechanical clearance, High Precision Planetary Gearboxes adopt preloading technology to reduce or eliminate the clearance between gears, which is called "zero/low-backlash" design.
Load distribution and dynamic response: An important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system and optimizing dynamic response performance.

High Precision Planetary Gearbox Design and Selection Considerations

The following factors should be considered when designing and selecting a High Precision Planetary Gearbox:

Factor	Explanation
Load capacity	The gearbox should be able to handle the maximum load that will be applied to it.
Efficiency	The gearbox should provide high efficiency to minimize power losses.
Backlash	The gearbox should have low backlash to ensure accurate positioning.
Noise	The gearbox should have low noise to minimize disturbance to the surrounding environment.
Service life	The gearbox should have a long service life to minimize maintenance and replacement costs.
Environmental conditions	The gearbox should be able to operate under the environmental conditions that will be encountered in its application.

High Precision Planetary Gearbox Applications

The High Precision Planetary Gearbox has a wide range of applications that require precise control of speed and torque. Some of the common application areas are:

Servo motor systems: Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, feed mechanisms of precision machine tools, and semiconductor manufacturing equipment.
Medical equipment: Used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots to achieve precise motion control and torque amplification.
Aerospace: Used in aircraft landing gear systems, flight control system actuators, and satellite attitude adjustment devices that require high reliability and precision.
Precision instruments: Used in scientific experimental equipment, precision measuring instruments, and optical tracking systems that require high transmission accuracy.
Automotive manufacturing: Used in power steering systems of new energy vehicles, drive units of electric vehicles, and transmission systems of high-performance racing cars.
Robotics technology: Including joint drive parts in industrial robots, service robots, and special operation robots.
Logistics automation: Lifts in automatic storage systems, conveyor drive units, AGVs (automatic guided vehicles), etc.
