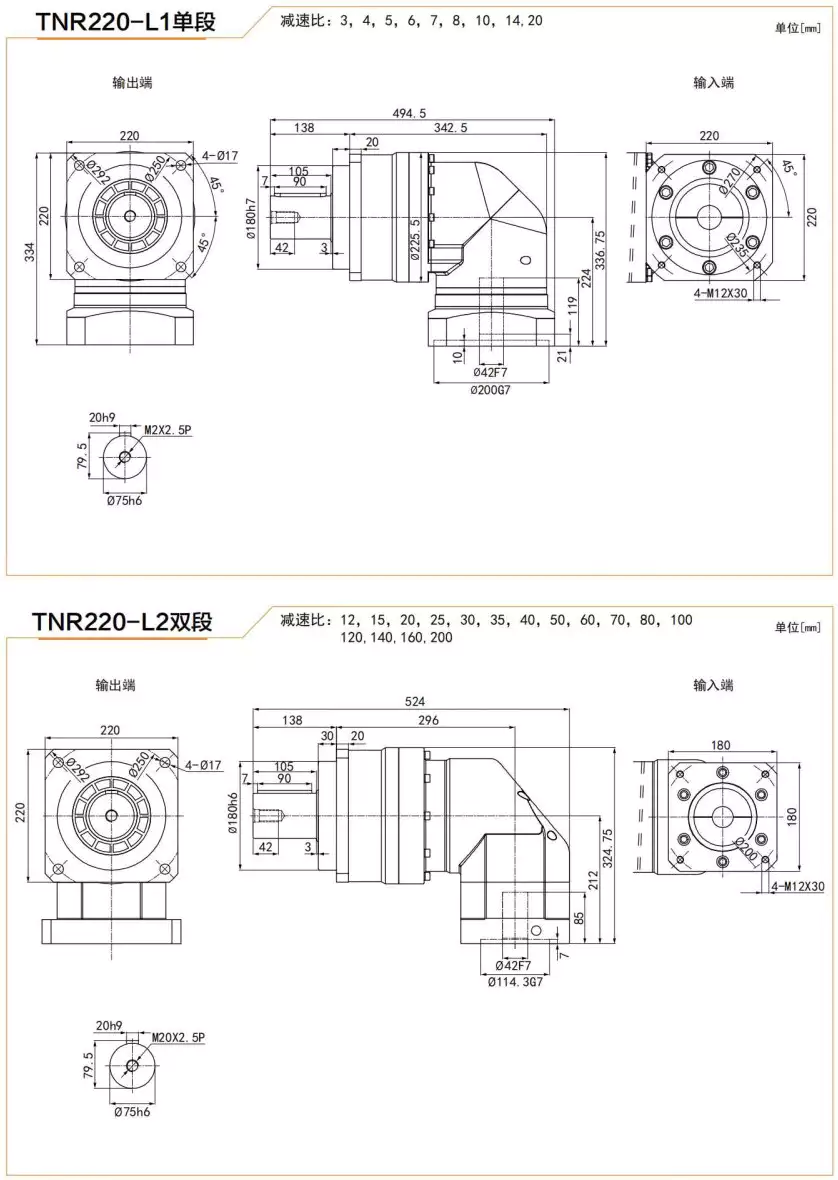

TNR220 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a high-precision gear reducer that is widely used in industrial automation, medical equipment, aerospace, precision instruments, robotics technology, and other fields. The TNR220 Series is a reliable and durable gearbox designed to meet the demands of high-precision applications.
High precision planetary gearbox is composed of the following main components:
The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed on the housing as a stationary part.
The planet gears rotate around the sun gear and are supported and kept in relative position by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear/annulus. When power is input, they jointly bear and distribute the load.
The planet carrier is a structure with multiple planet gear axle holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output component or connected to another shaft to transmit or receive torque.
The ring gear/annulus is a large-diameter ring gear fixed inside the housing. It has teeth on both inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear/annulus can also be used as an input or output end.
The bearings in the high-precision planetary gearbox are used to support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between components.
The housing is the external frame of the entire gearbox, which protects the internal components from external environmental influences and provides installation interfaces. The seals ensure that the internal lubricating grease does not leak and prevent dust and water from entering the gearbox.
The working principle of high precision planetary gearbox can be summarized as follows:
When power is input to the sun gear, the planet gears rotate around the sun gear. Since the planet gears mesh with both the sun gear and the ring gear/annulus, they not only rotate around their own axis but also revolve around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, when the number of planet gears or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will also decrease.
In high-precision applications, high-precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, that is, "zero/low backlash" design, to ensure precise position control and minimum mechanical clearance.
One of the important advantages of the planetary gear mechanism is that it can evenly distribute the load between multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing the dynamic response performance.
When designing and selecting high precision planetary gearboxes, the following factors should be considered:
| Factors | Descriptions |
|---|---|
| Load capacity | The maximum load that the gearbox can withstand, which is related to the size and number of planet gears, gear ratio, and material. |
| Reduction ratio | The ratio of input speed to output speed, which determines the torque amplification and speed conversion effect of the gearbox. |
| Efficiency | The ratio of output power to input power, which affects the heat generation and energy consumption of the gearbox. |
| Backlash | The clearance between gears, which affects the positioning accuracy and stability of the gearbox. |
| Noise | The sound level generated during operation, which affects the working environment and operator's comfort. |
| Service life | The maximum operating time of the gearbox before failure, which is related to the design, material, and manufacturing process. |
The high precision planetary gearbox is widely used in the following fields:
It is used in industrial automation equipment for accurate speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
It is used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc., to achieve accurate motion control and torque amplification.
It is used in aircraft landing gear systems, flight control system actuators, satellite attitude adjustment devices, etc. requiring high reliability and precision.
It is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc. that require extremely high transmission accuracy.
It is used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, etc.
It is used in joint drive parts of industrial robots, service robots, and special operation robots.
It is used in lifting machines, conveyor belt drives, AGVs, etc. in automatic warehousing systems.
We are a professional manufacturer of power transmission equipment, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO9001:2015. Our products have passed China's mandatory CCC certification and the European Community CE certification. Our products are produced according to international IC standards and have reached the advanced level of similar products in the world.
Our advantages include:
