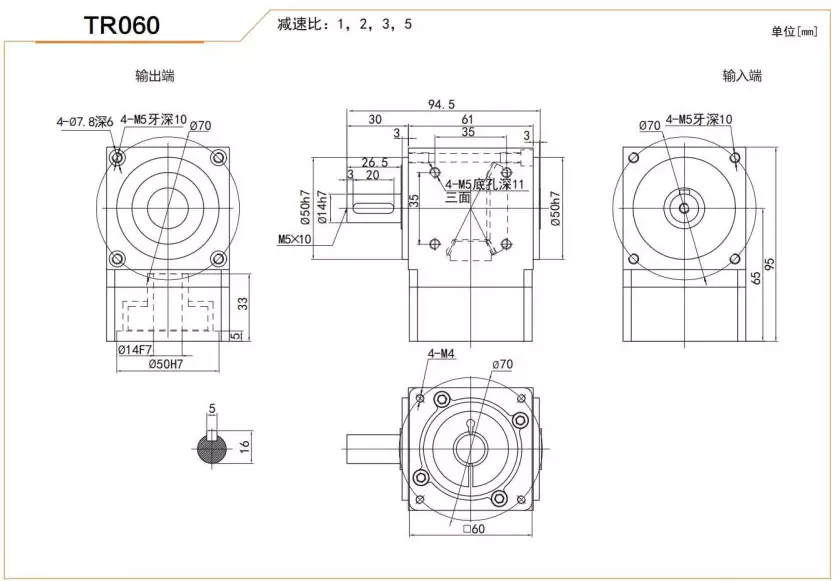

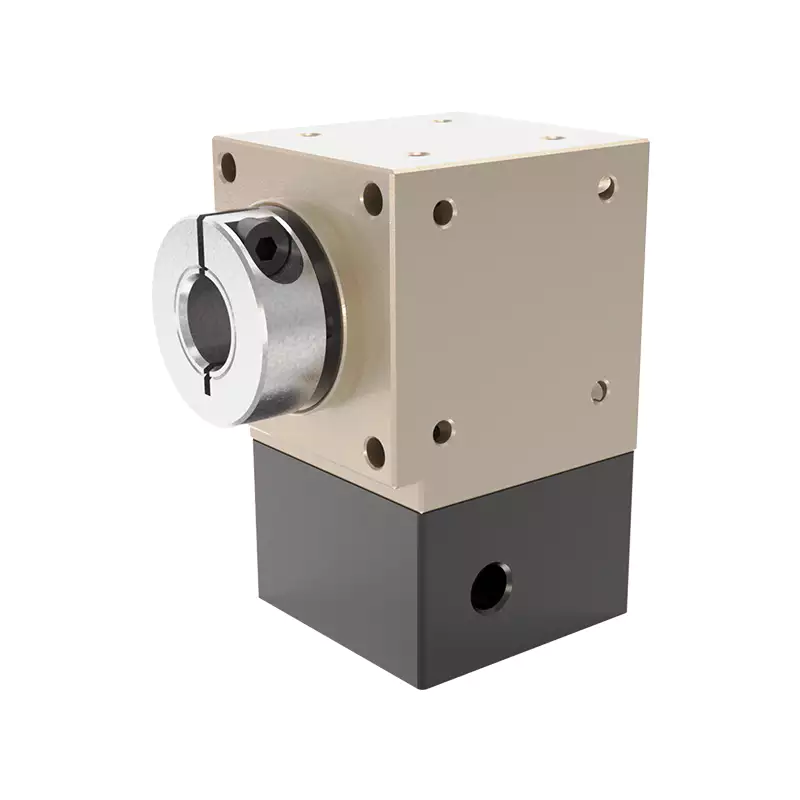

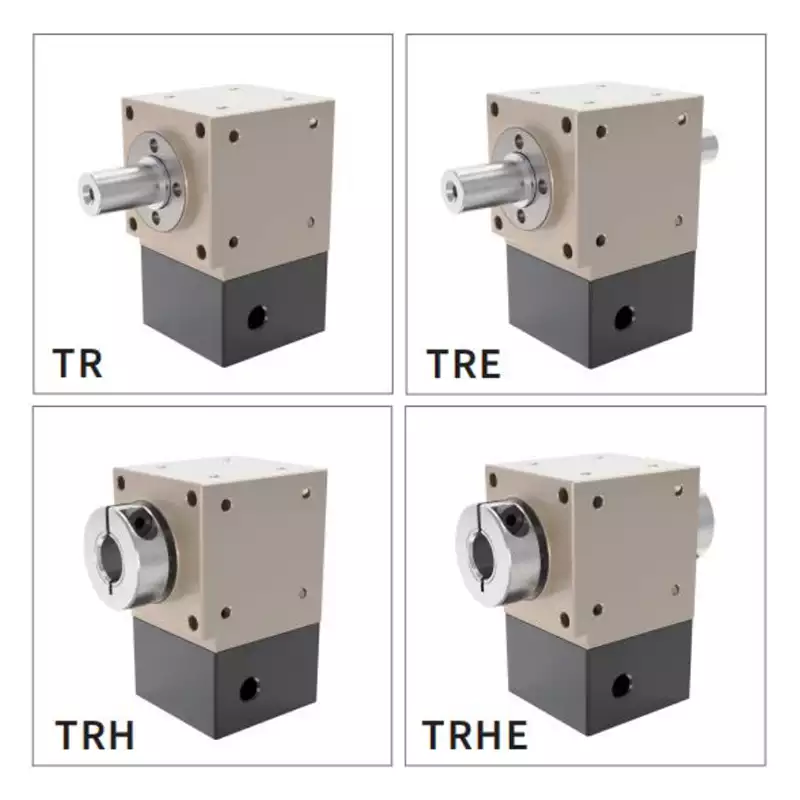

TR060 Series High Precision Planetary Gearbox Right Angle Reducer

Experience unparalleled accuracy with the TR060 Series High Precision Planetary Gearbox Right Angle Reducer by Raydafon Group. Designed for automation and robotics, its high-torque, durable construction ensures smooth, efficient power transmission. Ideal for engineers and manufacturers, it solves precision challenges, offering reliable performance. Choose Raydafon for superior quality and innovation, enhancing your applications with unmatched efficiency.

Send Inquiry

Product Description

TR060 Series High Precision Planetary Gearbox Right Angle Reducer Overview

TR060 Series High Precision Planetary Gearbox Right Angle Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a kind of gearbox that can handle high torsion, high speed, and high performance. It has a high precision level and is widely used in various fields such as industrial automation, medical equipment, aerospace, and precision instruments.

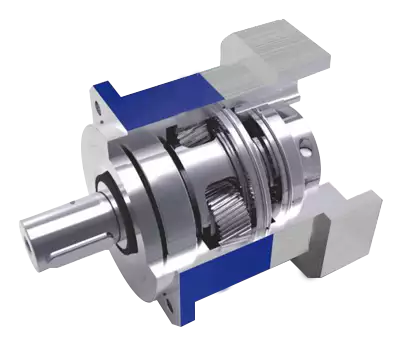

High Precision Planetary Gearbox Basic Structure

The basic structure of a high precision planetary gearbox includes the following components:

Sun Gear: The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
Planet Gears: The planet gears rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear engages with both the sun gear and the ring gear. When power is input, they share and distribute the load.
Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes, it carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can act as an output element or be connected to another shaft to transmit or receive torque.
Ring Gear/Annulus: The ring gear is a large diameter ring gear fixed inside the housing with teeth on both the inner and outer surfaces that engage with the planet gears. In some applications, the ring gear can also act as an input or output terminal.
Bearings and Shaft System: The bearings in a high precision planetary gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components.
Housing and Seals: The housing is the external frame of the entire gearbox, which protects the internal components from external environmental impacts and provides installation interfaces. Seals ensure that internal lubricants do not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of the High Precision Planetary Gearbox includes the following aspects:

Torque Transmission: When power is input to the sun gear, the planet gears rotate around the sun gear. Because the planet gears engage with both the sun gear and the ring gear, they rotate on their own axis while revolving around the center of the sun gear with the planet carrier. Therefore, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
Speed Conversion and Torque Amplification: Speed conversion and torque amplification between the input and output can be achieved by adjusting the gear ratio of different components. Typically, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease.
Low Backlash Design: In high-precision applications, to ensure precise position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate gear clearances, which is known as "zero/low backlash" design.
Load Distribution and Dynamic Response: An important advantage of a planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

High Precision Planetary Gearbox design and selection considerations include:

Factors	Considerations
Load Characteristics	The magnitude, direction, and variability of the load that the gearbox will be subjected to should be considered.
Required Torque and Speed Ratio	The required torque and speed ratio between the input and output shafts should be considered to ensure that the gearbox can meet the system requirements.
Environmental Conditions	The ambient temperature, humidity, and other environmental factors that the gearbox will be exposed to should be considered, to avoid damage or malfunction.
Mounting and Connection	The mounting and connection methods of the gearbox should be considered to ensure compatibility with the system.
Cost and Performance	The cost and performance of the gearbox should be considered, to ensure that they are well-balanced and meet the requirements of the system.

Application Fields of High Precision Planetary Gearbox

The application fields of High Precision Planetary Gearbox include:

Servo Motor Systems: They are used for precise speed control and position positioning in industrial automation equipment, such as robot joint drives, feed mechanisms of precision machine tools, semiconductor manufacturing equipment, etc.
Medical Equipment: They are used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc.
Aerospace: They are used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, etc., where high reliability and precision are required.
Precision Instruments: They are used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other fields that require high transmission accuracy.
Automotive Manufacturing: They are used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
Robotics: They are used in joint drive parts of industrial robots, service robots, and special operation robots.
Logistics Automation: They are used in automatic storage systems such as lifters, conveyor drivers, AGVs (Automatic Guided Vehicles), etc.
