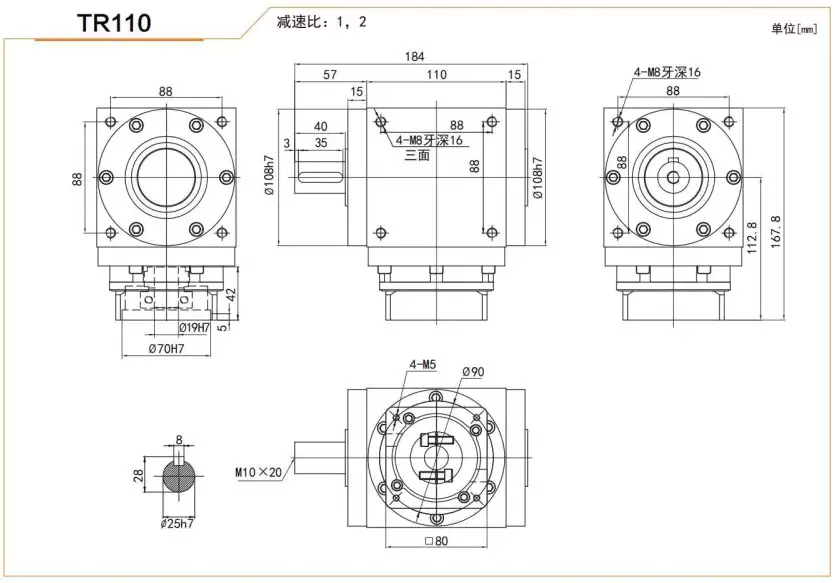

TR110 Series High Precision Planetary Gearbox Right Angle Reducer is a versatile gear system that is commonly used in industrial automation applications that require accurate, high-performance motion control. The gearbox features a compact, right-angle design that makes it well suited for use in tight spaces. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The following is an image of the TR110 Series High Precision Planetary Gearbox Right Angle Reducer:
The High Precision Planetary Gearbox is composed of the following:
The following is an image of the basic structure of a High Precision Planetary Gearbox:
1. Sun Gear: The sun gear is the central gear in the planetary gearbox, and it meshes with planet gears. It is usually attached to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears mesh with both the sun gear and the ring gear, and together they share and distribute the load when power is input. They revolve around the sun gear and are supported and held in position relative to each other by the planet carrier.
3. Planet Carrier: The planet carrier carries the planet gears and allows them to rotate relative to the sun gear. It can serve as an output element or can be connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear is a large-diameter circular gear fixed inside the housing with teeth both on the inside and outside surfaces to mesh with the planet gears. In some applications, the ring gear can also serve as an input or output element.
5. Bearings and Shaft System: The bearings in the high-precision planetary gearbox support the input shaft, output shaft, and planet carrier to ensure stable rotation and smooth operation of the components.
6. Housing and Seals: The housing protects the internal components from external environmental factors and provides installation interfaces. The seals ensure that the internal grease does not leak while preventing dust and water from entering the gearbox.
The following is an image of the High Precision Planetary Gearbox application scenario:
1. Torque Transmission: When power is input to the sun gear, the planet gears revolve around the sun gear and rotate on their own axes. Since the planet gears mesh with both the sun gear and the ring gear, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification between the input and output can be achieved. Generally, when the number of planet gears or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed decreases at the same time.
3. Low Backlash Design: In high-precision applications, in order to ensure precise position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate gear clearance, known as "zero/low backlash" design.
4. Load Distribution and Dynamic Response: One important advantage of planetary gear mechanisms is that they can distribute loads evenly among multiple planet gears to improve the bearing capacity and stability of the entire system, and optimize dynamic response performance.
| Design and Selection Considerations | Explanation |
|---|---|
| Load Requirements | The load requirements of the application should be determined to select the appropriate gearbox model. |
| Speed Requirements | The speed requirements of the application should be determined to select the appropriate gear ratio. |
| Backlash Requirements | The backlash requirements of the application should be determined to select the appropriate gearbox design. |
| Efficiency Requirements | The efficiency requirements of the application should be determined to select the appropriate gearbox model and design. |
| Mounting Requirements | The mounting requirements of the application should be determined to select the appropriate gearbox design. |
| Environmental Requirements | The environmental requirements of the application should be determined to select the appropriate gearbox materials and seals. |
We are a professional power transmission equipment manufacturer located in Ningbo, Zhejiang, China, specializing in research, production, and sales. We strictly operate according to the international quality management system standard ISO90012015, and our products have passed the compulsory CCC certification in China and the CE certification of the European Union. Our products are produced according to international standards and have reached advanced levels of similar products internationally. The following is an image of the application scenario of BPG Series High-Speed Planetary Gearbox:
