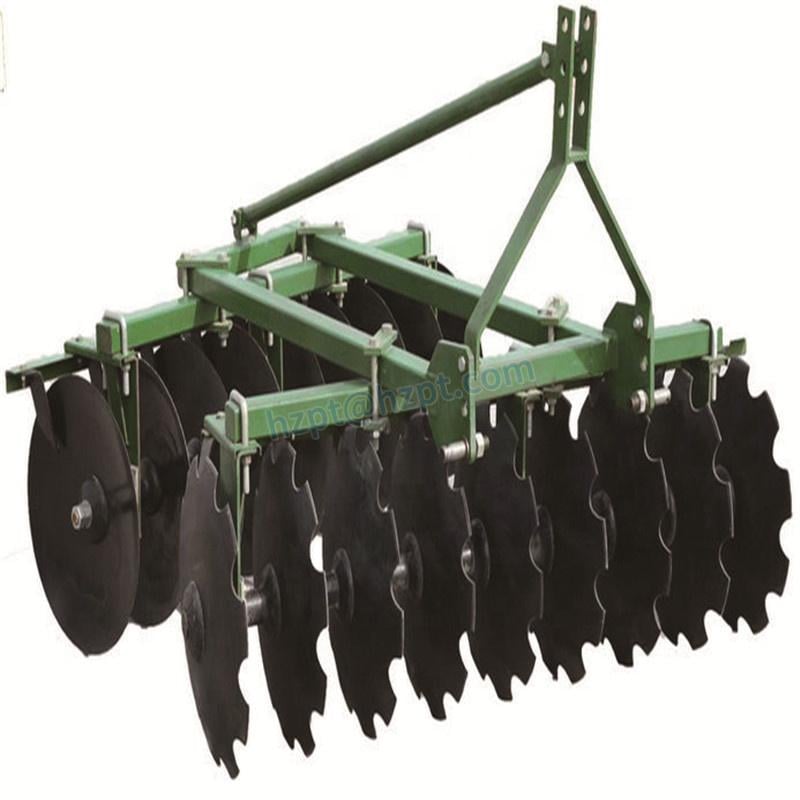

Introducing our new tractor mounted 3 point disc harrow available on Craigslist. This modern farm cultivator provides a diesel power type and is designed to break hardened surfaces and cut up straws. The product is new and comes with a one-year warranty. It has been certified by iso9001 and its dimensions are 1905*1750*1118mm. The disc harrow weighs 240kg and is ideally suited for farms. After-sales services include free spare parts, video technical support, and engineers available to service machinery overseas.
This disc harrow is specifically engineered to perform various farming tasks efficiently. Working on a diesel power type, it is designed to break through the hardest of surfaces and cut up straws, thereby preparing the field for seeding. The harrow is linked through a 3-point mount and features a disc with a diameter of 460mm and a thickness of 4mm. It has a working width of 1500mm and can reach a depth of 140-180mm. The disc is made from 65Mn Spring steel, a material known for its durability and resilience. Matched power for this device is 25-30hp.
Installation of this device is straightforward, given the right equipment. It is advisable to refer to the user manual or get professional help for the installation process. Uninstalling the device is also a hassle-free process. Proper maintenance is critical for the longevity of the device. Regular checks and timely replacement of worn-out parts can ensure its efficient working for a long time.
Raydafon Group Co., Ltd., a company with a reputation for quality and reliability, proudly presents the tractor mounted 3 point disc harrow. Our product range does not stop there; we also offer disc plough, cultivator, rotary tiller, trailer, sprayer, and fertilizer spreader. Our products are designed keeping in mind the user's convenience and the harsh conditions of the farming field.
The 1BQX series disc harrow is particularly useful for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. The reasonable structure, strong raking ability, and durability make this disc harrow a must-have for every farm.
| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQ-3.4 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (cm) | 10-14 | 10-14 | 14-16 | 14-16 | 14-16 | 14-16 | 16-18 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter of disc (mm / inch) | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 |
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Matched power (hp) | 12-15 | 15-18 | 25-30 | 30-35 | 35-40 | 55-60 | 80-100 |

In addition to the tractor mounted 3 point disc harrow, we also provide an array of farming equipment to meet all your farming needs. We stand behind our products with a strong warranty and after-sales service. Our dedicated team of engineers is always ready to provide technical support and service machinery overseas.
Why wait? Experience the efficiency and convenience of our tractor mounted 3 point disc harrow. Contact us today to learn more about our products and how they can revolutionize your farming practices. Let us help you make farming easier, more efficient, and more profitable. Reach out to us now!
