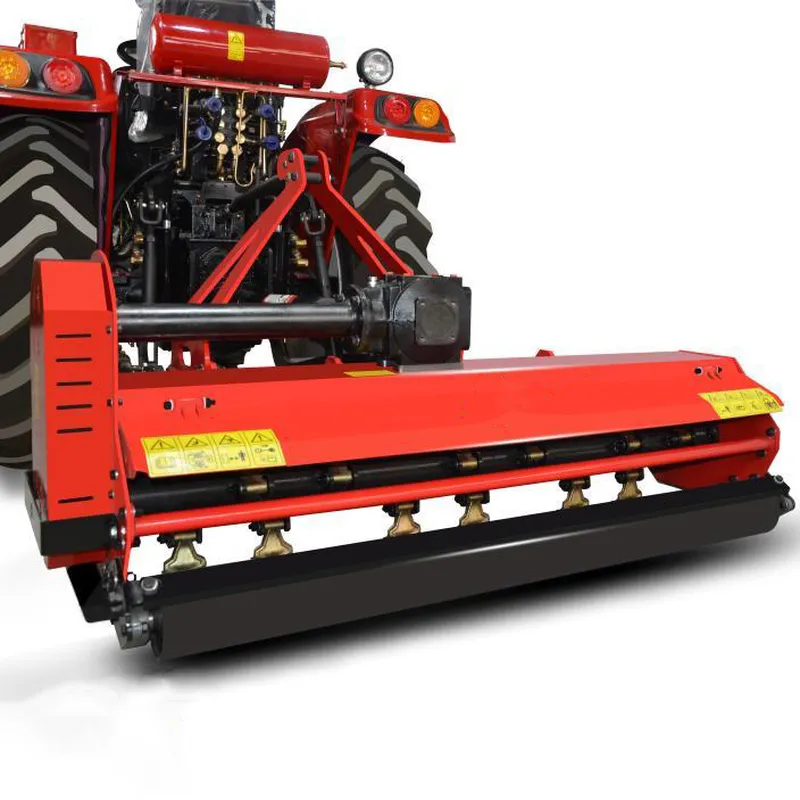

Tractor Mounted PTO Driven Heavy Duty Flail Mower EFGC-K Series for Cutting Grass

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Tractor Mounted PTO Driven Heavy Duty Flail Mower EFGC-K Series for Cutting Grass

This flail mower works for shredding grass, straw, and tree branches with a more delicate shredding effect. It can easily adjust the stubble height and can shred grass roots. It also has a number of operational safety protection mechanisms. It can switch between two operation states, the mid position and the side position, and it has an adjustable, reversible design to achieve convenient discharging for actual operation. The Tractor Mounted PTO Driven EFGC-K Heavy Duty Flail Mower is a powerful and versatile piece of equipment designed for cutting and mulching vegetation in various agricultural and landscaping applications. This flail mower is specifically designed to be attached to a tractor's power take-off (PTO) system, utilizing the tractor's engine power to drive the mower's cutting mechanism. The EFGC-K Heavy Duty Flail Mower is known for its robust construction and durability, making it suitable for tackling tough and demanding mowing tasks. It features a heavy-duty steel frame and a reinforced cutting deck, ensuring its ability to withstand the rigors of frequent use and handle challenging terrains with ease. One of the key components of the EFGC-K Flail Mower is its cutting mechanism. The mower is equipped with high-speed rotating blades, known as flails, which are attached to a horizontal shaft. As the shaft receives power from the tractor's PTO, the flails spin rapidly, creating a cutting action. These flails are designed to strike the vegetation, effectively cutting it into smaller pieces. The EFGC-K Flail Mower offers a wide cutting width, allowing for efficient mowing over large areas. The adjustable cutting height feature enables you to customize the cutting height according to your specific requirements, ensuring precise and consistent results. Another notable feature of the EFGC-K Flail Mower is its ability to mulch the cut vegetation. As the flails strike the vegetation, they not only cut it but also shred it into fine pieces. These shredded pieces are then evenly distributed on the ground, acting as a natural mulch. Mulching provides several benefits, including improved soil moisture retention, weed suppression, and nutrient recycling.

EFGC-K Series Heavy Duty Flail Mower Specifications

Models	Working Width	PTO Input Seed	Hammer Blades	"Y" Grass Blades	Rotor Seed	Required HP	Shipped Weight	Overall Dimensions
	mm	rpm	N.	N.	rpm	hp	Kg	mm
EFGCK140	1350	540	22	44	2160	35-70	265	1550*800*750
EFGCK160	1550	540	24	48	2160	40-80	278	1750*800*750
EFGCK180	1750	540	28	56	2160	55-90	289	1950*800*750
EFGCK200	1950	540	34	68	2160	70-100	305	2150*800*750
EFGCK220	2150	540	38	76	2160	80-100	319	2350*800*750

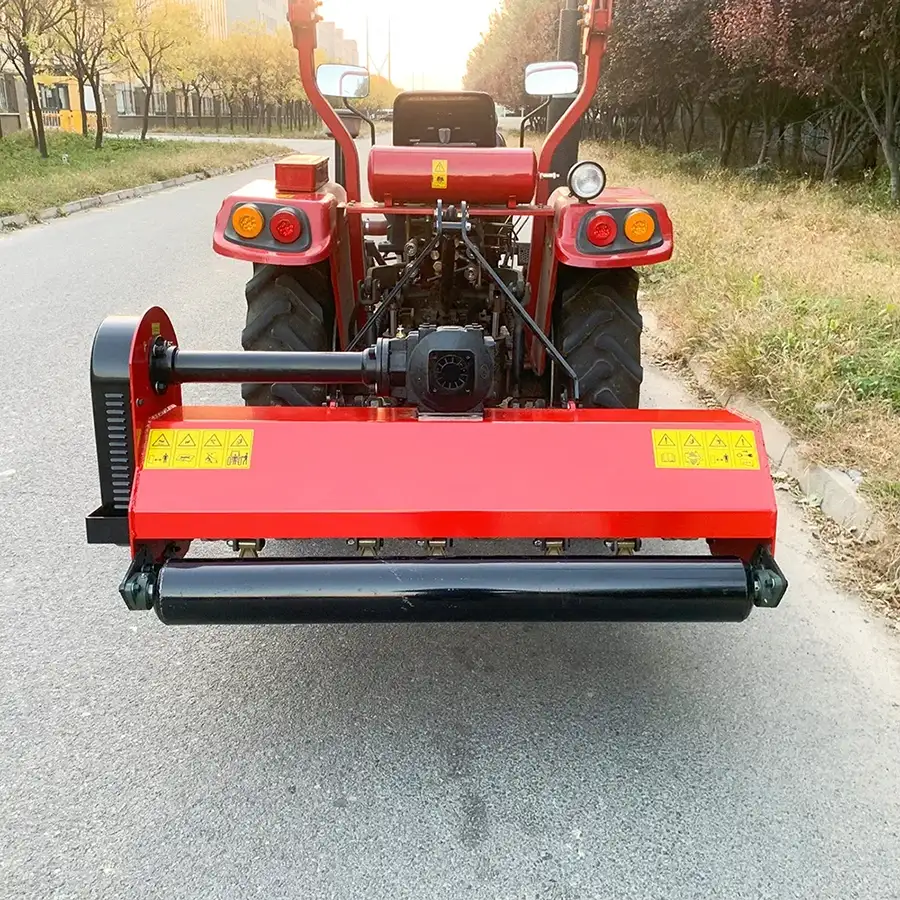

Advantages of Using the Tractor Mounted EFGC-K Heavy Duty Flail Mower

The Tractor Mounted PTO Driven EFGC-K Heavy Duty Flail Mower offers a multitude of advantages for those requiring efficient, reliable, and versatile mowing solutions. This heavy-duty equipment is designed to meet the rigorous demands of agricultural, landscaping, and land management tasks. Here are the key advantages of using the EFGC-K Heavy Duty Flail Mower: 1. Versatility: The EFGC-K Flail Mower is highly versatile and can be used in a variety of applications. It is suitable for mowing and maintaining fields, orchards, vineyards, parks, road verges, and other areas with dense vegetation. It can effectively cut tough grasses, shrubs, small trees, and brush, making it ideal for a wide range of agricultural and landscaping tasks. 2. Efficient Cutting: The flail mower's high-speed rotating flails deliver a powerful cutting action. The blades strike the vegetation, cutting it into smaller pieces, ensuring a clean and precise cut. The adjustable cutting height feature allows you to control the cutting height according to your specific needs, ensuring consistent and professional results. 3. Mulching Capability: The EFGC-K Flail Mower excels at mulching the cut vegetation. The rotating flails not only cut the vegetation but also shred it into fine pieces. These shredded pieces are evenly distributed on the ground, acting as a natural mulch. Mulching offers several benefits, including improved soil moisture retention, weed suppression, and nutrient recycling. 4. Robust Construction: The EFGC-K Flail Mower is built with a heavy-duty steel frame and a reinforced cutting deck, making it highly durable and capable of withstanding demanding mowing conditions. Its robust construction ensures longevity and minimizes the need for frequent repairs or replacements. 5. Wide Cutting Width: The flail mower offers a wide cutting width, enabling you to cover large areas efficiently. This reduces the time and effort required for mowing tasks, increasing productivity and allowing you to accomplish more in less time. 6. Tractor Compatibility: The EFGC-K Flail Mower is designed to be mounted on a tractor's PTO system, utilizing the tractor's engine power to drive the mower's cutting mechanism. This makes it convenient and cost-effective since it eliminates the need for a separate engine or power source for the mower. 7. Terrain Adaptability: The flail mower is capable of handling various terrains, including rough and uneven surfaces. Its sturdy construction, adjustable cutting height, and flexible flail movement allow it to adapt to different ground conditions, ensuring effective mowing even in challenging environments.

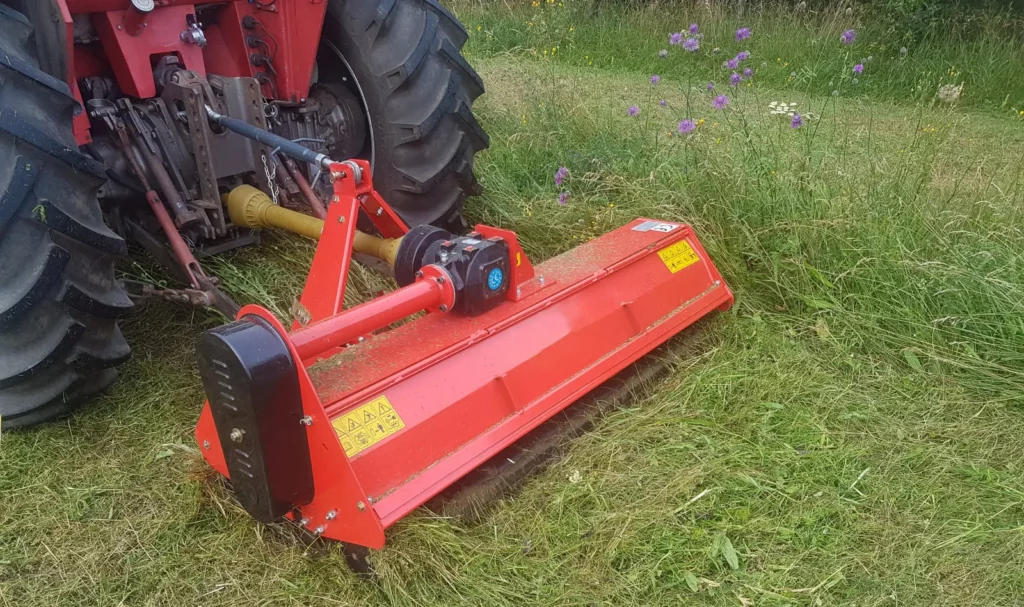

How Does the Tractor Mount PTO Driven Flail Mower EFGC-K Work?

The Tractor Mounted PTO Driven EFGC-K Heavy Duty Flail Mower is an advanced piece of equipment designed for efficient vegetation management and landscape maintenance. Its operation is based on a combination of mechanical and hydraulic principles, enabling it to tackle a wide range of mowing tasks. Here's an overview of how it works: (1) Power Source and Drive Mechanism

• The EFGC-K Flail Mower is powered by the tractor's engine through the Power Take-Off (PTO) shaft. This setup allows the mower to utilize the tractor's horsepower to drive its cutting mechanism.
• Once connected, the tractor's PTO shaft transfers rotational power to the mower's gearbox, which in turn drives the main rotor (or drum) on which the cutting flails are mounted.

(2) Flail Cutting Mechanism

• The heart of the EFGC-K Mower is its flail cutting mechanism. This consists of a horizontally mounted rotor equipped with several flails — heavy-duty metal blades or chains that are hinged or bolted to the rotor.
• As the rotor spins, centrifugal force extends the flails outward. The mower moves forward, and the flails swing and cut the vegetation with a combination of impact and a cutting action.
• The flails are designed to provide a clean cut while minimizing the risk of clogging, making them effective for cutting grass, weeds, small bushes, and other vegetation.

(3) Hydraulic Side Shift (if equipped)

• Some models of the EFGC-K may feature a hydraulic side shift capability, allowing the mower to be adjusted laterally for precise positioning next to obstacles such as trees, fences, and walls without moving the tractor. This adjustment is controlled by the tractor's hydraulic system, enhancing the mower's flexibility and reach.

(4) Adjustable Cutting Height

• The EFGC-K Mower allows for the adjustment of cutting height. This is typically achieved through a combination of adjustable rear roller or skids, which can be set to various heights depending on the desired outcome. This feature ensures that the mower can be tailored to cut at the optimal height for different types of vegetation and terrain.

(5) Safety and Durability Features

• The mower includes several safety features, such as protective guards around the rotor and flails, to prevent debris from being thrown towards the operator or bystanders.
• Its construction is robust, with high-quality materials and heavy-duty components designed to withstand the demands of heavy usage and challenging conditions.

(6) Operational Efficiency

• The design of the EFGC-K Flail Mower ensures efficient vegetation management, distributing the cut material evenly across the mowed area, which can decompose and return nutrients to the soil, promoting healthy regrowth.
• Its efficiency, coupled with the versatility to handle various vegetation types and conditions, makes it a valuable tool for agricultural, landscaping, and land management purposes.

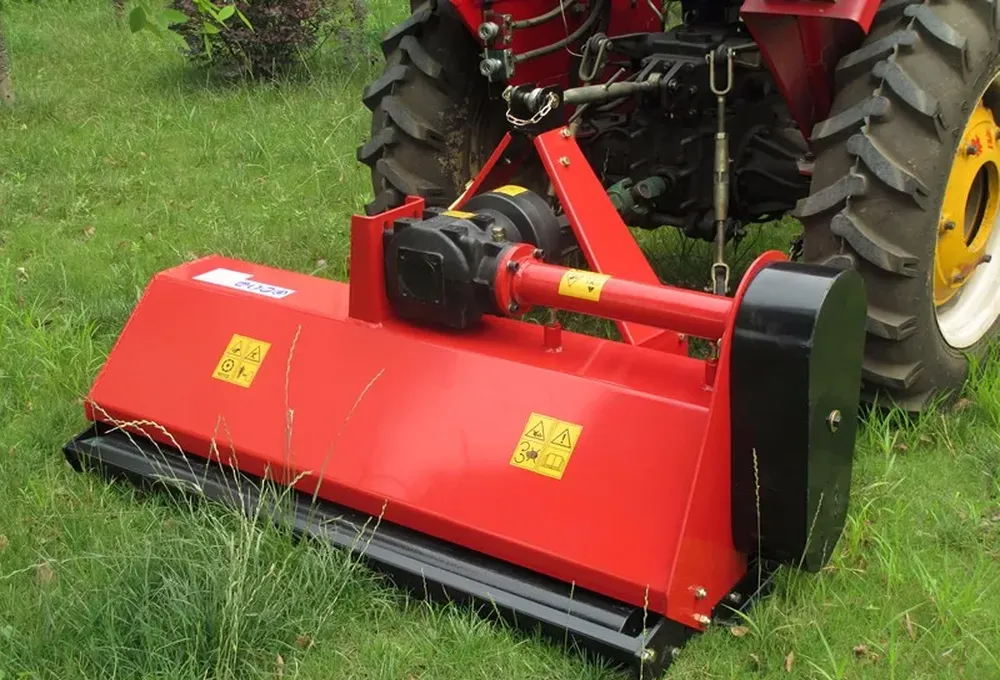

Tractor Mount PTO Driven Flail Mower EFGC-K Operation Precautions

Operating a Tractor Mounted PTO Driven Flail Mower EFGC-K requires adherence to certain precautions to ensure safety and effectiveness. The heavy-duty nature of this equipment, designed for intensive mowing tasks, calls for a comprehensive understanding and respect for operational guidelines. Here are key operation precautions to consider: 1. Inspection: Before each use, thoroughly inspect the flail mower for any signs of damage, loose or missing parts, or excessive wear. Check the blades, belts, shafts, and bearings for proper functioning and tightness. Address any issues or concerns before operating the machine. 2. Tractor Compatibility: Ensure that the flail mower is compatible with the tractor's PTO system and hitch. Verify that the tractor's PTO shaft is properly aligned and securely connected to the flail mower's input shaft. Use appropriate hitch pins and safety chains as recommended by the manufacturer. 3. Terrain Assessment: Survey the terrain where you'll be operating the flail mower. Identify any potential hazards such as rocks, stumps, ditches, or uneven ground. Clear the area of obstacles that could damage the mower or pose a safety risk during operation. 4. Adjustments: Set the appropriate cutting height for the specific vegetation and mowing conditions. Follow the manufacturer's guidelines to adjust the cutting height of the mower deck. Ensure that the flails are not set too low or too high to avoid damage or ineffective cutting. 5. Operating Speed: Operate the flail mower at a safe and controlled speed, considering the conditions of the terrain and the density of the vegetation. Avoid excessive speeds that may compromise the quality of the cut or endanger safety. 6. Avoid Overloading: Do not overload the flail mower by attempting to cut vegetation that exceeds its recommended capacity. This can strain the mower's components, reduce performance, and potentially cause damage or accidents. 7. Handle Hydraulic Systems with Care: Be cautious when adjusting the hydraulic side offset, if applicable. Hydraulic systems are under high pressure and can cause injury if not handled properly. Inspect hydraulic lines and connections regularly for leaks or damage.

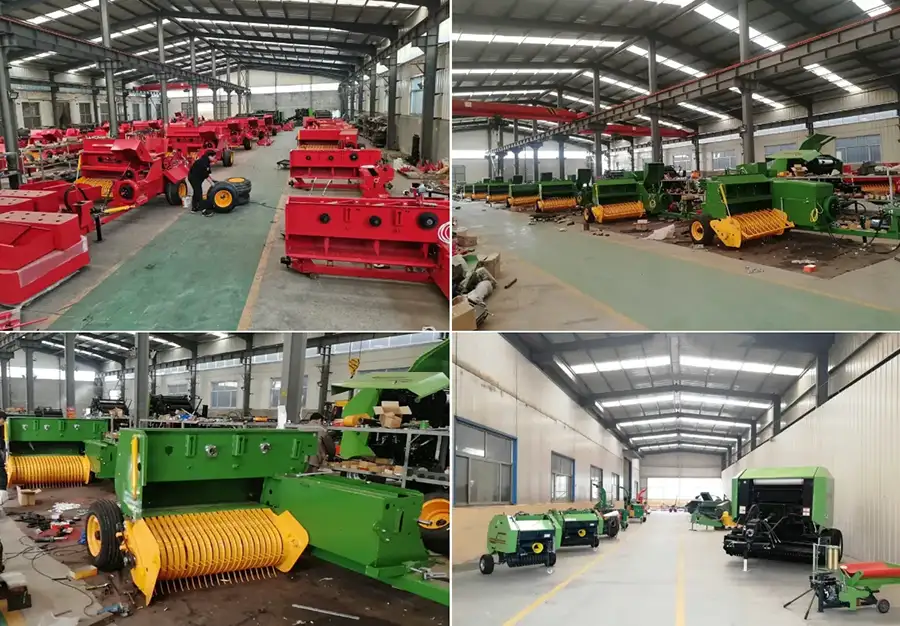

Why Choose Raydafon's Flail Mower?
