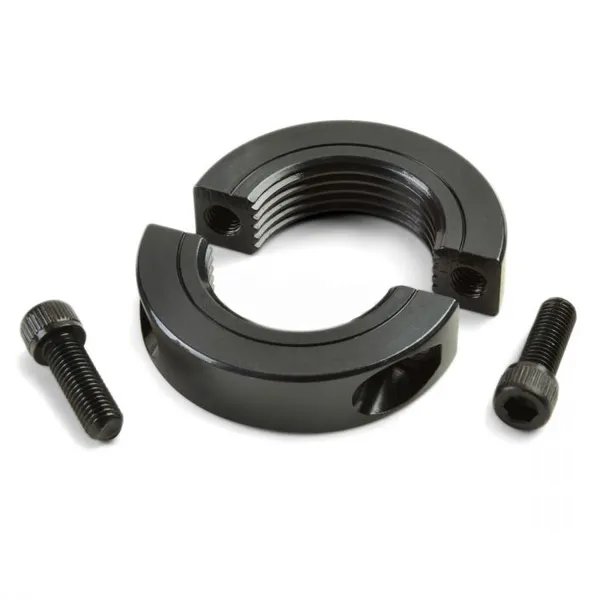

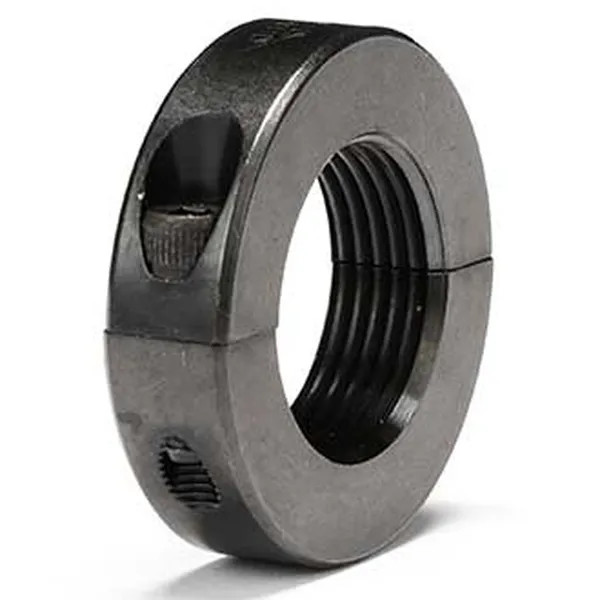

The inch series two piece threaded shaft collars are mechanical components used to secure and position objects on a shaft. They consist of two separate pieces that are threaded on the inside, allowing them to be easily installed and removed from the shaft without having to slide them off the end. The two piece threaded shaft collars are typically made of metal, such as steel or aluminum, and are designed to provide a tight grip on the shaft, preventing unwanted movement or rotation of the object attached to it.These inch series two piece threaded shaft collars are commonly used in a variety of industrial and mechanical applications, such as in machinery, robotics, and automation systems. They can be used to secure bearings, pulleys, gears, and other components onto a shaft and can also serve as a stop for limiting the travel of the shaft. They come in a range of sizes to fit different shaft diameters and may have additional features such as set screws or keyways for added security.

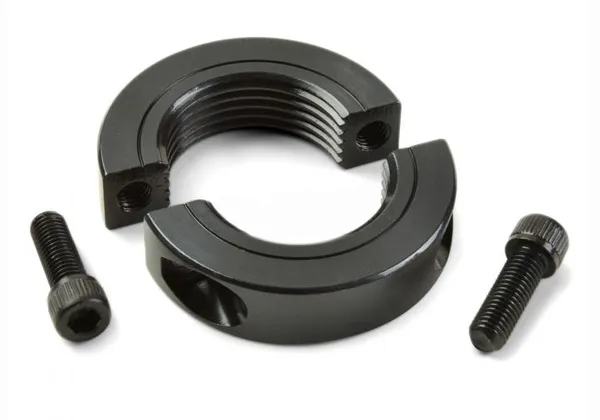

▍Two Piece Threaded Shaft Collar Sizes Chart (Inch Series)

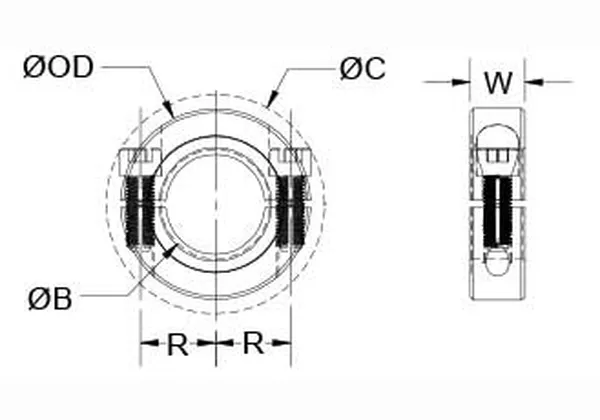

Part Number Steel	Part Number Stainless Steel	Threaded Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
TSP-2-32-F	TSP-2-32-SS	#8 - 32 TPI	5/8	0.281
TSP-3-24-F	TSP-3-24-SS	#10 - 24 TPI	5/8	0.281
TSP-3-32-F	TSP-3-32-SS	#10 - 32 TPI	5/8	0.281
TSP-4-20-F	TSP-4-20-SS	1/4 in - 20 TPI	5/8	0.281
TSP-4-28-F	TSP-4-28-SS	1/4 in - 28 TPI	5/8	0.281
TSP-5-18-F	TSP-5-18-SS	5/16 in - 18 TPI	11/16	0.281
TSP-5-24-F	TSP-5-24-SS	5/16 in - 24 TPI	11/16	0.281
TSP-6-16-F	TSP-6-16-SS	3/8 in - 16 TPI	7/8	0.343
TSP-6-24-F	TSP-6-24-SS	3/8 in - 24 TPI	7/8	0.343
TSP-7-14-F	TSP-7-14-SS	7/16 in - 14 TPI	15/16	0.343
TSP-7-20-F	TSP-7-20-SS	7/16 in - 20 TPI	15/16	0.343
TSP-8-13-F	TSP-8-13-SS	1/2 in - 13 TPI	1 1/8	0.406
TSP-8-20-F	TSP-8-20-SS	1/2 in - 20 TPI	1 1/8	0.406
TSP-10-11-F	TSP-10-11-SS	5/8 in - 11 TP	1 5/16	0.437
TSP-10-18-F	TSP-10-18-SS	5/8 in - 18 TPI	1 5/16	0.437
TSP-12-10-F	TSP-12-10-SS	3/4 in - 10 TPI	1 1/2	0.500
TSP-12-16-F	TSP-12-16-SS	3/4 in - 16 TPI	1 1/2	0.500
TSP-14-9-F	TSP-14-9-SS	7/8 in - 9 TP	1 5/8	0.500
TSP-14-14-F	TSP-14-14-SS	7/8 in - 14 TPI	1 5/8	0.500
TSP-16-8-F	TSP-16-8-SS	1 in - 8 TPI	1 3/4	0.500
TSP-16-12-F	TSP-16-12-SS	1 in - 12 TPI	1 3/4	0.500
TSP-16-14-F	TSP-16-14-SS	1 in - 14 TPI	1 3/4	0.500
TSP-18-7-F	TSP-18-7-SS	1 1/8 in - 7 TPI	1 7/8	0.500
TSP-18-12-F	TSP-18-12-SS	1 1/8 in - 12 TPI	1 7/8	0.500
TSP-20-7-F	TSP-20-7-SS	1 1/4 in - 7 TPI	2 1/16	0.500
TSP-20-12-F	TSP-20-12-SS	1 1/4 in - 12 TPI	2 1/16	0.500
TSP-22-6-F	TSP-22-6-SS	1 3/8 in - 6 TPI	2 1/4	0.563
TSP-22-12-F	TSP-22-12-SS	1 3/8 in - 12 TPI	2 1/4	0.563
TSP-24-6-F	TSP-24-6-SS	1 1/2 in - 6 TPI	2 3/8	0.563
TSP-24-12-F	TSP-24-12-SS	1 1/2 in - 12 TPI	2 3/8	0.563
TSP-28-16-F	TSP-28-16-SS	1 3/4 in - 16 TPI	2 3/4	0.688
TSP-32-12-F	TSP-32-12-SS	2 in - 12 TPI	3	0.688
TSP-36-12-F	TSP-36-12-SS	2 1/4 in - 12 TPI	3 1/4	0.750

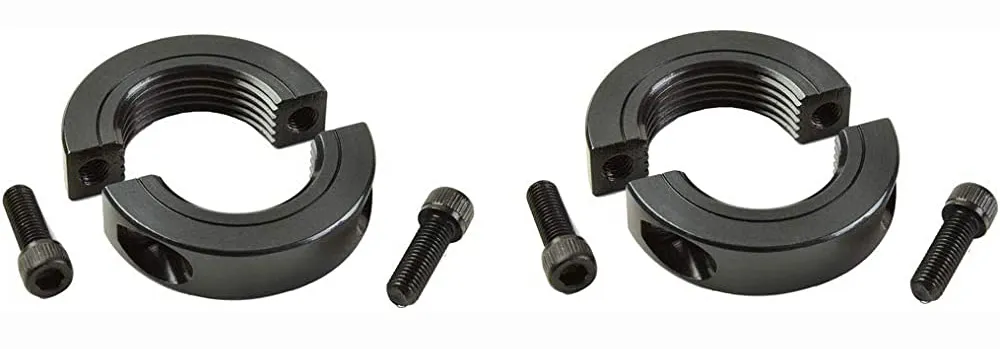

▍Benefits of Using the Two Piece Threaded Shaft Collars

Two-piece threaded shaft collars are a type of shaft collar that uses two pieces to clamp onto a shaft. This type of shaft collar is often used in applications where high axial loads are present, as it provides a more secure hold than other types of shaft collars.Here are some of the benefits of using two-piece threaded shaft collars:(1) Increased holding power: Two-piece threaded shaft collars provide a more secure hold than other types of shaft collars, as they use two pieces to clamp onto the shaft. This makes them ideal for applications where high axial loads are present.(2) Easy to install and remove: Two-piece threaded shaft collars are easy to install and remove, as they do not require any special tools. This makes them a convenient option for applications where frequent maintenance is required.(3) Durable: Two-piece threaded shaft collars are made from durable materials, such as steel or aluminum. This makes them a reliable option for applications where high levels of wear and tear are present.(4) Affordable: Two-piece threaded shaft collars are typically more affordable than other types of shaft collars. This makes them a cost-effective option for a variety of applications.(5) Even distribution of clamping force: Two-piece threaded shaft collars use the seating torque of their screws to deliver a superior clamping force on the shaft. This is applied as a uniform distribution of force around the shaft without causing damage.(6) No shaft damage: Two-piece shaft collars, unlike their set screw cousins, do not cause any damage to the shaft. They are held onto the shaft with a tight clamping fit rather than screwing into the shaft.If you are looking for a shaft collar that offers a high level of holding power, ease of installation and removal, durability, and affordability, then a two-piece threaded shaft collar is a good option to consider.

▍Applications of Two Piece Threaded Shaft Collars

Two-piece threaded shaft collars are commonly used in various applications across different industries, such as:1. Industrial Machinery: Two-piece threaded shaft collars are used to secure components such as bearings, pulleys, and sprockets onto the shafts of industrial machinery. They ensure the correct positioning of these components, reducing the risk of failure and increasing efficiency.2. Automation: In automated systems, two-piece threaded shaft collars are used to hold sensors, switches, and other components in place. They provide a secure mounting solution that is easy to install and adjust.3. Robotics: Two-piece threaded shaft collars are used in robotics to secure joints and linkages. They provide a secure and precise positioning solution that ensures the robot moves accurately and reliably.4. Aerospace: Two-piece threaded shaft collars are used in aerospace applications to secure components such as actuators, valves, and pumps. They are lightweight, durable, and can withstand high temperatures and vibrations.5. Marine and Offshore: Two-piece threaded shaft collars are used in marine and offshore applications to secure pipe fittings, valves, and other equipment. They can withstand harsh environments, such as saltwater, and resist corrosion.6. Medical Devices: Two-piece threaded shaft collars are used in medical devices to secure components such as motors, gears, and pulleys. They provide a precise and stable mounting solution that is easy to adjust and maintain.
