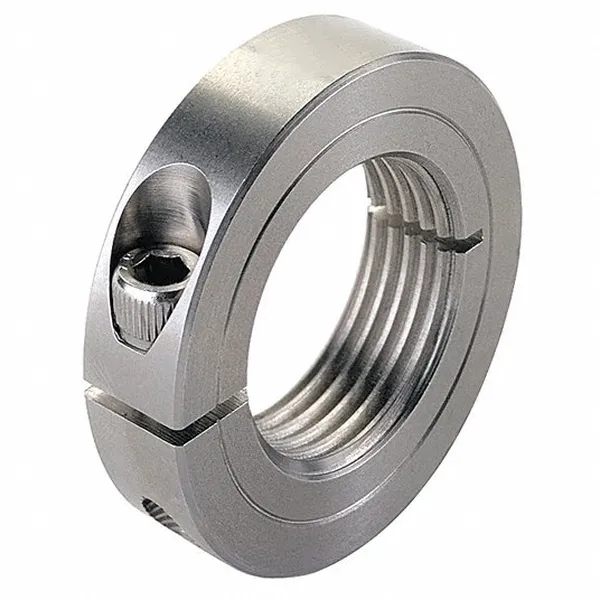

One Piece Threaded Shaft Collars (Shaft Clamps) Metric Series

A metric series one-piece threaded shaft collar is a type of mechanical fastener that is used to secure a rotating shaft to a machine or other structure. The threaded shaft collar is made of a single piece of metal and has a threaded bore that matches the size of the shaft. When the threaded shaft collar is tightened, the threads grip the shaft and prevent it from rotating.Metric series one-piece threaded shaft collars are available in a variety of sizes and materials to suit different applications. They are typically made of steel, stainless steel, or aluminum. The threaded shaft collars are also available with a variety of finishes, including black oxide, zinc plating, and stainless steel.Metric series one-piece threaded shaft collars are a versatile and reliable way to secure rotating shafts. They are easy to install and maintain, and they are available in a wide range of sizes and materials to meet the needs of any application. If you are looking for a reliable and versatile way to secure a rotating shaft, a metric series one-piece threaded shaft collar is a good option.

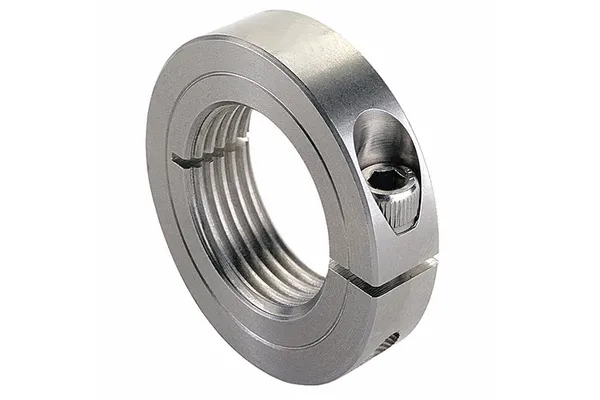

▍One Piece Threaded Shaft Collar Sizes Chart (Metric Series)

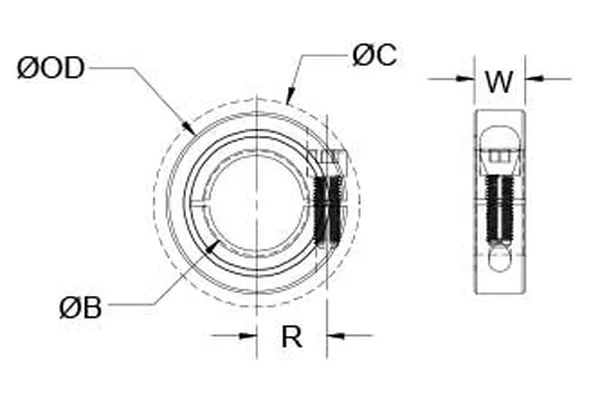

Part Number Steel	Part Number Stainless Steel	Threaded Bore (B) (mm)	Outer Diameter (OD) (mm)	Width (W) (mm)
MTCL-4-0.7-F	MTCL-4-0.7-SS	M4 x 0.7	16	9
MTCL-5-0.8-F	MTCL-5-0.8-SS	M5 x 0.8	16	9
MTCL-6-1-F	MTCL-6-1-SS	M6 x 1	16	9
MTCL-8-1.25-F	MTCL-8-1.25-SS	M8 x 1.25	18	9
MTCL-10-1.5-F	MTCL-10-1.5-SS	M10 x 1.5	24	9
MTCL-12-1.75-F	MTCL-12-1.75-SS	M12 x 1.75	28	11
MTCL-16-2-F	MTCL-16-2-SS	M16 x 2	34	13
MTCL-20-2.5-F	MTCL-20-2.5-SS	M20 x 2.5	40	15
MTCL-24-3-F	MTCL-24-3-SS	M24 x 3	45	15
MTCL-30-3.5-F	MTCL-30-3.5-SS	M30 x 3.5	54	15

▍One Piece Threaded Shaft Collar Design Features

One-piece threaded shaft collars have a number of design features that make them a versatile and reliable way to secure rotating shafts. These features include:1. Threaded bore: The threaded bore on a one-piece threaded shaft collar matches the size of the shaft. This ensures that the shaft collar will grip the shaft securely when it is tightened.2. Single-piece construction: One-piece threaded shaft collars are made of a single piece of metal. This makes them strong and durable, and it also eliminates the potential for problems with alignment or fitment that can occur with two piece shaft collars.3. Adjustable: One-piece threaded shaft collars are adjustable, which allows them to be used with a variety of shaft sizes. This makes them a versatile option for a wide range of applications.4. Easy to install: One-piece threaded shaft collars are easy to install. They can be tightened by hand or with a wrench, and they do not require any special tools or skills.5. Face: The face of a one-piece threaded shaft collar is the flat surface that comes into contact with the shaft. The face may be smooth or textured, and it may be hardened or coated to improve wear resistance.6. Back: The back of a one-piece threaded shaft collar is on the opposite side of the face. The back may be smooth or textured, and it may be drilled or tapped for mounting hardware.7. Locking mechanism: One-piece threaded shaft collars may be equipped with a locking mechanism to prevent them from loosening during use. Locking mechanisms can include set screws, pins, or spring clips.One-piece threaded shaft collars are a reliable and versatile way to secure rotating shafts. They are easy to install and maintain, and they are available in a wide range of sizes and materials to meet the needs of any application.

▍Threaded Bore Shaft Collars Vs Round Bore Shaft Collars

The main difference between threaded bore shaft collars and round bore shaft collars is the type of bore they have. Threaded bore shaft collars have a threaded bore that matches with certain threaded shafts. This provides a superior grip, suitable for uses that require precise preload and location settings. Threaded shaft collars act as a stop to position parts or prevent them from moving along the shaft.Round bore shaft collars, on the other hand, have a smooth bore that fits over a shaft. They are typically used in applications where the shaft does not have threads or where a more secure grip is not required. Round bore shaft collars are also less expensive than threaded bore shaft collars.Here is a table that summarizes the key differences between threaded bore shaft collars and round bore shaft collars:

Feature	Threaded Bore Shaft Collar	Round Bore Shaft Collar
Bore type	Threaded	Smooth
Grip	Superior	Less secure
Price	More expensive	Less expensive
Applications	Where a secure grip is required or where the shaft has threads	Where a secure grip is not required or where the shaft does not have threads

Ultimately, the best types of shaft collars for your application will depend on the specific requirements of that application. If you need a secure grip, a threaded bore shaft collar is the best option. If a more secure grip is not required, or if the shaft does not have threads, a round bore shaft collar is a more affordable option.

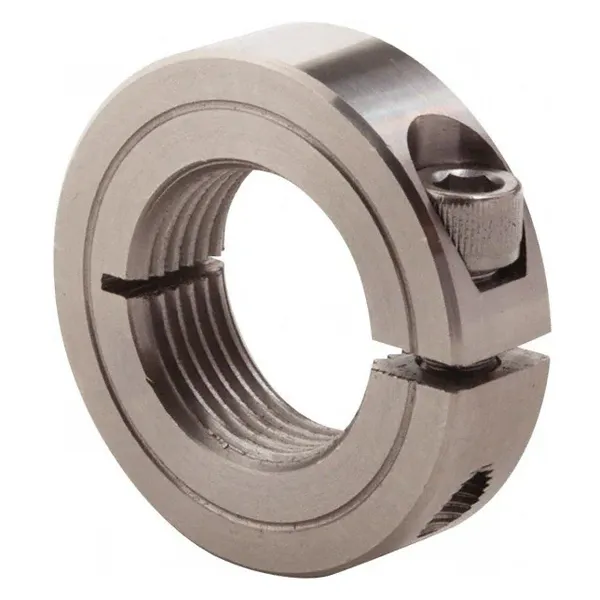

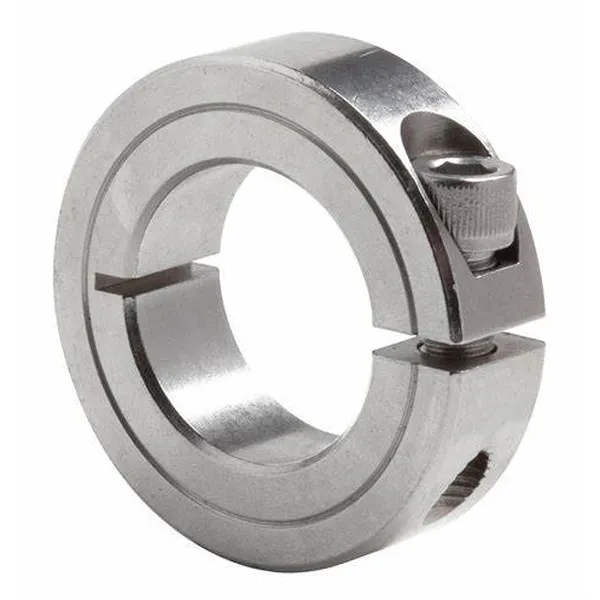

Threaded Bore Shaft Collar	Round Bore Shaft Collar

▍One Piece Threaded Shaft Collar Common Applications

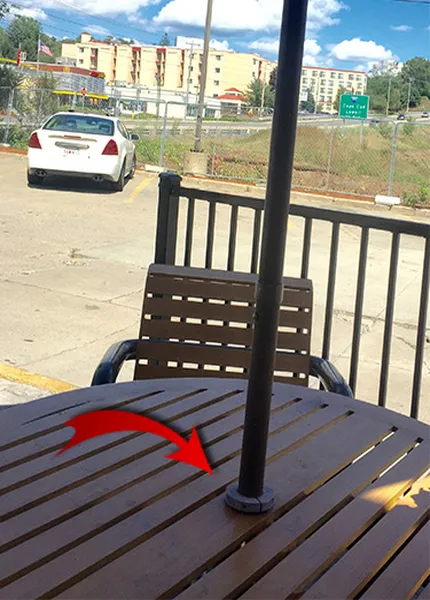

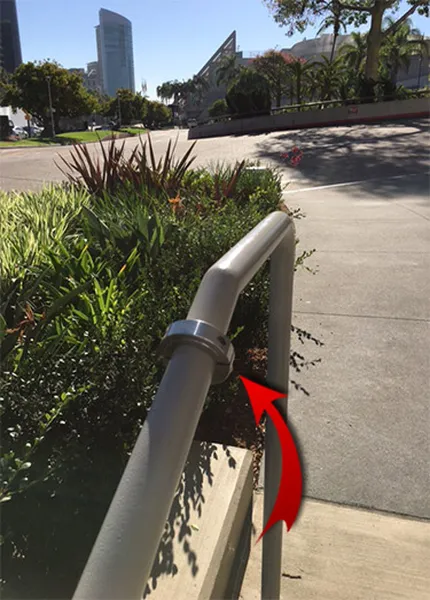

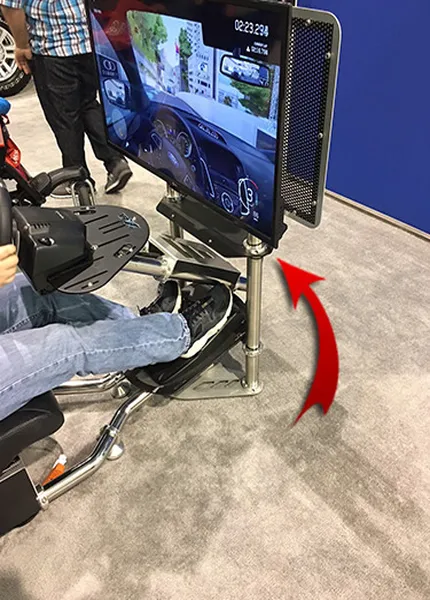

One-piece threaded shaft collars are a type of mechanical fastener that is used to secure a shaft to a machine or other object. They are typically made of steel or stainless steel and have a threaded bore that allows them to be screwed onto the shaft. One-piece threaded shaft collars are available in a variety of sizes and styles to accommodate different applications.Some of the most common applications for one-piece threaded shaft collars include:(1) Positioning: One-piece threaded shaft collars can be used to position a shaft in a specific location. For example, they can be used to align a shaft with a bearing or gear.(2) Spacing: One-piece threaded shaft collars can be used to space two shafts apart. This can be useful for applications where the shafts need to be kept a specific distance apart, such as in a conveyor system.(3) Limiting: One-piece threaded shaft collars can be used to limit the travel of a shaft. This can be useful for applications where the shaft needs to be prevented from moving past a certain point, such as in a machine that is used to cut metal.(4) Mounting: One-piece threaded shaft collars can be used to mount a shaft to a machine or other object. This can be useful for applications where the shaft needs to be securely attached to the object, such as in a drill press.One-piece threaded shaft collars are a versatile and reliable type of mechanical fastener that can be used in a wide variety of applications. They are easy to install and remove, and they provide a secure and accurate way to position, space, limit, and mount shafts.

▍One Piece Threaded Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs. One Piece Threaded Shaft Collars (Shaft Clamps) Metric Series

▍FAQ

Q1: What is a threaded shaft collar?A: A threaded shaft collar is a type of mechanical fastener that is used to secure a component onto a shaft. It consists of a cylindrical shaft collar with a threaded bore that can be tightened onto the shaft using a threaded fastener, such as a set screw.Q2: What are threaded shaft collars used for?A: Threaded shaft collars are used in a wide range of applications to secure components onto shafts. They can be used to hold bearings in place, act as a stop or spacer, provide a mounting point for a component or help transmit torque between the shaft and the component.Q3: What materials are threaded shaft collars made from?A: Threaded shaft collars can be made from a variety of materials, depending on the requirements of the application. Common materials include steel, stainless steel, aluminum, brass, and plastic.Q4: What are the different types of threaded shaft collars?A: There are several different types of threaded shaft collars, including one piece threaded shaft collars, two piece threaded shaft collars, and hinged shaft collars. One-piece threaded shaft collars are the most common type and consist of a single piece of material with a threaded bore. Two-piece threaded shaft collars have a split design that allows them to be installed and removed from the shaft without having to remove other components. Hinged shaft collars have a hinge that allows them to be opened and closed around the shaft, making them easier to install and remove.Q5: How do I choose the right threaded shaft collar for my application?A: When choosing a threaded shaft collar, you should consider factors such as the size and type of shaft, the amount of torque that will be transmitted, and the materials and environment of the application. It's also important to choose a shaft collar with the right bore size and thread pitch to fit the shaft and fastener.Q6: How do I install a threaded shaft collar?A: To install a threaded shaft collar, first slide it onto the shaft and position it in the desired location. Then, using a threaded fastener such as a set screw, tighten the threaded shaft collar onto the shaft until it is securely fastened. Be sure to tighten the fastener evenly to prevent any distortion or misalignment of the shaft collar.Q7: Can threaded shaft collars be reused?A: Yes, threaded shaft collars can typically be reused as long as they are not damaged or distorted. To reuse a threaded shaft collar, simply remove the fastener and slide the shaft collar off the shaft. Clean the shaft collar and inspect it for any damage before re-installing it on the shaft.
