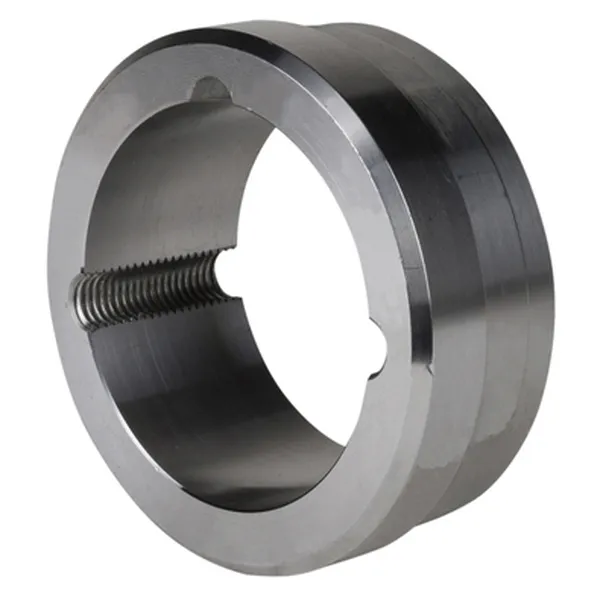

Type WH Taper Lock Weld-On Hubs

Type WH Taper Lock Weld-On Hubs

The Type WH taper lock weld-on hubs are high-quality mechanical components designed to provide a secure and reliable connection between a shaft and a hub, commonly used in power transmission systems. These Type WH weld-on hubs are specifically engineered to accommodate taper lock bushings, which enable easy installation and removal of the hub from the shaft.The Type WH taper bore weld-on hubs offer the added feature of weldability. These taper bore weld-on hubs are designed with a flat surface and pre-drilled holes, allowing them to be securely welded onto a mating component or structure. This welding capability enhances the hub's stability and load-bearing capacity, making them suitable for heavy-duty applications.These Type WH taper lock weld-on hubs find applications in various industries, including manufacturing, agriculture, mining, construction, and more. They are commonly used in power transmission systems, conveyor systems, pumps, mixers, and other machinery where secure shaft-to-hub connections are essential.

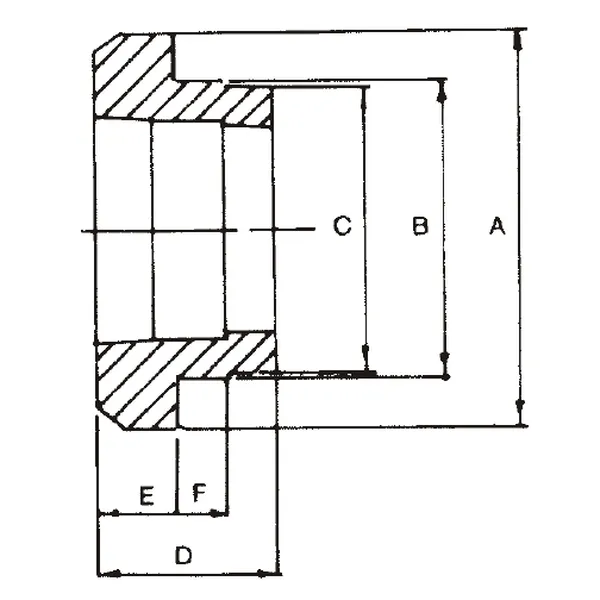

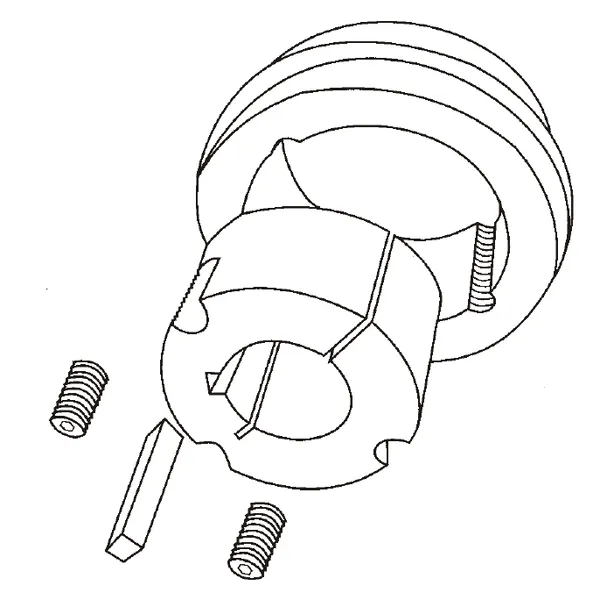

Type WH Taper Lock Weld-On Hubs Dimensions:

Hub No.	Bush No.	A	B	C	D	E	F
WH12	1210	70	65	64.5	25	9	10
WH16-1	1610	80	75	74.5	25	9	10
WH20	2012	95	90	89.5	32	12	12
WH25	2517	115	110	109.5	44	19	15
WH30-2	3020	145	140	139.5	50	20	15
WH35	3535	190	180	179.5	65	25	25
WH40	4040	200	190	189.5	101	32	30
WH45	4545	210	200	199.5	114	40	30
WH50	5050	230	220	219.5	127	40	45

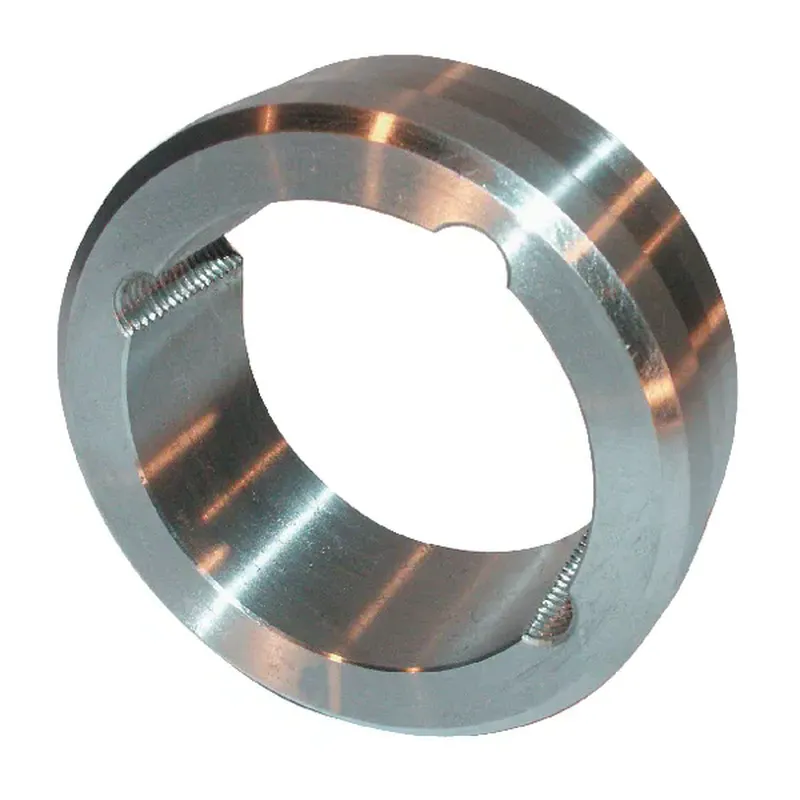

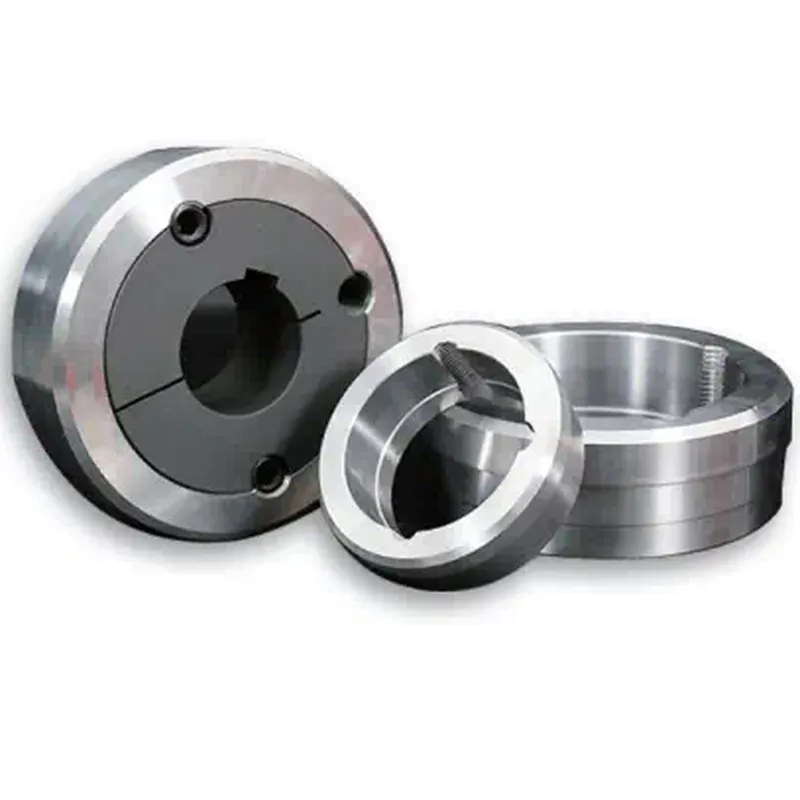

Features of Type WH Taper Lock Weld-On Hubs:

The Type WH taper lock weld-on hubs offer several features that make them a reliable and versatile choice for connecting shafts and hubs. Here are the key features of these hubs:1. Taper Lock Design: The Type WH taper lock weld-on hubs are designed with a tapered bore that allows for easy installation and removal of the hub from the shaft. This design ensures a secure and concentric fit between the hub and the shaft, minimizing the risk of slippage or misalignment.2. Versatility: Type WH welding hubs for taper bushes come in various sizes and configurations, offering compatibility with different shaft diameters and applications. This versatility allows for flexibility in design and easy integration into existing systems.3. Robust Construction: These Type WH taper bushed weld-on hubs are constructed from high-quality materials, such as steel or cast iron, ensuring durability and long-lasting performance even in demanding operating conditions. The robust construction makes them suitable for heavy-duty applications.4. Easy Installation and Removal: The taper lock design eliminates the need for keyways or set screws, simplifying the installation process. The Type WH taper bore weld-on hubs can be easily mounted onto the shaft by tightening the taper lock bushing, and they can also be removed without the need for specialized tools.5. Maintenance-Friendly: The taper lock bushing system allows for easy removal and replacement of the hub, simplifying maintenance and reducing downtime. This feature is particularly beneficial when regular inspection or replacement of components is required.6. Wide Range of Applications: Type WH taper lock weld-on hubs find applications in various industries, including manufacturing, agriculture, mining, construction, and more. They are commonly used in power transmission systems, conveyor systems, pumps, mixers, and other machinery that require a reliable shaft-to-hub connection.

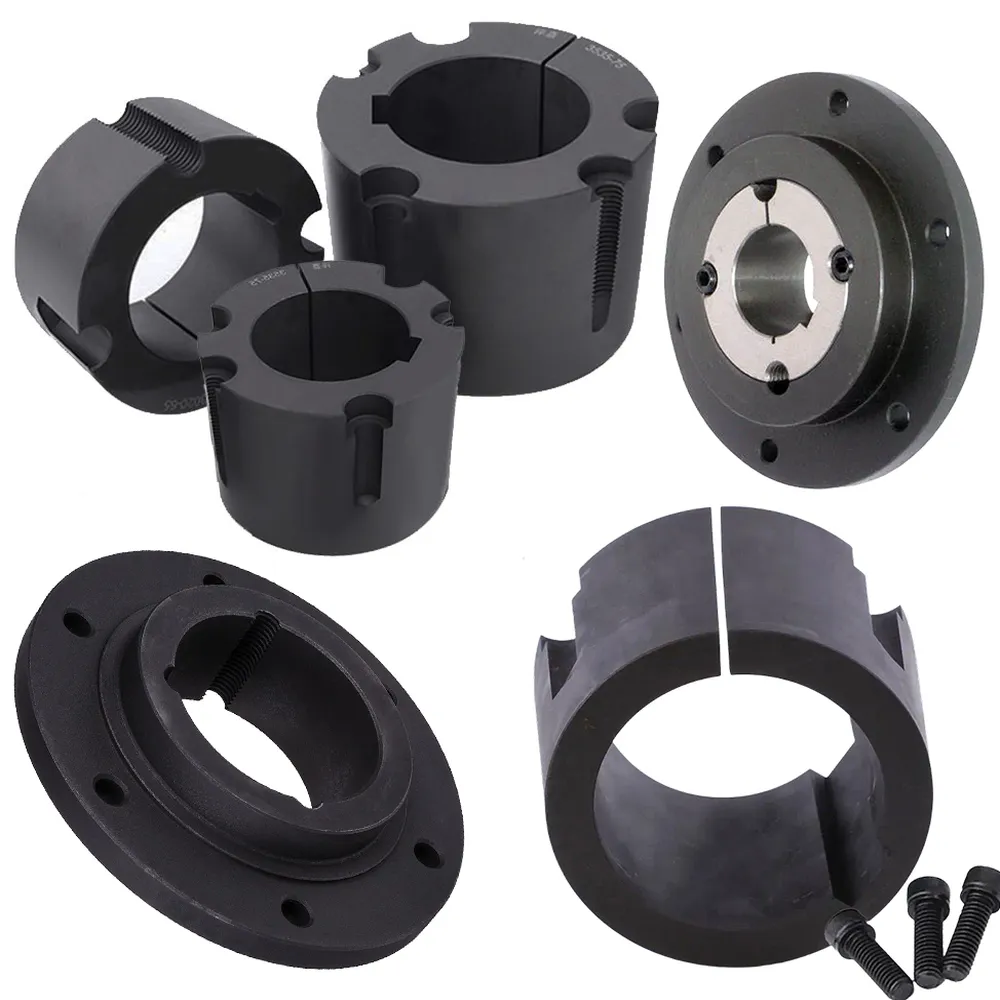

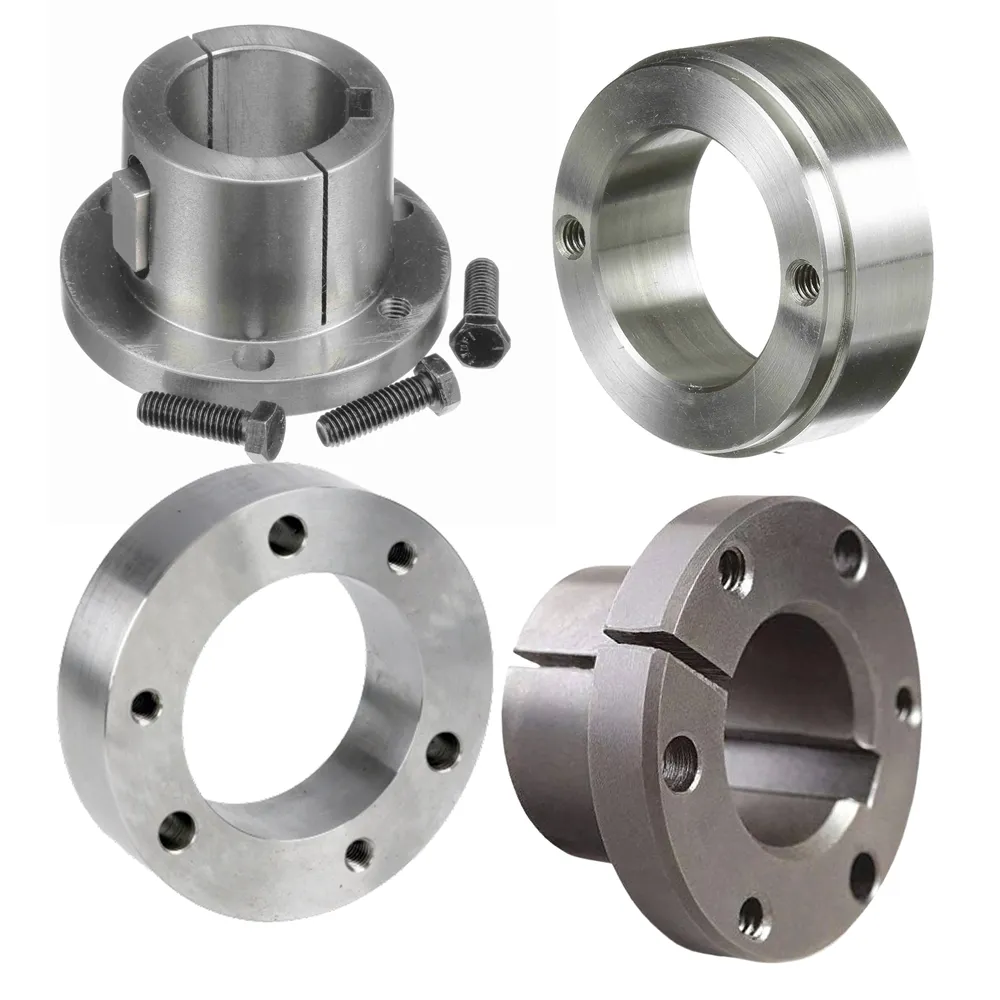

China Taper Lock Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
