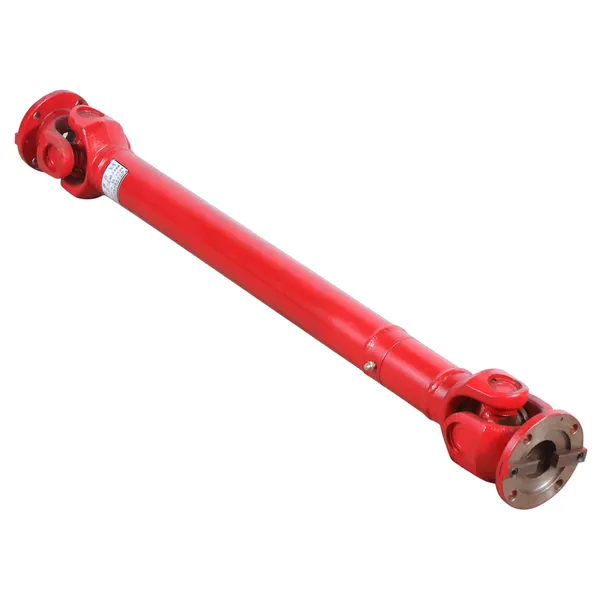

Universal Cardan Drive Shaft SWC250WH for Crusher

Universal Cardan Drive Shaft SWC250WH for Crusher

The Cardan drive shaft SWC250WH is a specialized component used in crushers for transmitting rotational power from the motor to the crusher's crushing mechanism. The drive shaft plays a crucial role in ensuring smooth and efficient operation of the crusher by transferring torque while accommodating for misalignments and variations in distance between the driving and driven components.The drive shaft incorporates a Cardan joint, also known as a universal joint, which consists of two yokes connected by a cross-shaped bearing. This joint allows the shaft to transmit torque at an angle, making it suitable for applications where misalignments occur between the driving and driven components. The Cardan drive shaft is designed to transmit high levels of torque, efficiently transferring power from the motor to the crusher. It ensures that the rotational force is effectively delivered to the crushing mechanism, enabling the crusher to process and crush various materials.One of the significant advantages of the Cardan drive shaft is its ability to compensate for misalignments between the motor and crusher. As the crusher operates, there may be slight deviations or movements in the components. The Cardan joint allows the drive shaft to flex and adjust, accommodating these misalignments and maintaining consistent power transmission. The SWC250WH Cardan drive shaft is built to withstand the demanding conditions of crusher applications. It is typically constructed with high-strength materials such as alloy steel and undergoes precision engineering to ensure durability, reliability, and resistance to wear and fatigue.

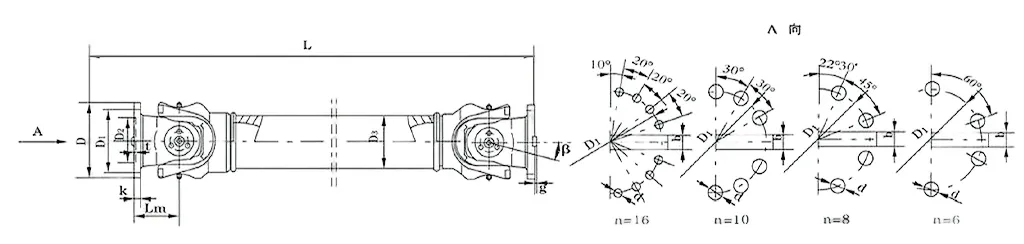

Crusher Cardan Drive Shaft SWC250WH Dimensions

Crusher Cardan Drive Shaft SWC250WH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torqueTfKN·m	Size (mm)										Rotating inertiakg.m2		Weight (kg)
					Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC250WH	250	63	31.5	15°	620	218	150	168	140	8-19	25	6	40	12.5	0.817	0.0277	124	5.3

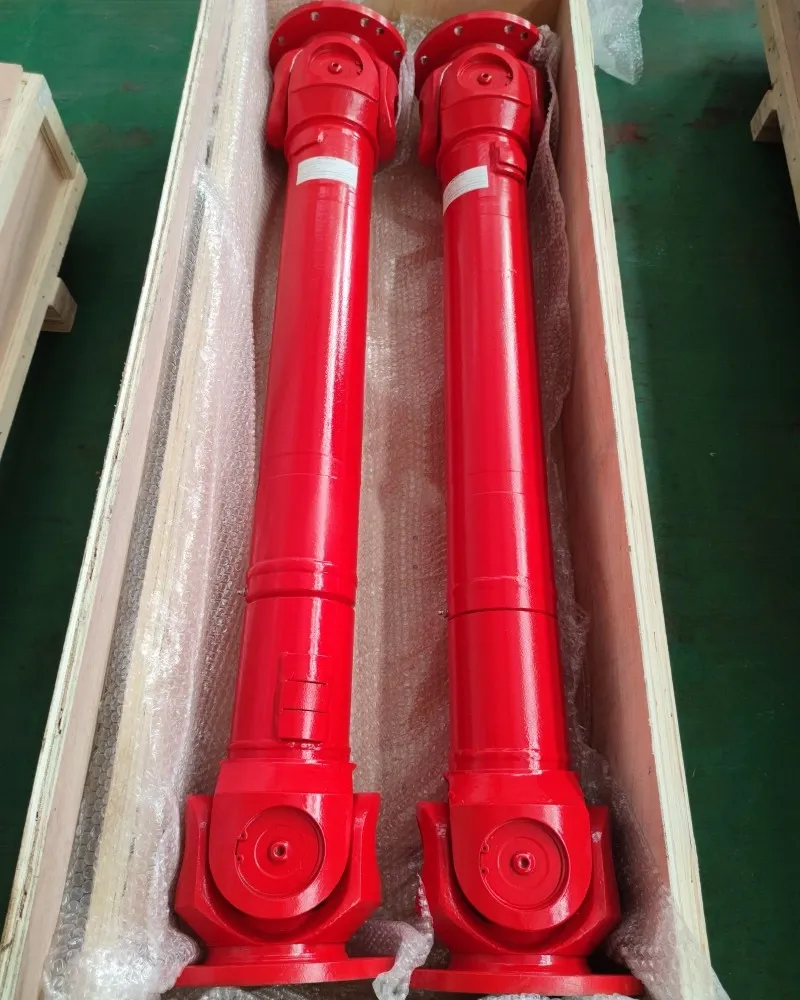

Benefits of Using the Cardan Drive Shaft SWC250WH for Crusher

The use of a Cardan drive shaft SWC250WH in crusher applications brings several significant benefits to mining and material processing operations. Crushers, vital in reducing the size of rocks and other materials, require reliable and efficient transmission systems to ensure optimal performance. Here are some of the advantages:1. Flexibility and Misalignment Compensation: The Cardan drive shaft allows for flexibility and accommodates misalignments between the driving and driven components. In crushers, where there may be slight movements or misalignments due to operational factors or wear, the Cardan joint enables smooth power transmission without causing excessive stress or damage to the components. This flexibility helps maintain the efficiency and longevity of the crusher system.2. High Torque Transmission: The SWC250WH drive shaft is designed to handle high levels of torque, ensuring efficient power transmission from the motor to the crusher. Crushers often require significant power to crush and process materials effectively. The Cardan drive shaft's robust construction and torque capacity enable it to handle the demanding operational requirements of crushers.3. Improved Reliability: The Cardan drive shaft's ability to compensate for misalignments and its durable construction contribute to enhanced reliability in crusher applications. By accommodating misalignments and flexing as needed, the drive shaft reduces the risk of mechanical failures, premature wear, and damage to other components. This, in turn, increases the overall reliability and uptime of the crusher system.4. Reduced Maintenance: The Cardan drive shaft, when properly maintained, can help reduce maintenance requirements in crushers. Its design and flexibility minimize stress on the components, reducing the likelihood of failures and the need for frequent repairs. Regular inspection, lubrication, and alignment checks are crucial to ensuring optimal performance and extending the service life of the drive shaft.5. Versatility: The Cardan drive shaft SWC250WH is a versatile component that can be used in various crusher models and designs. Its universal joint allows for angular power transmission, making it suitable for crushers with different configurations and operational requirements. This versatility makes it easier for manufacturers and operators to integrate the drive shaft into their crusher systems.

How Does the Cardan Drive Shaft SWC250WH for Crusher Work?

The Cardan drive shaft SWC250WH for crushers operates by transmitting rotational power from the motor to the crusher's crushing mechanism. Here's how it works:

• Power Input: The drive shaft is connected to the motor, which serves as the power source for the crusher. The motor generates rotational motion, typically through an electric motor or an internal combustion engine.
• Input Connection: The drive shaft is connected to the motor's output shaft through a suitable coupling or flange. This connection ensures that the rotational motion of the motor is effectively transferred to the drive shaft.
• Cardan Joint: The drive shaft incorporates a Cardan joint, also known as a universal joint. The Cardan joint consists of two yokes, one connected to the motor side and the other to the crusher side, with a cross-shaped bearing in between. The yokes are oriented at right angles to each other.
• Torque Transmission: As the motor rotates, it transfers torque to the drive shaft through the Cardan joint. The rotational motion of the motor is transmitted to the drive shaft's input yoke, which, in turn, transfers the torque to the cross-shaped bearing.
• Angular Power Transmission: The Cardan joint allows for angular power transmission. It accommodates misalignments between the driving and driven components, such as the motor and the crusher. When misalignments occur, the Cardan joint flexes and adjusts, ensuring continuous power transmission without excessive stress or damage to the components.
• Drive Shaft Output: The torque is then transmitted from the cross-shaped bearing to the drive shaft's output yoke. The output yoke is connected to the crusher's input shaft or other components involved in the crushing mechanism.
• Power Transmission to Crusher: The rotational power from the drive shaft is delivered to the crusher's crushing mechanism, which may consist of rotating drums, jaws, or hammers, depending on the type of crusher. The crusher's crushing mechanism processes the materials and reduces their size or breaks them down into smaller pieces.
• Continuous Operation: Throughout the crusher's operation, the Cardan drive shaft ensures continuous power transmission, accommodating any misalignments or variations in distance between the motor and the crusher. This flexibility and smooth torque delivery contribute to the efficient and reliable operation of the crusher system.

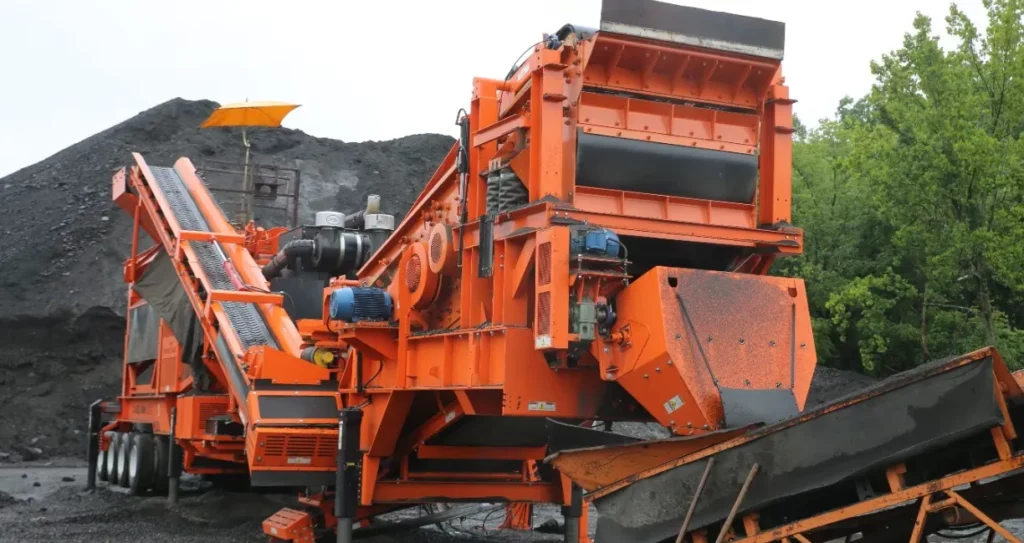

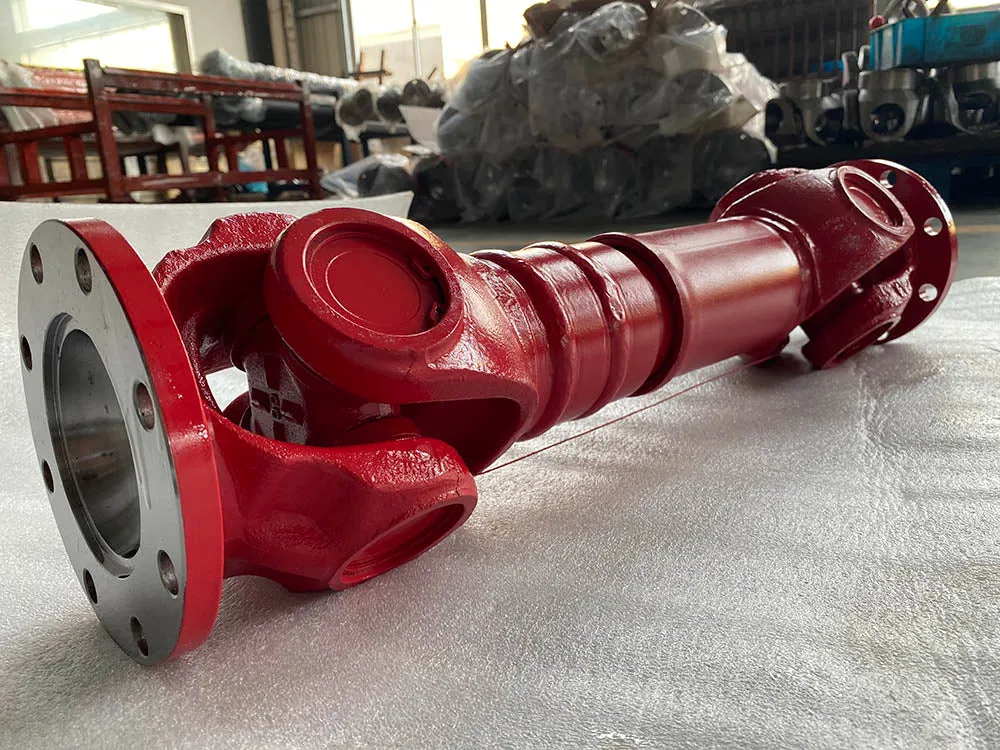

Typical Application of Cardan Drive Shaft SWC250WH for Crusher

The Cardan drive shaft SWC250WH is commonly used in various types of crushers across different industries. Here are some typical applications where the SWC250WH drive shaft can be employed:(1) Jaw Crushers: In jaw crushers, the Cardan drive shaft SWC250WH can be utilized to transmit rotational power from the motor to the movable jaw. The drive shaft enables the jaw to move back and forth, allowing the crushing of larger rocks or materials into smaller sizes.(2) Cone Crushers: Cone crushers are used for secondary and tertiary crushing of materials. The Cardan drive shaft SWC250WH can be employed to transfer power from the motor to the cone crusher's eccentric shaft. The eccentric shaft rotates the cone mantle, which crushes the materials against the concave wall, producing the desired final product.(3) Impact Crushers: Impact crushers are designed to crush materials through a high-speed impact with rotating hammers or blow bars. The Cardan drive shaft SWC250WH can be used to transmit power from the motor to the rotor, enabling the rotation and impact of the hammers or blow bars against the incoming feed material.(4) Hammer Crushers: Hammer crushers utilize rotating hammers to impact and crush materials. The Cardan drive shaft SWC250WH can be employed to transfer power from the motor to the hammer mill's rotor, enabling the rotation of the hammers and the subsequent crushing of the materials.(5) Roll Crushers: Roll crushers are used for the size reduction of materials by compressing them between two rotating rolls. The Cardan drive shaft SWC250WH can be utilized to transmit power from the motor to the rolls, enabling their rotation and the crushing of the materials between them.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturing various series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
