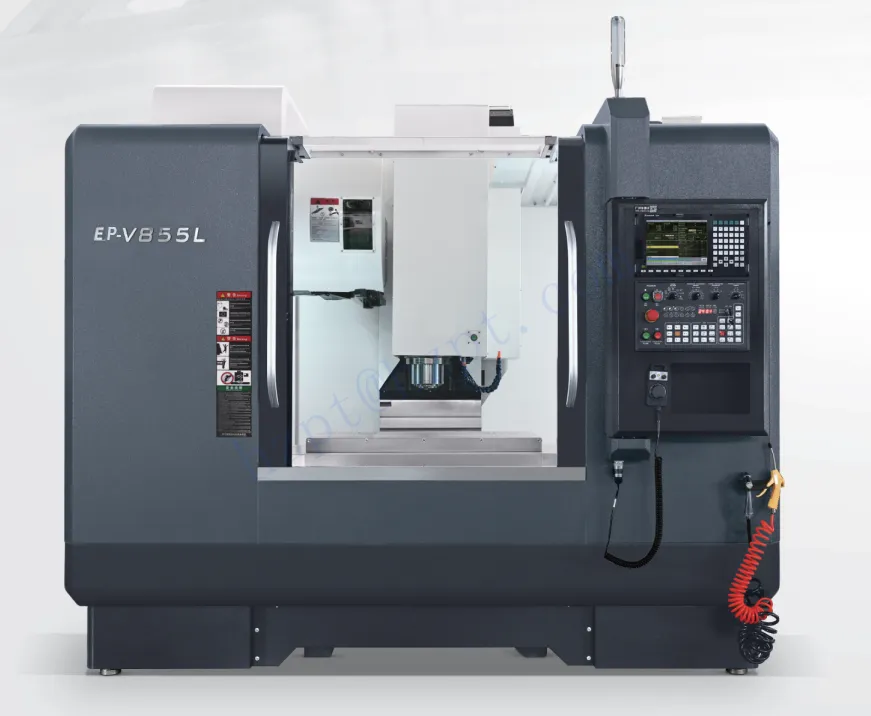

Vertical Machining Center RDF-V855L RDF-V1165L RDF-V1370L RDF-V1470L2 RDF-V1580L2

Machining Center Series RDF-V855L V series machining center can clamp various complex parts such as discs, plates, shells, molds, etc. at one time, and complete multiple processing steps such as drilling, milling, boring, expanding, reaming, tapping, etc. It is suitable for the production and processing of multi-variety, small and medium-sized batches of complex and high-precision parts.

Standard Configuration:

FANUC (SYNTEC) CNC system / ATC Automatic Tool Changer / Taiwanese PMI, HIWIN Ball Screws, Heavy-duty Linear Guides.

Optional Configuration:

Chip Conveyor (Spiral or Chain Type) / Automatic Tool Measurement / Automatic Workpiece Measurement / Fourth Axis CNC Rotary Table / Fifth Axis CNC Rotary Table / Pneumatic Fixture Set / Hydraulic Fixture Set / Spindle Center Coolant Outlet.

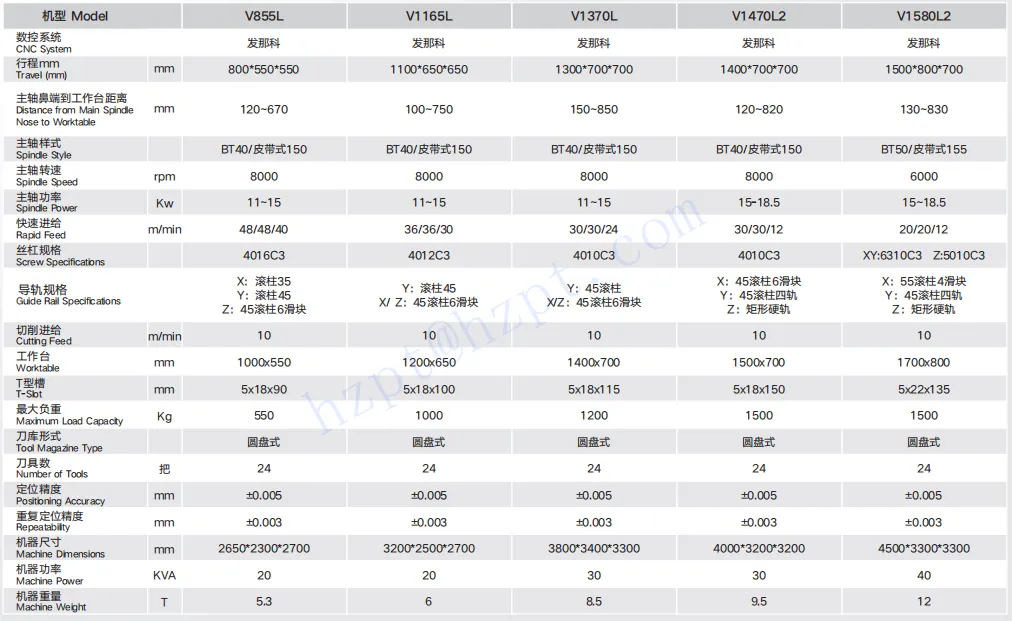

Parameter

Machine Tool Features

• High Rigidity and Long-Lasting Precision Design:Our machine tools are meticulously engineered with a focus on high rigidity and enduring precision. The entire machine undergoes comprehensive finite element analysis to optimize its structural performance. This process ensures that the internal arrangement of reinforcement rib plates is strategically designed to enhance the overall integrity of the machine. This robust construction is crucial for maintaining accuracy and stability during extended periods of operation, making our machines ideal for demanding machining environments.
• Wide Column Design for Enhanced Rigidity:The machines feature a wide column design that significantly increases the distance between support points, ensuring exceptional rigidity of the column. This large span enhances the machine's ability to handle heavy loads and high-speed operations without compromising stability. The reinforced column structure minimizes deflection and vibration, which is essential for achieving precise machining results, particularly in high-performance applications.
• Three-Point Spindle Support for High Rotational Accuracy:Our machines utilize a three-point support system for the spindle, which is designed to deliver high rotational accuracy. This configuration helps maintain the alignment of the spindle during operation, reducing the risk of runout and ensuring consistent performance. The enhanced stability provided by this support system is crucial for applications requiring high precision, as it minimizes variations in the machining process.
• Heavy-Duty Taiwanese Linear Guides and Dual Nut Ball Screws:All three axes of our machines are equipped with heavy-duty Taiwanese linear guides and dual nut ball screws. These components are specifically designed to handle high loads while providing smooth and precise motion. The use of heavy-duty linear guides reduces friction and wear, ensuring longevity and reliability in high-demand environments. Additionally, the dual nut configuration of the ball screws enhances accuracy and minimizes backlash, allowing for exceptional positioning precision during machining tasks.

In summary, our machine tools are designed to deliver superior performance and reliability through advanced engineering features. With a strong emphasis on high rigidity, long-lasting precision, enhanced spindle support, and heavy-duty motion components, our equipment meets the rigorous demands of modern manufacturing. Whether for high-volume production or intricate machining applications, our machines provide the accuracy and efficiency needed to excel in today’s competitive landscape.

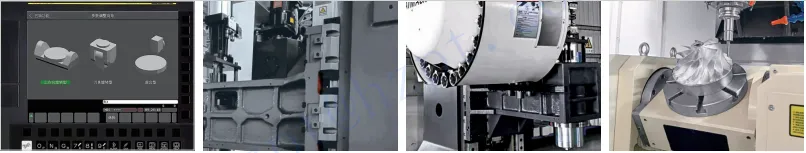

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.
