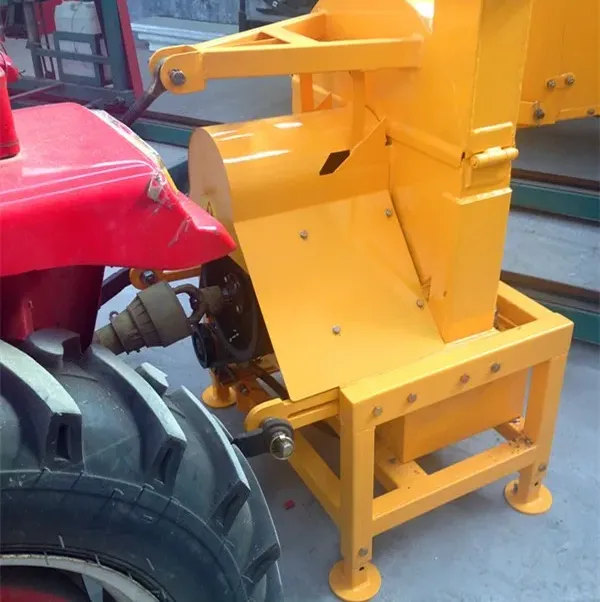

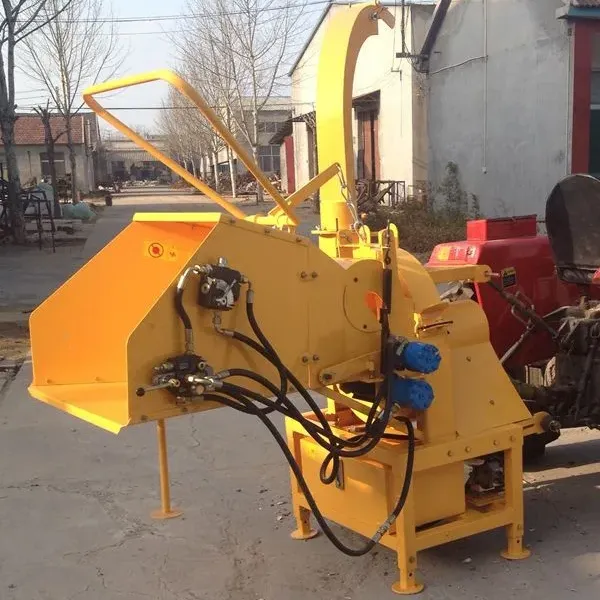

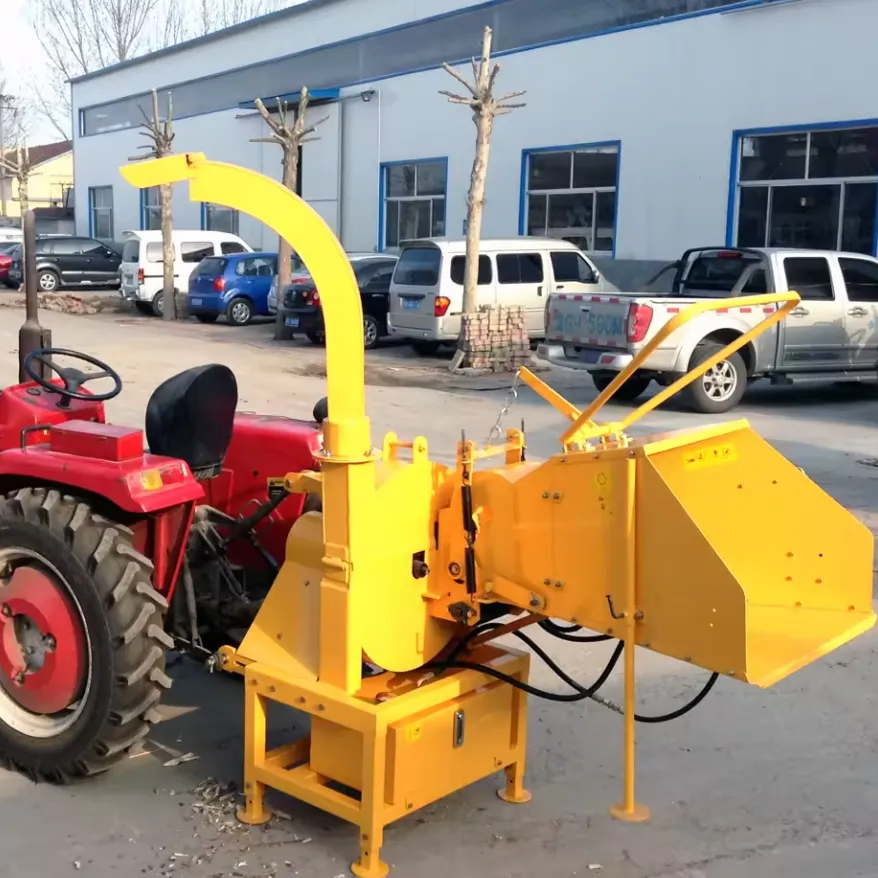

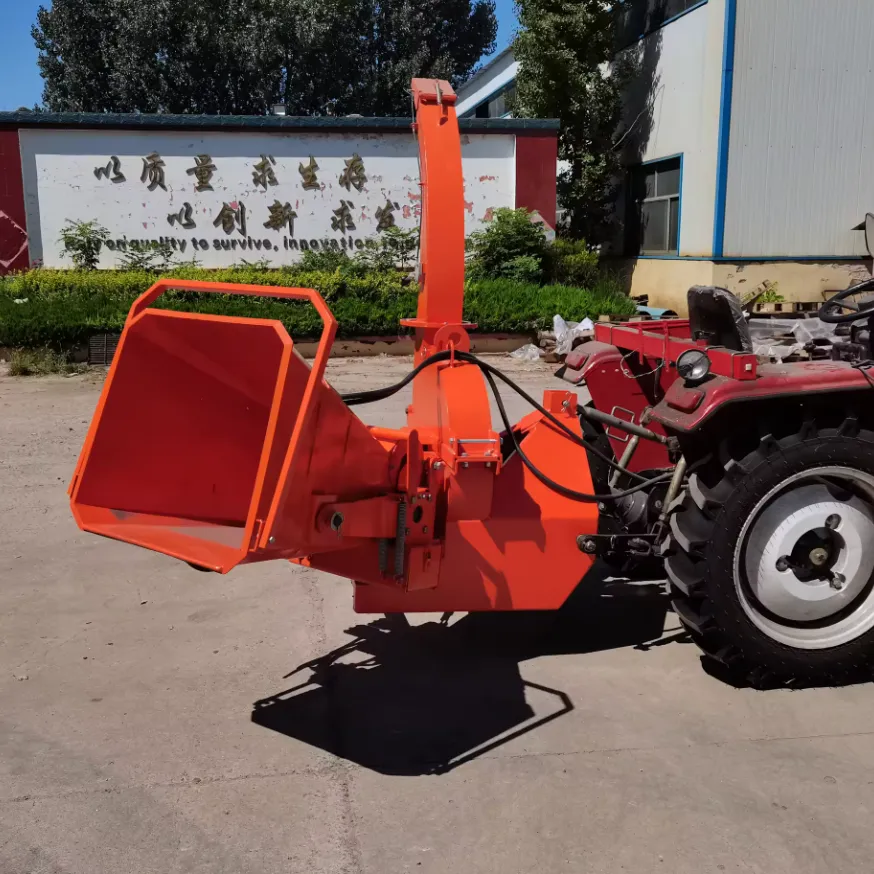

WC-8 Firewood Processor for Wood Chipping

Introducing the Raydafon wc-8 firewood processor, a powerful tool designed for farms and similar industries. With no showroom location required, this new and efficient wood chipper is ready to deliver superior performance. The firewood processor is powered by diesel and measures 1680*1400*1620mm in dimension. It weighs 370KG, ensuring stability and durability during operation. The product comes with a 1-year warranty and is an ordinary product type. A machinery test report and video outgoing-inspection are provided for transparency and quality assurance. With a warranty on core components for 1 year, this wood chipper is built to last. The core components include bearings, and it is available in a variety of colors including red, blue, yellow, or green. The Raydafon wc-8 firewood processor has a flywheel diameter of 640mm and a flywheel weight of 85kg. It has a chipper maximum diameter of 200mm and an efficiency of 8-9 cbm/h. The product is packaged in an iron crate or as per your request and is shipped from the port of Qingdao, China.

Advantages of Raydafon wc-8 Firewood Processor

The Raydafon wc-8 firewood processor offers a plethora of benefits to the user:

• Efficient: With a chipper efficiency of 8-9 cbm/h, it guarantees speedy operation.
• Versatile: It can handle a maximum chipper diameter of 200mm, making it suitable for processing various wood sizes.
• Durable: It has a robust construction, ensuring longevity and reliable performance.
• Available in a variety of colors: You can choose from red, blue, yellow, or green according to your preference.
• Compact Size: With dimensions of 1680*1400*1620mm, it is compact, making it easy to install and operate.
• Convenient Packaging: It is packaged in an iron crate or as per your request, ensuring safe delivery.

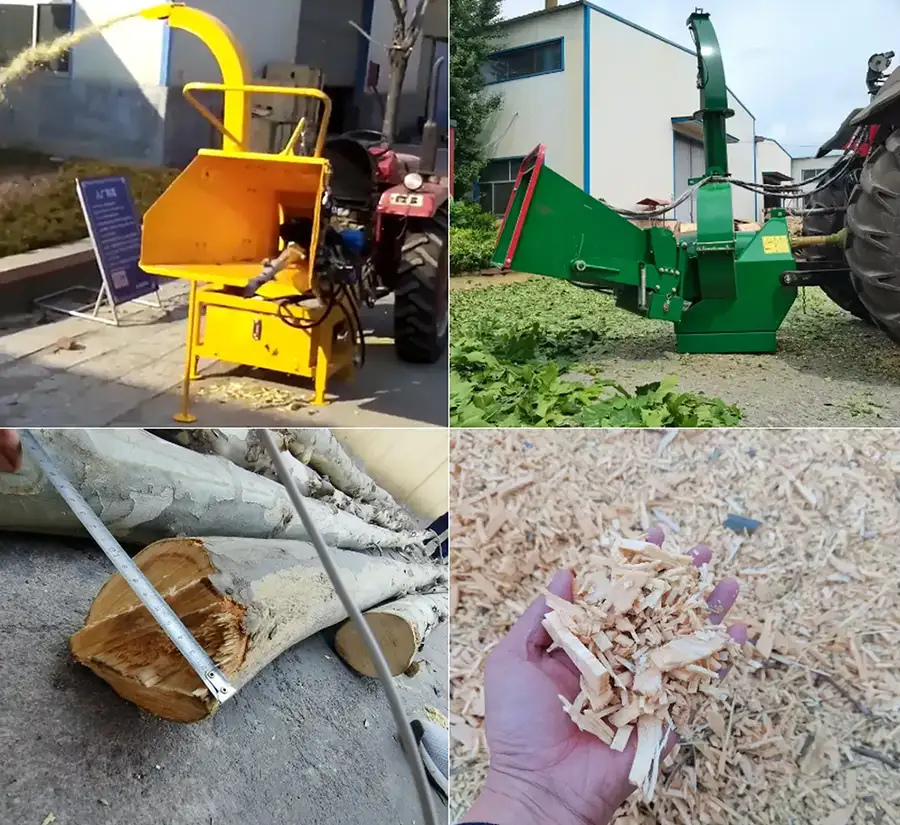

Applications of Raydafon wc-8 Firewood Processor

The Raydafon wc-8 firewood processor is versatile and can be used in various scenarios:

• Farming: It is ideal for farms where there is a need to process wood into chips for various uses.
• Landscaping: It can be used to chip wood for mulching, enhancing soil fertility and preventing weed growth.
• Winter Preparation: It can be used to process firewood for heating during the cold season.
• Waste Management: It can help in managing wooden waste by chipping them into smaller, manageable pieces.
• Industrial Use: It can be used in industries where wood chips are used as raw material or fuel source.
• Home Use: It can also be used for personal purposes like gardening, where wood chips can be used for composting.

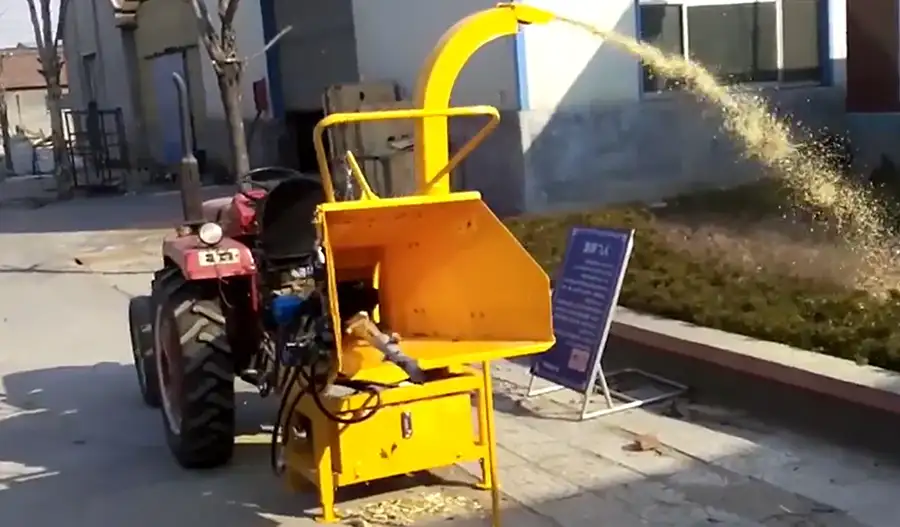

How Does the Tractor PTO Wood Chipper Work?

The Raydafon wc-8 firewood processor operates using the 3-point hitch system of a tractor. Below is a step-by-step guide on how it works:

1. Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. The lower arms of the hitch are connected to the chipper's frame, while the top link is attached to the top of the hitch. Secure the attachment with pins or latches to ensure a stable connection.
2. Power Source: The chipper is powered by the tractor's PTO (Power Take-Off) shaft. The PTO shaft is connected to the chipper's drivetrain, which transfers power from the tractor's engine to the cutting mechanism of the chipper.
3. Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. The hopper is usually equipped with safety features, such as a chute or cover, to prevent accidental contact with the cutting mechanism. Some chippers may have a self-feeding mechanism that assists in pulling the wood material into the chipper.
4. Cutting Mechanism: Inside the chipper, there is a heavy-duty rotor equipped with sharp blades or knives. The rotor is connected to the chipper's drivetrain and is powered by the tractor's PTO. As the rotor spins at high speed, it draws in the wood material from the input hopper and cuts it into smaller pieces. The size of the wood chips or mulch can be adjusted using the chipper's settings.
5. Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. The discharge chute can often be adjusted to direct the chips into a container or onto the ground in a specific location.
6. Tractor Controls: The operator controls the operation of the chipper using the tractor's controls. This includes engaging and disengaging the PTO, controlling the tractor's speed, and adjusting the tractor's position to feed the wood material into the chipper effectively.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a few steps to ensure a secure and proper attachment. Here's a general guide on how to install a 3-point hitch PTO wood chipper to a tractor:

1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, make sure it is on a level surface and in a position that allows easy access to the attachment points. Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the tractor's hitch is in the lowered position.
2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper. The attachment points are typically located on the chipper's frame.
3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely. Make sure the pins or latches are properly inserted and locked in place.
4. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper. Extend or retract the top link as needed to align the holes on the top link with the attachment point on the chipper. Insert the pin or latch and secure it tightly.
5. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together. Ensure the locking mechanism engages properly and secures the PTO shaft in place.

6. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned. Shake the chipper slightly to check for any excessive movement or looseness.
7. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly and that there are no unusual vibrations or noises. Check the feeding, cutting, and discharge mechanisms for smooth operation.

Common Troubleshooting for Raydafon wc-8 Firewood Processor

While a 3-point hitch tractor PTO wood chipper is a reliable machine, there may be instances where troubleshooting is necessary to address any issues that arise during operation. Here are some common troubleshooting steps for a 3-point hitch tractor PTO wood chipper:

1. Chipper Does Not Start: Check the PTO engagement, ensure that the PTO is properly engaged and the PTO shaft is securely connected to the tractor's PTO output shaft. Make sure the tractor's engine is running at the recommended RPM to provide sufficient power to the chipper. Inspect the electrical connections and wiring to ensure there are no loose or damaged connections.
2. Chipper Vibrates Excessively: Check for loose components, inspect all bolts, nuts, and fasteners to make sure they are tightened securely. Check the blades or knives on the cutting mechanism for any damage or dullness. Replace or sharpen them as needed. Ensure that the chipper is properly aligned with the tractor's hitch and the drivetrain is aligned with the PTO shaft.
3. Chipper Produces Inconsistent Chip Sizes: If the chipper has an adjustable cutting system, ensure the blades are properly positioned for the desired chip size. Adjust the feed rate to ensure a steady and consistent flow of material into the chipper.
4. Chipper Clogs or Material Does Not Feed Properly: Check feed mechanism, ensure that the feed mechanism, such as rollers or self-feeding system, is functioning correctly and not obstructed by debris. Make sure the wood material being fed into the chipper is within the recommended size and diameter limits. Remove any oversized or knotty pieces that may cause clogging.
5. Unusual Noises or Excessive Heat: Inspect moving parts, check all moving parts, such as bearings and belts, for any signs of damage, wear, or misalignment. Replace or repair as necessary. Ensure that all moving parts are properly lubricated according to the manufacturer's recommendations.

Why Choose Raydafon's PTO Wood Chipper?

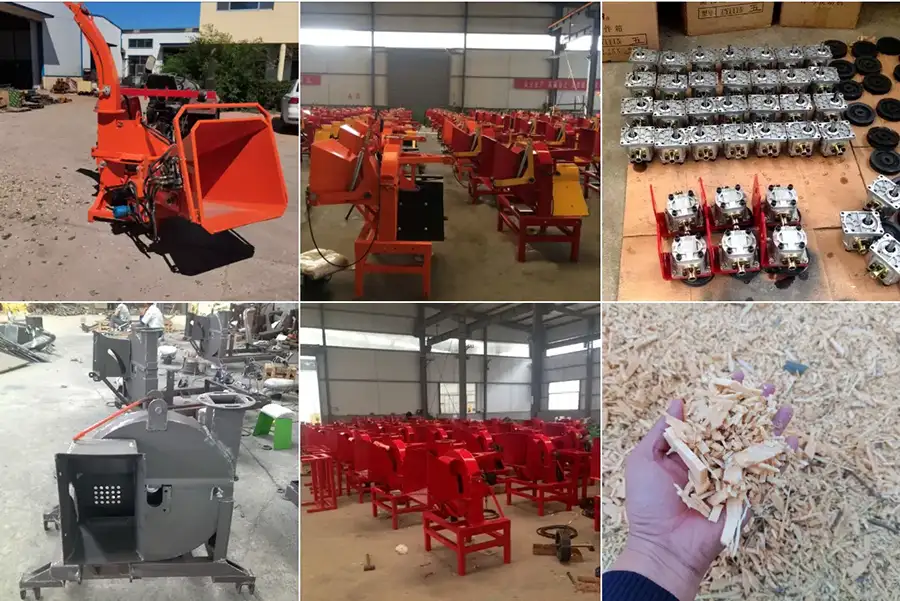

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

We offer a wide range of products featuring high-quality performance, excellent reliability, and a comprehensive warranty. We are ISO certified, providing an additional assurance of our commitment to quality. Our dedicated team of professionals is always ready to provide customized solutions to meet your specific needs. We boast state-of-the-art production facilities, ensuring that we can handle large orders and deliver them on time. Our exceptional after-sales service includes prompt and efficient handling of queries and issues, ensuring total customer satisfaction.

With Raydafon, you are not just purchasing a product; you are investing in a solution tailored to your needs. Experience the superior performance of our products today!
