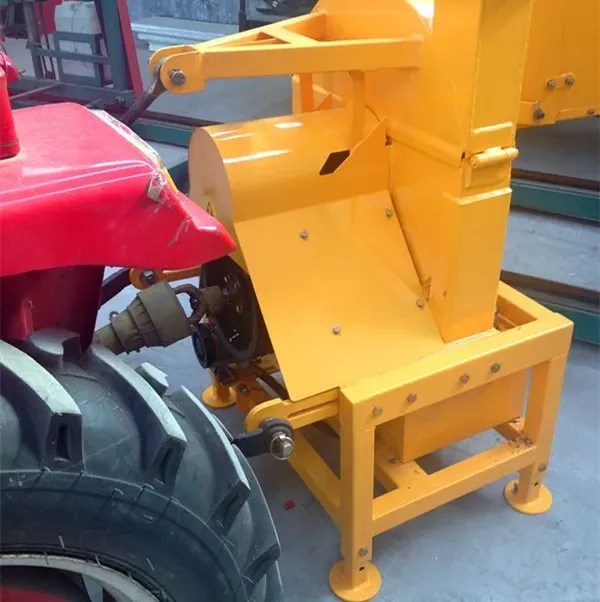

WC-8 Firewood Processor/WC-8 Firewood Machine for Chipping Wood and Tree Branch

Both versatile and efficient, the Raydafon WC-8 firewood machine is the perfect companion for all your firewood processing needs. It is a new, advanced wood chipper designed for farms and other pertinent industries. With its robust build and state-of-the-art features, this machine is the ultimate solution for converting raw wood into usable chips. The machine is available in various colors and comes with a one-year warranty on core components. Complete with a CE certification, it promises safety and reliability.

Key Advantages of the Raydafon WC-8 Firewood Processor

The Raydafon WC-8 Firewood Processor offers several advantages, including:

1. High Efficiency: With a chipper efficiency of 8-9m3/h, this machine can process large volumes of wood in a short time.
2. Versatility: The machine can be fed by either hydraulic or mechanical methods, making it adaptable to different working conditions.
3. Reliable Core Components: The machine's core components, such as bearings, are guaranteed to last for at least a year.
4. Dimension and Weight: The machine has a compact structure (1680*1400*1620mm) and a weight of 370 KG, making it easy to handle and operate.
5. Large Chipper Diameter: It can chip wood with a maximum diameter of 200mm.
6. Various Color Options: The machine is available in red, blue, yellow, or green, allowing you to choose one that best fits your aesthetic preferences.

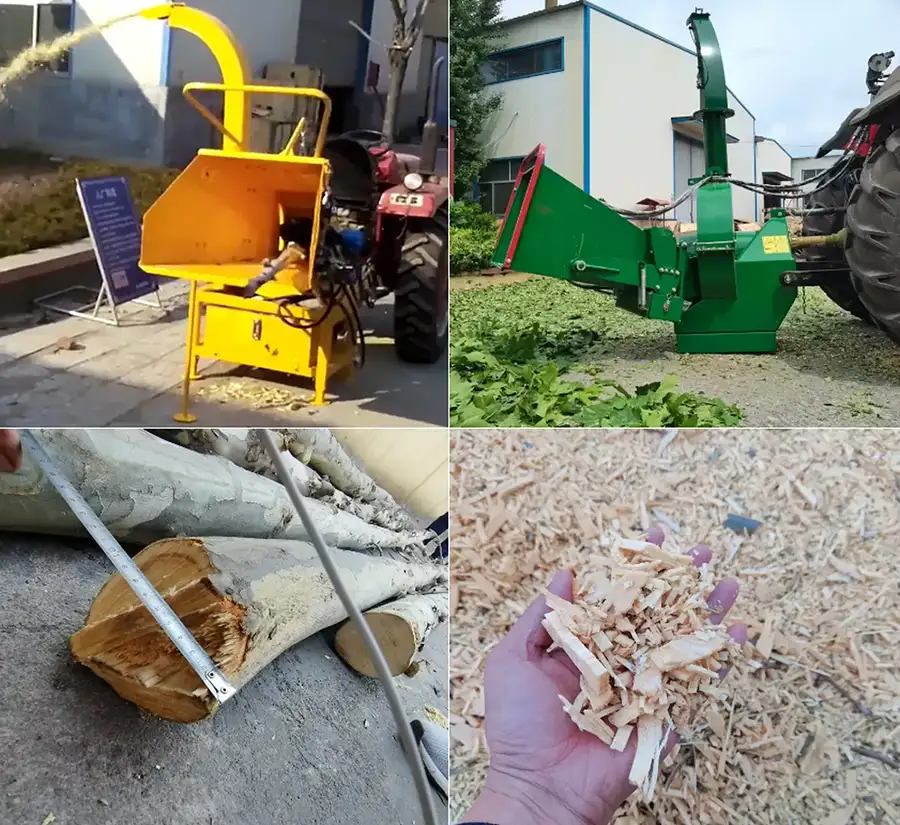

Applications of the Raydafon WC-8 Firewood Processor

The Raydafon WC-8 Firewood Processor is highly versatile and can be applied in various scenarios. Here are some of its applications:

1. It is ideal for farms where there is a constant need for firewood processing.
2. It can be used in forestry industries for efficient wood chipping.
3. It is suitable for use in firewood production businesses.
4. It can be employed in wood recycling centers to convert waste wood into usable chips.
5. It is perfect for use in rural areas where there is a need to manage and process fallen trees or branches.
6. It is applicable in landscaping businesses for creating wood chips for mulching purposes.

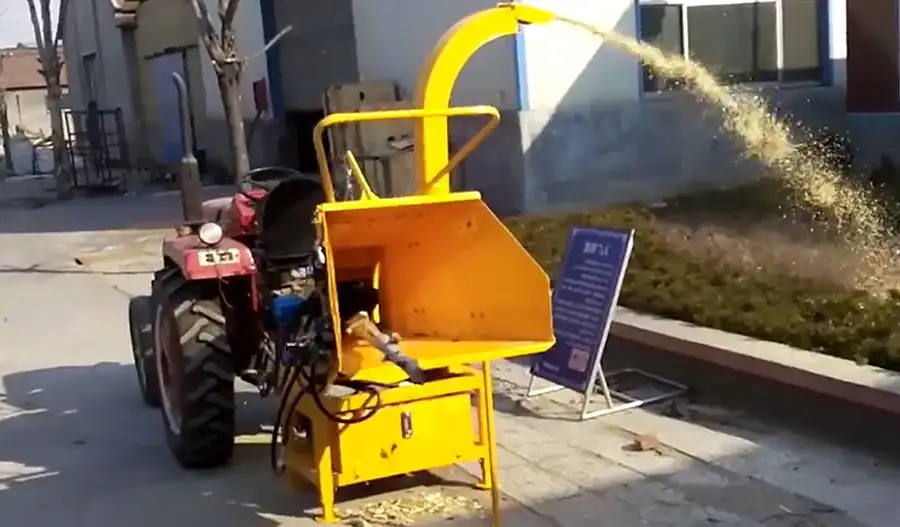

How Does the Tractor PTO Wood Chipper Work?

A 3-point hitch tractor PTO wood chipper is designed to be attached to the rear of a tractor using the tractor's 3-point hitch system. This system allows for easy attachment and detachment of the chipper to the tractor. Here's how a 3-point hitch tractor PTO wood chipper works:

1. 1. Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. The lower arms of the hitch are connected to the chipper's frame, while the top link is attached to the top of the hitch. Secure the attachment with pins or latches to ensure a stable connection.

1. Power Source: The chipper is powered by the tractor's PTO (Power Take-Off) shaft. The PTO shaft is connected to the chipper's drivetrain, which transfers power from the tractor's engine to the cutting mechanism of the chipper.
2. Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. The hopper is usually equipped with safety features, such as a chute or cover, to prevent accidental contact with the cutting mechanism. Some chippers may have a self-feeding mechanism that assists in pulling the wood material into the chipper.
3. Cutting Mechanism: Inside the chipper, there is a heavy-duty rotor equipped with sharp blades or knives. The rotor is connected to the chipper's drivetrain and is powered by the tractor's PTO. As the rotor spins at high speed, it draws in the wood material from the input hopper and cuts it into smaller pieces. The size of the wood chips or mulch can be adjusted using the chipper's settings.
4. Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. The discharge chute can often be adjusted to direct the chips into a container or onto the ground in a specific location.
5. Tractor Controls: The operator controls the operation of the chipper using the tractor's controls. This includes engaging and disengaging the PTO, controlling the tractor's speed, and adjusting the tractor's position to feed the wood material into the chipper effectively.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a few steps to ensure a secure and proper attachment. Here's a general guide on how to install a 3-point hitch PTO wood chipper to a tractor:

1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, make sure it is on a level surface and in a position that allows easy access to the attachment points. Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the tractor's hitch is in the lowered position.
2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper. The attachment points are typically located on the chipper's frame.
3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely. Make sure the pins or latches are properly inserted and locked in place.
4. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper. Extend or retract the top link as needed to align the holes on the top link with the attachment point on the chipper. Insert the pin or latch and secure it tightly.
5. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together. Ensure the locking mechanism engages properly and secures the PTO shaft in place.
6. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned. Shake the chipper slightly to check for any excessive movement or looseness.
7. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly and that there are no unusual vibrations or noises. Check the feeding, cutting, and discharge mechanisms for smooth operation.

Common Troubleshooting of the Raydafon WC-8 Firewood Processor

While a 3-point hitch tractor PTO wood chipper is a reliable machine, there may be instances where troubleshooting is necessary to address any issues that arise during operation. Here are some common troubleshooting steps for a 3-point hitch tractor PTO wood chipper:

1. 1. Chipper Does Not Start: Check the PTO engagement, ensure that the PTO is properly engaged and the PTO shaft is securely connected to the tractor's PTO output shaft. Make sure the tractor's engine is running at the recommended RPM to provide sufficient power to the chipper. Inspect the electrical connections and wiring to ensure there are no loose or damaged connections.
   2. Chipper Vibrates Excessively: Check for loose components, inspect all bolts, nuts, and fasteners to make sure they are tightened securely. Check the blades or knives on the cutting mechanism for any damage or dullness. Replace or sharpen them as needed. Ensure that the chipper is properly aligned with the tractor's hitch and the drivetrain is aligned with the PTO shaft.
   3. Chipper Produces Inconsistent Chip Sizes: If the chipper has an adjustable cutting system, ensure the blades are properly positioned for the desired chip size. Adjust the feed rate to ensure a steady and consistent flow of material into the chipper.
   4. Chipper Clogs or Material Does Not Feed Properly: Check feed mechanism, ensure that the feed mechanism, such as rollers or self-feeding system, is functioning correctly and not obstructed by debris. Make sure the wood material being fed into the chipper is within the recommended size and diameter limits. Remove any oversized or knotty pieces that may cause clogging.

1. Unusual Noises or Excessive Heat: Inspect moving parts, check all moving parts, such as bearings and belts, for any signs of damage, wear, or misalignment. Replace or repair as necessary. Ensure that all moving parts are properly lubricated according to the manufacturer's recommendations.

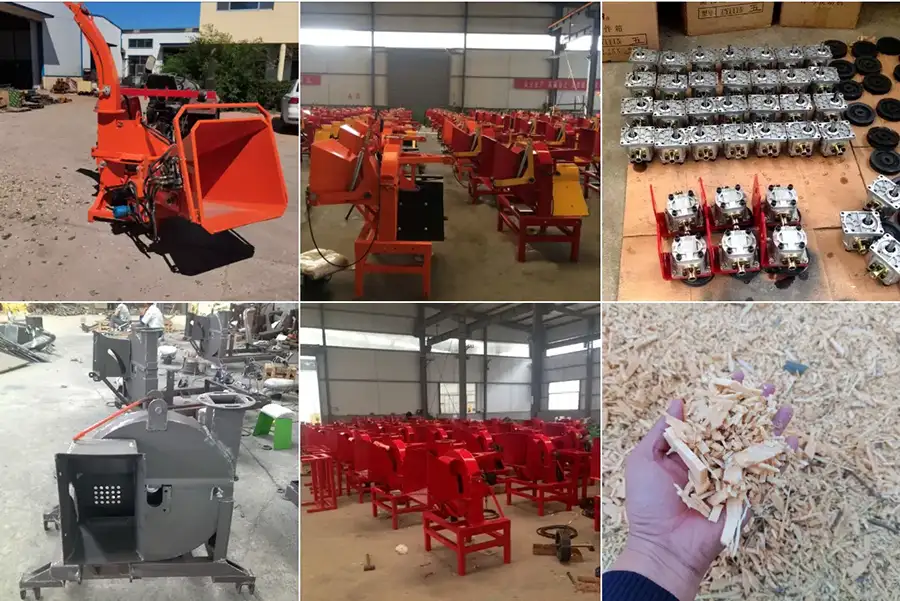

Why Choose Raydafon's PTO Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for more than a decade. Our company boasts over 100 employees, among which there are 20 technical staff and five senior R&D personnel. We have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced. We produce a wide range of farming machinery and accessories, and our main products include PTO shafts, agricultural gearboxes, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Here's a video introduction to the Raydafon WC-8 Firewood Processor: Author: Yjx
