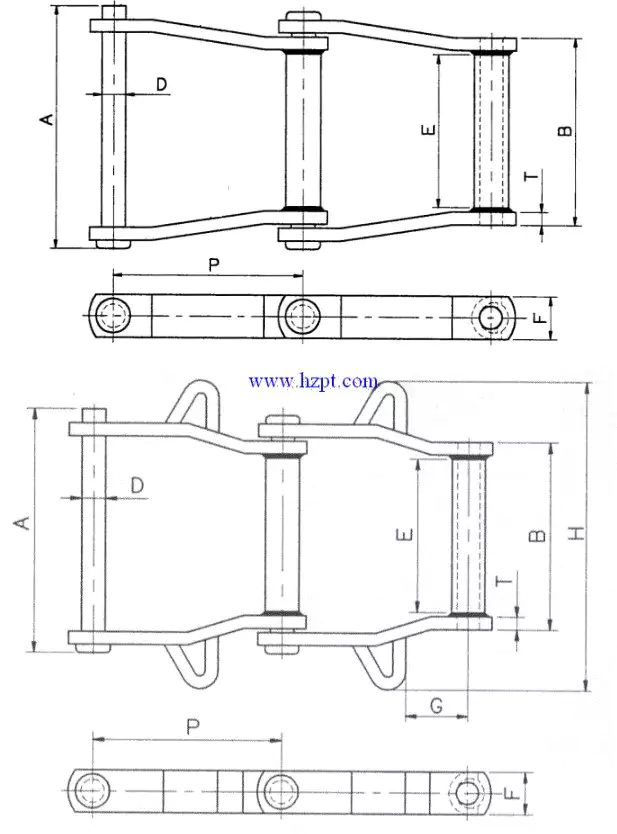

CHAIN NUMBER | PITCH | MIN ULTIMATE STRENGTH KGS | DIMENSION---MM | ||||||||
| INCH | MM | A | B(max) | D | T | E(min) | F | G | H | ||
| WDH110-R | 6.000 | 152.40 | 25000 | 300.84 | 263.5 | 18.90 | 9.5 | 238.5 | 38.10 | 66.8 | 431.8 |
| WDH112-R | 8.000 | 203.20 | 25000 | 300.84 | 263.5 | 18.90 | 9.5 | 231.5 | 38.10 | --- | --- |
| WDH120-R | 6.000 | 152.40 | 35800 | 306.37 | 260.35 | 22.07 | 12.7 | 222.25 | 50.80 | --- | --- |
| WDH2210-R | 6.136 | 155.85 | 25000 | 300.84 | 263.5 | 18.90 | 9.5 | 236.5 | 38.10 | --- | --- |
| WDH480-R | 8.000 | 203.20 | 35800 | 366.85 | 323.85 | 22.07 | 12.7 | 285.75 | 50.80 | 82.55 | 558.8 |
| WDH116-R | 8.000 | 203.20 | 25000 | 396.00 | 358.8 | 18.90 | 9.5 | 325.8 | 44.45 | --- | --- |
