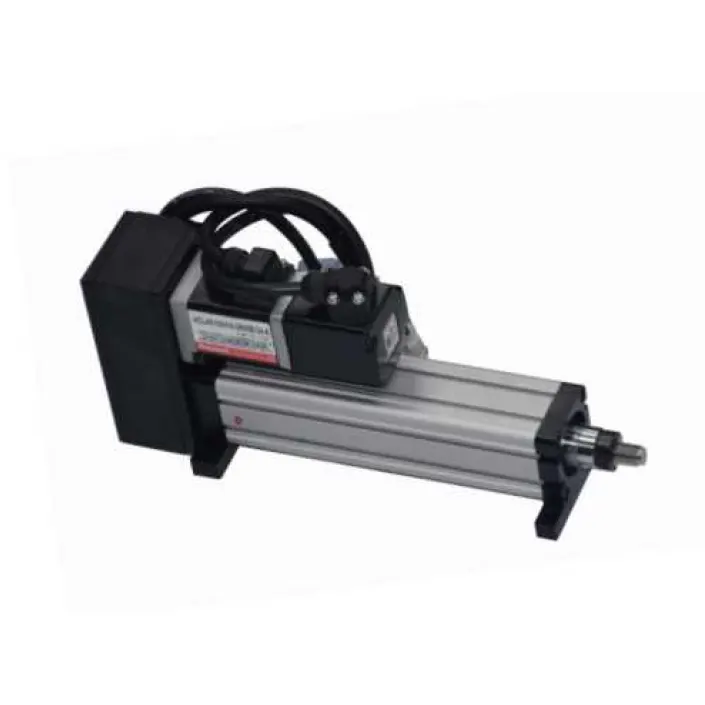

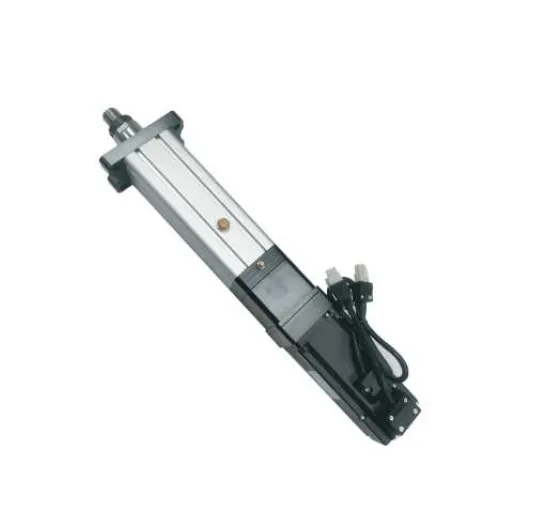

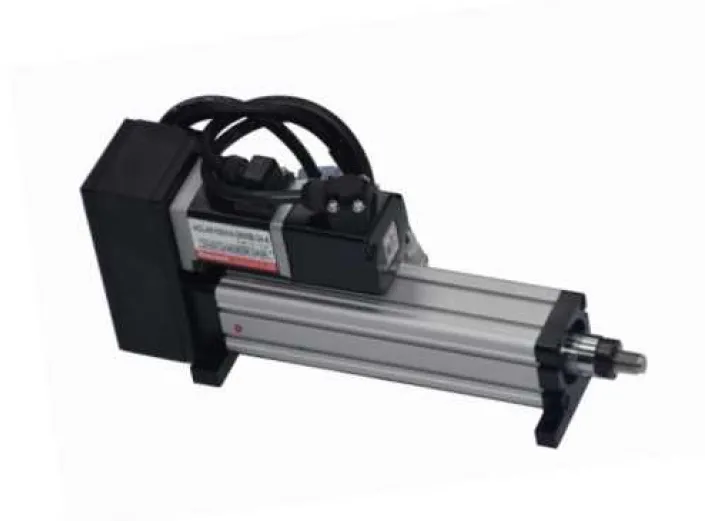

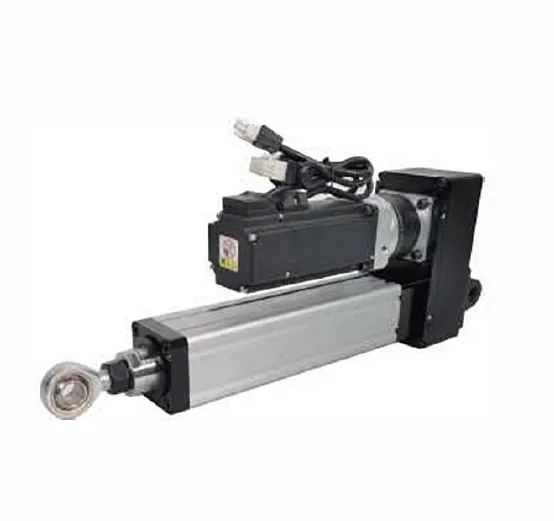

WG40 Series Electric Linear Actuator WG40 Series Electric Cylinder

WG40 Series Electric Linear Actuator WG40 Series Electric Cylinder

The WG40 series electric linear actuator is a cutting-edge product that combines power, precision, and flexibility. This electric actuator is designed to provide linear motion in various industrial and commercial applications and offers exceptional performance, reliability, and ease of use. With its robust construction and advanced features, the WG40 series is ideal for those seeking high-quality linear motion solutions.The WG40 series electric linear actuator offers exceptional performance, versatility, and ease of use. Its robust construction, high power, and precise positioning make it an ideal choice for a wide range of applications. By following the recommended usage method and maintenance practices, you can ensure that this electric actuator operates reliably and efficiently for years. Invest in the WG40 series electric linear actuator and experience the power of superior linear motion technology.

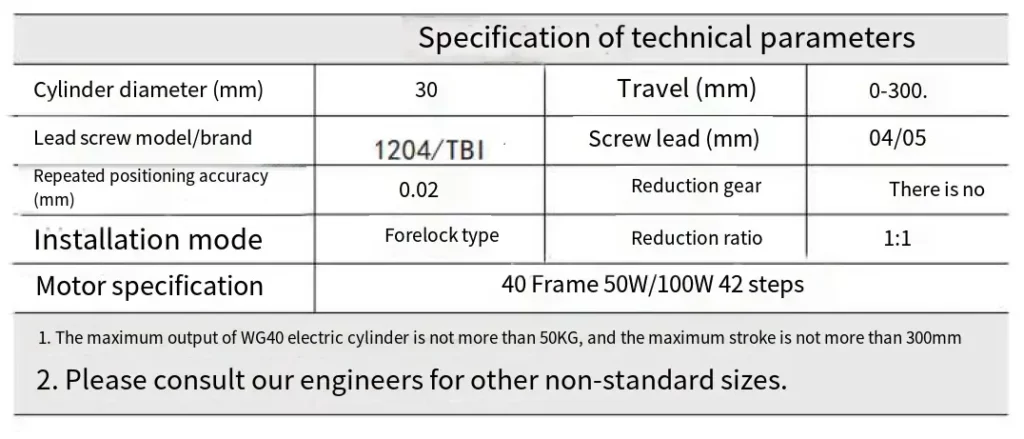

WG40 Series Electric Linear Actuator Parameter:

Key Features and Benefits of WG40 Series Electric Linear Actuator Parameter:

1. Robust Construction: The WG40 Series Electric Linear Actuator is built to withstand demanding conditions. Its durable housing and high-quality materials ensure long-lasting performance and resistance to wear and tear.
2. High Power and Precision: This electric actuator delivers impressive power and precision. Its robust motor and efficient gearing system can generate substantial force while maintaining precise positioning to meet the most demanding application requirements.
3. Versatile Applications: The WG40 Series is suitable for various applications across various industries. This versatile actuator can seamlessly integrate into different systems and equipment, whether it's industrial automation, agriculture, healthcare, or home automation.

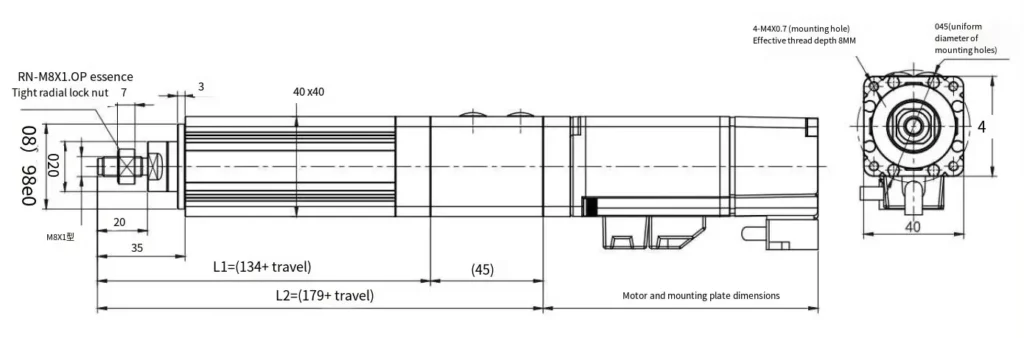

WG Series Electric Linear Actuator Directly Connected:

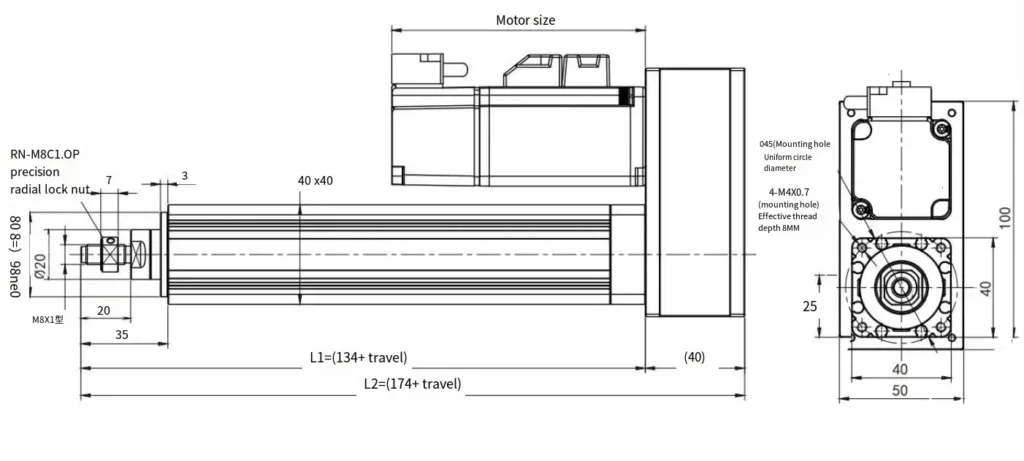

WG Series Electric Linear Actuator Folding:

Usage Method of WG Series Electric Linear Actuator:

Using the WG40 Series Electric Linear Actuator is straightforward, thanks to its user-friendly design and intuitive controls. Here's a step-by-step guide to get you started:

1. Mounting: Begin by securely mounting the actuator onto the desired surface using the provided mounting brackets. Ensure proper alignment and stability for optimal performance.
2. Power Connection: Connect the actuator to a power source using the supplied power cable. Follow the manufacturer's instructions and local electrical codes for safe and proper wiring.
3. Control Setup: Depending on your application and control preferences, select the appropriate control method for the actuator. It can be controlled through manual switches or remote control or integrated into a programmable logic controller (PLC) system.
4. Operation: Once the actuator is mounted and connected, you can operate it using the control method. Activate the actuator to extend or retract the linear motion as needed. The actuator will precisely move to the desired position, providing reliable and accurate linear motion.

The Principle of Electric Cylinder:

The electric cylinder converts the rotating motion of the motor into the linear motion of the push rod through the mechanical motion of the lead screw and the lead screw pair. With the closed-loop control characteristic of servo motors, the precise control of thrust, speed, and position can be realized easily. Using modern motion control technology, numerical control technology, and bus (network) technology, the program and bus (network) control are realized. Its control and ease of use will achieve precision motion control that can not be achieved by cylinder and hydraulic cylinder transmission.

Product Characteristics:

EDA series electric cylinder adopts an advanced modular design method with the following significant features:1, compact structure, small size, easy installation and use, simple maintenance, low noise, long life, multiple safety protection measures.2, accurate position control, repeated positioning accuracy up to 0.01 mm, adding external displacement sensor up to 0.005mm.3, accurate speed control, can be arbitrarily set the speed waveform to achieve high-speed, smooth, and impact-free operation, with control accuracy up to 0.05%.4, accurate thrust control, the control accuracy can reach 0.5% after increasing the external push and pull sensor.5, can use a trapezoidal screw, ball screw, or planetary roller screw transmission mode.6, can use servo motor, stepper motor, DC motor, AC motor drive mode, servo, and frequency control.

Product Advantage:

1. Self-locking performance of a joint tooth lead screw electric push rod, due to worm gear and worm structure, most of the absolute dynamic load self-locking function, increase the safety of equipment operation; Ball screw electric push rod and servo electric cylinder can not be self-locking, but can be self-locking in the motor with a brake;2. precision positioning of a servo electric cylinder with comprehensive position accuracy up to 0.01 mm;3. Precise control 1 encoder, pressure sensor, and displacement sensor to achieve closed-loop accurate positioning;4 Drive system continuous flow motor 12/24V, single AC motor, three-phase AC motor, servo motor, no air/hydraulic source, easy to maintain,Low energy consumption;5. overload protection: a safety clutch can be equipped to prevent overload; an Overload pressure sensor can also be fitted to avoid overload;6. Simple maintenance, low noise, can work typically in high/low temperature, anti-corrosion/explosion-proof harsh environment.7. Important features of electric linear transmission equipment: self-locking performance, precision positioning, speed control, thrust control, and simple maintenance.

Electric Linear Actuator Selection Procedure:

1. Determine the Conditions of Use

• The necessary condition for calculating the type of servo electric cylinder
• Installation space limitation
• Load installation method (horizontal, vertical, tilt, etc.)
• The size, direction, and position of the load
• Motor installation method (direct installation, indirect installation)
• Installation method of electric cylinder (flange, trunnion, earring, etc.) stroke lengthOperation speed, accuracy requirement, life requirementUse the environment, application facilities

2. Load Thrust Calculation of Servo Electric Cylinder

According to the actual calculation of the load required, the thrust

3. Determine the Running Speed of the Servo Electric Cylinder

According to the actual demand speed, the lead of the electric cylinder demand is equipped with the motor, reducer, etc.

4. Calculation of Average Load

Average the load changes during operation and calculate the average load

5. Calculation of Rated Life & Life Time

According to the actual travel, speed, frequency, and other conditions of the electric cylinder, the walking distance is calculated, and the cake is converted into the lifetime

6. Determine the Accuracy Level of Servo Electric Cylinder

Selected accuracy levelDetermine servo electric cylinder control and signal feedback

7. Installation Method of Servo Electric Cylinder

Select the motor mounting method for the motor cylinderSelect the mounting mode of the servo motor cylinderSelect how the load is installed

8. Safety Design of Servo Electric Cylinder

Selected lubricant (grease, oil, extraordinary lubrication) Selected lubrication method (regular grease, forced lubrication) Selected material (aluminum alloy, stainless steel) Surface treatment (rust prevention, oxidation sandblasting, blackening) Dust treatment (dust ring, protective cover, dust cover)

9. Selection Completed

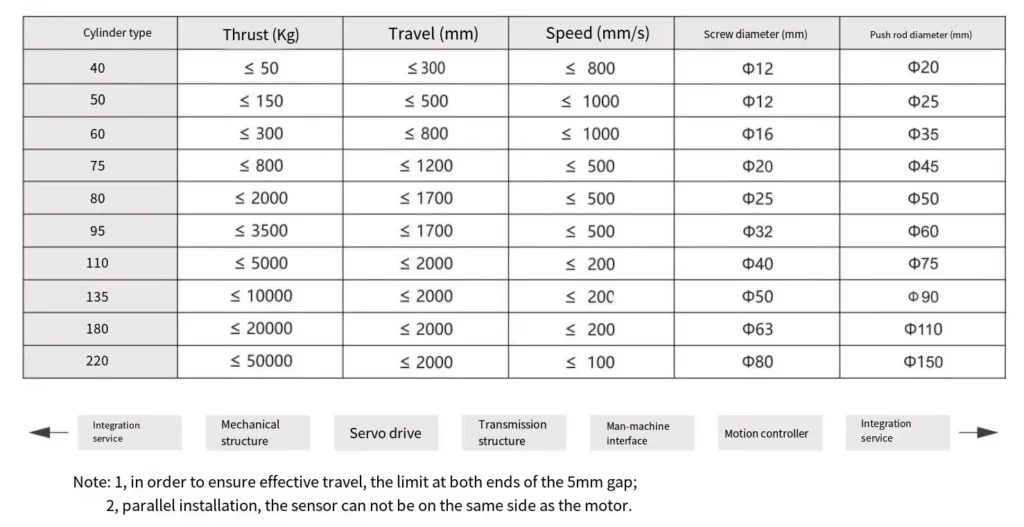

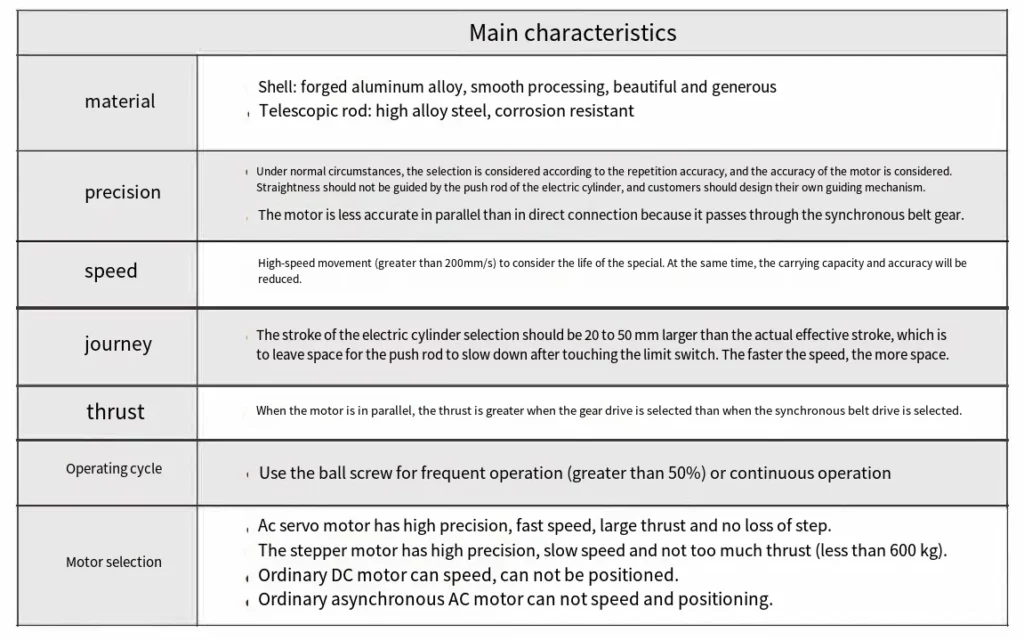

Selection Standard:

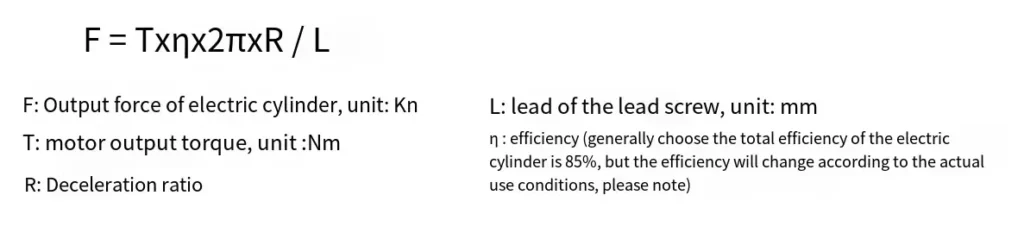

The Relation Between The Output Torque Of Motor And The Output Force Of Electric Cylinder:

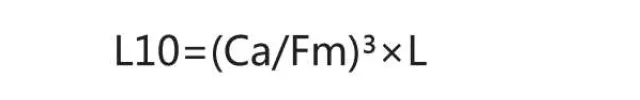

Life Calculation of Electric Cylinder:

The life of the electric cylinder generally refers to the life of the lead screw used inside the electric cylinder, which can be divided into two parts, one is the fatigue life of the lead screw, which can be calculated; The other is the service life, depending on the conditions of use (such as temperature, dust, the type of lubrication used and the frequency of regular additions, etc.). Service life is often learned by experience. The following is the calculation method of fatigue life:L10: life of electric cylinder, unit: KmFm: The average load of the electric cylinder, unit: KnCa: The basic rated dynamic load of the screw nut, in Kn (can be found by screw sample)L: lead of the lead screw, unit :mm

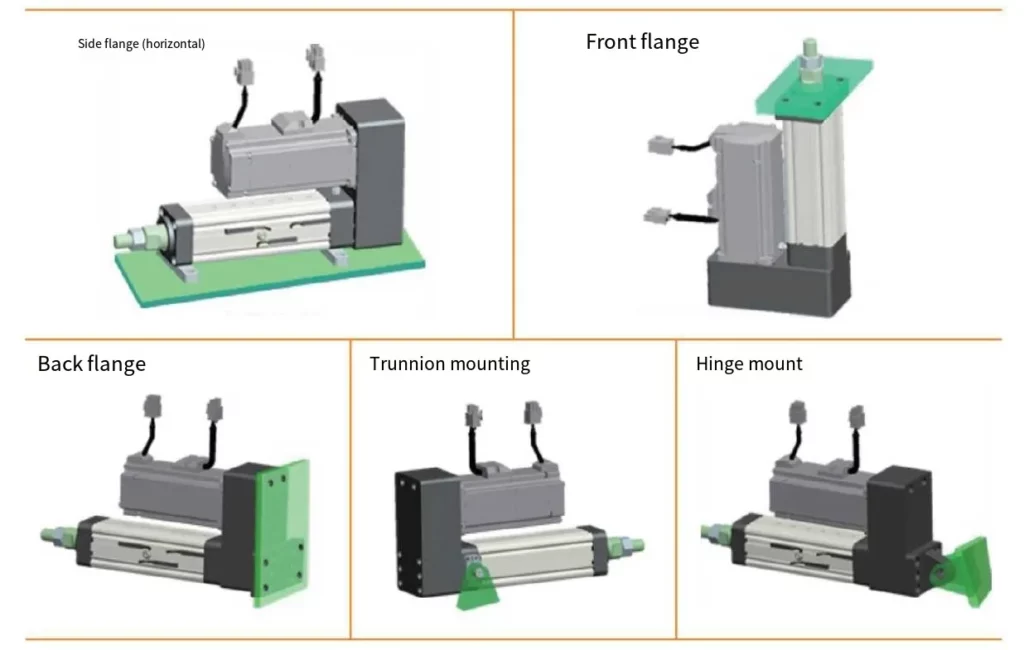

Electric Linear Actuator Commonly Used Installation Diagram:

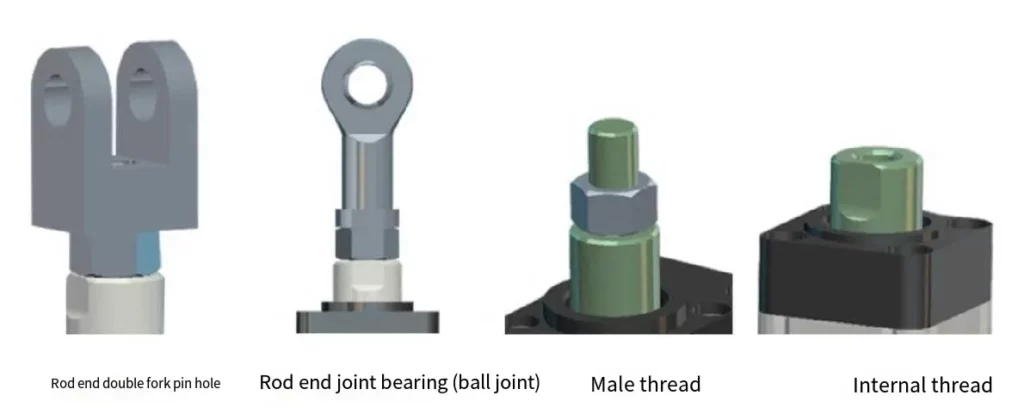

Load Link Mode:

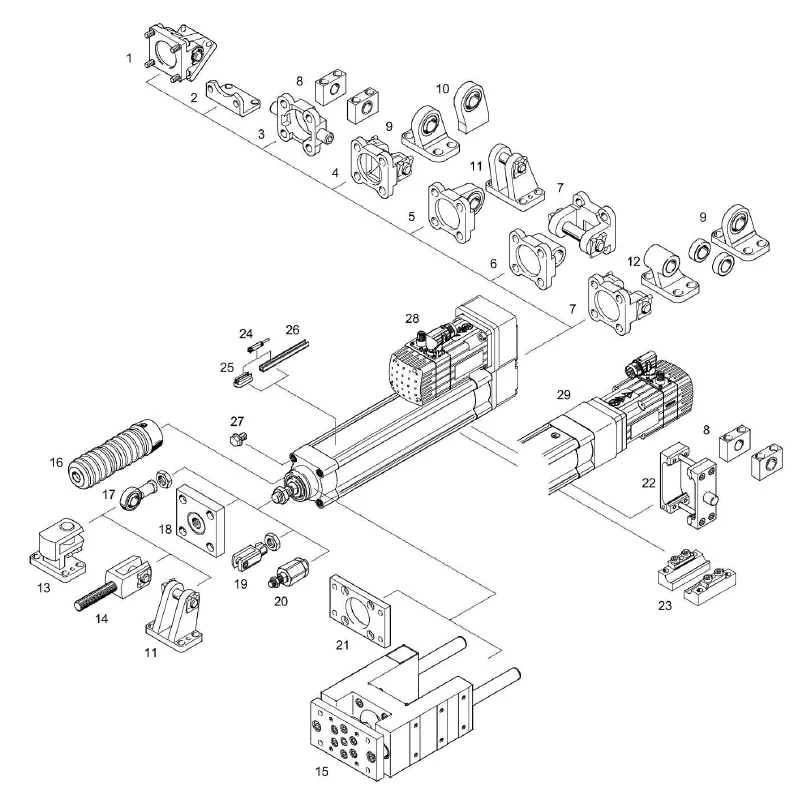

Electric Linear Actuator Accessories:

List of Components:Attention:The maximum load-carrying capacity of the installed component must be the total load generated by thousands. Cylinder weight (including motor) must be taken into account.Please contact our sales engineer for details on parts adaptation.

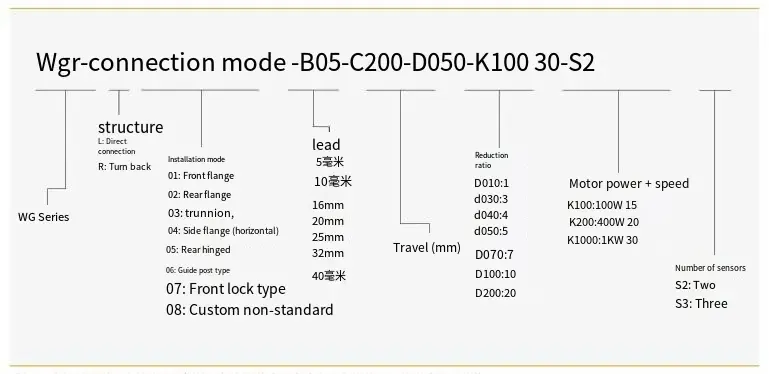

Wg Series Product Name Reading Map:

Linear Electric Cylinder:

This series of electric cylinder integrates AC servo motor, servo driver, high-precision ball screw, modular design and other technologies, the whole electric cylinder has the characteristics of compact structure, small inertia, fast response, low noise and long life.The servo motor is directly connected with the drive screw of the electric cylinder so that the encoder of the servo motor can directly feedback the displacement of the moving piston of the electric cylinder, reduce the inertia and clearance of the intermediate link, and improve the control and control accuracy. The servo motor is connected to the electric cylinder, which is easy to install, set, and convenient to use. The main parts of the electric cylinder are made of famous foreign brand products with stable performance, low failure rate, and high reliability.

Folding Electric Cylinder:

Due to the short overall length, the folding electric cylinder suitable for the installation position is relatively small. At the same time, the synchronization belt selected in this scheme has high strength, small gaps, and long life, so the electric cylinder has high control and control accuracy. The Servo motor and electric cylinder cooperate flexibly, are easy to install, have simple settings, and are convenient.
