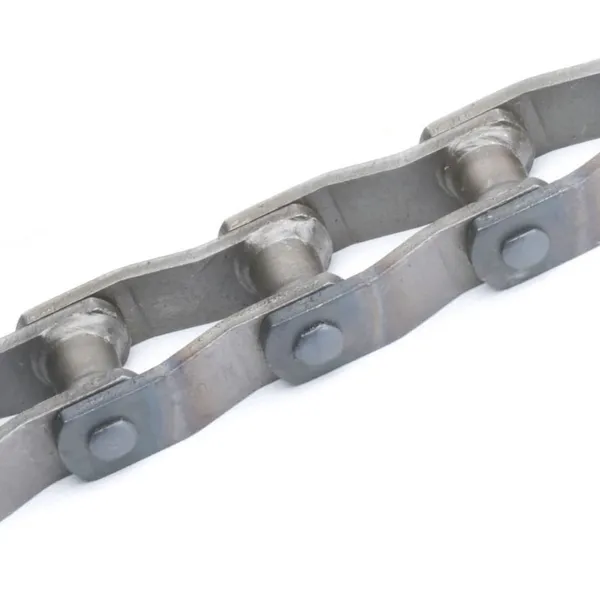

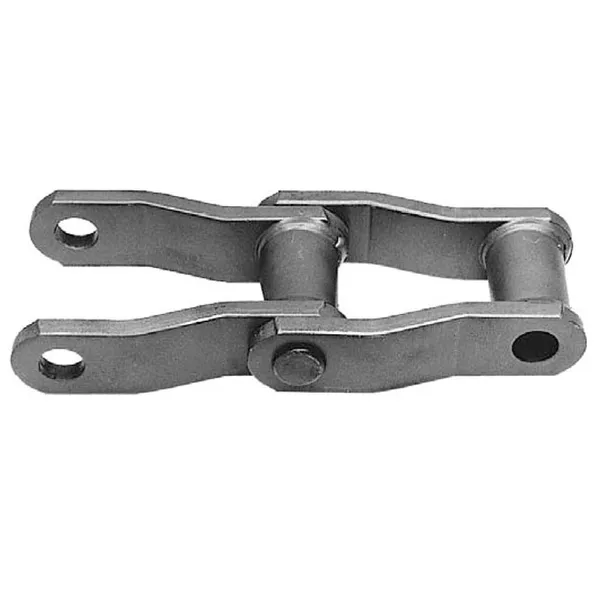

WH78 Welded Steel Mill Chain WH78 Chain

WH78 Welded Steel Mill Chain WH78 Chain

This WH78 welded steel mill chain that we offer exceeds in quality, working life, and strength. Additionally, our WH78 chain is extremely durable, offers low maintenance, and is supplied at a great price! Something that is notable about this chain is that each and every component has been heat-treated and constructed using high-quality steel alloy to further increase the chain's overall working life and strength. WH78 welded steel chain is often recommended for most conveying, driving, and elevating applications where a high-strength and durable steel roller-less chain is required. Some of the applications where the WH78 chain is most commonly found are; heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

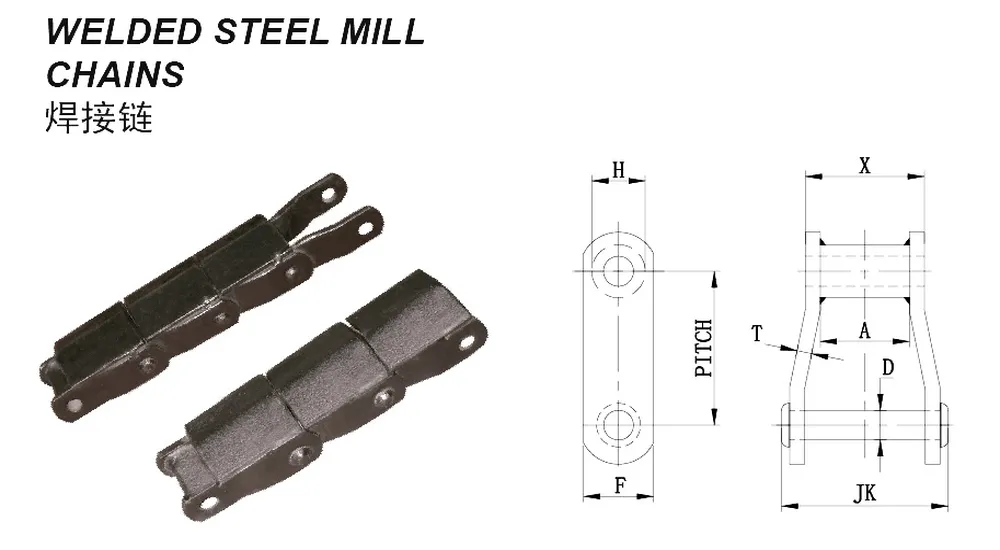

▍WH78 Chain (Welded Steel Mill Chain) Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH78 Chain	2.609	30000	3500	46	4.0	2.00	0.50	0.25	1.12	0.88	1.12

▍WH78 Welded Steel Mill Chain Construction:

Welded steel chains got their name from their construction. A welded steel chain is manufactured with a precision-strengthened weld around the outside diameter of the barrel connecting the two sidebars together. Within the barrel, there is the pin which, on a WH78 chain the pin is fully 360° heat-treated for optimal wear life. Then housing it, all are the heat-treated distinctive offset-style sidebars.The WH78 welded steel mill chain is constructed with a precision-strengthened weld around the outside diameter of the barrel, which connects the two sidebars together. The pin is also heat-treated for optimal wear life. The sidebars are heat-treated and have an offset style.Here are the key components of the WH78 welded steel mill chain:

• Barrel: The barrel is the central part of the chain, and it is made of alloy steel. The barrel is precision-welded to the sidebars to create a strong and durable connection.
• Pin:?The pin is the part of the chain that connects the two sidebars together. The pin is heat-treated for optimal wear life.
• Sidebars:?The sidebars are the two side pieces of the chain. The sidebars are heat-treated and have an offset style.

The WH78 welded steel mill chain is a durable and reliable chain that can withstand harsh conditions. It is also easy to maintain and repair.

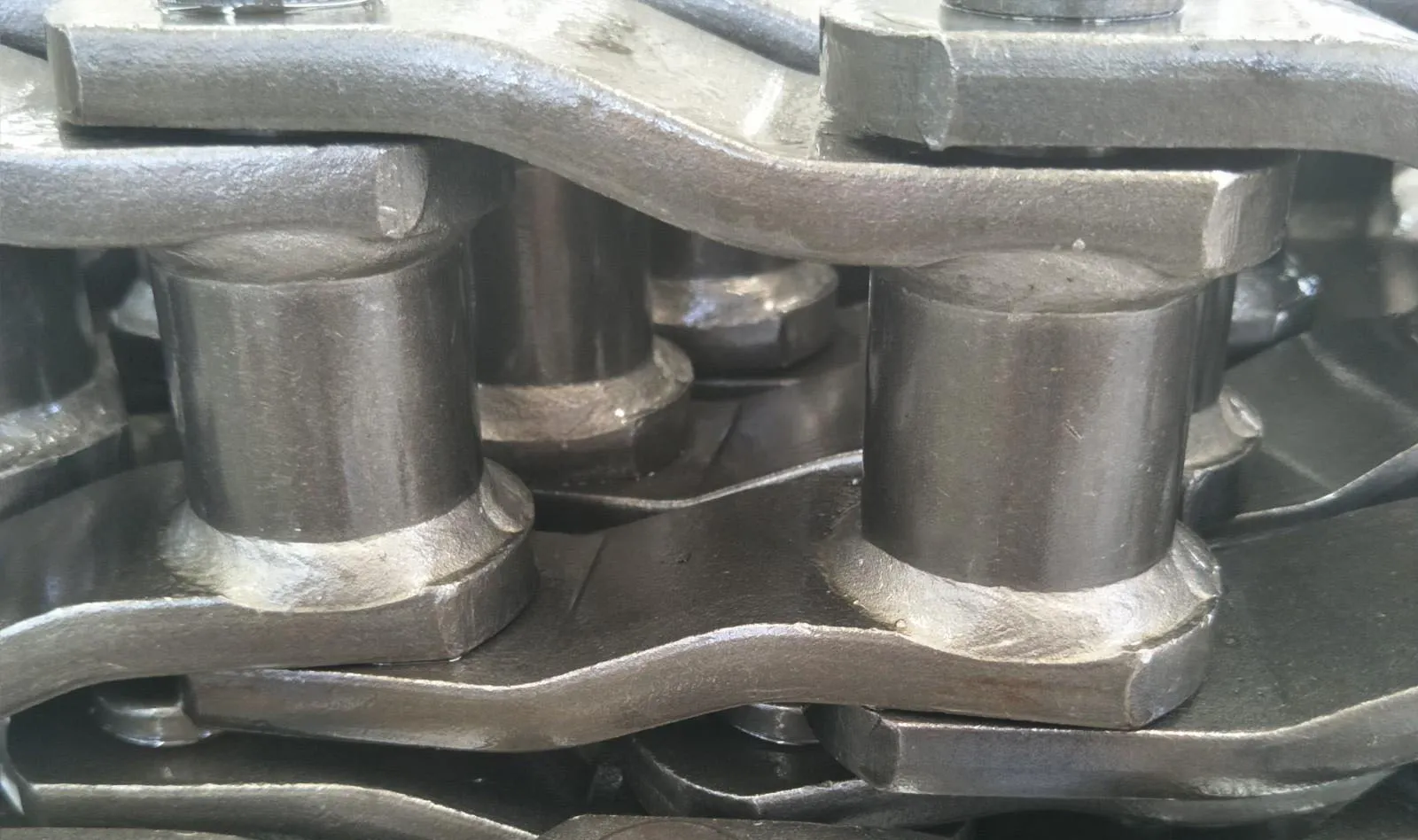

▍WH78 Welded Steel Mill Chain Advantages:

The WH78 welded steel mill chain has a number of advantages over other types of chains, including:1. High strength:?The WH78 chain is made of alloy steel and has a precision-strengthened weld, which makes it very strong and durable.2. Rollerless design:?The WH78 chain does not have rollers, which makes it more compact and lightweight than other types of chains. This also reduces the amount of wear and tear on the chain, which can extend its lifespan.3. Precision-strengthened weld:?The precision-strengthened weld creates a strong and durable connection between the barrel and the sidebars, which helps to prevent the chain from breaking or coming apart.4. Heat-treated pin:?The heat-treated pin is more wear-resistant than a standard pin, which helps to extend the lifespan of the chain.5. Offset sidebars:?The offset sidebars help to reduce wear on the chain. This is because the sidebars do not rub against each other as much as they would if they were not offset.6. Wide range of sizes and lengths:?The WH78 chain is available in a wide range of sizes and lengths, which makes it a versatile option for a variety of applications.7. Durable and reliable:?The WH78 chain is a durable and reliable chain that can withstand harsh conditions. It is also easy to maintain and repair.Overall, the WH78 welded steel chain is a high-quality chain that offers a number of advantages over other types of chains. It is strong, durable, and versatile, making it a good choice for a variety of applications.

▍WH78 Chain Sprockets for WH78 Chain

WH78 chain sprockets are the toothed wheels that mesh with the WH78 welded steel mill chain to transmit motion and power in industrial applications. The WH78 chain sprockets are typically made of high-quality steel and are designed to match the pitch of the WH78 chain, which is 7/8 of an inch.The WH78 chain sprockets are available in a range of sizes and configurations to suit different applications, and they may have a variety of teeth profiles, such as standard or custom tooth profiles, to match the specific application requirements.When selecting WH78 chain sprockets for use with the WH78 chain, it is important to consider factors such as the number of teeth, bore diameter, hub configuration, and overall design. The WH78 chain sprockets must be properly matched to the chain to ensure smooth operation and to prevent premature wear or damage to the chain or sprockets.It is also important to properly maintain the WH78 chain sprockets and WH78 chain to ensure optimal performance and longevity. Regular lubrication of the WH78 chain sprockets and WH78 chain can help to reduce friction and wear, while periodic inspection and replacement of worn or damaged components can help to prevent costly downtime and repairs.We also offer a full line of high-quality sprockets that range in tooth size, bore size, and hub configuration. We can even supply Made To Order (MTO) and custom sprockets to meet your exact needs.

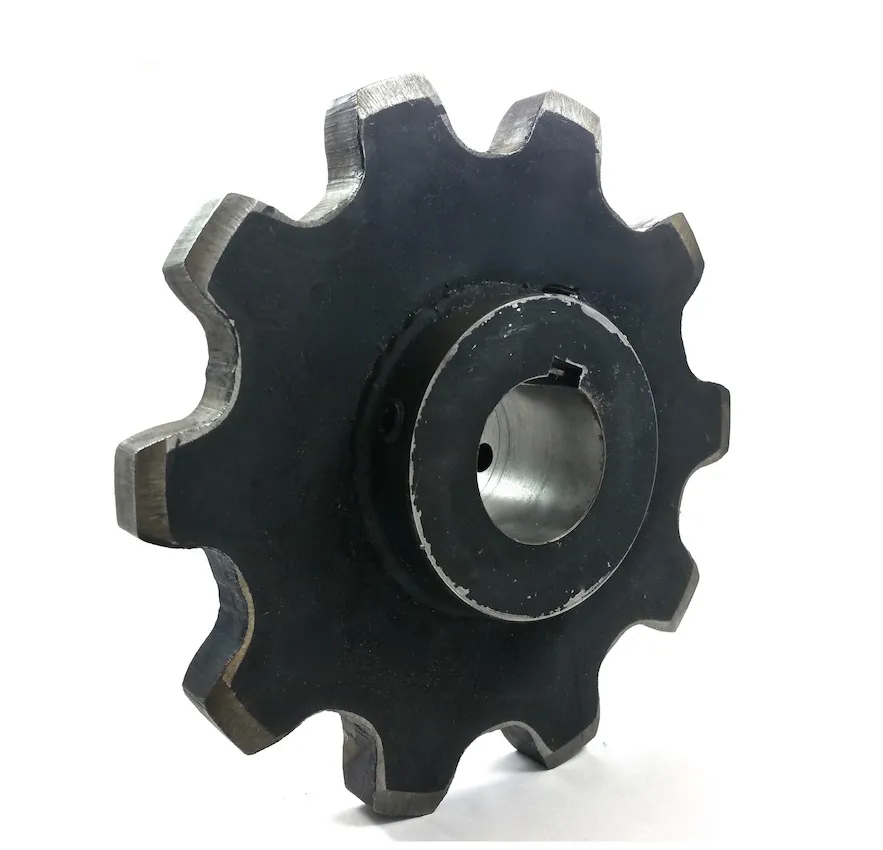

A-Plate WH78 Chain Sprockets	B-Hub WH78 Chain Sprockets	C-Hub WH78 Chain Sprockets

▍China Welded Steel Mill Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains,?palm oil chains,?sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains,?car parking chain, slient chain, engineering chain,?steel pintle chain,?welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
