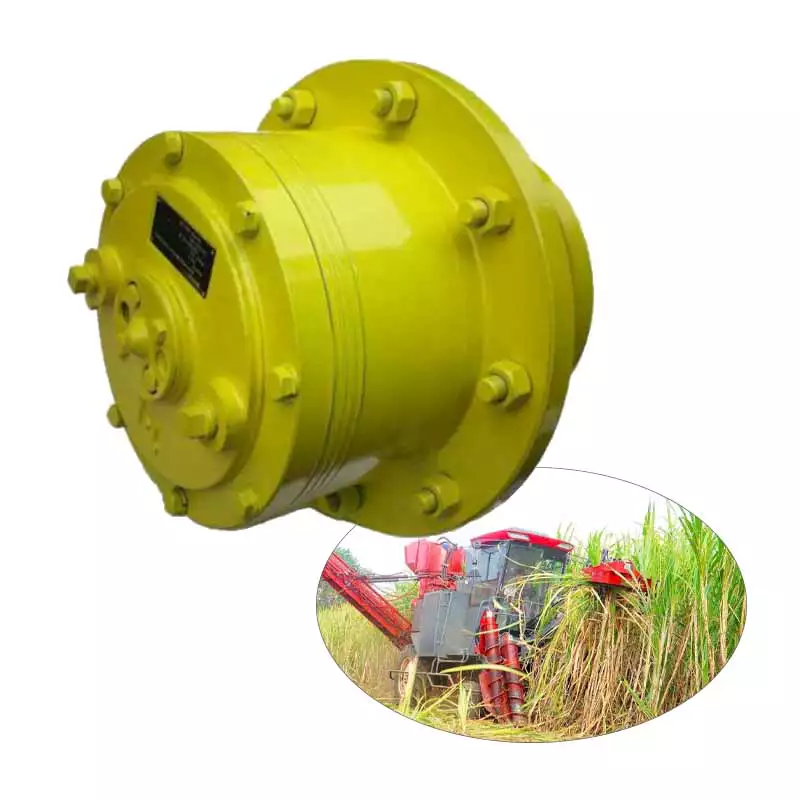

Wheel Drive Planetary Gearbox Reducer For Sugar Harvester

Wheel Drive for Sugar Harvester

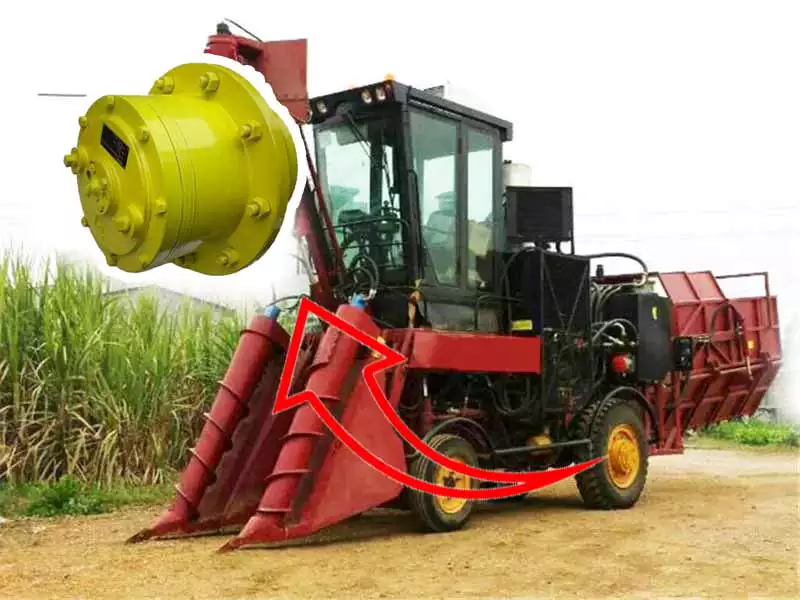

A wheel drive planetary gearbox reducer for sugar harvester is an essential component in sugar harvesting machines. This gearbox is designed to transmit power from the engine to the wheels of the machine, enabling it to move forward while harvesting sugar. The gearbox also helps the machine to turn and maneuver while operating in the fields.In Sugar Harvesters, the Wheel Drive Planetary Gearbox Reducer is typically installed in the transmission system section of the drive wheels. How many wheel drive reducers are required for a large Sugar Harvester, depending on its driving method. If it is a four-wheel drive sugarcane harvester, each drive wheel needs to be equipped with a wheel drive planetary gearbox reducer, so a total of 4 are required; If it is two wheel drive, only two are needed. The specific quantity configuration should be determined based on the design specifications and technical requirements of the harvester.

1. Power transmission and torque amplification: The high-speed and low torque power generated by the engine or motor is converted into low-speed and high torque output suitable for wheel use through planetary gear structure, providing sufficient driving force to overcome the requirements of complex terrain and heavy loads for machine walking.
2. Speed control: allows adjusting the driving speed of the harvester based on operating conditions and soil conditions, ensuring that the equipment remains stable and efficient during the sugarcane harvesting process.
3. Durability and efficiency: Due to the use of planetary gear design, the wheel drive planetary gearbox reducer can withstand high loads and has good durability, while maintaining high transmission efficiency and reducing energy loss.

Performance of Wheel Drive to Adapt to the Sugarcane Field Environment

The following special requirements have been put forward for the performance of wheel drive to adapt to the sugarcane field environment:

• High torque output capabilitySugarcane fields usually have soft and wet soil, and may even have mud and puddles. Vehicles require greater traction to overcome these resistances. Therefore, the wheel drive should have a powerful torque amplification function to provide sufficient driving force under complex ground conditions.
• Durability and Wear ResistanceDue to the frequent operation of sugarcane harvesters in harsh environments such as sand, gravel, and humid soil, the wheel drive and its related mechanical components must have high wear and corrosion resistance to ensure long-term stable operation, reduce maintenance costs and downtime.
• Good heat dissipation performanceUnder heavy loads and continuous operating conditions, the wheel drive system is prone to overheating. In order to ensure its normal operation at high temperatures, an efficient cooling system and good thermal management design are required.
• Dust and waterproof designThe sugarcane field is dusty and may contain moisture, so the sealing performance of the wheel drive must be excellent to prevent dust and moisture from entering the interior and causing wear or electrical failure.
• Low speed and high torque characteristicsWhen harvesting sugarcane, vehicles often need to maintain high torque output at lower speeds in order to operate the machine smoothly and accurately, and move on complex field paths.
• Adaptive suspension systemThe suspension system that works in conjunction with the wheel drive needs to be able to self adjust according to terrain changes, ensuring that the tires always maintain good contact with the ground, improving grip, and reducing vibration inside the driver's cabin.
• Handling sensitivityIn order for the driver to flexibly operate the harvester in narrow sugarcane rows, the wheel drive system needs to be closely integrated with the steering system to achieve precise control.

In summary, a wheel drive suitable for sugarcane fields not only needs to meet basic power transmission requirements, but also needs to be optimized for this specific working condition to ensure that the equipment can operate efficiently and safely in harsh environments.

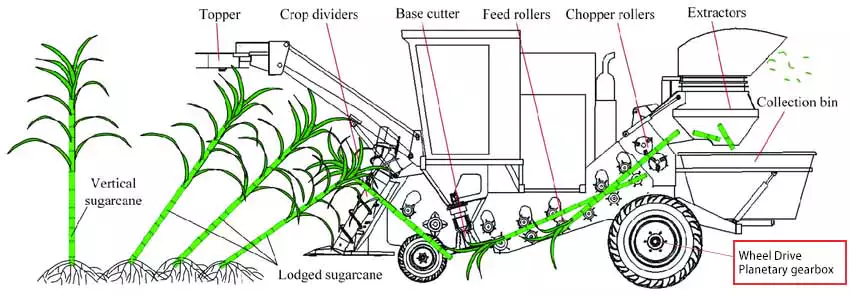

Other Sugar Harvester Parts

• Topper, also known as a cutter or top cutter, is used to cut off the stem and leaves of sugarcane during harvesting, reducing impurities from entering the subsequent processing stage.
• Crop Dividers: Crop dividers ensure that the sugarcane bushes are evenly separated and guided inside the machine, avoiding accumulation and blockage.
• Case cutter, also known as a shell cutter, is responsible for peeling the outer hard shell of sugarcane in order to further extract the internal sugar containing juice.
• Feed Rollers: Feed rollers, which smoothly feed sugarcane into the machine through rotational motion and compress the sugarcane for subsequent cutting and crushing.
• Chopper Rollers: Chopper rollers are used to finely cut sugarcane, making it easier to extract more juice.
• Extractors: Juicing device, which extracts sugar juice from chopped sugarcane through squeezing and other methods, is the core component of the sugar squeezing process.
• Wheel Drive: The wheel drive system, including a wheel drive planetary gearbox reducer, provides power transmission and speed control for the entire sugarcane harvester, ensuring efficient operation in complex terrain.
