WJ Series Worm Gear Speed Reducer

WJ Series Worm gear Speed Reducer WJ40,WJ49,WJ62,WJ87

1.Brief introduction

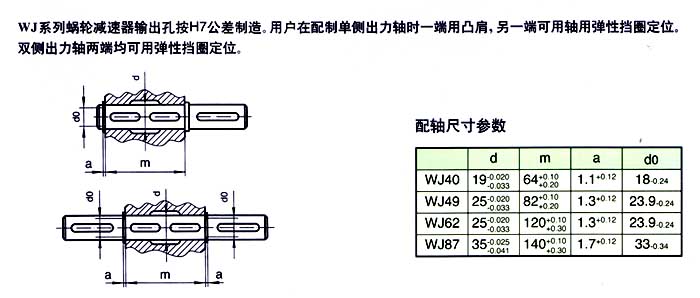

WJ series worm-gear speed reducer is novel, the appearance is beautiful, small, Heavy to output moment, steady transmission have, little noise have. Can unite with electrical machinery or a stepless derailleur of awl of UD series planet directly, the structure is compact. Worm gear output for hole, user mix incline and exert oneself axle only, too can mix pair incline and exert oneself axle, There is greater flexibility.

2.Type and selecting for use

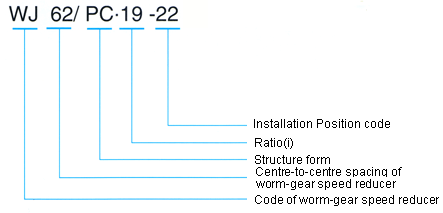

1.Model & Mark2. moderate worm gear not WJ series because there aren't device , can consult when being choose by" install by orientation diagram".3.moderate there aren't device , If user demand mix electrical machinery explain at the time of ordering . So long as user get form ready 12 fixed electrical machinery, produce electrical machinery axle insert pole in in the hole when installing, Then worm gear hookup flange and flange regular to can use while being kind electrical machinery that case mix.

3.Use and maintain

Worm gear that our factory make moderate device scribble leak protection performance good fluid sealant already the all joint, Full GB5903-86 up already when dispatching from the factory , hit rounds of oil, industry of load, one , separate and should transfer to new oil once half a year when using.

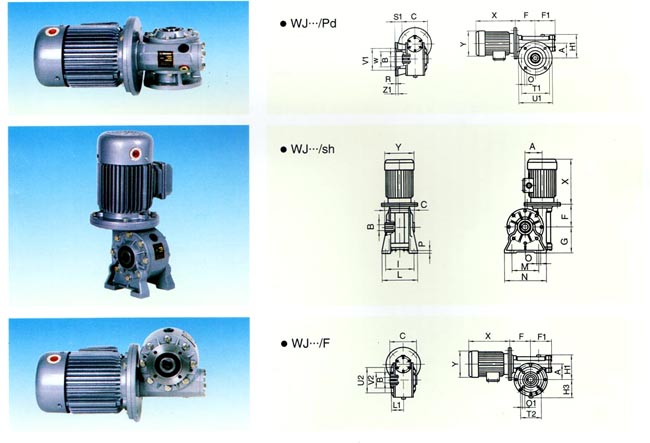

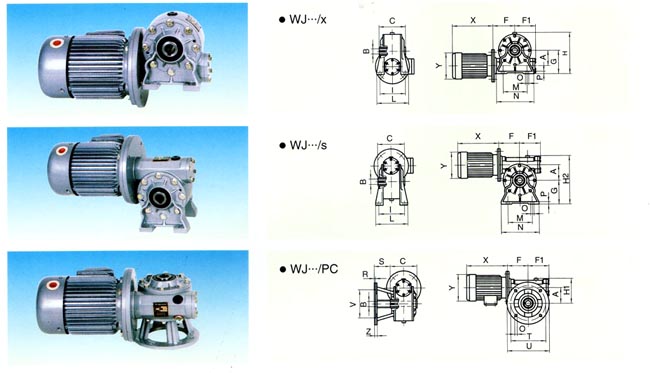

4.Structure graphic presentation of appearance

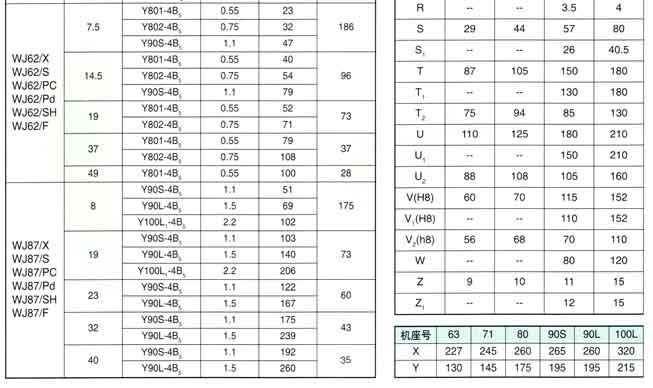

5.Performance parameter

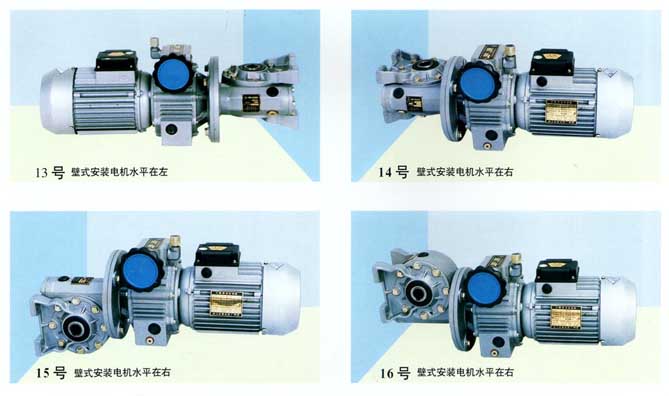

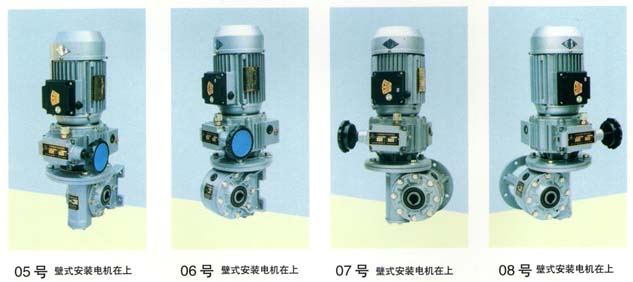

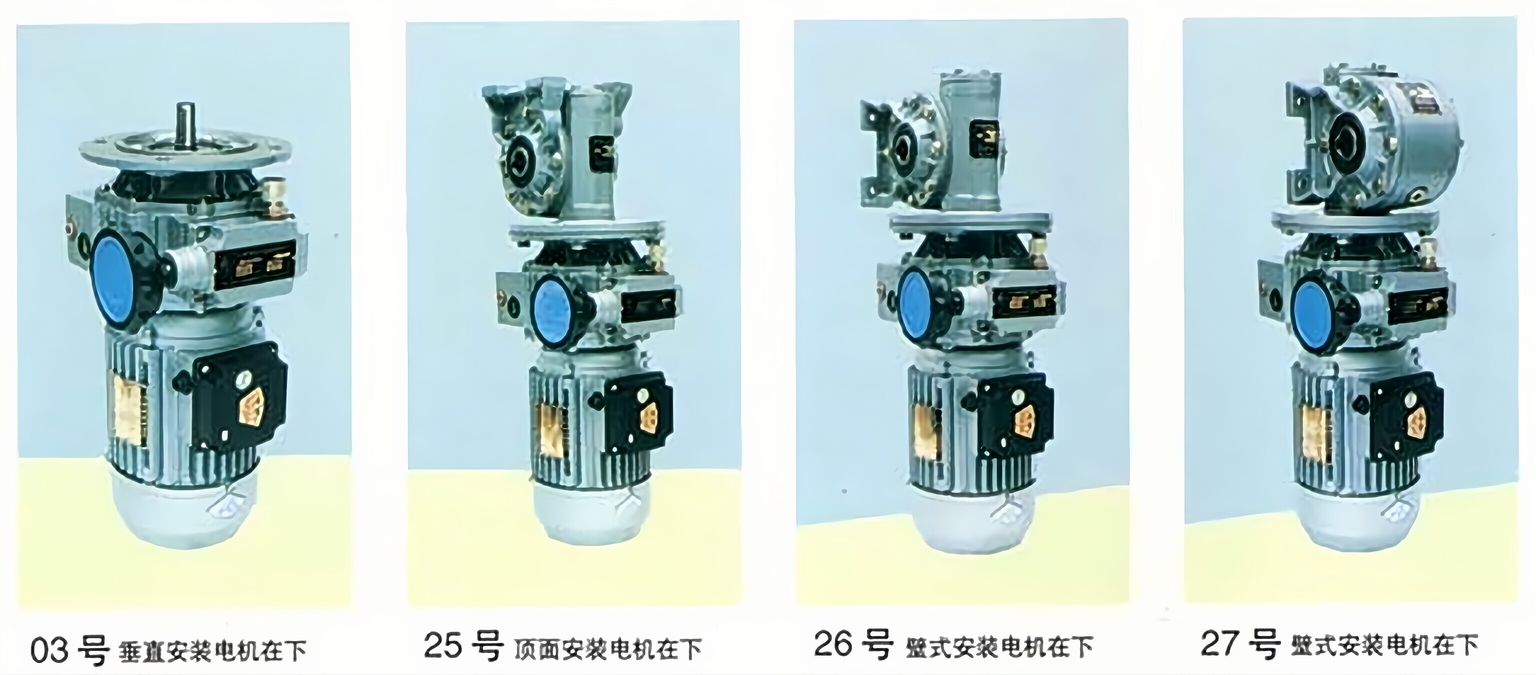

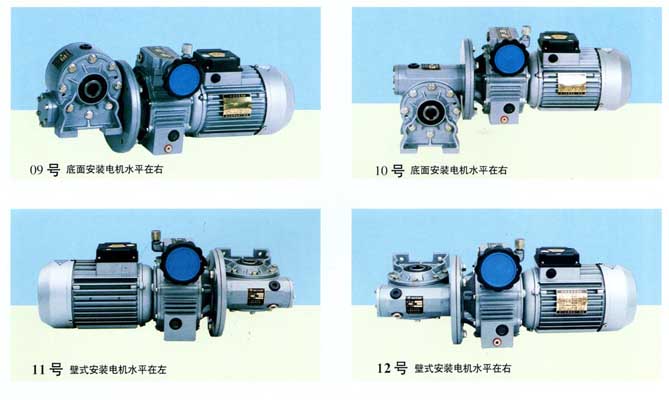

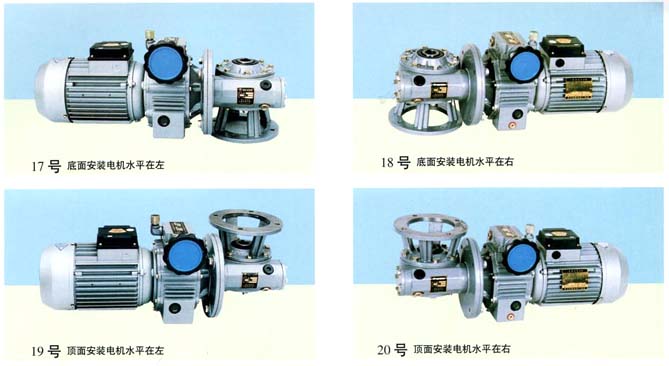

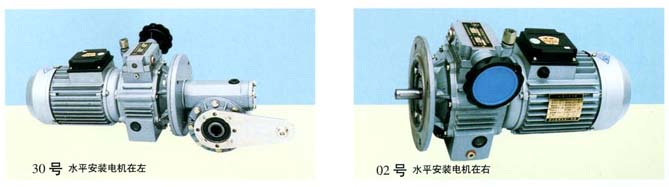

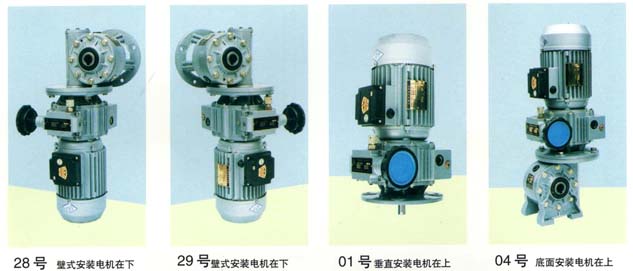

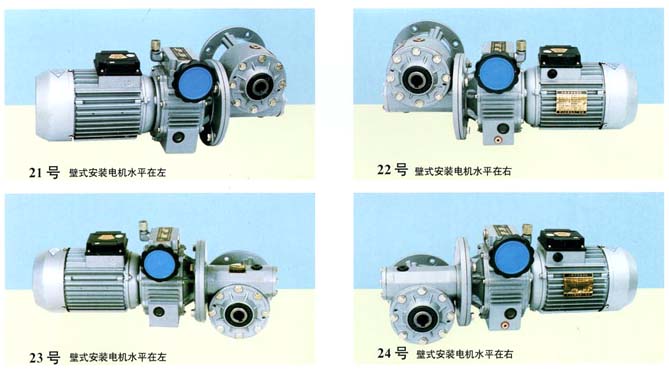

6.Install the picture collection of the position
