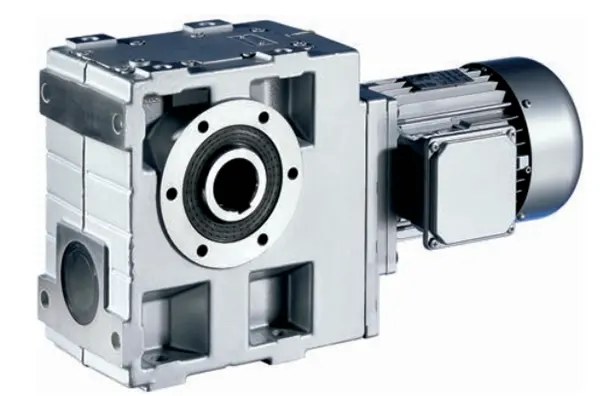

Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07

Introduction

The Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07 is a low-noise driving component. This compact drive unit is widely used in combination with three-phase AC motors and servo motors. They are designed with 2-stage and 3-stage gearboxes with a maximum torque of 1250 Nm and a transmission ratio of up to i=1847. When used with the decentralized frequency inverter 8400 motec, the power range of the drive package can reach up to 7.5 kW.Our company offers Lenze brand replacement helical-worm gearbox, which is of good quality and affordable. It is important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. If you need to purchase OEM parts, please contact the original supplier.

Features

• 2-stage and 3-stage gearboxes
• Hollow shaft with keyway or shrink disk
• Solid shaft with key
• Base or flange mounting
• Torque Plate, including rubber buffers

2-stage and 3-stage gearboxes

The 2-stage and 3-stage gearboxes are designed to provide high transmission ratios and torque capacities. They have a maximum torque of 1250 Nm and a transmission ratio of up to i=1847, making them ideal for a wide range of applications.

Hollow shaft with keyway or shrink disk

The hollow shaft with keyway or shrink disk allows for easy and secure mounting of the gearbox onto the driven shaft. The keyway or shrink disk ensures a tight fit and prevents slippage.

Solid shaft with key

The solid shaft with key is designed for direct coupling with the driven shaft. It provides a secure and rigid connection that is ideal for high torque applications.

Base or flange mounting

The base or flange mounting options provide flexibility in installation. The base mounting option is ideal for applications where the gearbox needs to be mounted on a flat surface, while the flange mounting option is suitable for applications where the gearbox needs to be mounted on a shaft.

Torque Plate, including rubber buffers

The torque plate, including rubber buffers, is designed to absorb shock and reduce vibration. This feature is particularly useful in applications where smooth operation is critical.

Possible Problems and Solutions

Possible Problems	Solutions
Overheating of gearbox	Check lubrication system, replace lubricant, reduce load on gearbox
Excessive noise	Check gear mesh, replace worn gears, adjust backlash
Leaking oil	Check seals, replace damaged seals, tighten bolts
Failure of bearings	Check lubrication system, replace damaged bearings, adjust preload
Excessive vibration	Check alignment, balance components, replace worn parts
Insufficient torque	Check lubrication system, replace worn gears, adjust backlash
Incorrect gear ratio	Replace gears with correct ratio
Damage to gearbox housing	Replace damaged housing, adjust mounting
Excessive wear on gears	Check lubrication system, replace worn gears, adjust backlash
Failure of input shaft	Check alignment, reduce load on gearbox, replace damaged shaft

Lenze Helical Worm Gearbox Replacement

Our company provides Lenze brand replacement helical-worm gearbox, which has several advantages over the original equipment:

• Good quality
• Affordable price
• Replacement parts
• Customizable to specific applications

It is important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. If you need to purchase OEM parts, please contact the original supplier. We also welcome customers to provide customized specifications for their specific applications.

Maintenance of Helical Worm Gearbox

The Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07 requires regular maintenance to ensure optimal performance:

• Check lubrication system regularly
• Replace lubricant as needed
• Inspect gears for wear and damage
• Adjust backlash as needed
• Check seals for leaks and damage
• Replace damaged seals as needed
• Inspect bearings for wear and damage
• Replace damaged bearings as needed
• Check alignment regularly
• Inspect housing for damage and wear

Regular maintenance will help extend the life of the gearbox and ensure reliable performance.

Motors for Worm Gear Reducers

The Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07 can be used with a wide range of motors:

• Three-phase AC motors with a power range of 0.12 to 15 kW that comply with the ErP directive
• Servo motors with a power range of 0.25 to 11.3 kW
• Drive packages with a power range of up to 7.5 kW when used with the decentralized frequency inverter 8400 motec

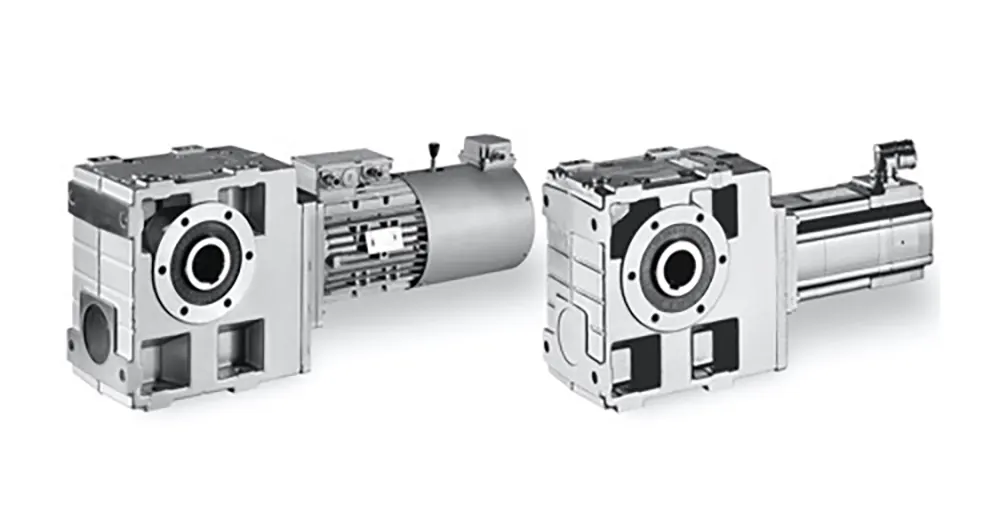

When used in combination with integrated three-phase AC motors and servo motors, the helical-worm gearbox forms a compact and efficient drive unit. The wide range of drive and output options allows the drive unit to be precisely matched to your specific application. Our company also provides various types of electric motors for sale.It is important to note that the motor and gearbox are critical components of the drive system and must be carefully selected to ensure optimal performance and compatibility.At Raydafon, we offer a wide range of high-quality transmission equipment, including the Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07. We have over 20 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, and other regions. Our mission is to provide our customers with high-quality, energy-efficient, and stable production. We take pride in our advanced production equipment and testing equipment, as well as our team of industry professionals and technicians, who carry out innovative research and development and manufacturing. We use standardized production management methods to strictly control every aspect of the production of reducers, and provide customers with the best service, highest product quality, and competitive prices.Explore our products and contact us to purchase today.

Q&A

Q: What is the maximum torque of the Worm Gear Reducer-Replacement of Lenze GSS Series Helical-Worm Gearbox GSS07?

A: The maximum torque is 1250 Nm.

Q: Can the helical-worm gearbox be used with servo motors?

A: Yes, the helical-worm gearbox can be used with servo motors with a power range of 0.25 to 11.3 kW.

Q: Does Raydafon provide OEM parts?

A: No, we only provide replacement parts. If you need to purchase OEM parts, please contact the original supplier.
