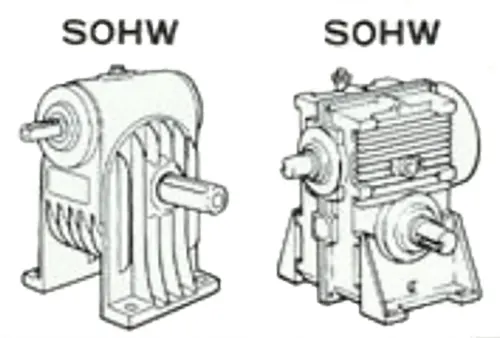

Worm Gear Reducer-Replacement of Mitsubishi Heavy Worm Gear Unit SOHW Series Base Mounting Single Stage Reducer SOHW65L-5

Introduction

The SOHW series worm gear reducer is a highly efficient, durable, and compact gearbox designed for various industrial applications. With its advanced features and robust structure, it ensures efficient power transmission, reduced energy consumption, and long-term reliability. This reducer is particularly suitable for precision machinery, steel rolling machinery, semiconductor manufacturing equipment, aerospace industry, rubber processing machinery, printing machinery, and textile machinery, making it an excellent choice for improving operational efficiency and productivity.

Mitsubishi Replacement Worm Reducer

At Raydafon, we offer Mitsubishi-branded replacement worm reducers that are of high quality and available at competitive prices. It is important to note that our products are replacement parts and not original manufacturer parts. For purchasing original manufacturer parts, please contact the original supplier.

Applications

The SOHW65L-5 worm gear reducer can be used in various fields. Here are some examples:

• Precision Machinery
• Steel Rolling Machinery
• Semiconductor Manufacturing Equipment
• Aerospace Industry
• Rubber Processing Machinery
• Printing Machinery
• Textile Machinery

Mitsubishi Worm Gear Reducer Replacement

• High-quality replacement for Mitsubishi brand worm gear reducers
• Competitive prices
• Replacement parts, not original manufacturer parts
• Customization available based on customer requirements
• Wide range of compatibility with Mitsubishi models

Our replacement worm gear reducers are of high quality and available at competitive prices. It is important to note that these are replacement parts, not original manufacturer parts. For purchasing original manufacturer parts, please contact the original supplier. We welcome customers to explore our products and contact us for purchases.

Disassembly Method of Worm Gear Reducer

1. Preparation:

• Power Off: Ensure that the equipment power is completely turned off and locked to prevent accidental startup.
• PPE: Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
• Clean Area: Ensure that the work area is clean to avoid contamination of internal components.
• Tools: Gather all necessary tools, such as wrenches, screwdrivers, and cranes or lifting equipment (if required).
• Record Assembly: Take photos of the current assembly and make notes for reference during reassembly.

2. Disassembly Steps:

• Mounting Hardware: Remove all external mounting bolts or brackets that secure the reducer to the base or connecting equipment.
• Shaft Attachments: Disconnect all components or couplings connected to the input and output shafts of the reducer.
• Drain Lubricating Oil: Place a container below the gear reducer, remove the drain plug, and allow the synthetic oil to completely drain.
• Oil Inspection: Check the drained oil for contaminants or metal particles, which may indicate internal issues.
• Remove External Covers and Guards: Unscrew and remove all external covers, guards, or shields on the reducer to access the internal components.
• Disassemble the Gear Reducer:
• End Cover: Remove the bolts that secure the end cover to the reducer housing. Lift the end cover carefully.
• Gear Assembly: Remove the worm gear or other internal gears, taking note of their orientation and position. Use appropriate tools to remove any retaining rings or fasteners.
• Bearings: If necessary, carefully remove the bearings using a bearing puller or similar tool.
• Remove Internal Components:
• Worm: Remove the worm from the gearbox housing, ensuring no damage is caused to surrounding components.
• Output Shaft: Carefully detach the output shaft from the gear reducer.
• Other Components: Remove any other internal components as needed, following the same precautionary measures to avoid damage.

3. After Disassembly:

• Storage:
• Organize Parts: Arrange all parts of the reducer and label them to assist with reassembly.
• Protect Components: Store the components in a clean and dry place to prevent damage.
